Overview

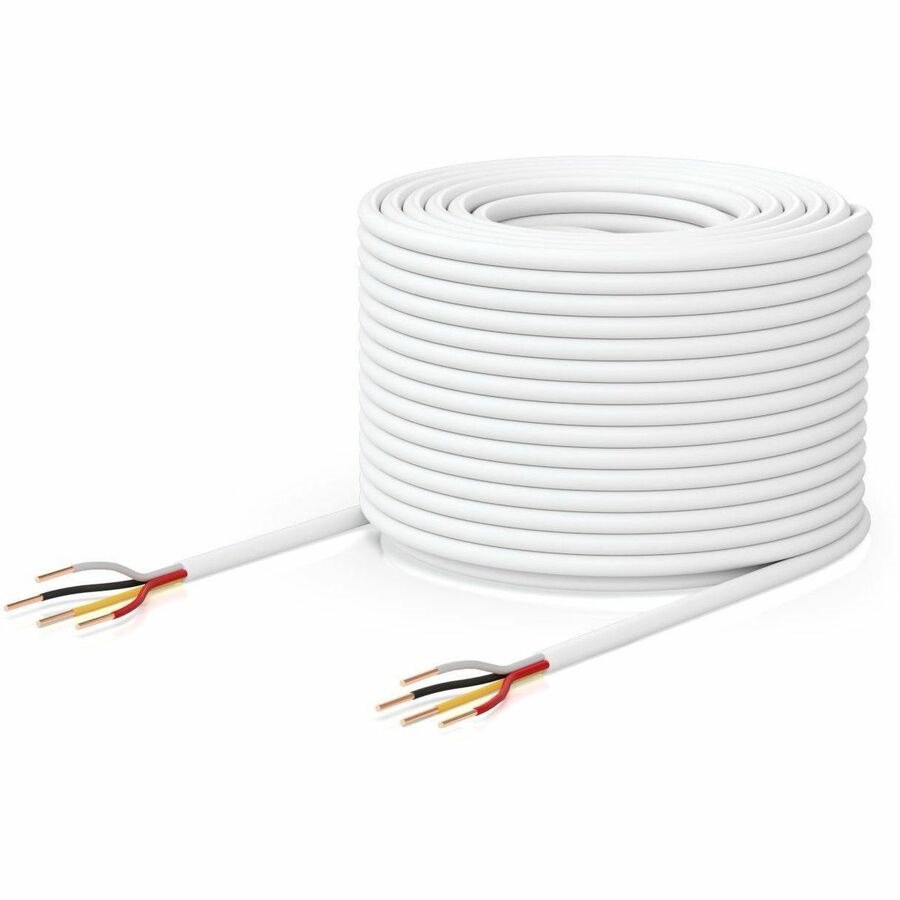

This 500-foot (152.4 m) spool of low-voltage cable provides reliable connectivity for access control and supporting infrastructure deployments. Designed to support one or two-pair configurations, it enables flexible wiring for professional installations requiring dependable signal and power transmission.
Intelligence
Built for compatibility within UniFi access ecosystems, the cable supports integration with locks, readers, hubs, and related peripherals. Its low-voltage construction ensures suitability for structured access control wiring while allowing installers to standardize cabling across device types.
Features
Supplied in a 500-foot spool, the cable allows efficient routing for extended runs in commercial or institutional facilities. One or two-pair configurations provide adaptability across varying connection requirements, supporting scalable installation planning and deployment consistency.
Applications
Access control infrastructure wiring
Reader, lock, and hub connectivity
Commercial or institutional system deployments
Retrofit or expansion projects requiring low-voltage cabling
Compatibility
UA-Lock-Magnetic
UA-G2-SK-Pro
UACC-Lock-Strike-Secure-15mm
UA-G2-SK
UACC-Lock-Strike-Safe-15mm
EAH-8
UA-G3-SK-Pro
UA-Hub-Door
UA-G3-SK
UA-Hub-Gate
UA-Hub-Door-Mini
UA-Button
UACC-Retrofit-PSU-12V
UA-Retrofit-Reader
UA-Retrofit-Hub-2
General
• Length: 152.4 m (500 ft)
• Supported Voltage Range: 36 VDC
Materials
• Conductor: Solid Bare Copper
• Jacket: Thermoplastic Elastomer (TPE)
• Insulation: Semi-Rigid Polyvinyl Chloride (SR-PVC)
Insulation / Conductors
• UACC-Cable-DoorLockRelay-2P:
• Color Coding: Black/Red (18 AWG); Amber/White (22 AWG)
• Wire Gauge: 18 / 22 AWG
• Number of Conductors: 4
• UACC-Cable-DoorLockRelay-1P:
• Color Coding: Black/Red (18 AWG)
• Wire Gauge: 18 AWG
• Number of Conductors: 2
Electrical Ratings
• Current Rating:
• 18 AWG: 2 A (500 ft Length)
• 22 AWG: 1 A (500 ft Length)
• Conductor DCR:
• 2P: 23.2 Ω/km (18 AWG); 59.4 Ω/km (22 AWG)
• 1P: 23.2 Ω/km (18 AWG)
Flame Rating
• VW-1
Cable Construction
• Jacket Outer Diameter:
• 2P: 4.5 mm (0.18")
• 1P: 4.2 mm (0.17")
• Jacket Color: White
• Bend Radius:
• 2P: 56 mm (2.2")
• 1P: 33 mm (1.3")
• Pulling Tension:
• 2P: 24.2 kgf
• 1P: 16.4 kgf
Weight
• UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb)
• UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
Environmental
• Storage Temperature: −45°C to +65°C (−40°F to +149°F)
• Operating Temperature: −45°C to +65°C (−40°F to +149°F)
