UniFi Next-Generation Security Gateway (Compact Desktop)

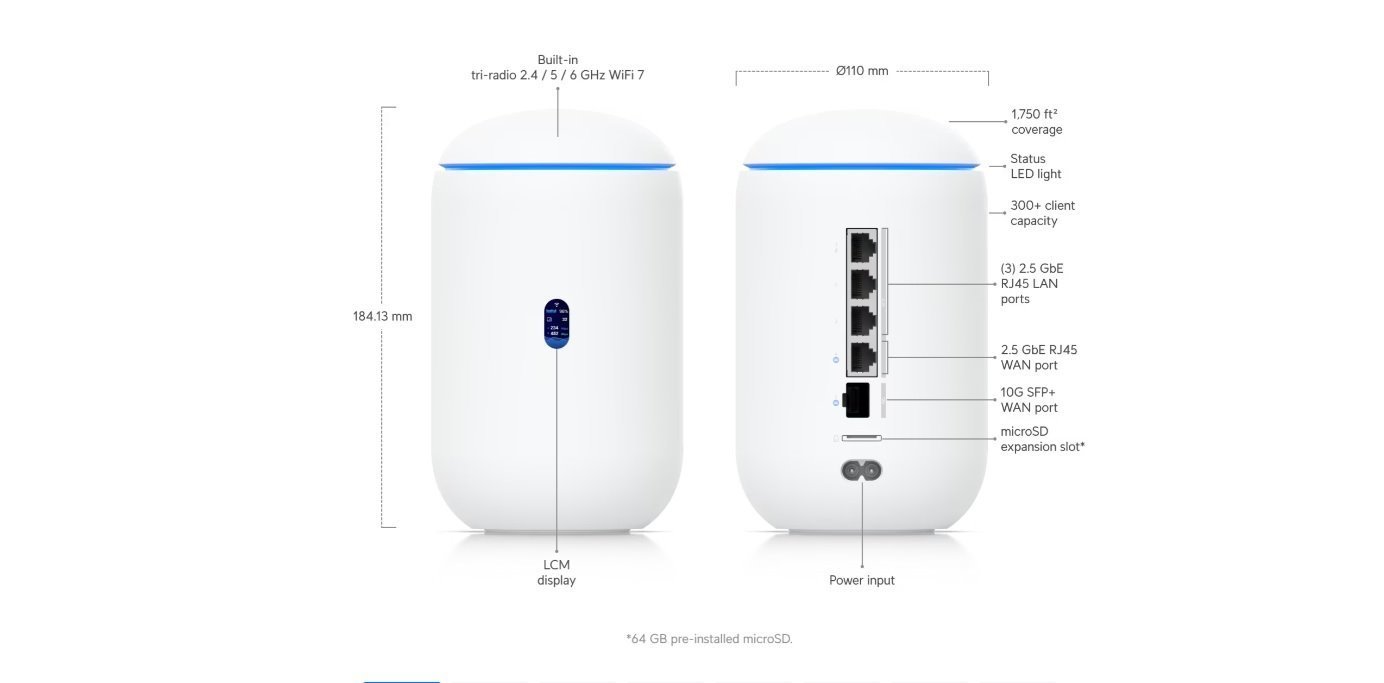

Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3”)
Coverage Area: 160 m² (1,750 ft²)

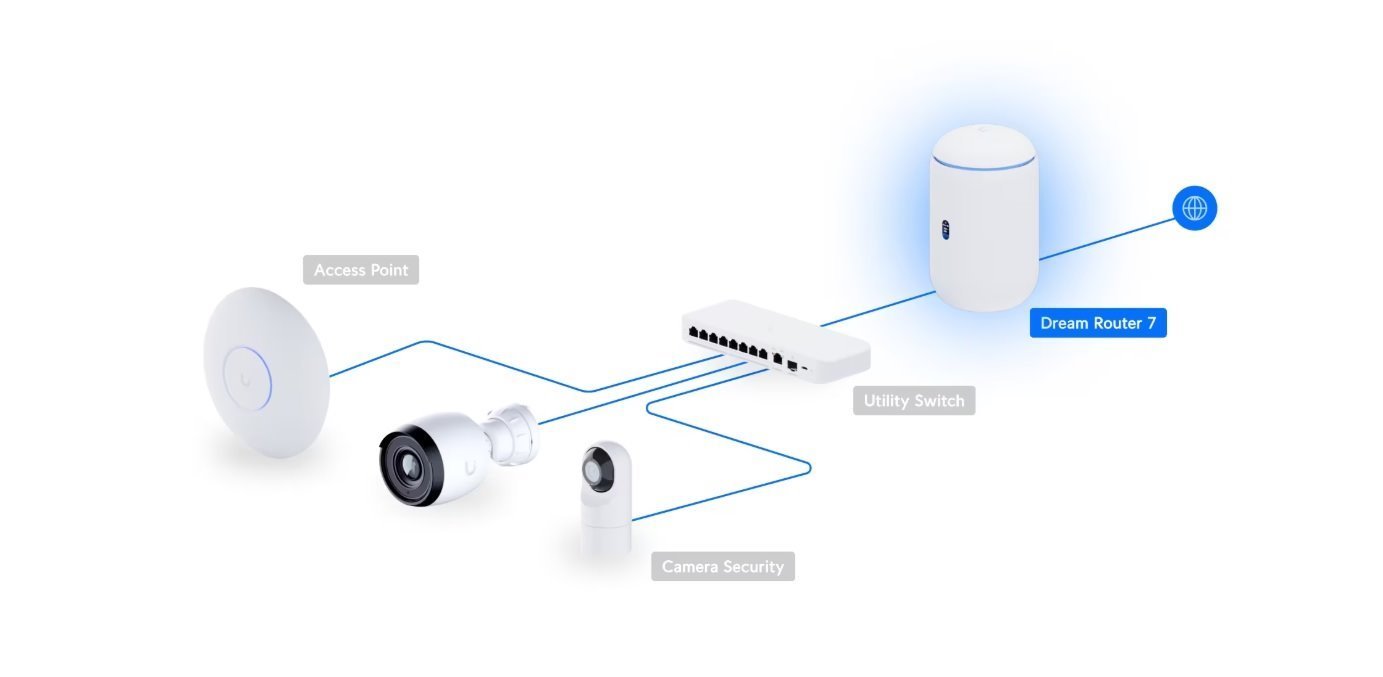

Managed Devices: 30+ UniFi devices, including 8 cameras (5 HD / 2 2K / 1 4K)
Concurrent Users: 300+

Performance & Connectivity

• WAN Ports: 4 total (1× 10G SFP+, 1× 2.5GbE RJ45 default)

• LAN Ports: 4× 2.5GbE RJ45 (1 PoE)

• Throughput (IDS/IPS): 2.3 Gbps

• Multi-WAN Load Balancing / Dynamic Routing (OSPF)

• Advanced QoS / NAT / DHCP / IPv6 Support / RADIUS / Failover via LTE Backup

Integrated WiFi

• Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)

• Max Speeds: 6 GHz – 5.7 Gbps | 5 GHz – 4.3 Gbps | 2.4 GHz – 688 Mbps

• MIMO: 2x2 (DL/UL MU-MIMO) across all bands

• Wireless Security: WPA/WPA2/WPA3 Enterprise & PPSK

Security & Firewall

• Stateful & Application-Aware Layer 7 Firewall

• Intrusion Detection & Prevention (IDS/IPS) with 20,000+ Signatures

• Zone-Based & Content Filtering, Ad Blocking, VLAN/Subnet Segmentation

• DPI & Traffic Identification

VPN & SD-WAN

• License-Free SD-WAN

• Site-to-Site VPN (Site Magic, IPsec, WireGuard, OpenVPN, L2TP)

• One-Click Remote VPN (Teleport, Identity Endpoint)

Hardware & Power

• Processor: Quad-core ARM® Cortex®-A53 1.5 GHz | Memory: 3 GB

• Storage: 64 GB pre-installed microSD (expandable)

• PoE Output: 15.4W | Power Consumption: 26W (excl. PoE)

• Power Supply: Internal AC/DC 50W (100–240V AC)

• Weight: 1.1 kg (2.4 lb) | Material: Polycarbonate

• Operating Temp: -10 to 40°C | Humidity: 5–95% non-condensing

• Certifications: CE, FCC, IC, Anatel (05650-25-08356), NDAA Compliant

Management & Software

• Managed via UniFi Application Suite (Network, Protect, Access, Talk, Connect)

• Supports VLAN 802.1Q, Guest Isolation, Policy-based Routing, and Advanced Filtering

• Interface Options: Ethernet & Bluetooth

• Display: 0.96" Status LCM
