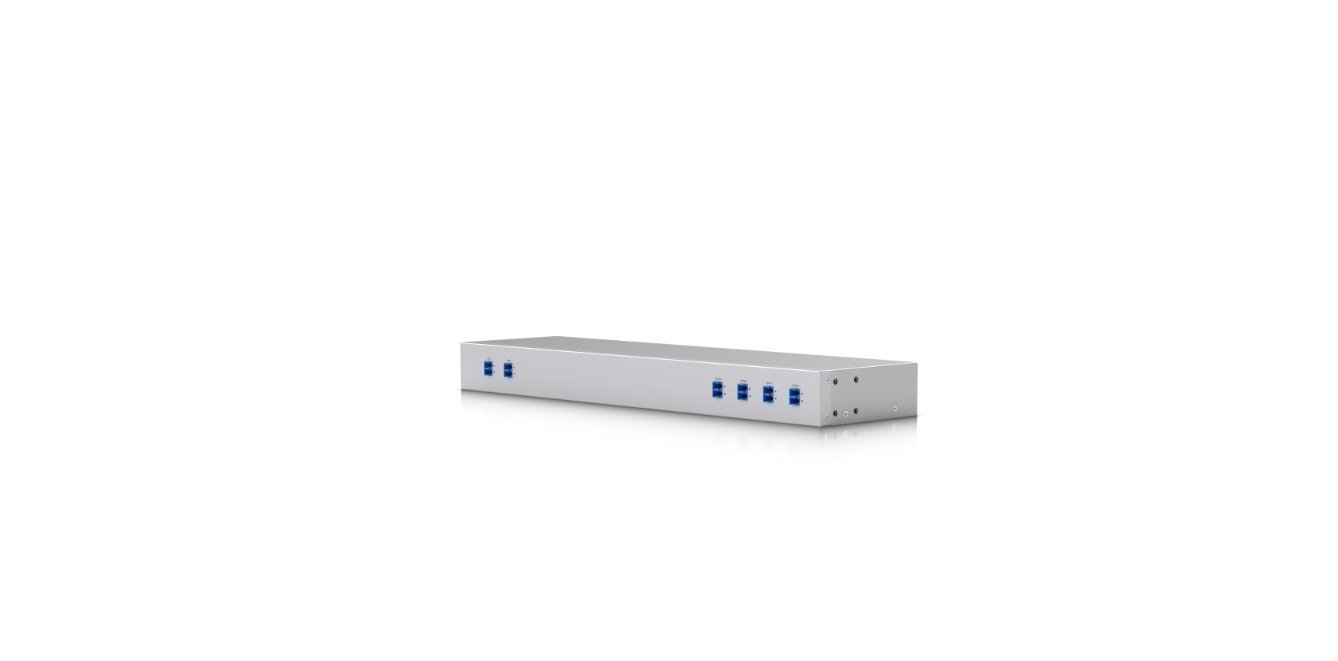

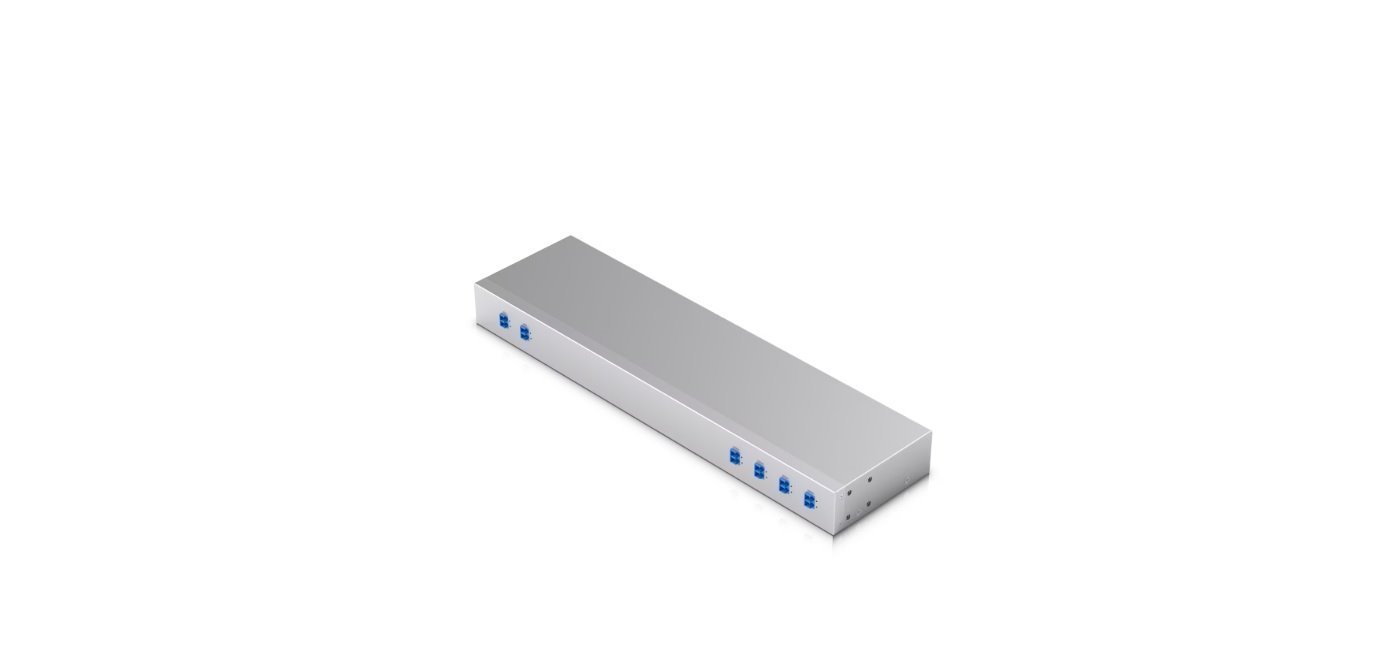

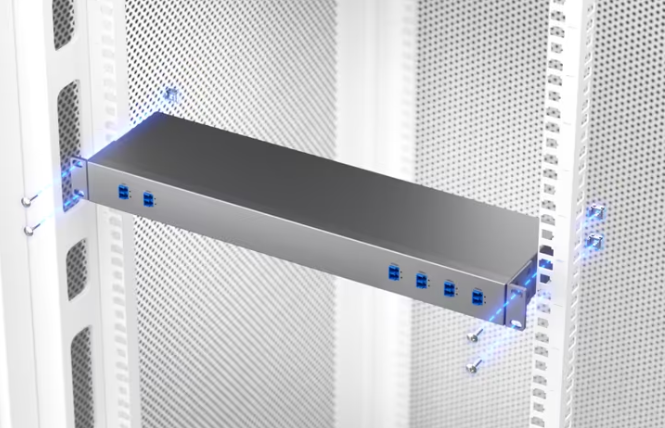

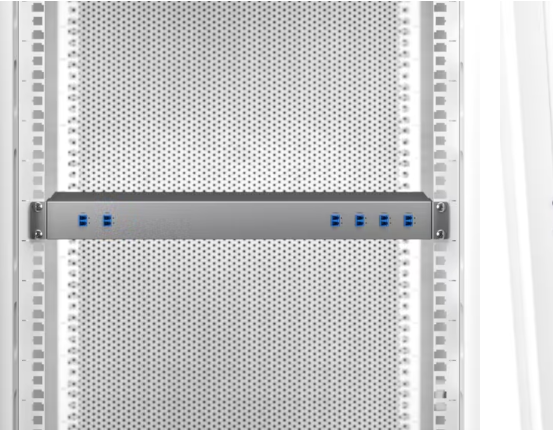

Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.

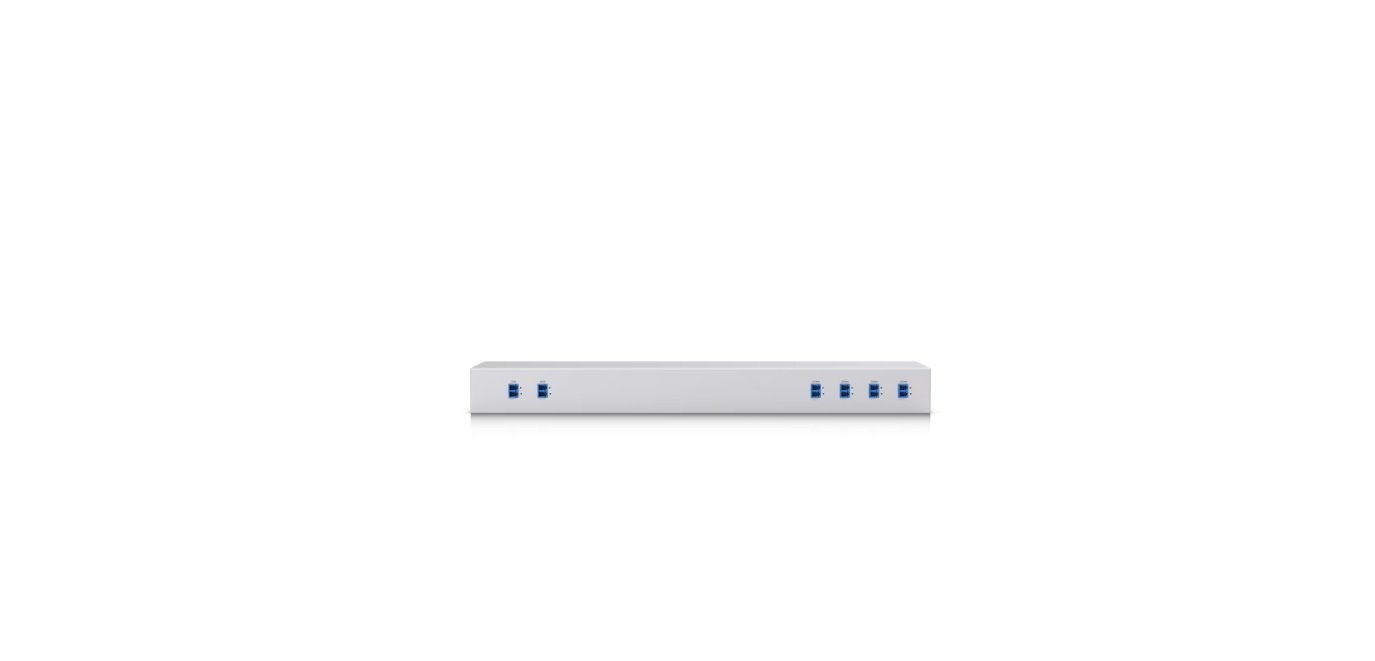

(4) 1270 to 1330 nm channel ports

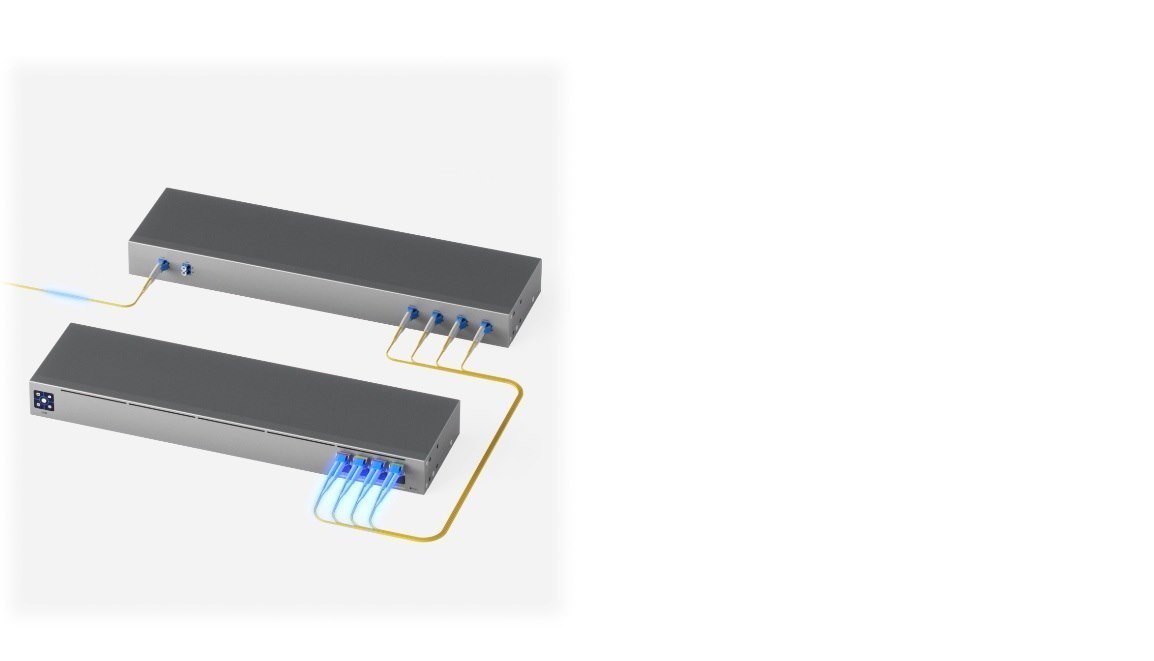

(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
Physical
Dimensions: 442 × 120 × 43.7 mm (17.4 × 4.7 × 1.7")
Enclosure Material: SGCC steel
Weight: 1.4 kg (3.2 lb)
Pigtail & Connector Type: 0.9 mm white LC/UPC pigtails
Connectors:
(1) COM (LC/UPC)
(1) MON (LC/UPC)
(1) LC/UPC port per channel (1270→1330 nm)
Optical
Fiber Type: SMF-28e
Pigtail Length: ≥0.5 to 1 m
Channel Count: 4-channel Mux/Demux
Channel Center Wavelengths: 1270 / 1290 / 1310 / 1330 nm
Min. Channel Passband: ±6.5 nm
Performance
Insertion Loss: <1.5 dB (Max.)
Isolation:
Adjacent Channel: Max. 30 dB
Non-Adjacent Channel: Min. 40 dB
Return Loss: 50 dB (Min.)
Directivity: 55 dB (Min.)
Max. Passband Ripple: 0.3 dB
Max. Polarization Dependent Loss (PDL): 0.1 dB
Max. Polarization Mode Dispersion (PMD): 0.1 ps
Max. Power Handling: 500 mW
Environmental
Operating Temperature: –30 to 75°C (–22 to 167°F)
Storage Temperature: –40 to 90°C (–40 to 194°F)
NDAA Compliant: ✓
