Physical & Power

• Dimensions: 471.1 × 257.5 × 94.3 mm (18.6 × 10.1 × 3.7")

• Weight: 3.2 kg (7.1 lb)

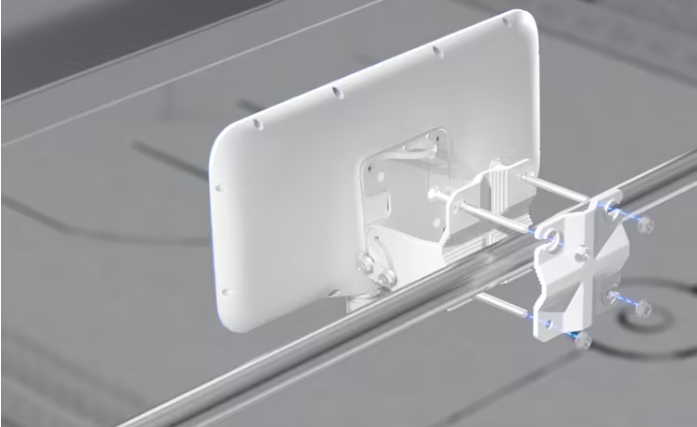

• Mounting: Wall / Pole (mounts included), VESA (optional)

• Weatherproofing: IP67

• Power Method: PoE++

• Max Power Consumption: 31W

• Supported Voltage: 44–57V DC

• Operating Temperature: –40 to 70°C (–40 to 158°F)

• Operating Humidity: 5–95% non-condensing

• Includes PoE Adapter: Yes

• NDAA Compliant

Networking & Interface

• WiFi Standard: WiFi 5 (802.11ac)

• Spatial Streams: 12

• Coverage Area: 465 m² (5,000 ft²)

• Max Client Count: 1500+

• Uplink Ports:

  • 1× GbE RJ45

  • 1× 1/10 GbE ICM Ethernet port

• Management: Ethernet, Bluetooth

• LEDs: System (R/G/B)

Radio Performance

• MIMO Configuration (5 GHz):

  • Low Band: 4×4 DL MU-MIMO

  • Vertical Band: 4×4 DL MU-MIMO

  • High Band: 4×4 DL MU-MIMO

• Max Data Rates (5 GHz):

  • Low Band: 1.7 Gbps (BW80)

  • Vertical Band: 1.7 Gbps (BW80)

  • High Band: 1.7 Gbps (BW80)

• Antenna Gain (5 GHz):

  • Directional internal: 15 dBi (50° × 50°)

  • Directional internal: 10 dBi (90° × 90°)

• Max TX Power (5 GHz): 25 dBm

• Max BSSIDs: 8 per radio

• Channel Bandwidths: HT/VHT/HE 20/40/80 MHz

• Operating Frequencies:

  • US/CA: U-NII-1/2A/2C/3

  • Worldwide: 5150–5250 MHz, 5250–5350 MHz, 5470–5670 MHz

Supported Data Rates

• 802.11ac (WiFi 5): 6.5 Mbps–1.7 Gbps (NSS1/2/3/4, VHT 20/40/80)

• 802.11n: 6.5 Mbps–600 Mbps (MCS0–23, HT 20/40)

Features

• Wireless Meshing

• Band Steering

• 802.11v BSS Transition Management

• 802.11r Fast Roaming

• 802.11k Radio Resource Management (RRM)

• Advanced Radio Management

• Passpoint (Hotspot 2.0)

• Captive Portal w/ Custom Branding

• Voucher / Payment / Password Authentication

• External Portal Server Support

• Guest Network Isolation

• Client Device Isolation

• WiFi Schedules

• RADIUS over TLS (RadSec)

• Dynamic RADIUS-assigned VLAN

Hardware

• Antennas: Integrated dual-mode antenna array

• Pole Mount Diameter: 1–3" (25–76 mm)

• Enclosure Material: Polycarbonate, aluminum alloy

Certifications

• CE, FCC, IC, Anatel: 08960-24-08356

Software Requirements

• UniFi Network version 6.0.45 and later
