General

• Length: 305 m (1,000 ft)

• Type: Category 6A

• Flame Rating: CMP (Plenum)

• Operating Environment: Indoor

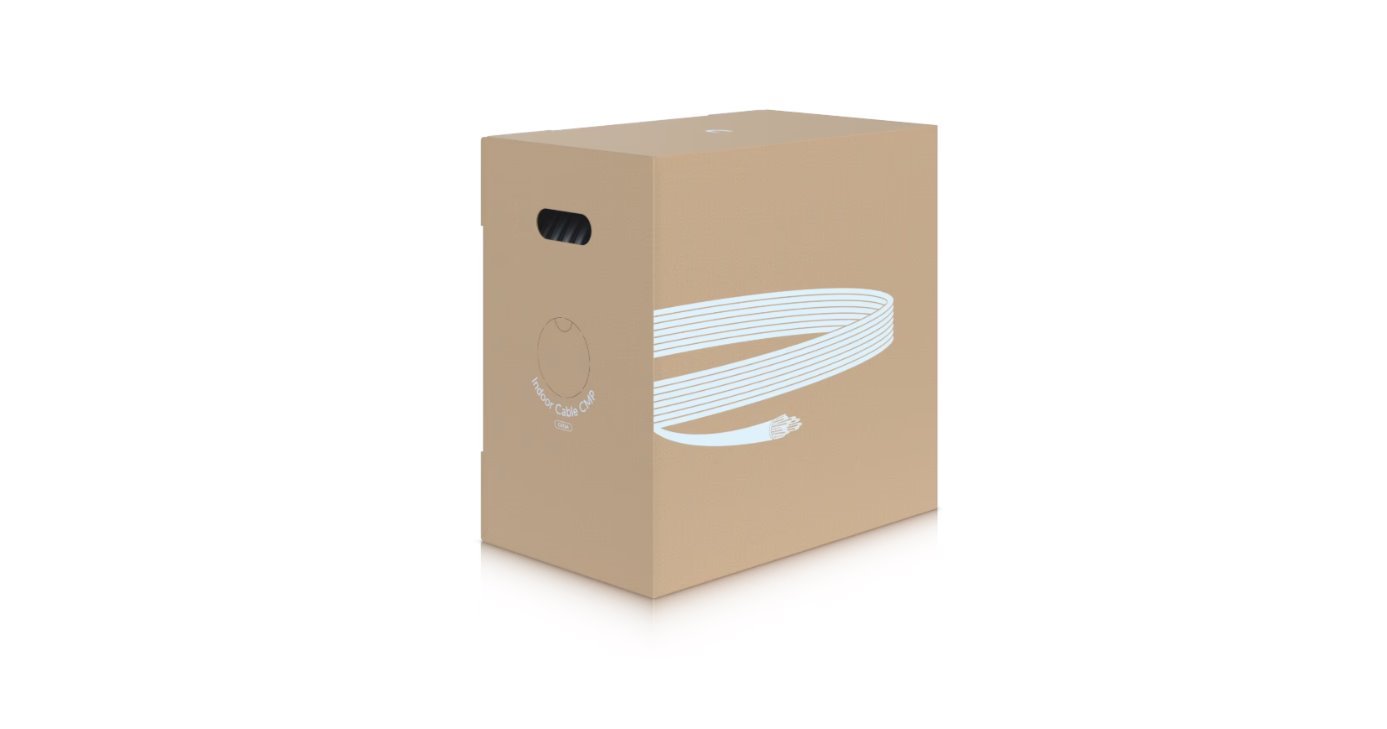

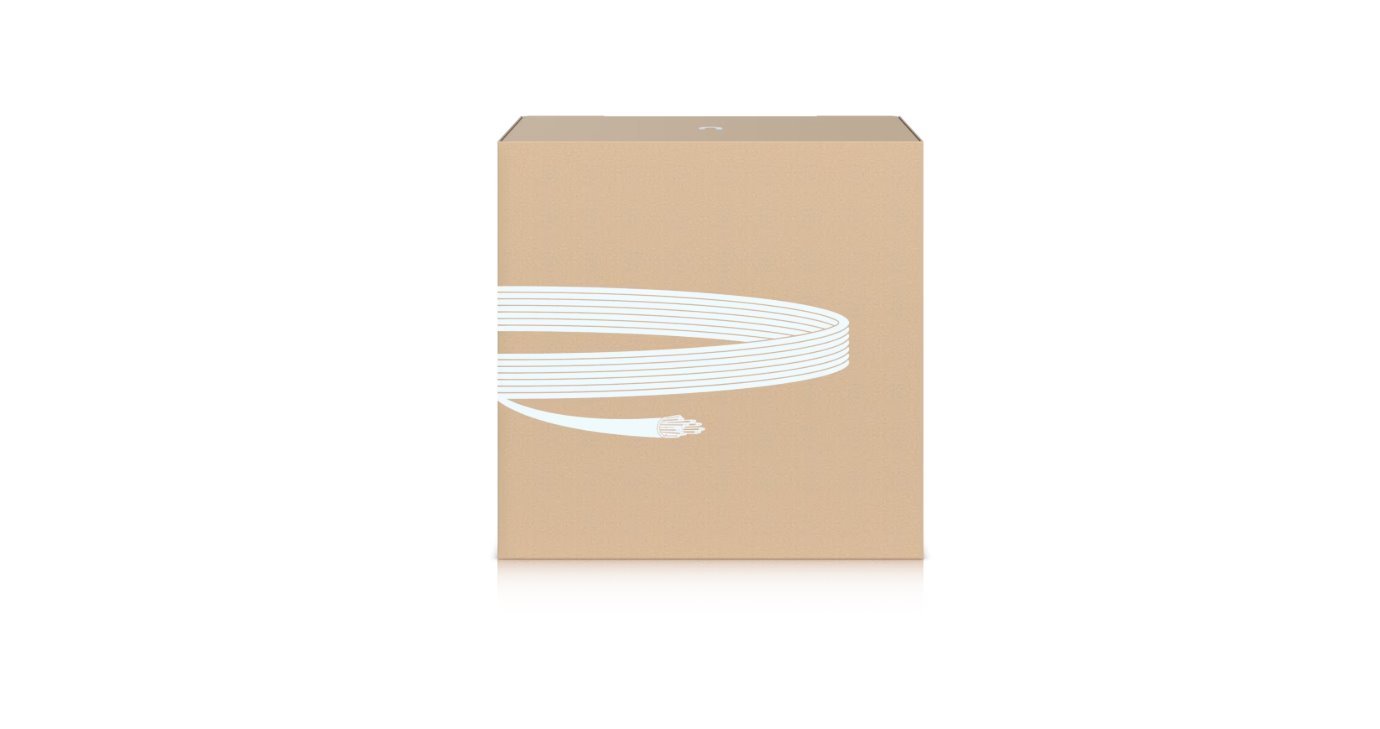

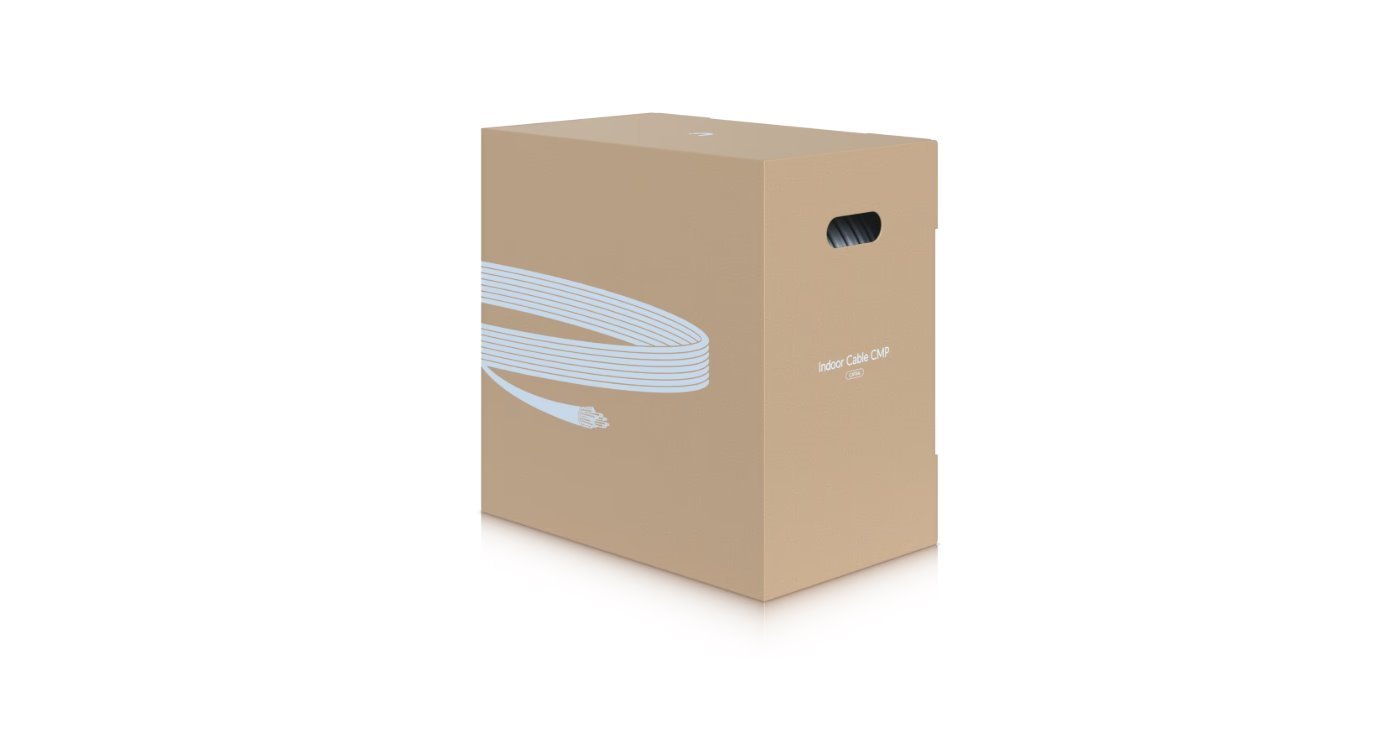

• Box Dimensions: 494 × 302 × 481 mm (19.4 × 11.9 × 18.9 in)

• Box Weight: 21.3 kg (47 lb)

Cable Construction

• Jacket Color: White

• Jacket Diameter: 6.7 ± 0.2 mm

• Jacket Material: Flame-retardant polyvinyl chloride (FRPVC)

• Shielding Type: UTP

• Conductor Type: Solid bare copper

• Conductor Gauge: 23 AWG

• Bend Radius: Minimum 26.8 mm (1.05 in)

• Twisting: 4 twisted pairs

  • Pair 1: White-Blue / Blue

  • Pair 2: White-Orange / Orange

  • Pair 3: White-Green / Green

  • Pair 4: White-Brown / Brown

• Anti-Crosstalk Divider: Yes

• Ripcord: Yes

Standards & Compliance

• Electrical Transmission:

  • ANSI/TIA-568.2-D

  • ISO/IEC 11801-1 (Edition 2.2)

  • IEC 61156-5 (Edition 2.1)

• Flame Test: NFPA 262 (CMP)

• Material & Construction:

  • UL 444

  • CSA 22.2 No.214

  • EU Directive 2011/65/EU (RoHS2)

  • EU Directive 2006/95/EC (LVD)

Environmental

• Installation Temperature: 0 to 60°C (32 to 140°F)

• Storage Temperature: -20 to 75°C (-4 to 167°F)

• Operating Temperature: -20 to 75°C (-4 to 167°F)
