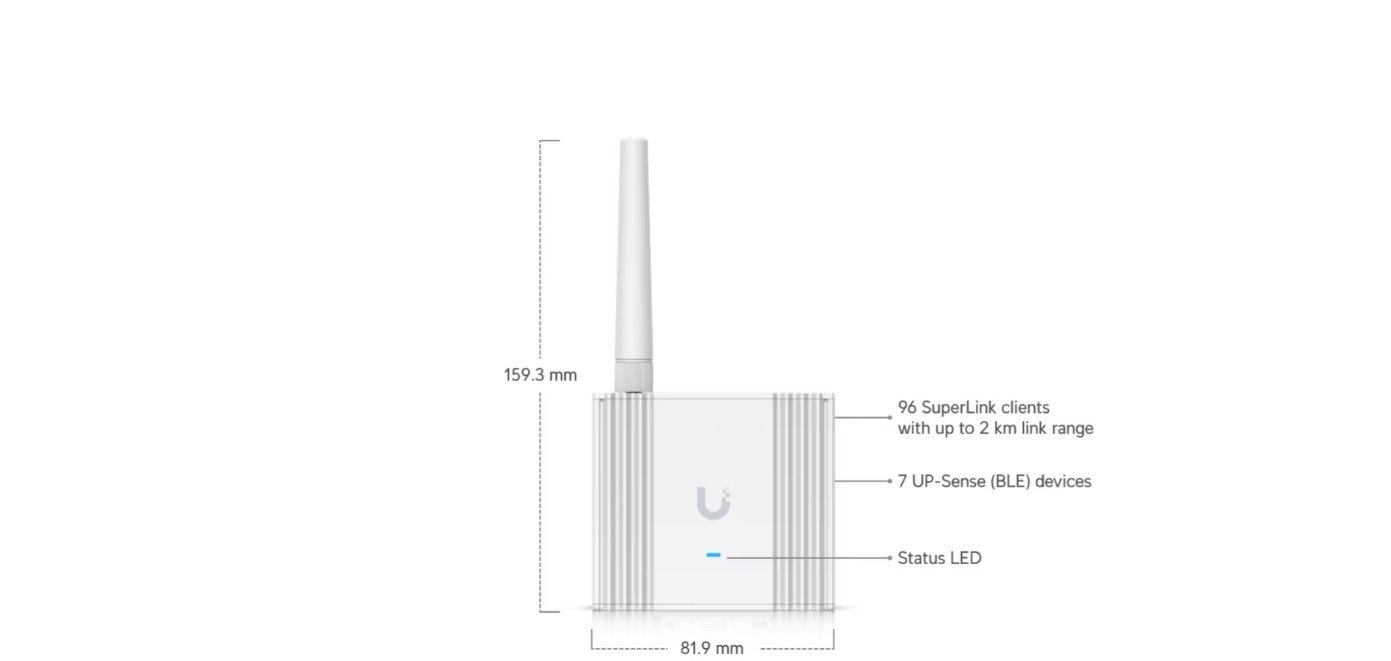

Dimensions

• With antenna: 159.3 × 81.9 × 26 mm (6.3 × 3.2 × 1")

• With DIN rail mount: 159.3 × 81.9 × 38.5 mm (6.3 × 3.2 × 1.5")

• With wall mount: 159.3 × 81.9 × 30.5 mm (6.3 × 3.2 × 1.2")

Weight

• 179 g (6.3 oz)

Construction

• Enclosure materials: Polycarbonate, aluminum alloy

• Mount materials: Polycarbonate

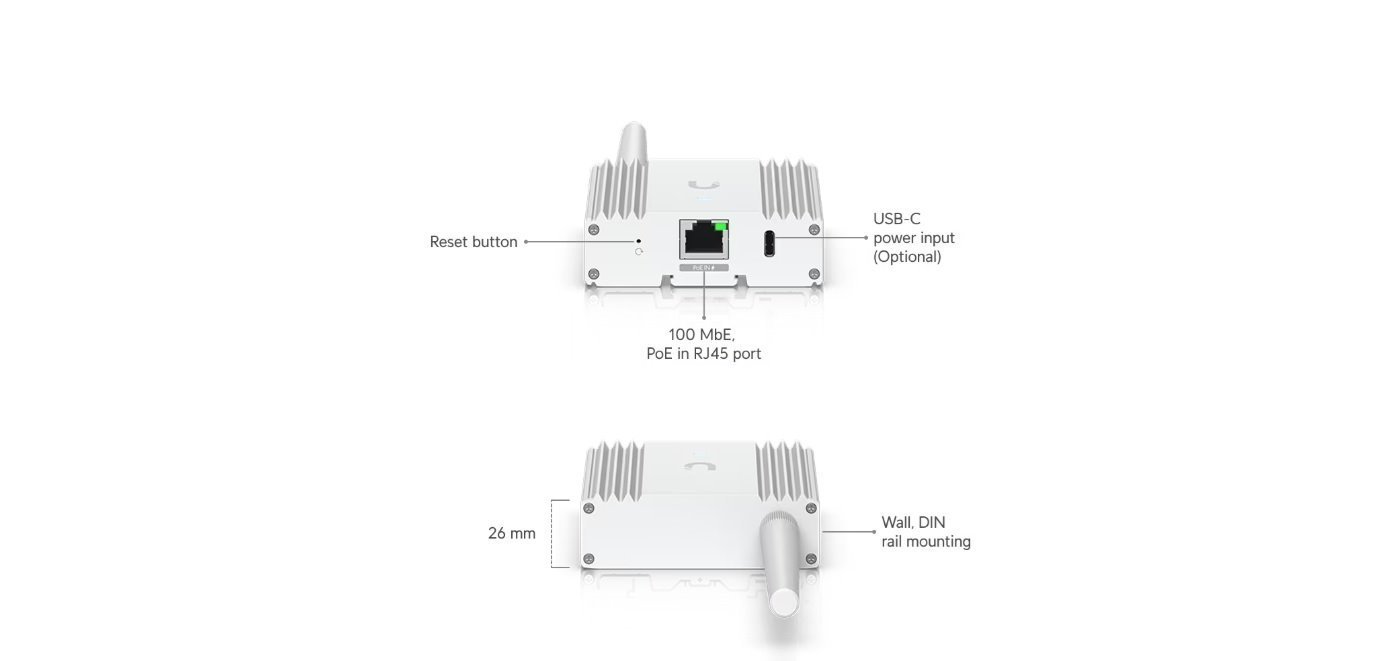

Networking & Interfaces

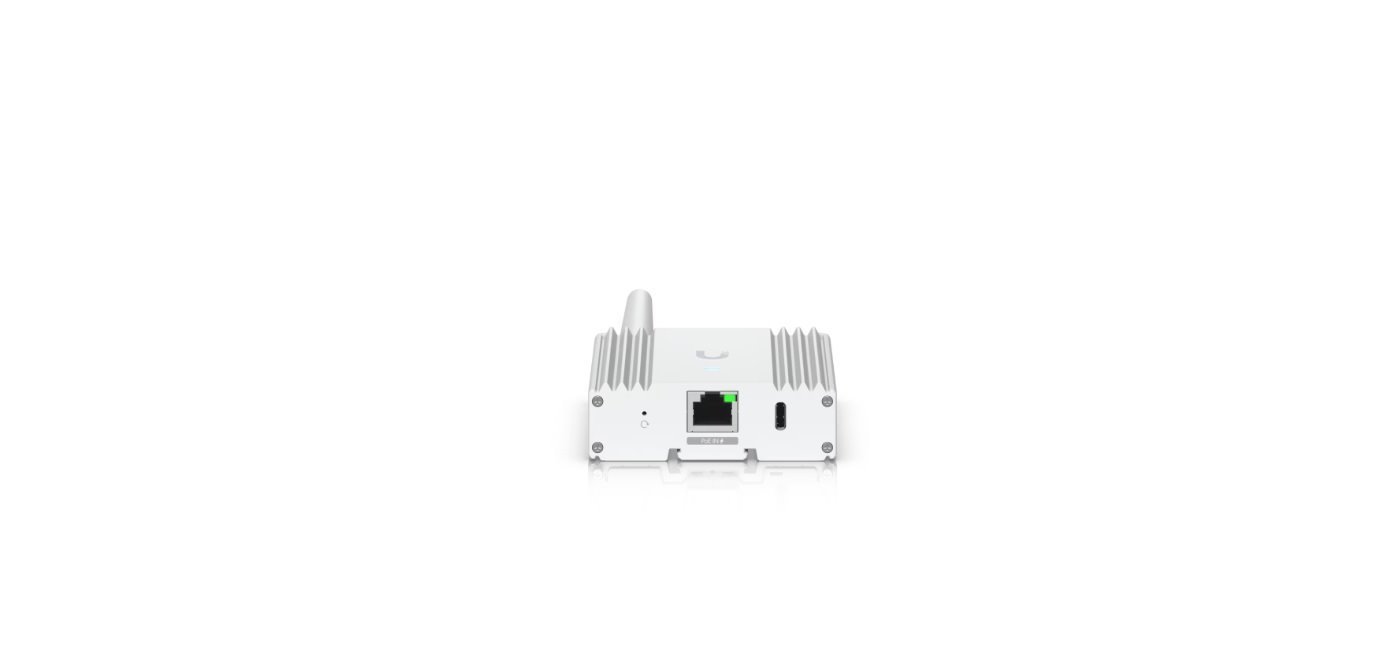

• (1) 10/100 MbE RJ45 port

• Bluetooth® 5.2 management interface

• SuperLink (proprietary) interface

Power

• Power method: PoE

• Optional: USB-C, 5V, 1A

• Max power consumption: 3.4 W

Wireless & RF

• Antenna gain:

  • Bluetooth: 3 dBi

  • SuperLink: 1 dBi

• Max TX power:

  • Bluetooth: 10 dBm

  • SuperLink: 27 dBm

Device Capacity

• Max clients:

  • Bluetooth: 7

  • SuperLink: 96*

  • SuperLink sensors coming soon

Controls & Indicators

• LED: Blue/white

• Button: Factory reset

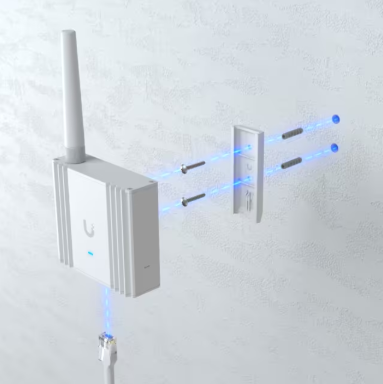

Mounting Options

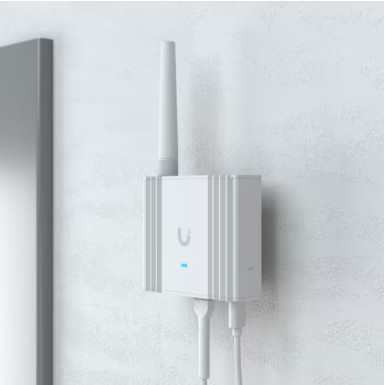

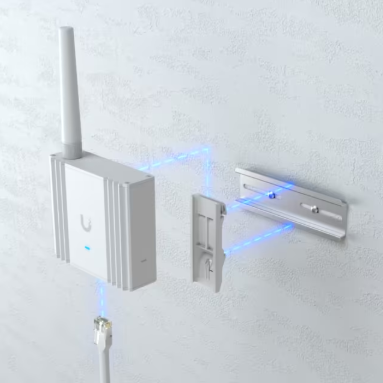

• Wall mount, DIN rail mount

Environmental

• Operating temperature: 0 to 40 °C (32 to 104 °F)

• Operating humidity: 10–90% non-condensing

Protection

• ESD/EMP protection:

  • Air: ±8 kV

  • Contact: ±4 kV

Certifications

• FCC, IC, CE

• NDAA compliant

Software Support

• Web application: UniFi Protect

• Mobile app: UniFi Protect for iOS™ & Android™
