UA Hub Gate

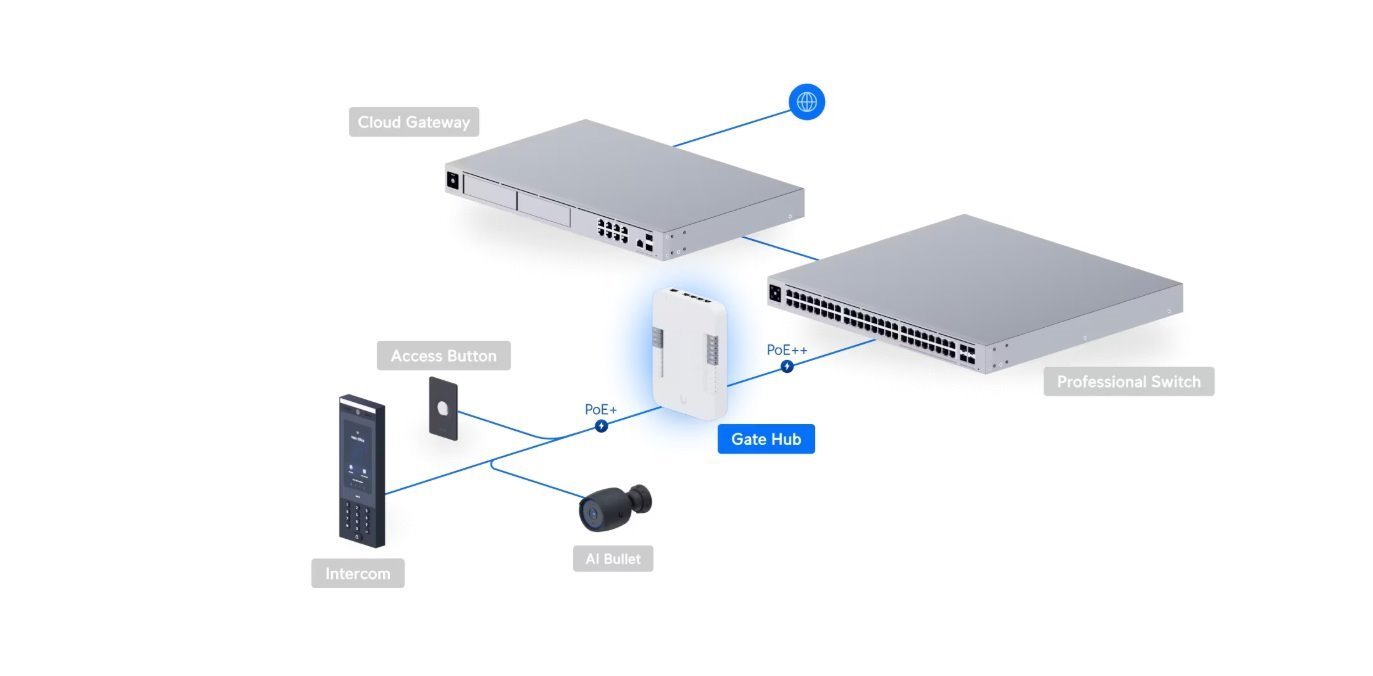

PoE++-powered access control hub for managing gate and door entry within the UniFi Access ecosystem.

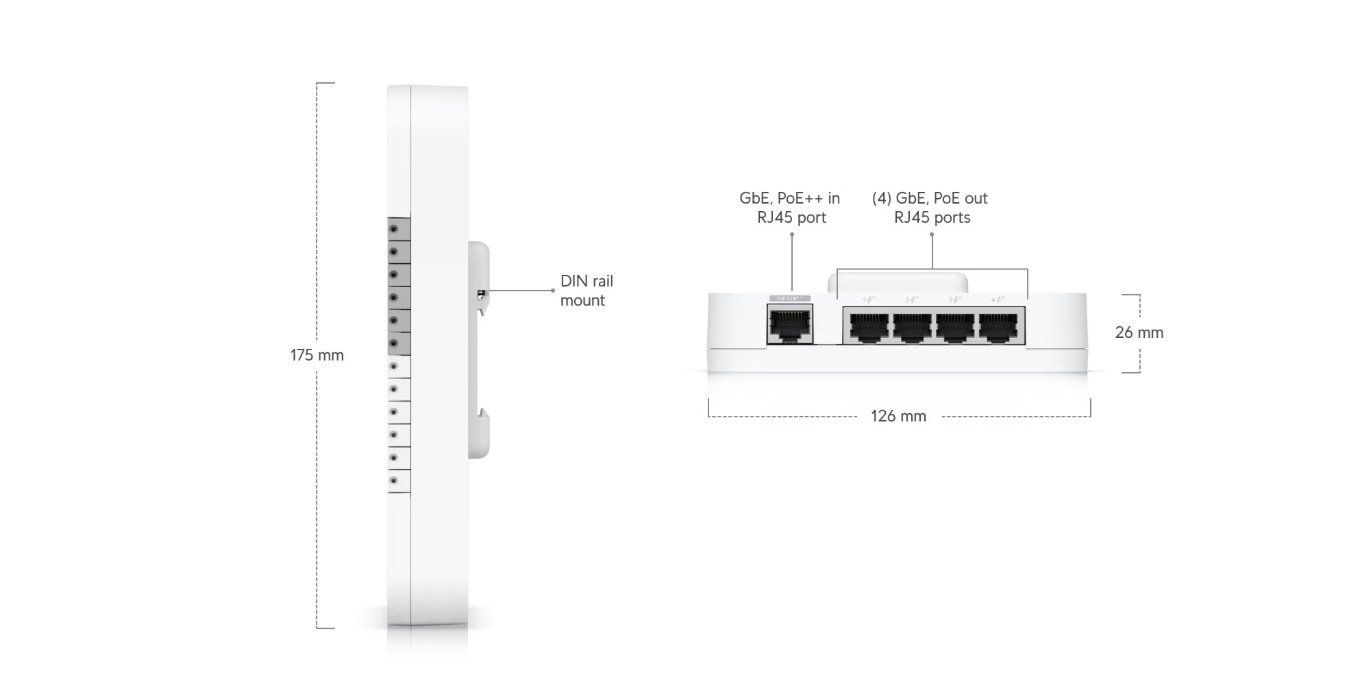

• Dimensions: 175 × 126 × 26 mm (6.9 × 5 × 1 in)

• Weight: 460 g (1 lb)

• Supported Doors: 1 gate + 1 side door (up to 6,000 users)

• Inputs: Gate exit request, gate position, side door exit request, side door position, emergency

• Outputs:

  • (2) Dry contact relays (30 V DC / 1 A)

  • (1) Aux relay (30 V DC / 1 A)

  • (1) Powered relay – 12 V DC / 1 A for door lock

• Networking: (5) RJ45 10/100/1000 Base-T ports

  • (1) PoE++ input (50 V DC, 1 A)

  • (4) PoE+ outputs (30 W per port, 55 W total)

• Power Consumption: 22 W typical / 60 W max (with PoE output)

• Mounting: DIN-rail (included)

• Construction: Durable polycarbonate enclosure

• Operating Conditions: –30 to 60 °C (–22 to 140 °F); 5–90 % RH non-condensing; indoor-rated (install in weatherproof box for outdoor use)

• Compliance: NDAA compliant; UL 294 (Level I for destructive attack, line security, endurance & standby power); CAN/ULC-60839-11-1 Grade I; CE, FCC, IC certified

• Power & Safety: UL 294 power-limited Class 2 PSU; UL 60950-1 / 62368-1 LPS/PS2 PSU compliant

• Cabling Requirements: Cat 5e or higher; min 24 AWG for horizontal/riser; 26 AWG for patch cords

• Features: Factory-reset button, indicator LEDs, optimized PoE relay power outputs for UA lock hardware

• Software: Managed via UniFi Access application (version info at https://unifi.ui.com)
