UniFi Access Gate Kit Overview

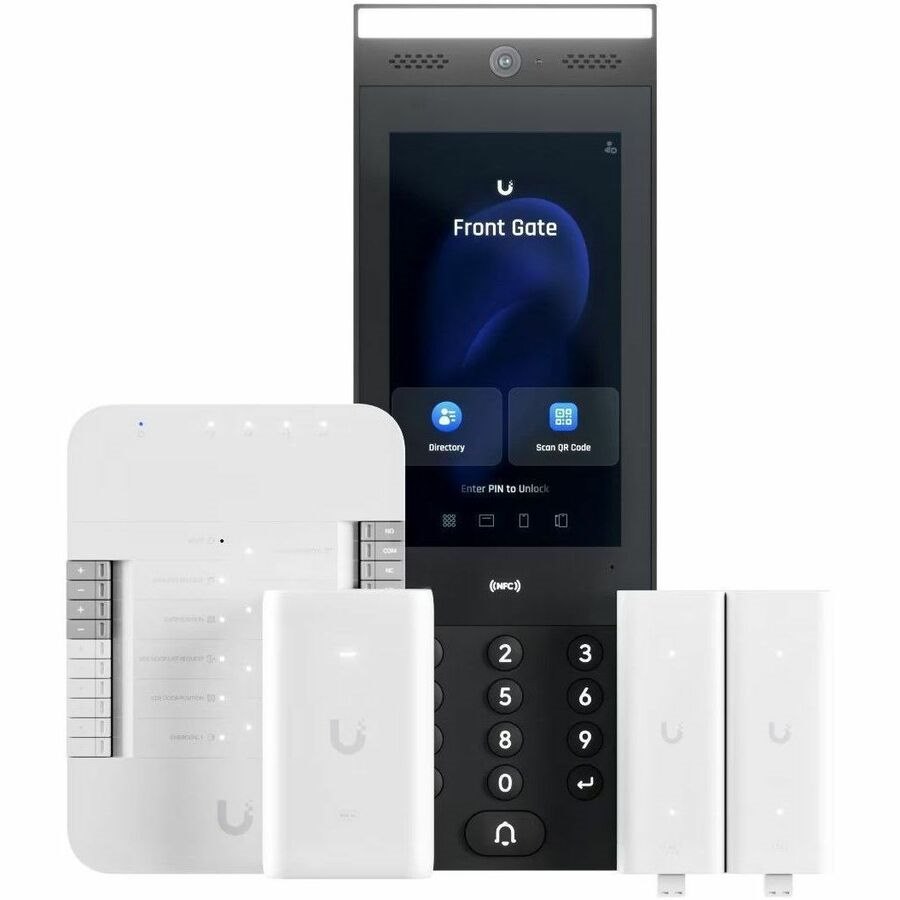

In the Box

• 1 × Gate Hub

• 1 × G3 Intercom

• 1 × PoE++ Adapter

• 2 × 2-wire Retrofit Extenders

• 10 × 1-year Touch Passes included

Gate Hub

Dimensions: 175 × 126 × 26 mm (6.9 × 5 × 1")
Supported Doors: 1 gate, 1 side door
Maximum Users: 6,000

Inputs & Outputs:

• Gate exit request, gate position

• Side door exit, side door position

• Emergency input

• Dry Output Relay: 2 × Operator 30V DC, 1A; 1 × Aux 30V DC, 1A

• Powered Output Relay: Side door lock 12V DC, 1A

Power & Networking:

• PoE++ input: 50V DC, 1A

• PoE outputs: 4 × 50V DC, 30W each (Max 55W aggregated)

• Max Power Consumption: 22W (without PoE output), 60W (with PoE output)

• Networking: 5 × 10/100/1000 Base-T

Physical & Environmental:

• Weight: 460 g (1 lb)

• Enclosure: Polycarbonate

• Mounting: DIN-rail (included)

• Indoor use: device only; Outdoor: with waterproof junction box

• Operating Temp: -30–60°C (-22–140°F)

• Operating Humidity: 5–90% noncondensing

Certifications & Compliance: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1; NDAA Compliant ✓
UL 294 Level: I (Destructive attack, Line security, Endurance, Standby power)

G3 Intercom

Dimensions: 324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1")
Access Options: NFC, PIN, Apple/Google Wallet, Mobile Unlock
Two-way Intercom & Doorbell: ✓
Integrated Camera: ✓
Weatherproofing: IP65
Indoor & Outdoor Use: ✓

Display & Audio:

• 7" capacitive multi-touch display, 1024 × 600 px, max 1000 nits

• Microphone and 2W speaker

Power & Networking:

• PoE input: 48V DC, 13W max

• Networking: 1 × GbE RJ45

• Connectivity: BLE 4.2, NFC

Physical & Environmental:

• Device weight: 965 g (2.1 lb), Bracket: 445 g (1 lb)

• Enclosure: Aluminum alloy, UV-stabilized polycarbonate, glass

• Mount: Powder-coated stainless steel; Wall mount included, optional gooseneck/sunshield kits

• Operating Temp: Device -30–60°C (-22–140°F), Display -25–60°C (-13–140°F)

• Operating Humidity: 5–90% noncondensing

NFC Specs:

• 13.56 MHz, Read range <30 mm (1.18")

• ISO/IEC 14443A/B, 15693, 18092, MIFARE Classic/DESFIRE, Sony FeliCa (ID only), NFC Forum T1–T5, ECP 2.0

Certifications & Compliance: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1; NDAA Compliant ✓

Retrofit Extender

Dimensions:

• PoE in/out: 40 × 105 × 25 mm (1.6 × 4.1 × 1")

• Adapter: 43.5 × 138 × 30 mm (1.7 × 5.4 × 1.2")
  Weight: PoE in 77 g, PoE out 79 g, Adapter 140 g

Power & Networking:

• PoE++ input: 50V DC, 1.2A; PoE+ output: 48V DC, 0.6A

• Max Power Consumption: 3W (without PoE output)

• Networking: 1 × 10/100 MbE, 1 × HomePlug AV

• Coaxial: BNC female

Physical & Environmental:

• Enclosure: Polycarbonate

• Mount Material: Polycarbonate

• Operating Temp: -10–40°C (14–104°F)

• Operating Humidity: 5–90% noncondensing

Certifications & Compliance: CE, FCC, IC; NDAA Compliant ✓

PoE++ Adapter (U-PoE++)

Dimensions: 106 × 63 × 34 mm (4.2 × 2.5 × 1.3")
Weight: 210 g (7.4 oz)

Output: 48V DC @ 1.25A, Gigabit LAN port
AC Input: 100–240V AC, 50/60Hz; 1.3A @ 120V, 0.75A @ 230V

Performance & Protection:

• Max PoE+ Wattage: 60W per port

• Surge, clamping, and peak pulse protection included

• Efficiency: 85+%

• Ambient Storage Temp: -30–70°C (-22–158°F)

• Operating Temp: 0–40°C (32–104°F), Humidity 10–95% noncondensing

Certifications & Compliance: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS; NDAA Compliant ✓
