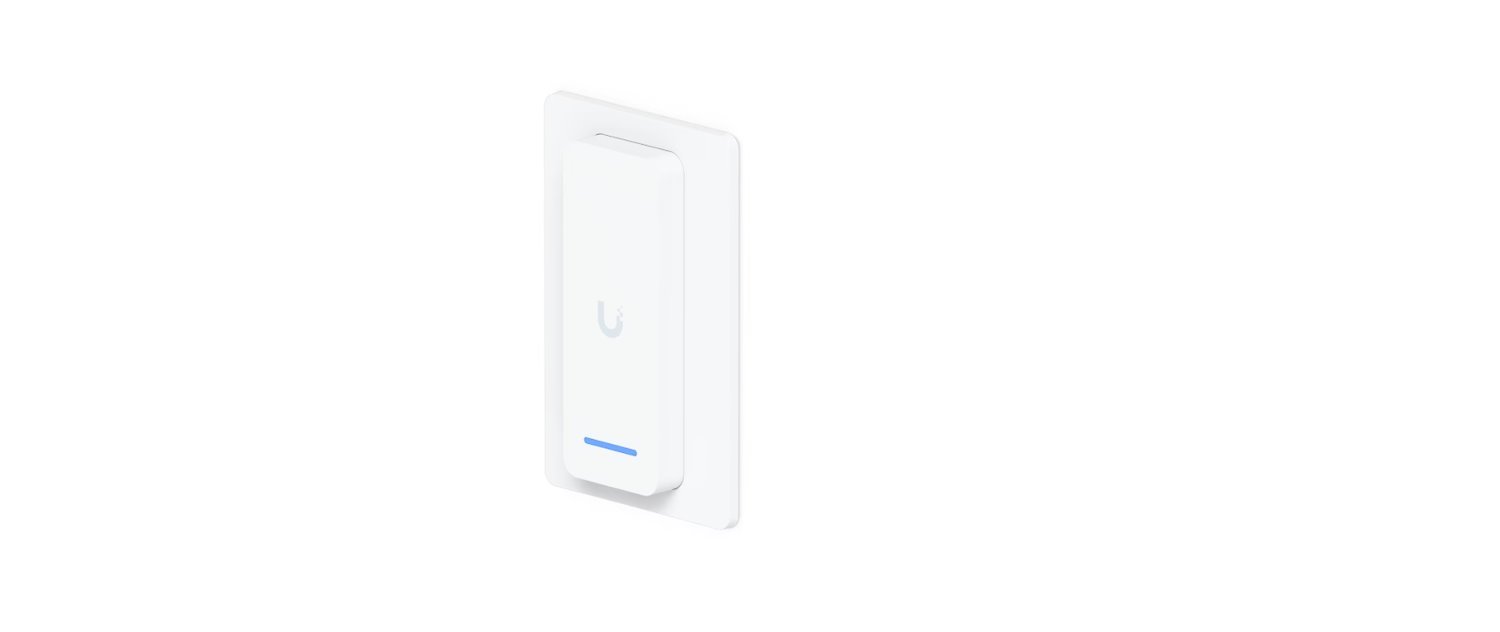

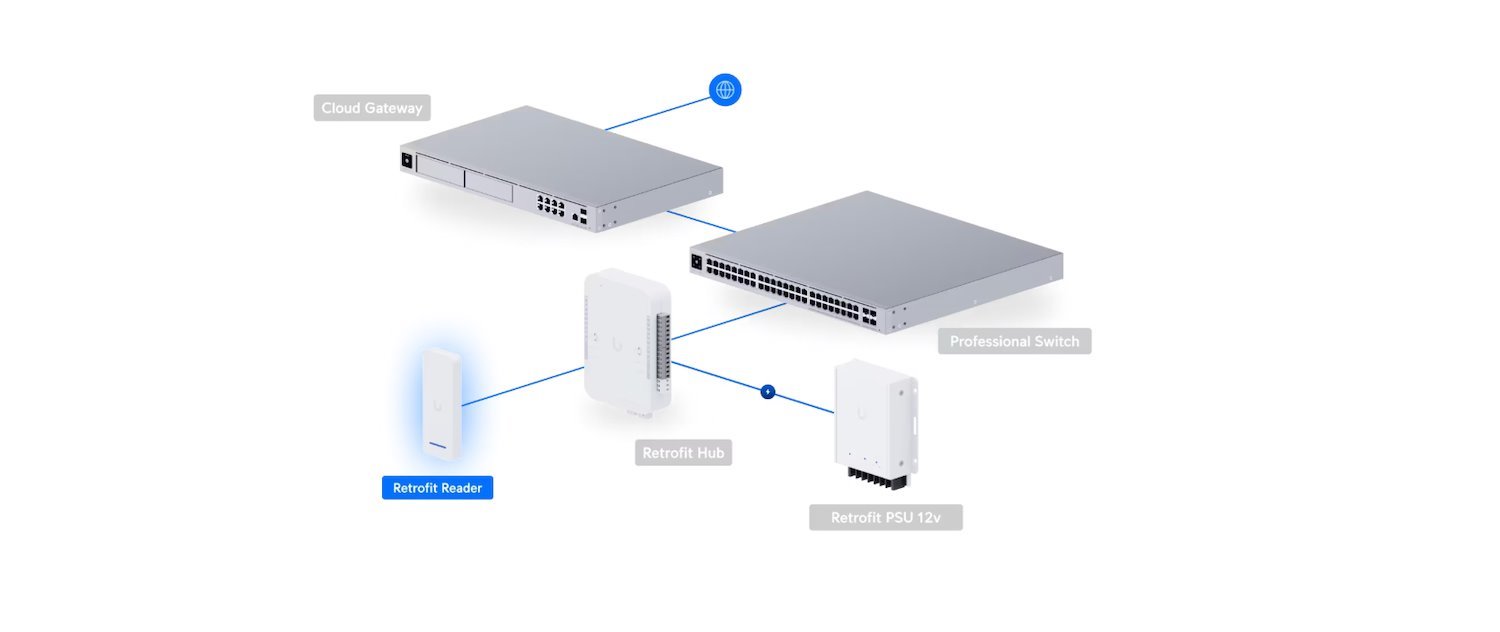

Bring modern credential flexibility to retrofit access deployments with this indoor/outdoor OSDP reader designed specifically for seamless integration with UniFi Retrofit Hub installations. Supporting NFC card authentication and mobile Touch Pass credentials, this reader enables secure, contactless access using existing building cabling — reducing installation time and infrastructure costs while upgrading system capability.
Professional Integration Features
Built for compatibility-driven deployments, the reader communicates via OSDP to ensure secure, encrypted device communication and simplified wiring upgrades. NFC credential support enables card, keyfob, and mobile wallet-based access, while Touch Pass functionality expands authentication options for managed digital credentials. Durable construction allows installation in indoor or outdoor environments, making it suitable for perimeter entry points or interior secured areas.
✓ Includes 10 complimentary 1-year Touch Pass licenses for immediate deployment
Ideal Applications
• Retrofit projects leveraging existing wiring infrastructure
• Commercial buildings modernizing legacy access systems
• Multi-tenant properties requiring mobile credential support
• Campus environments deploying scalable digital access
• Industrial or exterior entry points needing weather-tolerant readers
General

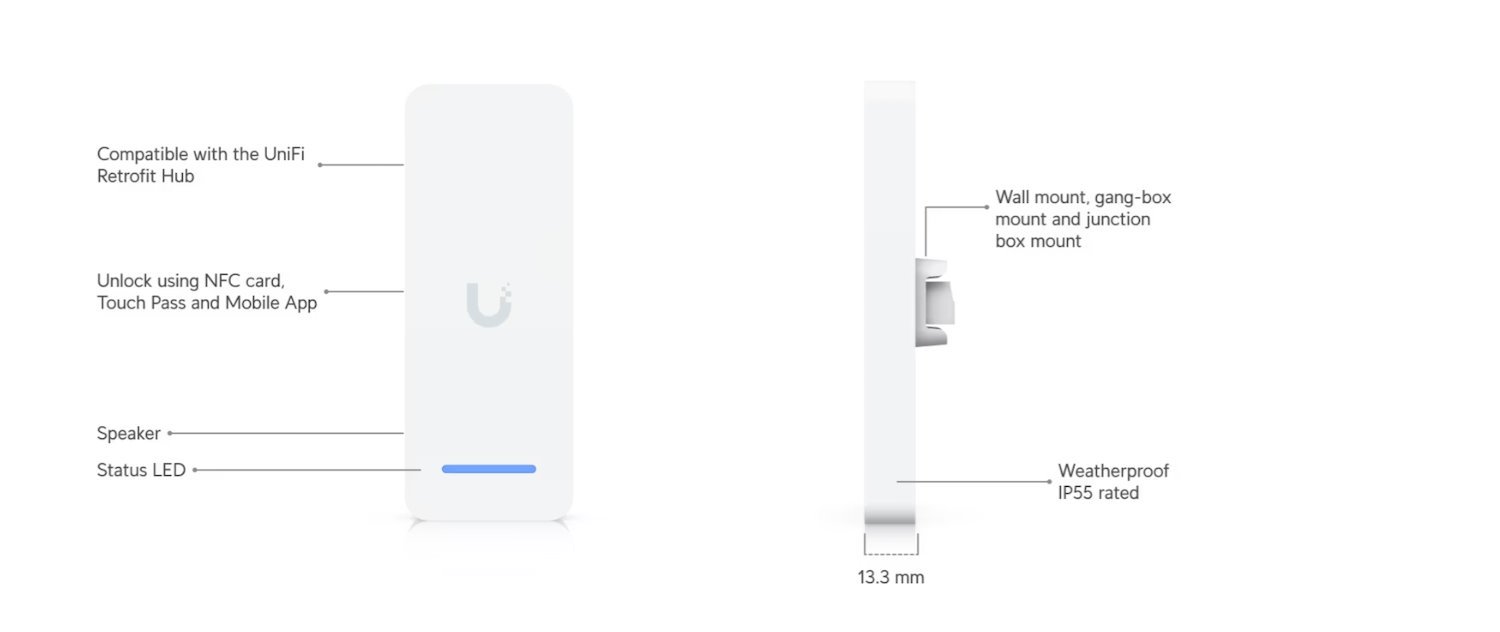

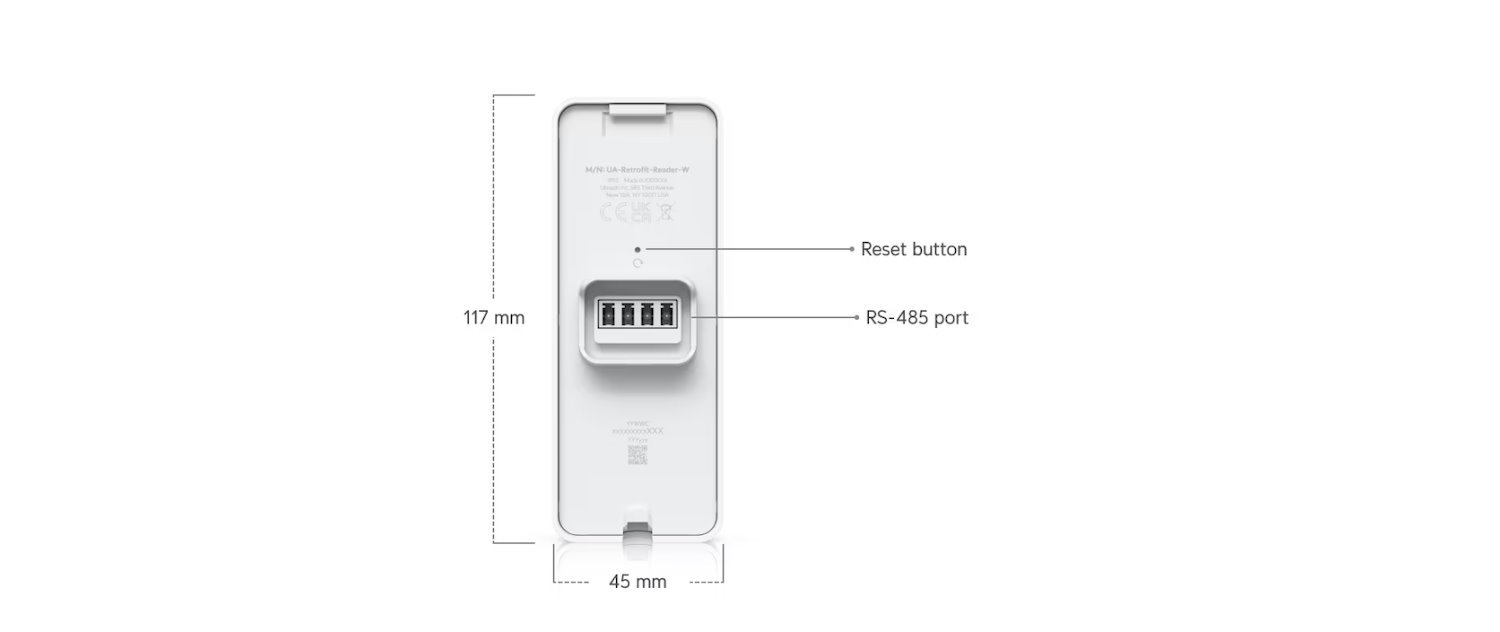

• Dimensions: 117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5")
• Indoor/Outdoor Use: Yes
• Weatherproofing: IP55
• NDAA Compliant: Yes
Access & Credential Support
• NFC Card & Keyfob Access: Supported
• Apple/Google Wallet: Supported
• Mobile Unlock: Supported
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18")
• NFC Technology: ISO 14443A; ISO 14443B; ISO 15693
• NFC Tag Types: 1; 2; 3; 4; 5
• Credential Compatibility: MIFARE Classic; MIFARE Plus; MIFARE Ultralight; MIFARE DESFire
Mechanical
• Weight: 82 g (2.9 oz)
• Enclosure Material: Polycarbonate; aluminum alloy

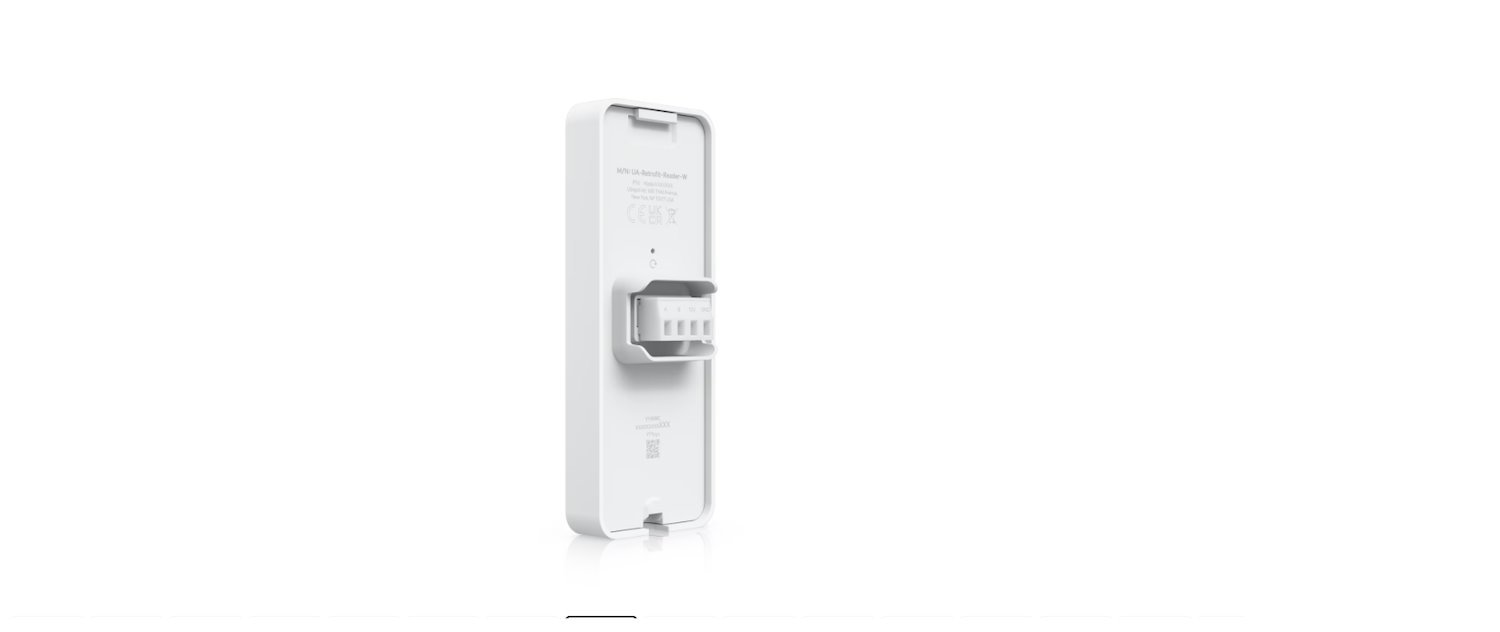

• Mount Material: Stainless steel

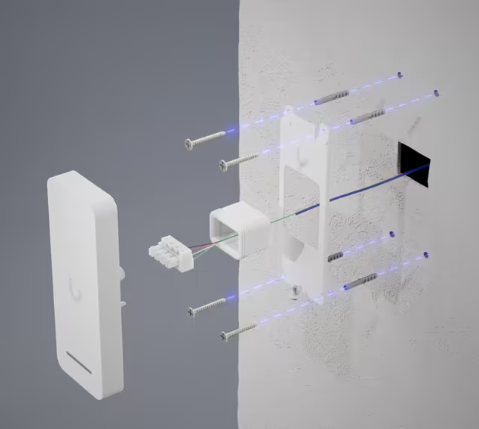

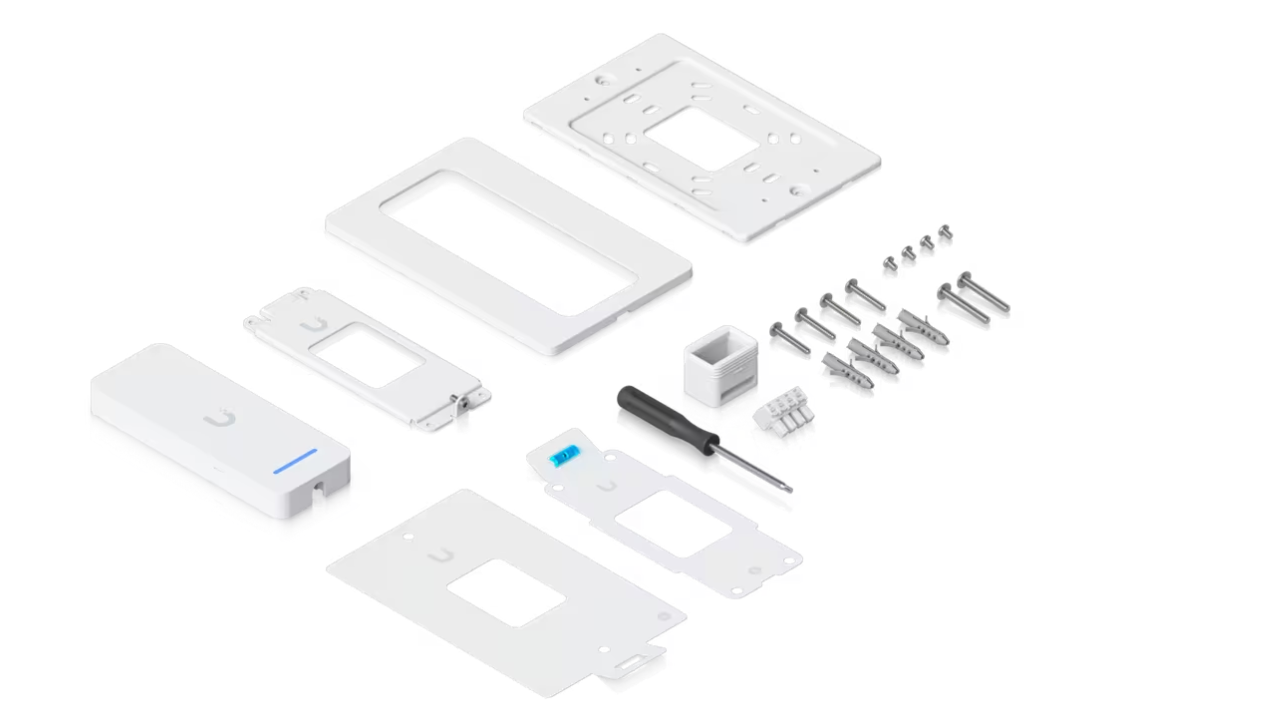

• Mounting: Wall; gang-box mount (included)
• Optional Mounting: Junction box
Hardware
• Connectivity: RS-485; BLE 4.1; NFC
• Security Protocol: OSDP v2
• Power Method: DC 12V
• Supported Voltage Range: 12V DC
• Max Power Consumption: 2.5W
• ESD/EMP Protection: Air ±15 kV; Contact ±8 kV
• Speaker: Yes
• LEDs: R/G/B/W
• Button: (1) Factory-reset
Environmental
• Operating Temperature: -30 to 50° C (-22 to 122° F)
• Operating Humidity: 5 to 90% noncondensing
Certifications
• CE
• FCC
• IC
Software
• Management Application: Access
• Software Information: Version available at https://unifi.ui.com
