Overview

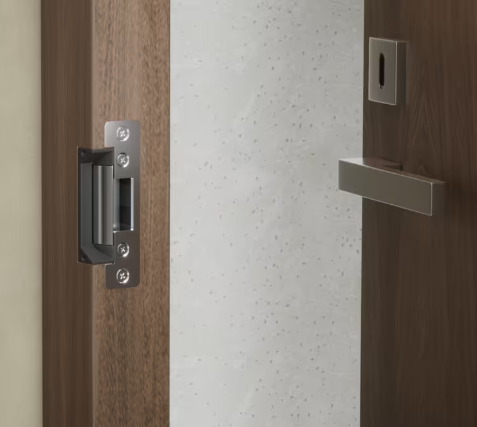

This fail-secure electric strike lock is designed for integration with UniFi access control hubs, providing dependable entry control for professional security installations. Engineered to remain locked when power is removed, it supports secure perimeter protection across a variety of door deployments.
Intelligence

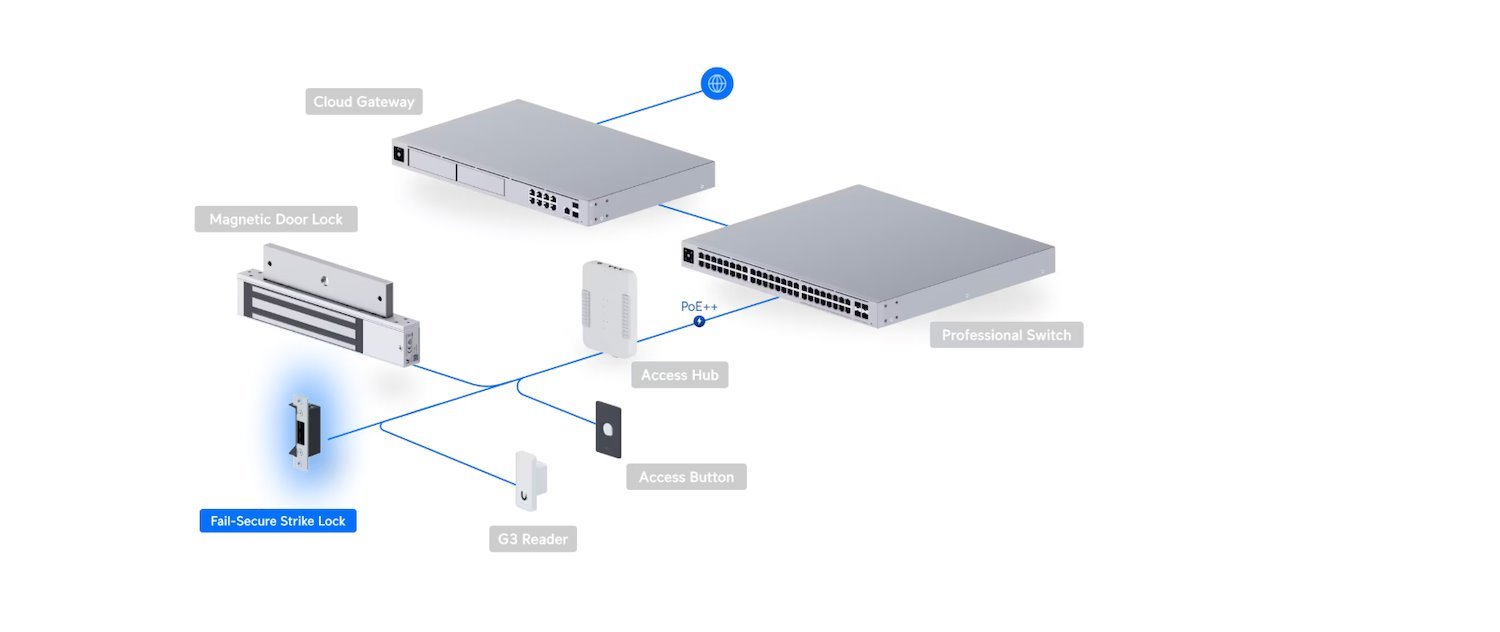

Fail-secure operation ensures the strike maintains locked status during power loss, reinforcing controlled access protocols. Compatibility with UniFi access infrastructure enables centralized credential management, monitoring, and automation through supported hub controllers.
Features
Built for straightforward integration, the electric strike connects directly to supported UniFi hubs and accommodates standard door installations. The design supports consistent performance within UniFi-managed environments while enabling reliable mechanical locking engagement.
Applications
Enterprise UniFi-based access control deployments
Commercial and institutional entry control points
Retrofit upgrades integrating into UniFi infrastructure
Doors requiring fail-secure electric strike operation
Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate

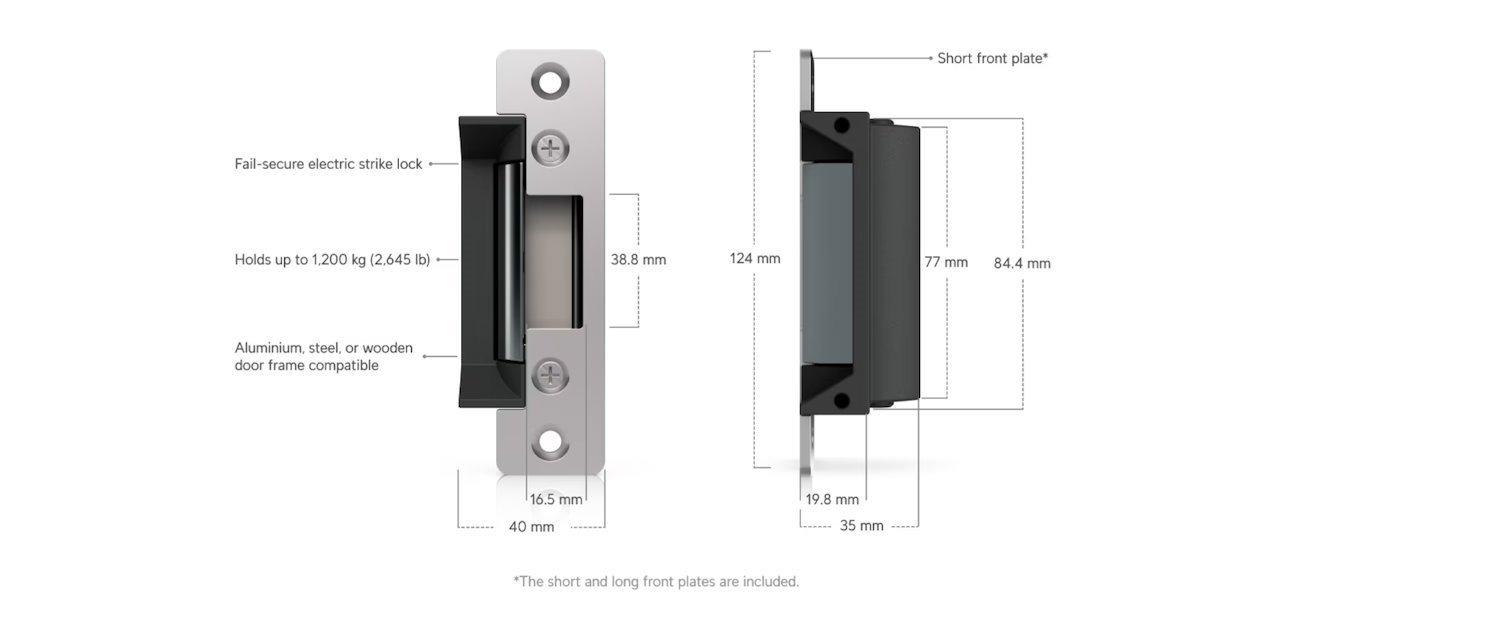

Dimensions
• Lock Body: 80 × 40 × 35 mm (3.2 × 1.6 × 1.4")
• Short Front Plate: 124 × 32 × 3 mm (4.9 × 1.3 × 0.1")
• Long Front Plate: 202 × 36 × 3 mm (7.9 × 1.4 × 0.1")
Weight
• Lock Body: 185 g (6.5 oz)
• Short Front Plate: 50 g (1.8 oz)
• Long Front Plate: 130 g (4.6 oz)
Construction
• Lock Body Material: Zinc Alloy
• Front Plate / Latches Material: Stainless Steel
Lock Features
• Lock Type: Fail Secure
• Supported Door Types: Single Door (Wood; Metal)
• Holding Force: 1,200 kg (2,645 lb)
Electrical
• Current Draw: 400 mA ±10%
• Supported Voltage Range: 12 VDC ±10%
• Wiring Leads:
• Lock 12V/NO — Red
• Lock 12V/COM — Black

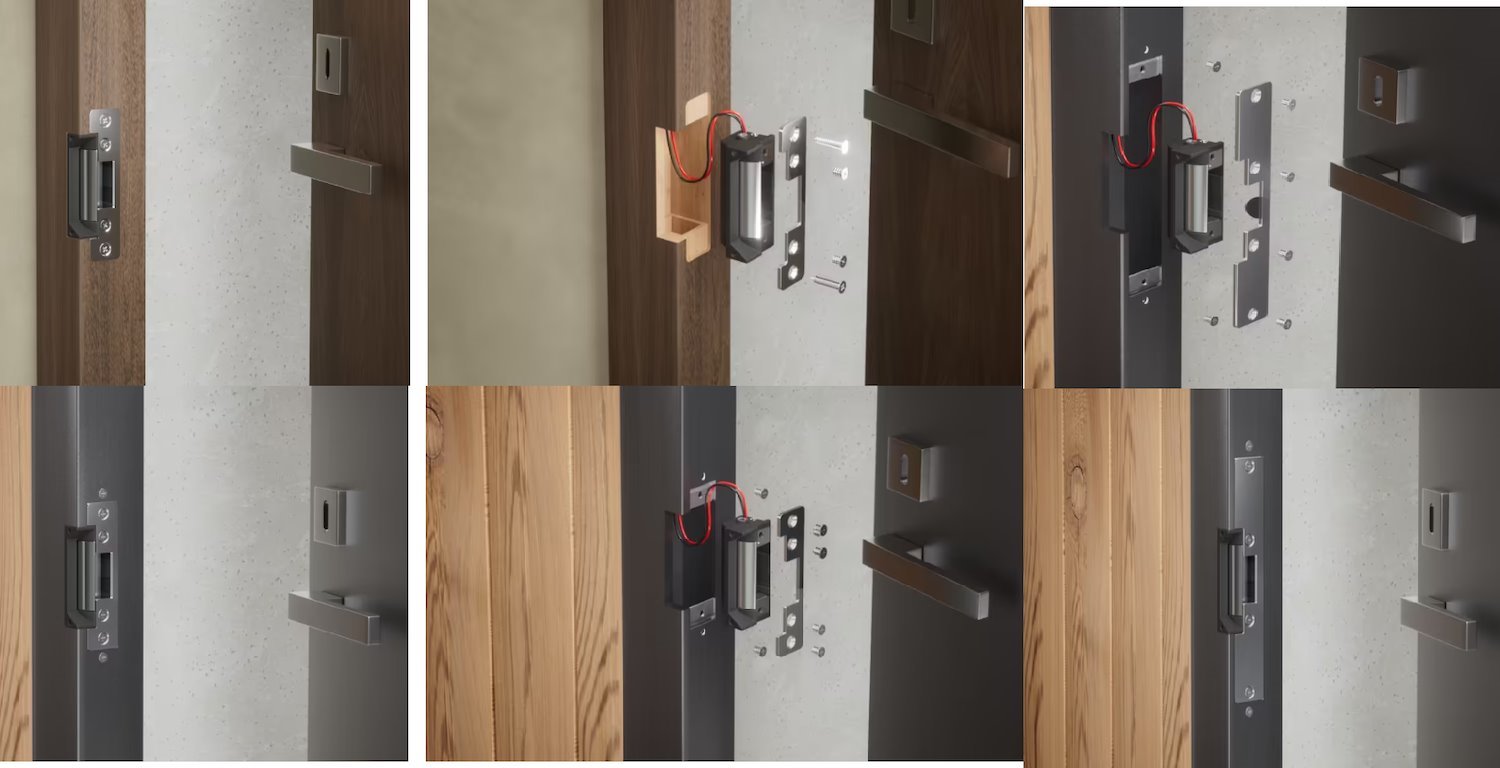

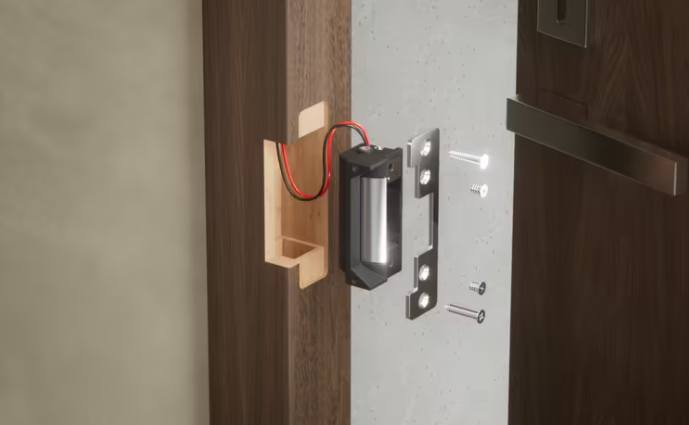

Mounting
• Installation Type: Door Frame Recess Mount
Door Status Contact
• Contact Type: Dry Contact
• Logic:
• Door Open — DPS/+ & DPS/− Open
• Door Closed — DPS/+ & DPS/− Short
• Rating: Max 30 VDC; 0.1 A
Environmental
• Storage Temperature: −20°C to +70°C (−4°F to +158°F)
• Operating Temperature: −10°C to +60°C (14°F to +140°F)
• Operating Humidity: 5%–90% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; IC; CE
