Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
UniFi Enterprise 24-Port PoE+++ Switch Pro (1U Full-Depth Rack-Mountable)

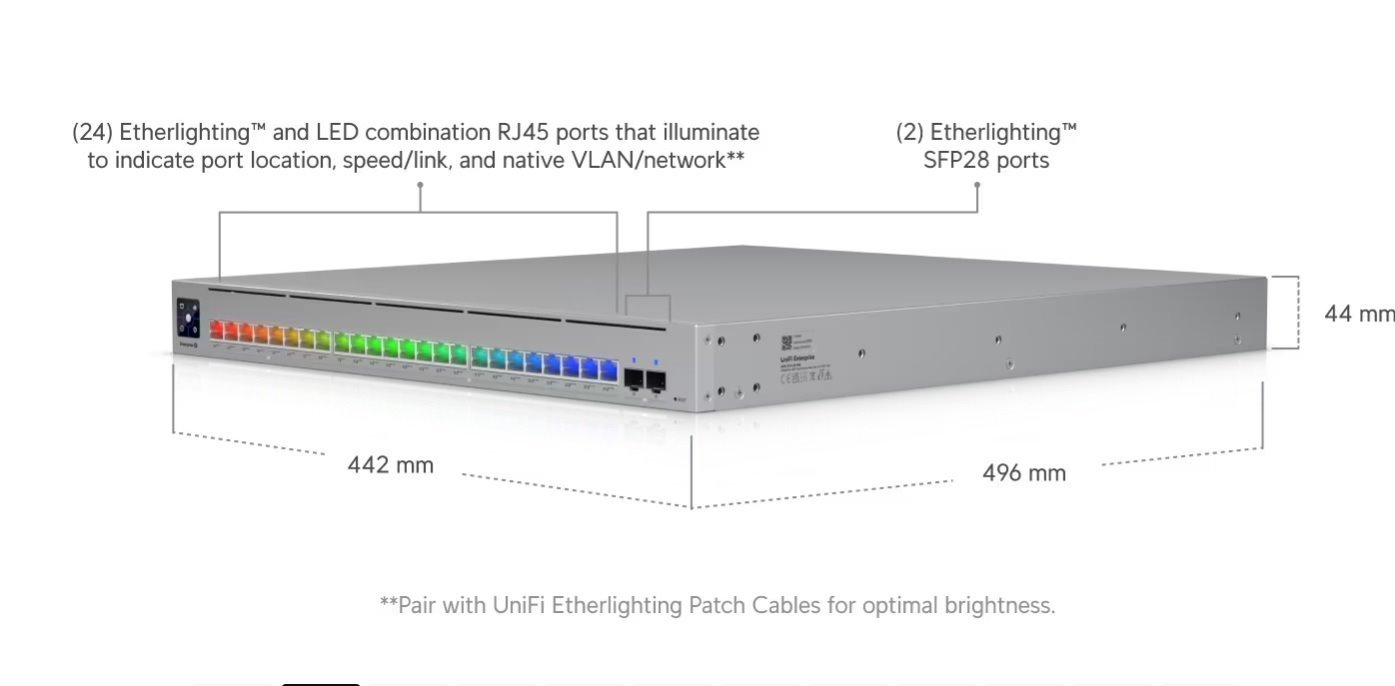

Dimensions: 442.4 × 43.7 × 496 mm (17.4 × 1.7 × 19.5")
Form Factor: 1U Full-Depth Rack Mount

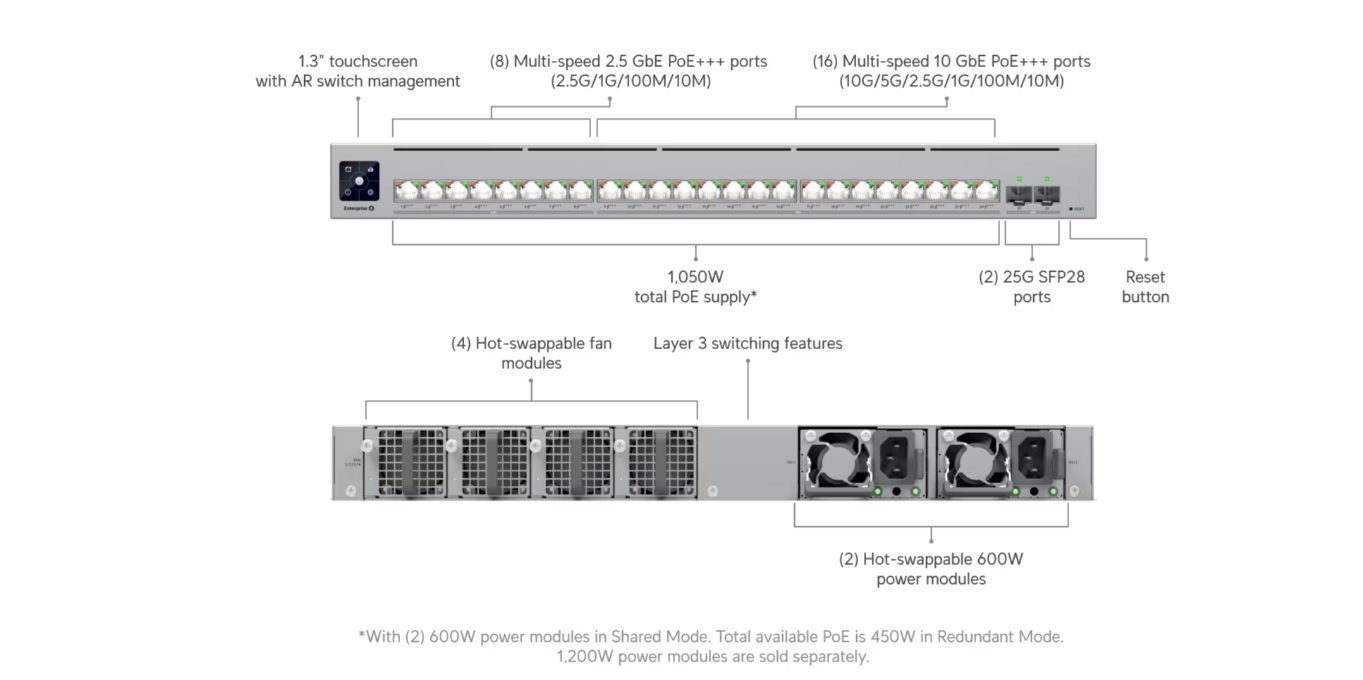

Redundancy: Dual Hot-Swappable PSUs and Quad Hot-Swappable Fans
Etherlighting™: Enabled (Ethernet & SFP28 Ports)
Performance & Switching
Switching Capacity: 460 Gbps
Non-Blocking Throughput: 230 Gbps
Forwarding Rate: 342 Mpps
Supported VLANs: 1,000
MAC Address Table: 128,000 entries
L3 Table: 128,000 ARP | 256,000 IPv4 Routes
Packet Buffer: 8 MB
Port Configuration
Total Ports: 26
16× 10 GbE RJ45 (PoE+++)
8× 2.5 GbE RJ45 (PoE+++)
2× 25G SFP28 (Fiber)
PoE Standards: PoE / PoE+ / PoE++ / PoE+++ (Up to 90W per port)
Total PoE Budget:
(2× 600W Modules)
Shared Mode: 1,050W (100–240V AC)
Redundant Mode: 450W (100–240V AC)
(2× 1,200W Modules)
Shared Mode: 2,250W (200–240V AC) | 1,850W (100–120V AC)
Redundant Mode: 1,050W (200–240V AC) | 850W (100–120V AC)
Layer 3 Features
DHCP Server & Relay
Static Routing (Local Networks)
Inter-VLAN Routing
Layer 2 Features
LACP Port Aggregation | STP / RSTP | Jumbo Frames
QoS (DSCP) | Voice VLAN | LLDP-MED
Advanced IGMP (Querier, Fast Leave, Router Port) | IGMP Snooping
MAC/IP-Based ACLs & Device Isolation
DHCP Snooping & Guarding | Loop Protection | Port Mirroring
Flow, Storm, Multicast & Broadcast Rate Limiting
MAC Address Blocking | Port Isolation
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Hardware & Power
PoE Ports: 24 total (All PoE+++)
Max PoE Output per Port:
PoE: 15.4W | PoE+: 30W | PoE++: 60W | PoE+++: 90W
Max Power Consumption:
2,400W (Including PoE Output)
150W (Excluding PoE Output)
Power Supply: (2) Hot-Swappable AC/DC 600W Modules | Universal Input (100–240V AC, 50/60 Hz)
Fan System: (4) Hot-Swappable Fan Modules
Enclosure: SGCC Steel | Weight: 9.46 kg (20.9 lb) without brackets / 9.56 kg (21.1 lb) with brackets
Supported Rack Depth: 482.6 mm (19") four-post racks, 650–1,000 mm (25.6–39.4") depth
Display: 1.3" Touchscreen LCM
Environmental & Compliance
Operating Temp: –5 to 40 °C (23 to 104 °F)
Humidity: 10–90% non-condensing
ESD Protection: Air ±30 kV | Contact ±30 kV
Certifications: CE, FCC, IC, Anatel (06181-25-08356) | NDAA Compliant
