Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Note. 6 GHz operation is supported in these countries.
Long-range 6 GHz performance with AFC available in FCC/IC region only.

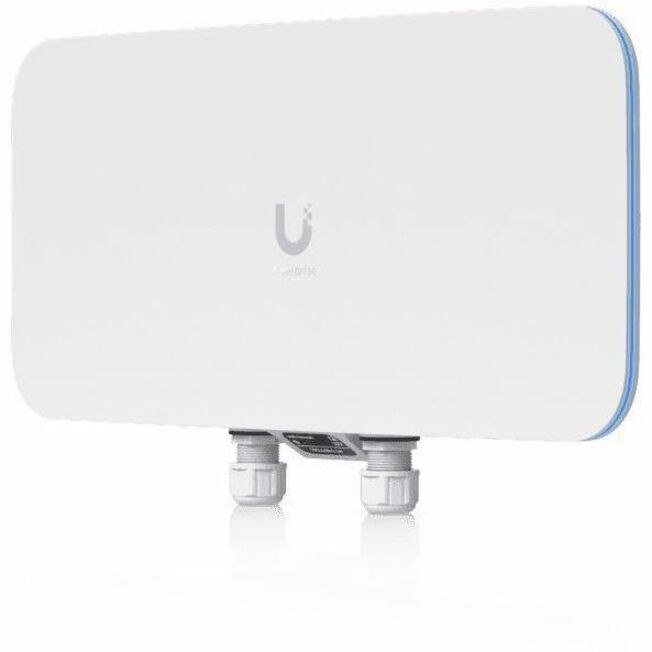

High-Performance Outdoor WiFi 7 Access Point (IP68, Directional, PoE++)
Dimensions:
• Device: 474.1 × 265.5 × 42.2 mm (18.7 × 10.5 × 1.7")
• Bracket: 150.4 × 113.6 × 125 mm (5.9 × 4.5 × 4.9")
WiFi Standard: WiFi 7 (802.11be), 12 spatial streams
Coverage: Up to 465 m² (5,000 ft²)
Client Capacity: 1500+ clients
Uplink: 1 × 10GbE RJ45, 1 × 1GbE RJ45

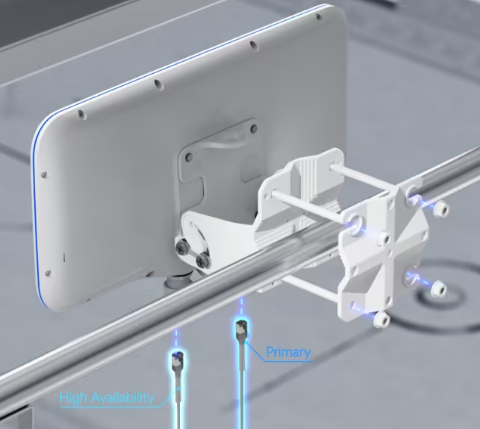

Mounting: Wall, pole (mounts included), optional VESA
Weatherproofing: IP68
Power Method: PoE++ (42.5–57V DC)
Performance & Radio Specifications
MIMO:
• 6 GHz Low Band: 4×4 MU-MIMO (DL/UL)
• 6 GHz High Band: 4×4 MU-MIMO (DL/UL)
• 5 GHz: 4×4 MU-MIMO (DL/UL)
Max Data Rates:
• 6 GHz Low Band: 11.5 Gbps (BW320)
• 6 GHz High Band: 11.5 Gbps (BW320)
• 5 GHz: 8.6 Gbps (BW240)
Antenna Gain (Directional Internal):
• 6 GHz: 15 dBi (50°×50°), 11 dBi (90°×90°)
• 5 GHz: 15 dBi (50°×50°), 11 dBi (90°×90°)
Transmit Power:
• 6 GHz Low/High Bands: 30 dBm (36 dBm EIRP)
• 5 GHz: 30 dBm
Max BSSIDs: 8 per radio
Supported Data Rates:
• WiFi 7 (802.11be): 7.3 Mbps–11.5 Gbps
• WiFi 6 (802.11ax): 7.3 Mbps–4.8 Gbps
• WiFi 5 (802.11ac): 6.5 Mbps–3.4 Gbps
• WiFi 4 (802.11n): 6.5 Mbps–600 Mbps
Features
Advanced wireless capabilities including:
• Wireless meshing
• Band steering
• 802.11r fast roaming, 802.11k RRM, 802.11v transitions
• Zero-Wait DFS
• Real-time spectral analysis
• Advanced RF management & PRISM™ filtering
• Hotspot portal (custom branding, vouchers, payments)
• External portal server support
• PPSK, guest isolation, client isolation
• WiFi scheduling, RADIUS over TLS, dynamic VLAN assignment
Hardware & Environmental
Power Consumption: Max 51W
Weight: 3.3 kg (device), 4.3 kg (with mount)
Enclosure: UV-stabilized polycarbonate + aluminum alloy
Mount Material: Aluminum alloy
Wind Loading: 164.75 N @ 200 km/h (37 lbf @ 125 mph)
Pole Diameter: 1–3" (25–76 mm)
Antenna: Internal directional array
LEDs: RGB system indicator
Operating Conditions:
• Temperature: –40 to 60°C (–40 to 140°F)
• Humidity: 5–95% non-condensing
Compliance: NDAA compliant; FCC & IC certified
Operating Frequencies:
US/CA:
• 5 GHz bands (U-NII-1/2A/2C/3)
• 6 GHz (U-NII-5 / U-NII-7)
Worldwide:
• 5150–5725 MHz
• 5925–7125 MHz
