Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Physical & Power
Dimensions: Ø206 × 46 mm (Ø8.1 × 1.8")
Weight: 680 g (1.5 lb)

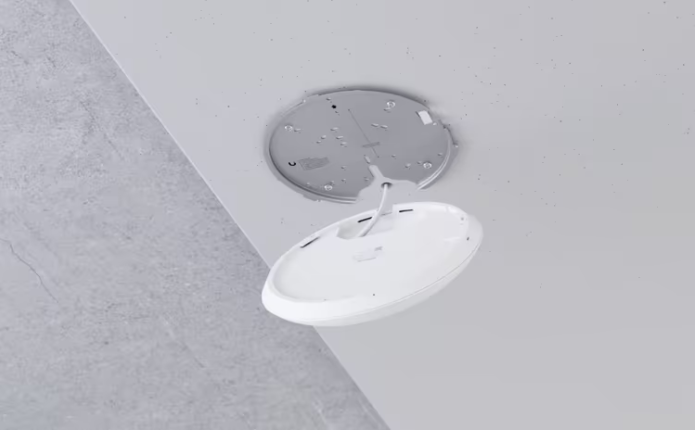

Mounting: Ceiling/Wall (Pro Mount included)
Enclosure Material: Polycarbonate, metal
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
Power Method: PoE+
Max Power Consumption: 21W
Supported Voltage: 44–57V DC
Operating Temp: –30 to 40°C (–22 to 104°F)
Operating Humidity: 5–95% non-condensing
NDAA Compliant
Networking & Interface
WiFi Standard: WiFi 7 (802.11be)
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max Client Count: 300+
Uplink: 1/2.5 GbE RJ45
Management: Ethernet
LED Indicators: System (White/Blue)
Radio Performance
MIMO (DL/UL MU-MIMO):
6 GHz: 2×2
5 GHz: 2×2
2.4 GHz: 2×2
Max Data Rates:
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: 5.8 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max TX Power:
6 GHz: 23 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max BSSIDs: 8 per radio
Channel Bandwidths: HT/VHT/HE/EHT 20/40/80/160/240/320 MHz
Operating Frequencies:
US/CA: 2.4 GHz (2400–2472 MHz); 5 GHz U-NII-1/2A/2C/3; 6 GHz U-NII-5 to U-NII-8
Worldwide: 2400–2483.5 MHz; 5150–5725 MHz; 5925–7125 MHz
Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps–5.8 Gbps
802.11ax (WiFi 6/6E): 7.3 Mbps–2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps–1.7 Gbps
802.11n: 6.5 Mbps–300 Mbps
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Portal w/ Custom Branding
Voucher / Payment / Password Authentication
External Portal Server Support
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Scheduling
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Certifications
CE, FCC, IC, Anatel: 06370-24-08356
Software Requirements
UniFi Network version 8.0.28 or later
