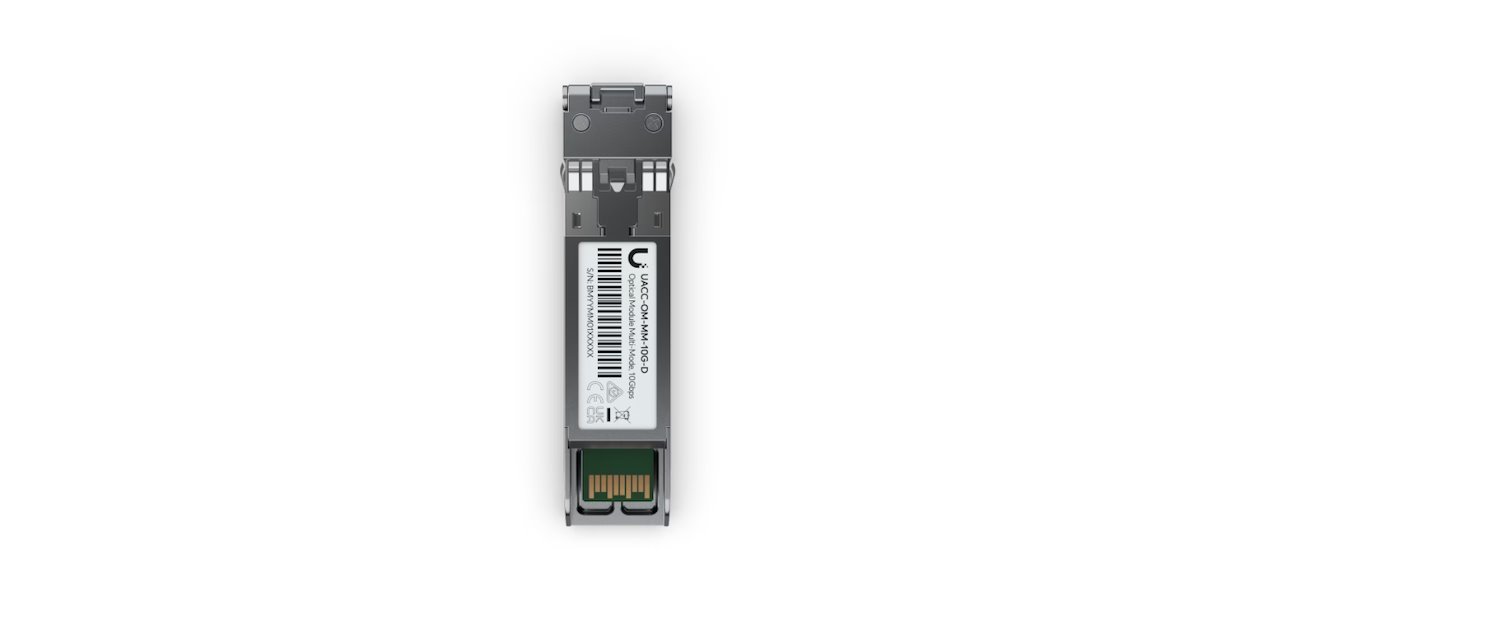

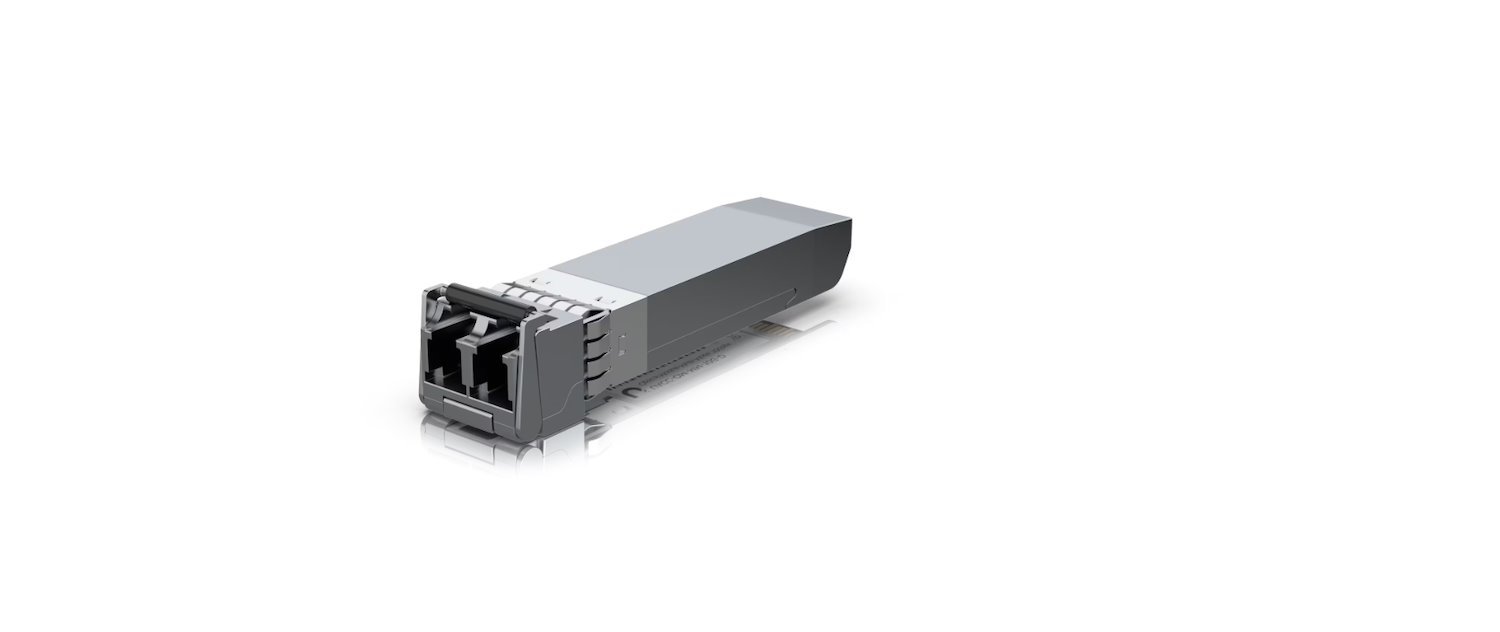

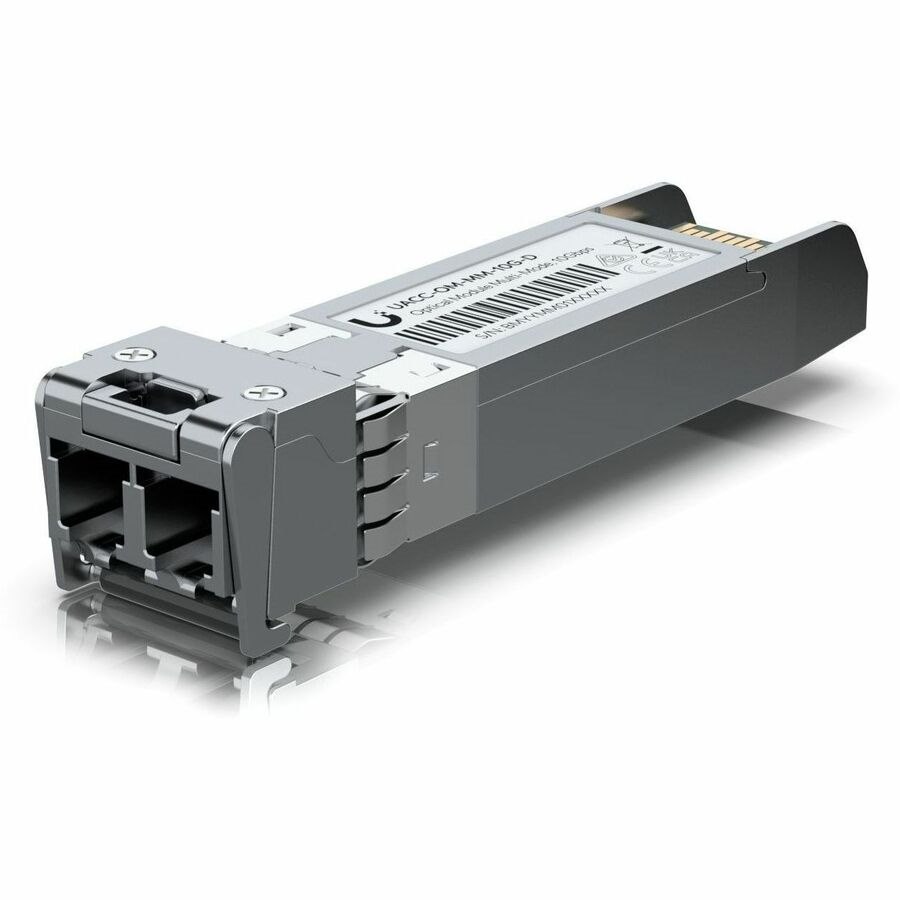

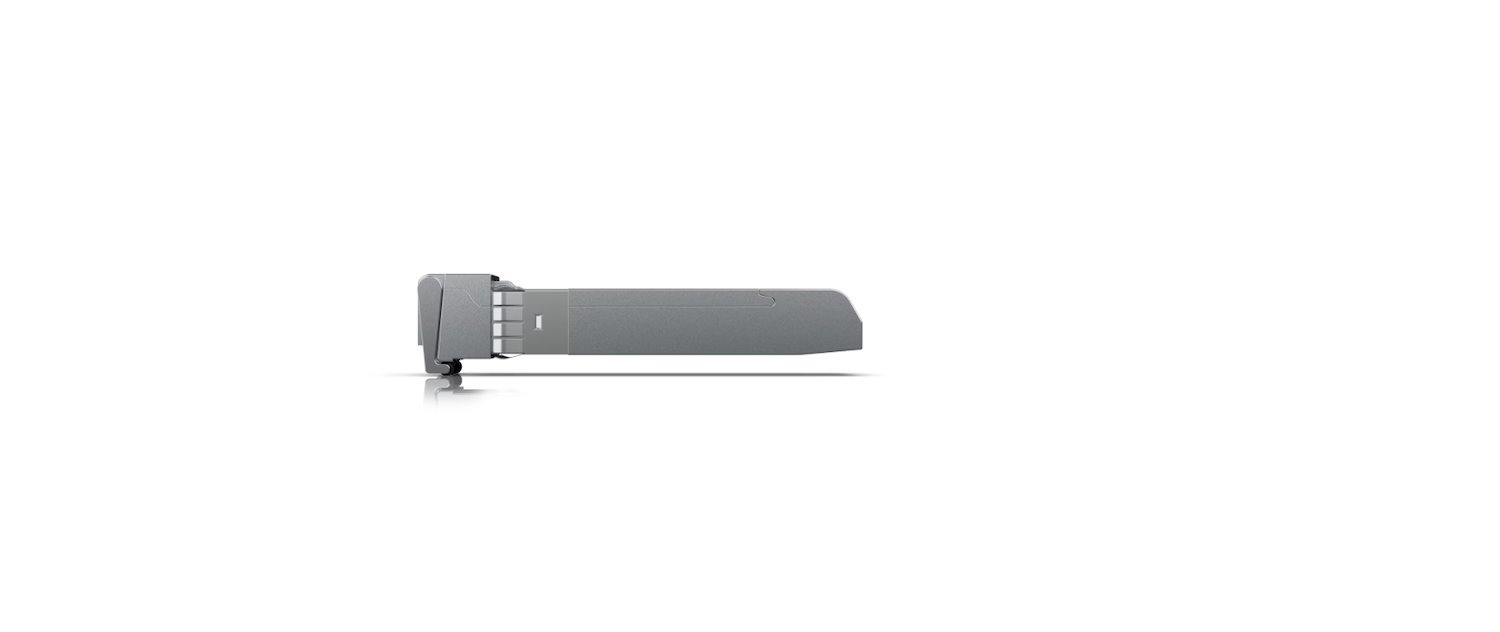

SFP+ transceiver that supports 10G connections up to 300 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 300 m*
*Fiber cable is not included.
Form Factor & Connectivity
Form Factor: SFP
Connector: Duplex LC UPC
Supported Media: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm
RX Wavelength: 850 nm
Supported Data Rates: 1 / 10 Gbps
Supported Cable Distance:
Up to 300 m (984 ft) over MMF
Power & Environmental
Max Power Consumption: 0.8 W
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
Packaging Options
Single Unit
2-Pack
20-Pack
Safety Notice
CLASS 1 LASER PRODUCT (IEC/EN 60825-1:2014)
⚠ Do not look into fiber ends or SFP module while powered.
