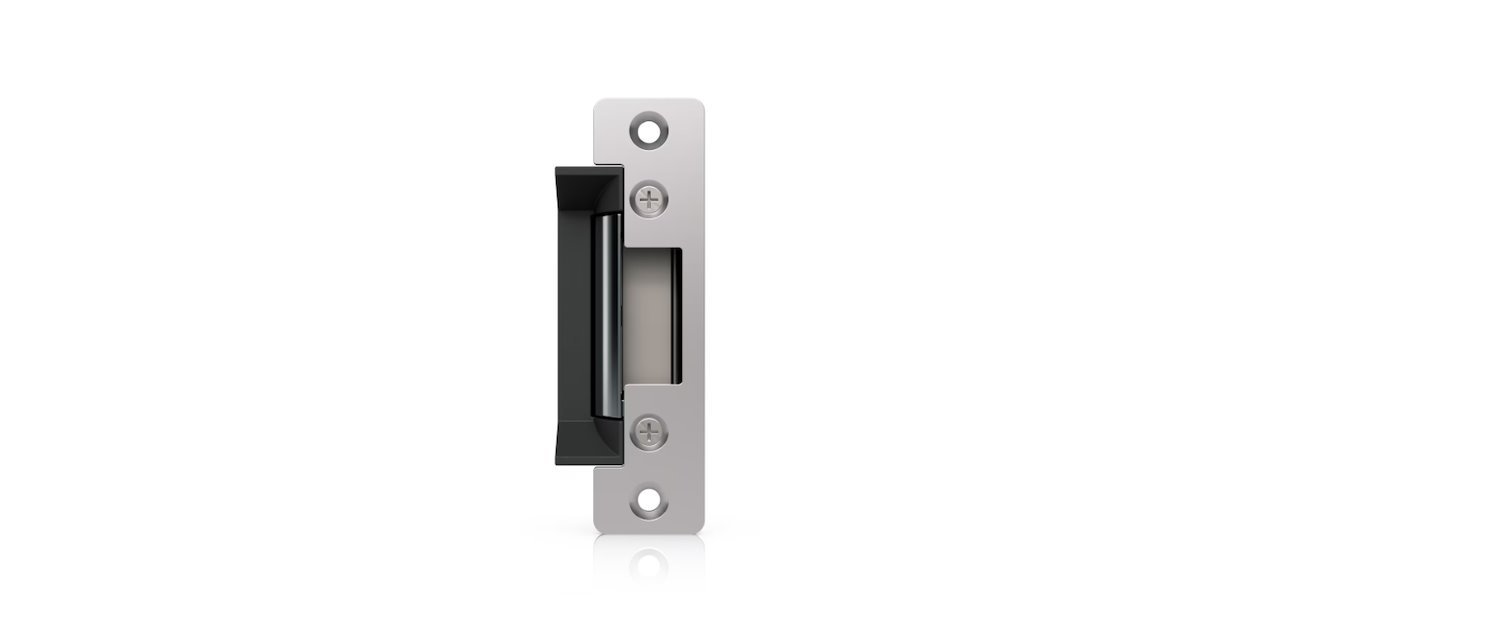

Overview
This fail-safe electric strike lock is designed for integration with UniFi access control hubs, providing dependable entry control for professional installations. Engineered to release when power is removed, it supports safety and egress requirements while maintaining compatibility with UniFi-managed access environments.
Intelligence

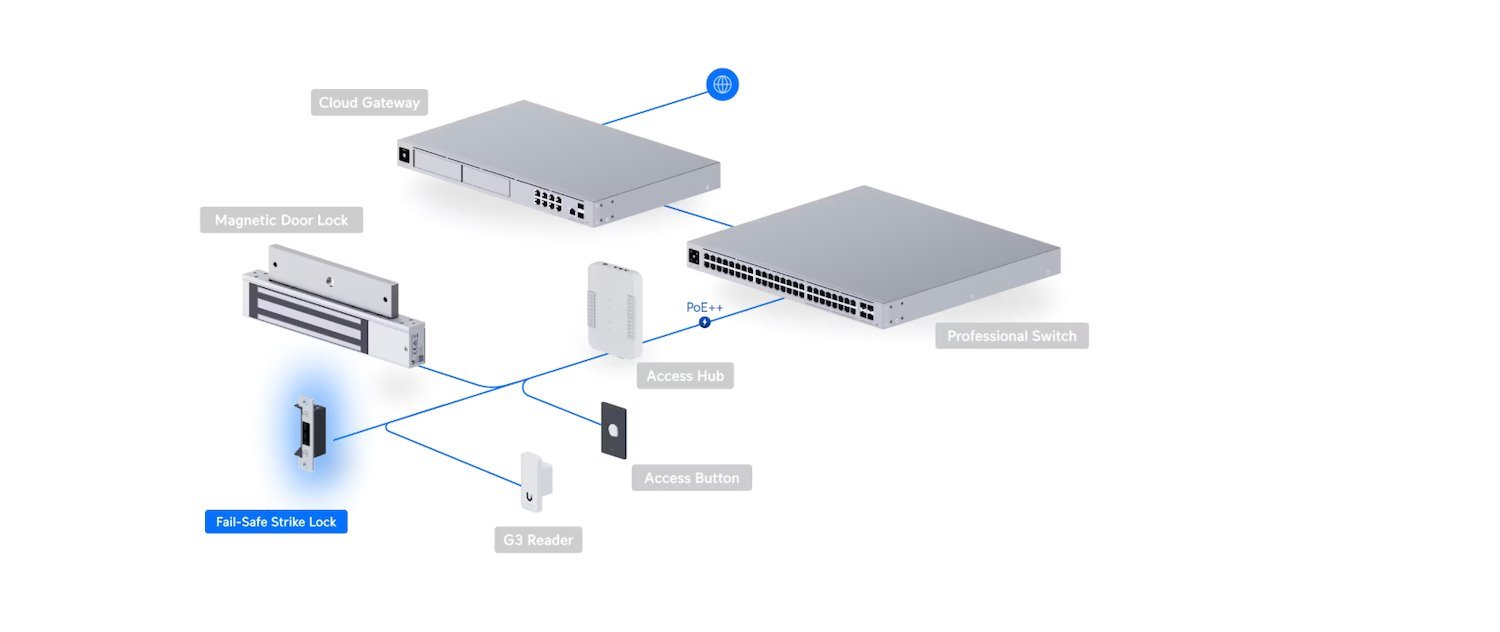

Fail-safe operation ensures the strike unlocks during power loss or emergency conditions, supporting life-safety compliance and controlled evacuation protocols. Compatibility with UniFi access infrastructure enables centralized credential management, monitoring, and automation through supported hub controllers.
Features

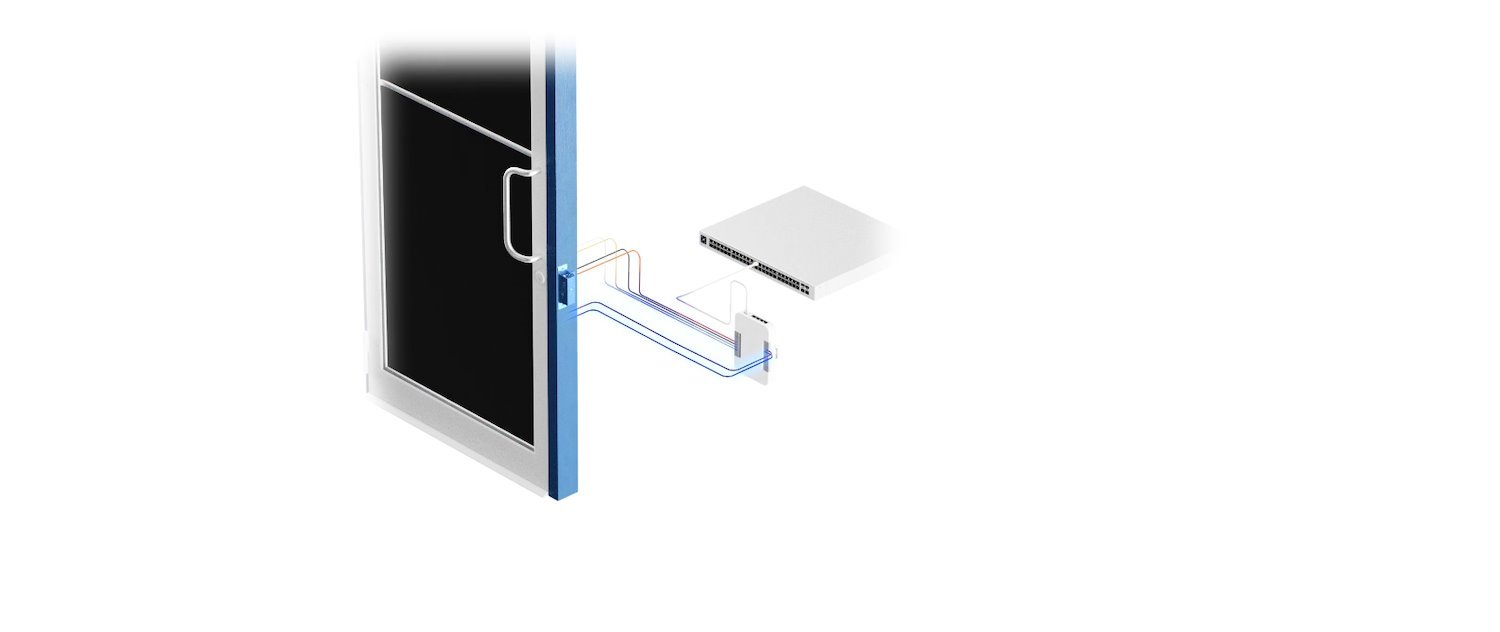

Built for straightforward deployment, the electric strike connects directly to supported UniFi hubs and accommodates standard door installations. The design ensures consistent locking and release performance within UniFi-based systems while supporting integration across varied facility layouts.
Applications
Enterprise deployments using UniFi access platforms
Commercial or institutional door security installations
Retrofit upgrades within UniFi-managed environments
Doors requiring fail-safe electric strike operation
Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate

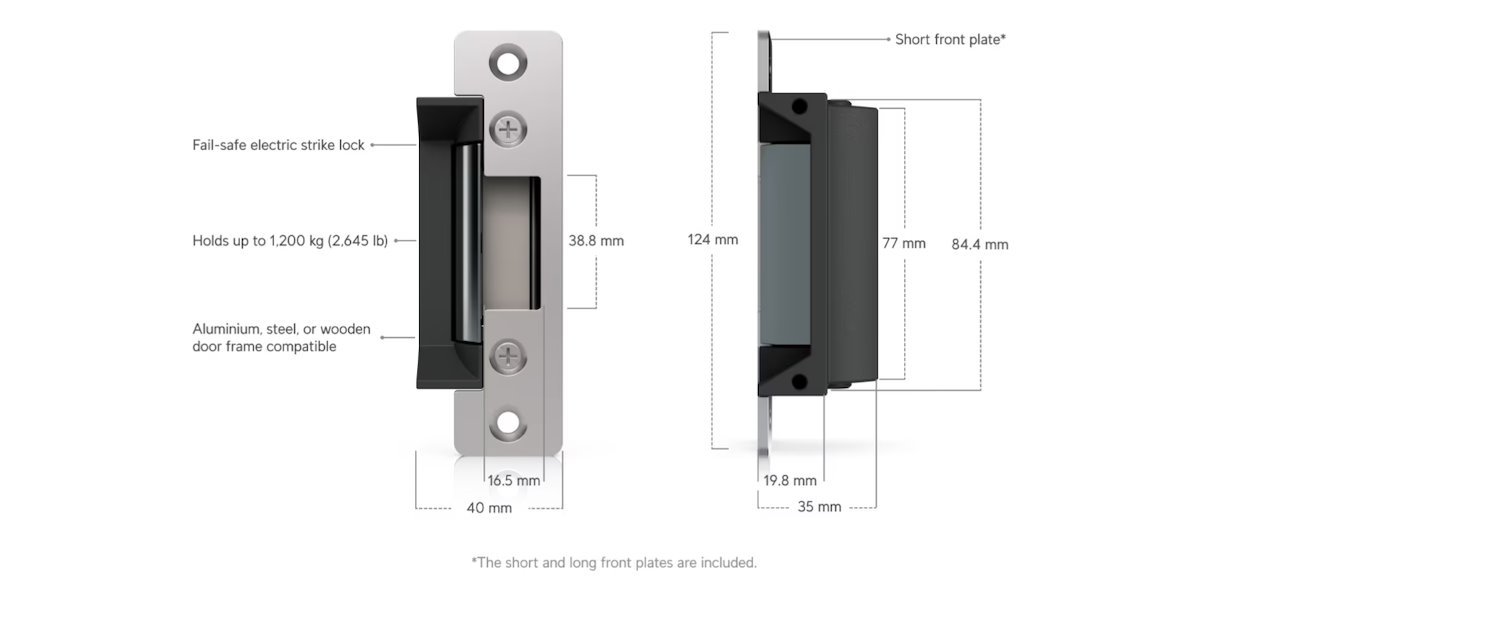

Dimensions
• Lock Body: 80 × 40 × 35 mm (3.2 × 1.6 × 1.4")
• Short Front Plate: 124 × 32 × 3 mm (4.9 × 1.3 × 0.1")
• Long Front Plate: 202 × 36 × 3 mm (7.9 × 1.4 × 0.1")
Weight
• Lock Body: 185 g (6.5 oz)
• Short Front Plate: 50 g (1.8 oz)
• Long Front Plate: 130 g (4.6 oz)
Construction
• Lock Body Material: Zinc Alloy
• Front Plate / Latches Material: Stainless Steel
Lock Features
• Lock Type: Fail Safe
• Supported Door Types: Single Door (Wood; Metal)
• Holding Force: 1,200 kg (2,645 lb)
Electrical
• Current Draw: 400 mA ±10%
• Supported Voltage Range: 12 VDC ±10%
• Wiring Leads:
• Lock 12V/NC — Red
• Lock 12V/COM — Black
Mounting
• Installation Type: Door Frame Recess Mount
Door Status Contact
• Contact Type: Dry Contact
• Logic:
• Door Open — DPS/+ & DPS/− Open
• Door Closed — DPS/+ & DPS/− Short
• Rating: Max 30 VDC; 0.1 A
Environmental
• Storage Temperature: −20°C to +70°C (−4°F to +158°F)
• Operating Temperature: −10°C to +60°C (14°F to +140°F)
• Operating Humidity: 5%–90% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; IC; CE
