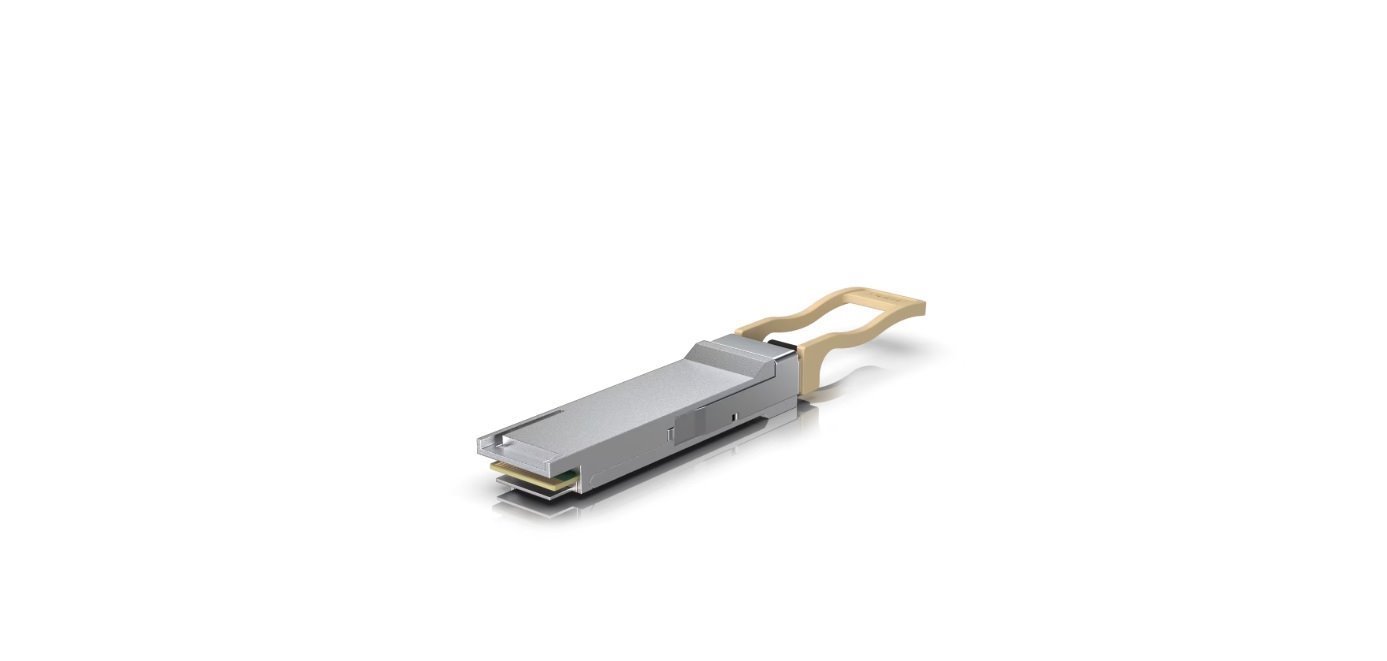

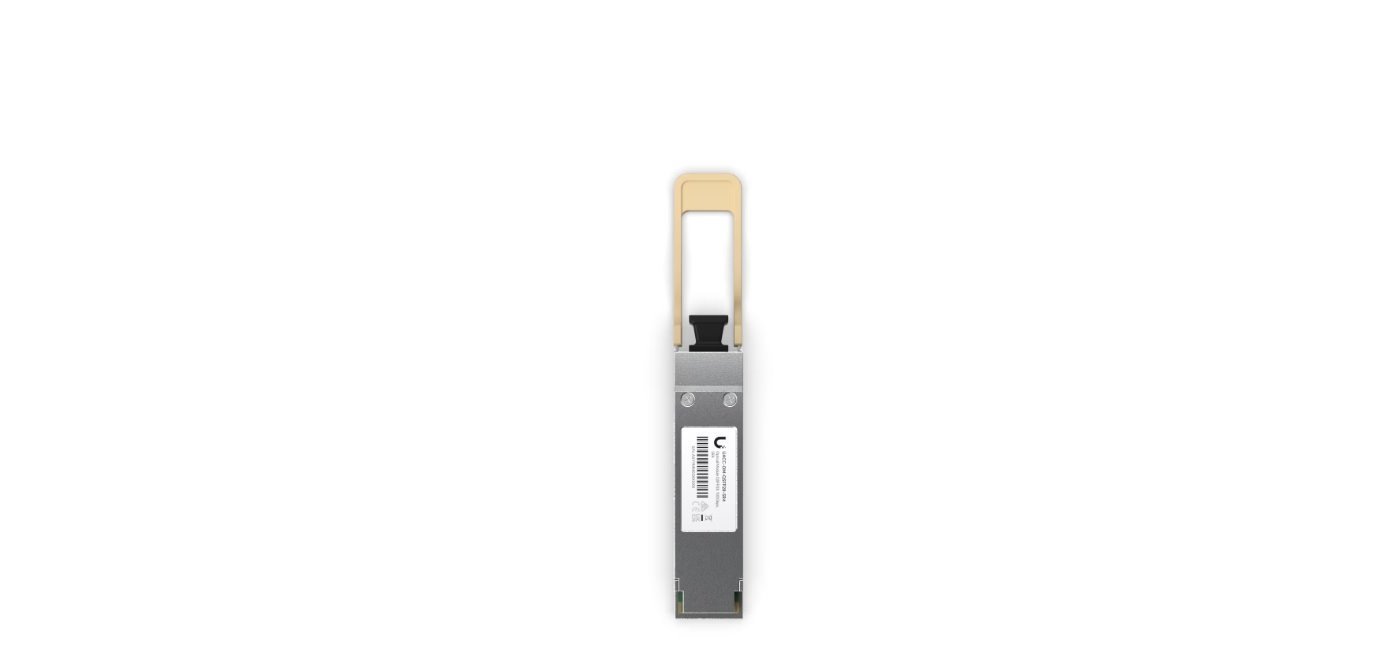

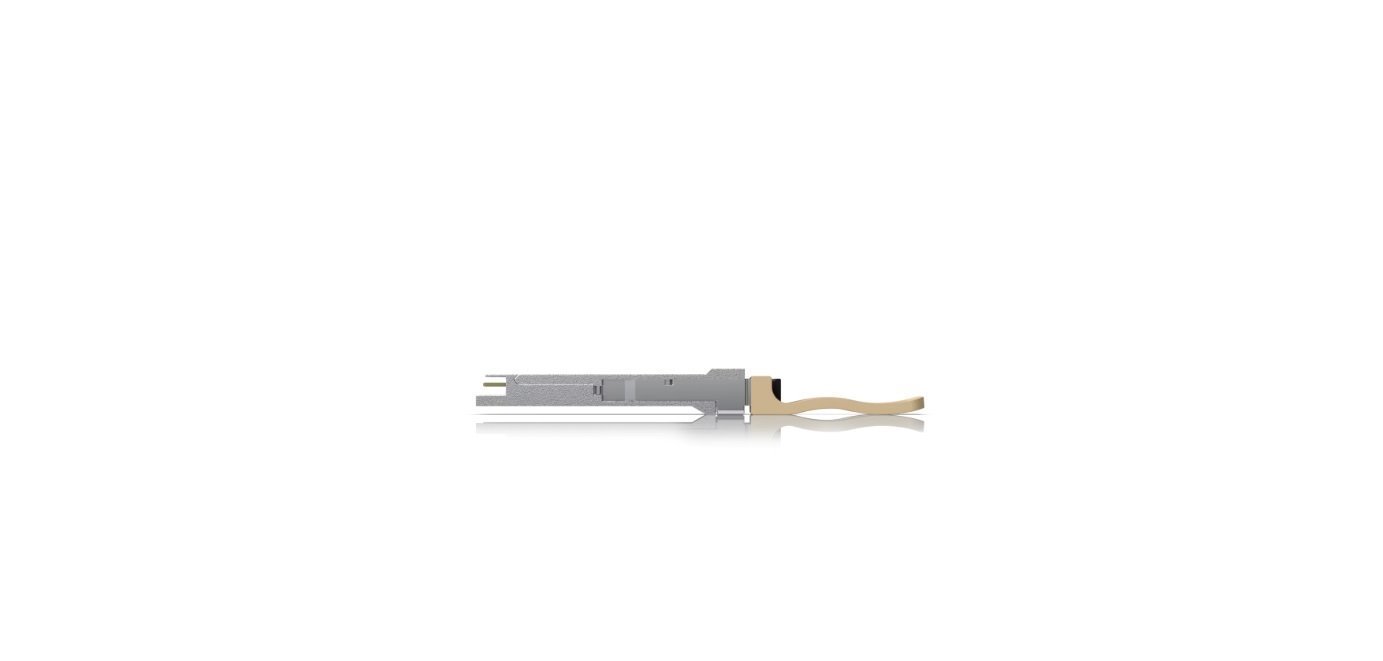

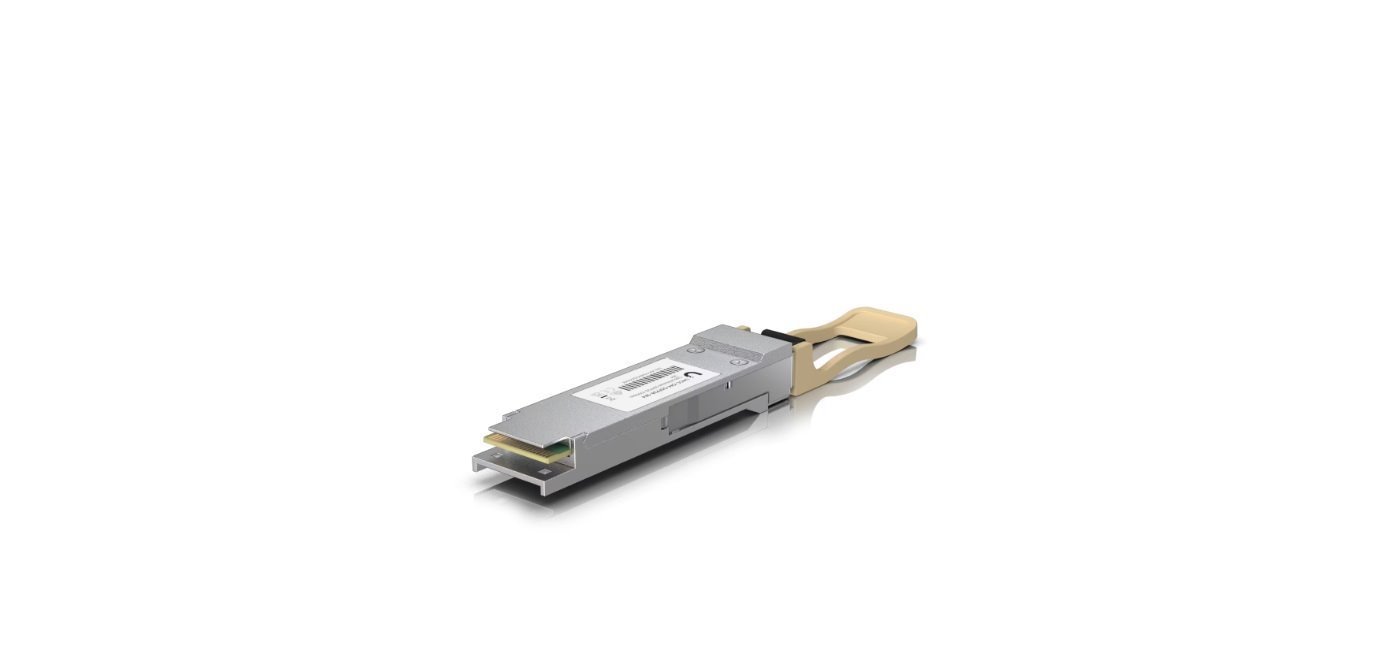

QSFP28 transceiver that supports 100G connections up to 100 m using multi-mode fiber with an MPO-12 Type B UPC connector.
Max data rate: 100 Gbps
Compatible with QSFP28 and QSFP+ interfaces
MPO-12 Type B UPC connector
Supports multi-mode fiber connections up to 100 m*
*Fiber cable is not included.
Form Factor & Connectivity
Form Factor: QSFP
Connector: MPO-12 Type B UPC
Supported Media: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm
RX Wavelength: 850 nm
Supported Data Rates: 40 / 100 Gbps
Supported Cable Distance: 100 m (328 ft) over MMF
Power & Environmental
Max Power Consumption: 2.5 W
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
Packaging Options
Single Unit
Safety Notice
CLASS 1 LASER PRODUCT — IEC/EN 60825-1:2014
⚠ Do not look into fiber ends or the module while powered.
