System

• Channels: 16

• Form Factor: 1U

• Processor: Industrial-grade processor

• Operating System: Embedded Linux

• User Interface: Web interface and local GUI

• Security Baseline: 2.3

Video

• Supported Resolutions:

  • 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP

  • 1080p, 720p, D1, CIF, QCIF

• Decoding Capability (AI Disabled):

  • 2 × 32MP @ 20 fps

  • 2 × 24MP @ 20 fps

  • 4 × 16MP @ 30 fps

  • 8 × 5MP @ 30 fps

  • 12 × 4MP @ 30 fps

• Self-Adaptive Decoding:

  • Up to 32-channel 1080p

Compression

• Video Compression:

  • Smart H.265+, H.265

  • Smart H.264+, H.264

  • MJPEG

• Audio Compression:

  • G.711a, G.711u, PCM, G.726

Network

• Bandwidth (AI Disabled):

  • 384 Mbps incoming / recording / outgoing

• Bandwidth (AI Enabled):

  • 200 Mbps incoming / recording / outgoing

• Network Protocols:

  • HTTP, HTTPS, TCP/IP

• Network Port:

  • 1 × Gigabit Ethernet (RJ-45)

• Third-Party Camera Support:

  • ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

AI Features

• AI by Recorder:

  • Face detection & recognition: 2 channels (up to 12 face images/sec per channel)

  • Perimeter protection: 4 channels, up to 10 IVS rules per channel

  • SMD Plus: 8 channels (human & vehicle filtering)

• AI by Camera:

  • Face detection & recognition

  • Video metadata (humans, motor vehicles, non-motor vehicles)

  • Perimeter protection

  • SMD Plus

  • Stereo analysis

  • Crowd distribution

  • People counting

  • ANPR

  • Vehicle density detection

  • Heat mapping

• Perimeter Performance:

  • Recorder-based: 4 channels

  • Camera-based: 16 channels

• Face Attributes Analyzed:

  • Gender, age group, glasses, expressions, face mask, beard

• License Plate Database:

  • Up to 20,000 plates

  • Blocklist and allowlist supported

Video Output

• HDMI: 1 channel

• VGA: 1 channel

• Display Support:

  • 4K output

  • Heterogeneous HDMI/VGA output supported

• Multi-Screen Display:

  • Main screen: 1 / 4 / 8 / 9 / 16

  • Sub screen: 1 / 4 / 8 / 9 / 16

Recording & Playback

• Playback:

  • Up to 16-channel simultaneous playback

• Recording Modes:

  • General

  • Motion detection

  • Intelligent

  • Alarm

  • POS

• Playback Modes:

  • Instant playback

  • General playback

  • Event playback

  • Tag playback

  • Smart playback (face & motion detection)

• Backup Methods:

  • USB device

  • Network

Storage

• HDD Interface:

  • 2 × SATA ports

• Maximum Capacity:

  • Up to 16TB per HDD

• Disk Group Management:

  • Supported

Alarm

• General Alarms:

  • Motion detection

  • Privacy masking

  • Local alarm

• Anomaly Alarms:

  • Camera offline

  • Storage error

  • Disk full

  • IP conflict

  • MAC conflict

  • Login lock

• Alarm Linkage:

  • Recording

  • Snapshot (panoramic)

  • Local alarm output

  • IPC external alarm output

  • Access controller

  • Audio alert

  • Buzzer

  • Log, preset, email

• Alarm Inputs: 4

• Alarm Outputs: 2

Audio

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

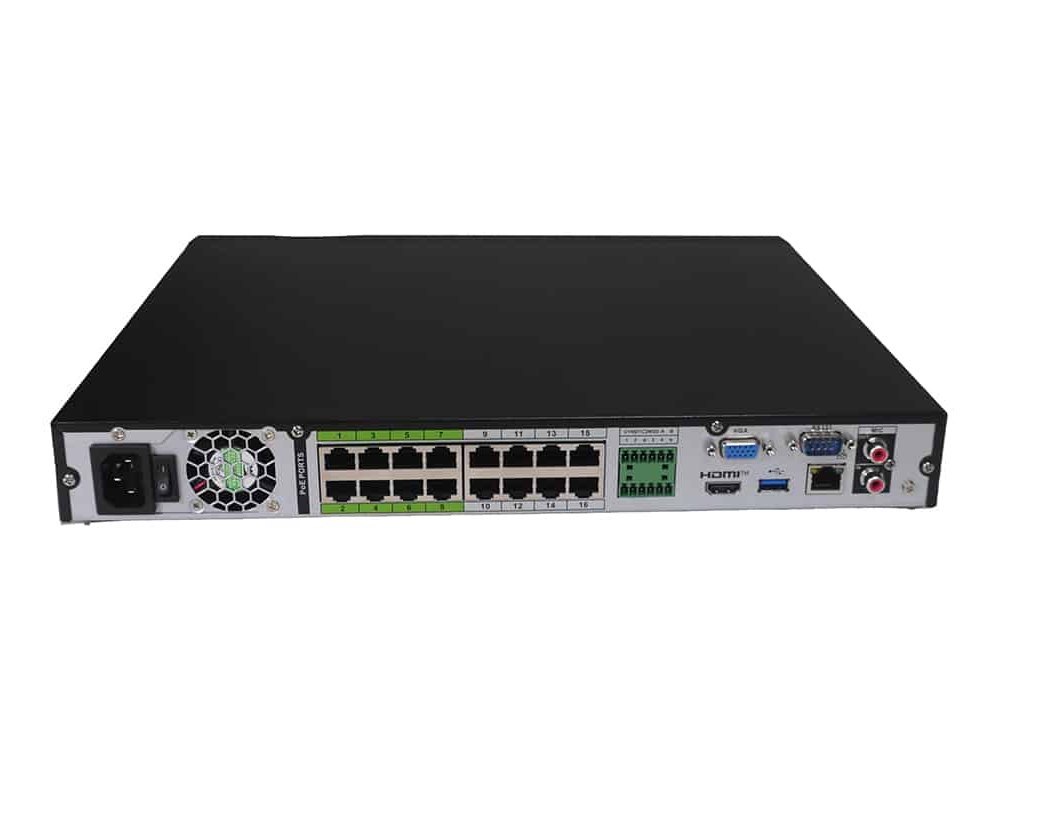

Ports & Interfaces

• RS-232: 1

• RS-485: 1

• USB:

  • 2 ports (1 front USB 2.0, 1 rear USB 3.0)

• HDMI: 1

• VGA: 1

• PoE Ports:

  • 16 × PoE ports (10/100 Mbps)

  • IEEE 802.3af/at

  • Ports 1–8 support ePoE

Power

• Power Supply: 100–240 VAC, 47–63 Hz

• NVR Power Consumption: ≤ 10W (without HDD)

• Total PoE Power Budget: 130W

• Maximum PoE Output per Port: 25.5W

Browser Support

• Supported Browsers: Chrome, IE 9 or later, Firefox
