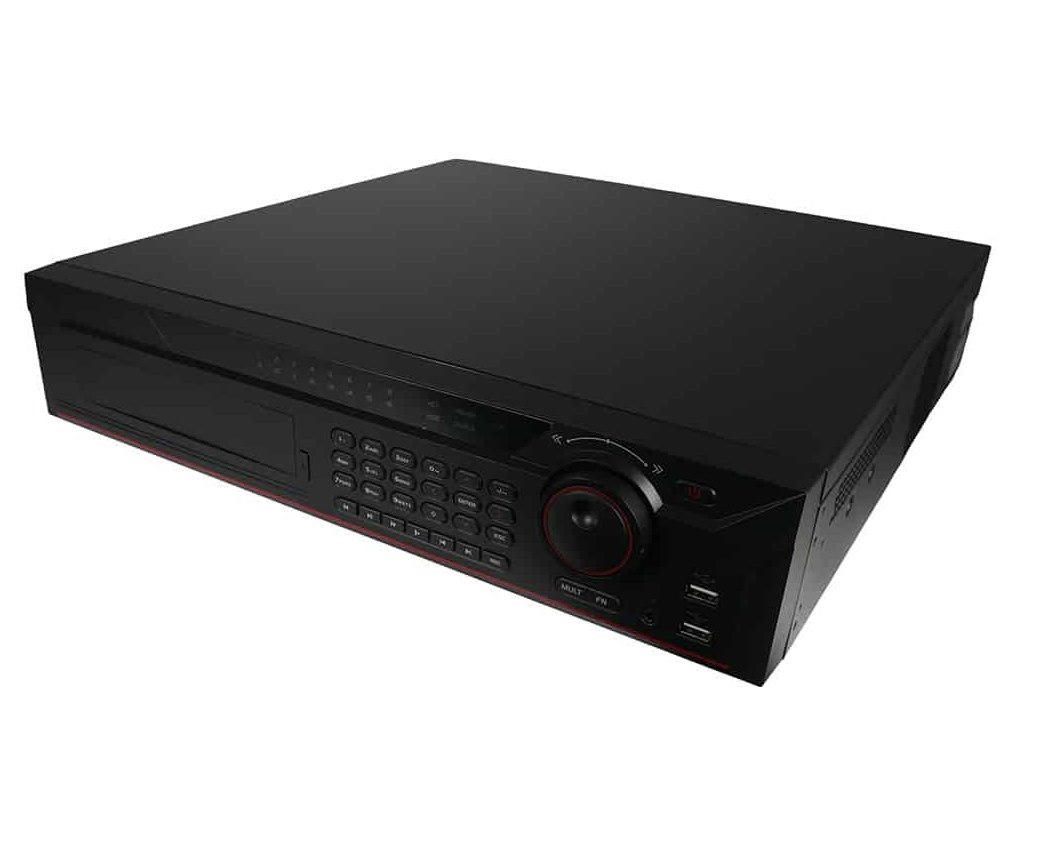

The Elite Series 32-Channel 2U 4K Enhanced AI NVR delivers enterprise-grade video management with advanced artificial intelligence for large-scale professional security installations. Built on an industrial-grade platform, this NVR combines powerful processing, flexible high-capacity storage with RAID support, and comprehensive AI analytics to support mission-critical surveillance across commercial and institutional environments.
Advanced AI Analytics
This NVR delivers flexible artificial intelligence deployment through both recorder-based and camera-based analytics. Onboard AI processing supports 2-channel face detection and recognition (up to 12 face images per second per channel), 4-channel perimeter protection with up to 10 IVS rules per channel, and 8-channel SMD Plus for intelligent human and vehicle filtering.
When paired with AI-enabled cameras, the system expands analytics to include video metadata for humans, motor vehicles, and non-motor vehicles, along with stereo analysis, crowd distribution, people counting, heat mapping, vehicle density monitoring, and ANPR with support for up to 20,000 license plate entries. Facial analysis captures key attributes including gender, age group, glasses, expressions, face masks, and beards, enabling advanced search and investigative workflows.
✓ Enterprise Storage Flexibility – An 8-bay drive architecture with RAID 0/1/5/6/10 support ensures high performance, data redundancy, and reliability for mission-critical surveillance environments.
Professional Integration Features
Built on an industrial-grade processor running embedded Linux, this 2U rack-mount NVR offers extensive system integration capabilities, including dual Gigabit Ethernet ports, 16 alarm inputs, 8 alarm outputs, RCA audio I/O, and broad third-party camera compatibility through ONVIF and major manufacturer protocols. Multi-screen display support enables up to 36 channels on the main display and 16 channels on a secondary display, while Security Baseline 2.3 compliance provides robust cybersecurity protection.
Ideal Applications
Large commercial and enterprise facilities requiring facial recognition
Transportation hubs utilizing ANPR and vehicle analytics
Retail environments leveraging heat maps and people counting
Corporate campuses demanding high availability and redundancy
Educational institutions requiring perimeter protection and crowd monitoring

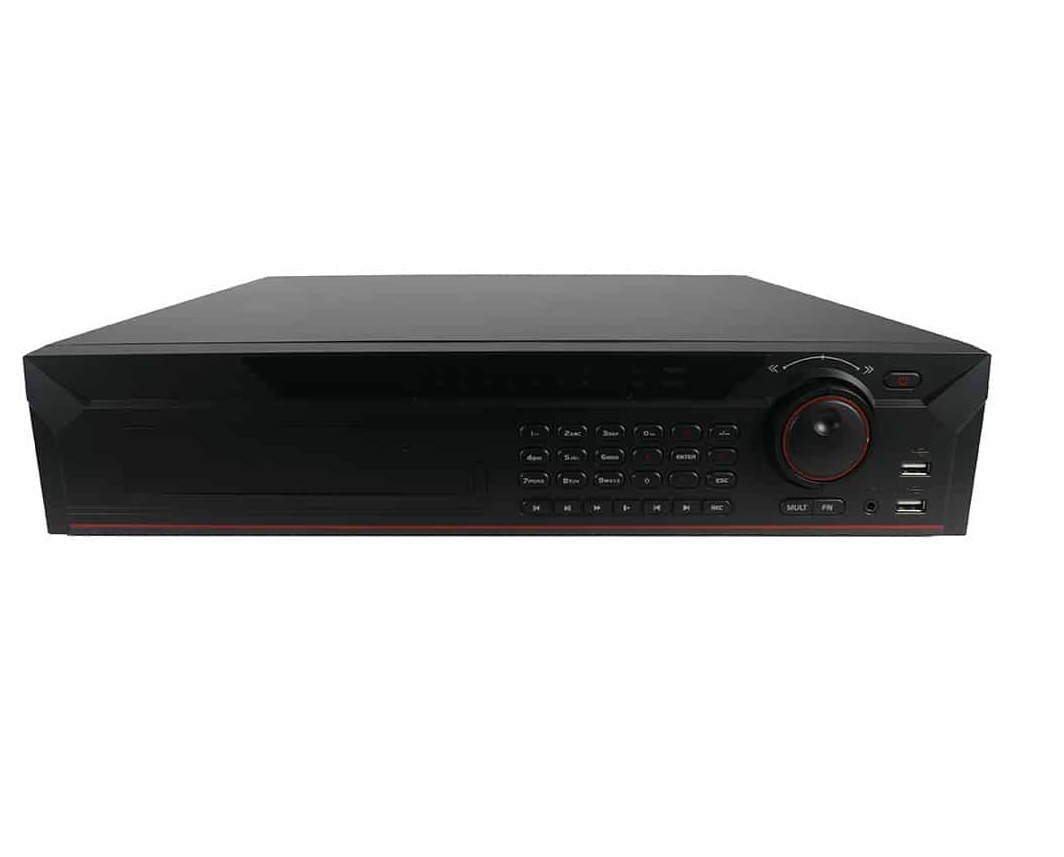

Elite Series 32-Channel 2U 4K Enhanced AI NVR
System
Model: Elite 32 CH 2U 4K Enhanced AI NVR
SKU: NVR-EL32-4KEI
Channels: 32
Form Factor: 2U
Main Processor: Industrial-grade processor
Operating System: Embedded Linux
Operating Interface: Web UI, Local GUI
Security Baseline: 2.3
AI Features
AI by Recorder:
2-channel face detection & recognition
4-channel perimeter protection
8-channel SMD Plus (human & vehicle filtering)
AI by Camera:
Face detection & recognition
Perimeter protection
SMD Plus
Video metadata (human, motor vehicles, non-motor vehicles)
ANPR
Stereo analysis
Heat map
People counting
Face Attributes:
Gender, age group, glasses, expressions, face mask, beard
Face Detection Performance (Recorder):
2 channels, up to 12 face images/sec per channel
Face Detection Performance (Camera):
Up to 8 channels
Perimeter Protection Performance:
Recorder: 4 channels, up to 10 IVS rules per channel
Camera: Up to 16 channels
License Plate Database:
Up to 20,000 plate numbers
Blocklist & allowlist supported
Video
Resolution Support:
32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1, CIF, QCIF
Decoding Capability (AI Disabled):
2 × 32MP @20 fps
2 × 24MP @20 fps
4 × 16MP @30 fps
5 × 12MP @30 fps
8 × 8MP @30 fps
12 × 5MP @30 fps
16 × 4MP @30 fps
32 × 1080p @30 fps
Decoding Capability (AI Enabled):
1 × 32MP @20 fps
1 × 24MP @20 fps
2 × 16MP @30 fps
4 × 12MP @30 fps
4 × 8MP @30 fps
8 × 5MP @30 fps
12 × 4MP @30 fps
24 × 1080p @30 fps
Video Outputs:
2 × HDMI
2 × VGA
4K Display Support: Yes
Multi-Screen Display:
Main screen: 1 / 4 / 8 / 9 / 16 / 25 / 36
Sub screen: 1 / 4 / 8 / 9 / 16
Playback Modes:
Instant playback
General playback
Event playback
Tag playback
Smart playback (face & motion detection)
Compression
Video Compression:
Smart H.265+ / H.265
Smart H.264+ / H.264
MJPEG
Decoding Formats Supported:
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Network
Bandwidth (AI Disabled):
384 Mbps incoming / recording / outgoing
Bandwidth (AI Enabled):
200 Mbps incoming / recording / outgoing
Network Ports:
2 × Gigabit Ethernet (RJ-45)
Third-Party Camera Support:
ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Storage
HDD Bays: 8
RAID Support: RAID 0 / 1 / 5 / 6 / 10
Disk Group: Supported
eSATA Port: Yes
Audio
Audio Input: 1 × RCA
Audio Output: 2 × RCA
Alarm
General Alarms:
Motion detection
Privacy masking
Local alarm
Anomaly Alarms:
Camera offline
Storage error
Disk full
IP conflict
MAC conflict
Login lock
Fan abnormality
Cybersecurity exception
Intelligent Alarms:
Face detection & recognition
Perimeter protection
Video metadata (human & vehicle)
SMD Plus
Stereo analysis
Crowd distribution
People counting
ANPR
Vehicle density
Heat map
Alarm Linkage:
Recording
Snapshot (panoramic)
Local alarm output
IPC external alarm output
Access controller
Audio
Buzzer
Log
Preset
Email
Alarm Inputs: 16
Alarm Outputs: 8 (includes 1 × 12V 1A output)

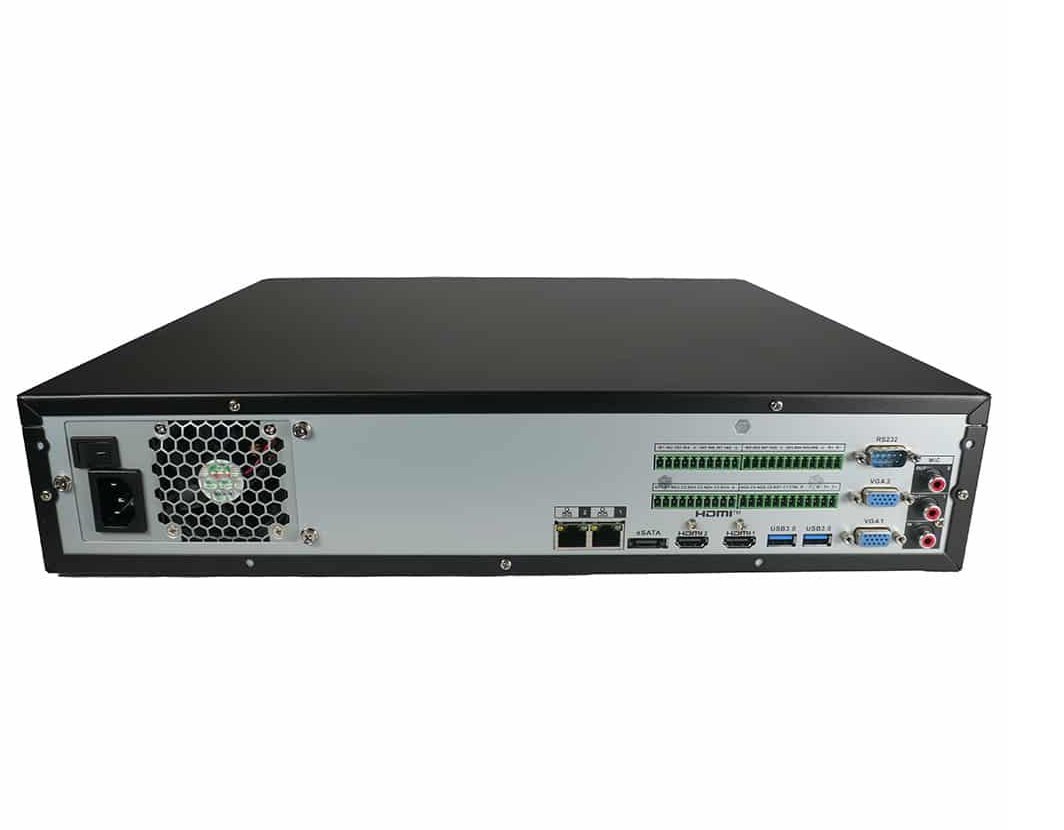

Ports
HDMI: 2
VGA: 2
USB: Yes
RS-232: Yes
MIC IN: RCA
MIC OUT: RCA
Power
Power Supply: 100–240 VAC, 50–60 Hz
Power Consumption: ≤ 13 W (without HDD)
Physical
Net Weight: 6.4 kg (14.11 lb)
Gross Weight: 9.01 kg (19.86 lb)
Product Dimensions:
439.9 × 457.9 × 89.0 mm
(17.32" × 18.03" × 3.50")
Packaging Dimensions:
570.0 × 570.0 × 226.0 mm
(22.44" × 22.44" × 8.90")
Installation: Rack or desktop
Environmental
Operating Temperature: –10°C to +55°C (14°F to 131°F)
Storage Temperature: –20°C to +60°C (–4°F to 140°F)
Operating Humidity: 10%–93% RH
Certifications
FCC: 47 CFR Part 15, Subpart B, Class A
CE-EMC: EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
CE-LVD: EN 62368-1
