Find Beauty in the Details with 12MP
Enjoy the breathtaking details and hues with 12MP ultra-high resolution and F1.6 large aperture lens. Even the tiniest subjects such as raindrops and rose petals look extraordinary.
Night Vision with Ultra Clarity & Color
Each camera of this surveillance kit is equipped with a powerful spotlight that keeps on at night, making night scenes as vivid as day. You can see more details in full color without worrying about poor lights.
Easy PoE Setup

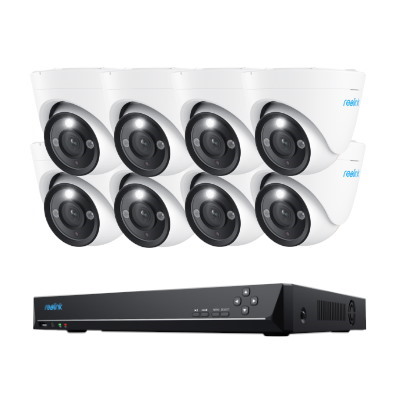

No power cable or adapter is needed. RLK16-1200D8-A with Power over Ethernet (PoE) technology needs only one single network cable for each camera. Less wiring, less cost, more convenience.
- 12MP Ultra HD
- Person/Vehicle Detection
- Power over Ethernet
- 16-Channel NVR
Note:
The cameras of the kit cannot work without the NVR.
Video & Audio
Image Sensor
1/2.49" CMOS Sensor
Video Resolution
Default: 4512X2512 (12 Megapixels) at 20 frames/sec
Lens
f=4.0mm; F=1.6, with IR-cut filter
Video Format
H.265
Field of View
• Horizontal: 93°
• Vertical: 49°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
30 meters (LED: 2pcs/28mil/850nm)
Color Night Vision
Spotlight: 1pcs/4.3W/6500K/700 Lumens
Audio
Two-way audio (via Reolink App/Client)
Power
PoE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)
Code Rate
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Smart Alarm
Motion detection; person detection; vehicle detection; pet detection
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP67
Size & Weight
Dimension

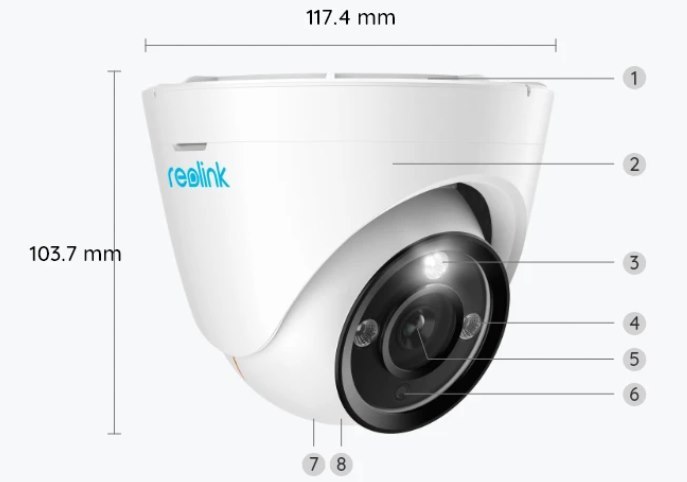

Φ117.4*103.7mm
Weight
510g
Warranty
Hardware
Hardware
V2
Video/Audio Input
IP Video Input
PoE IP camera x 16
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio output
1-channel, RCA
Decoding
Live View/Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD
SATA
2 x SATA interface (1 x 4TB HDD included)
Capacity
Up to 12TB (max. 6TB capacity for each HDD)
External HDD
No

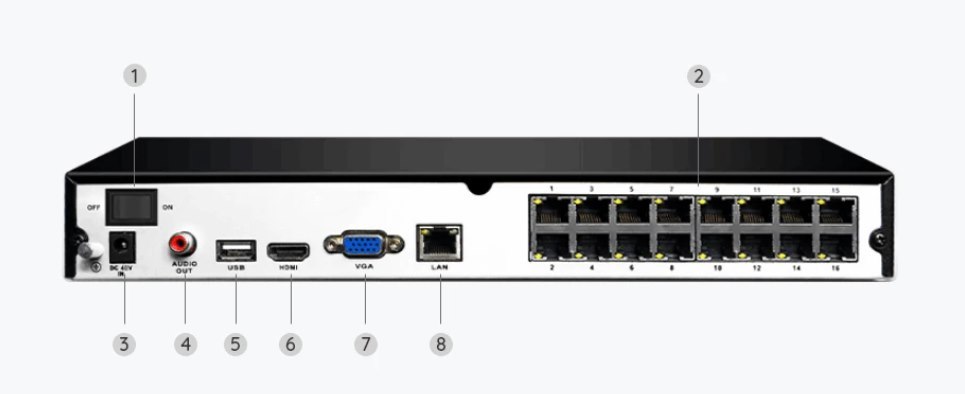

External Interface
USB Interface
2 x USB 2.0
Network Interface
• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN
• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
Max. Power Per Port
25W
Supported Standard
IEEE 802.3 af/at
Network
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported
Firefox, Chrome, Edge, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~54V
Power Consumption
<10W (without HDD & PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions

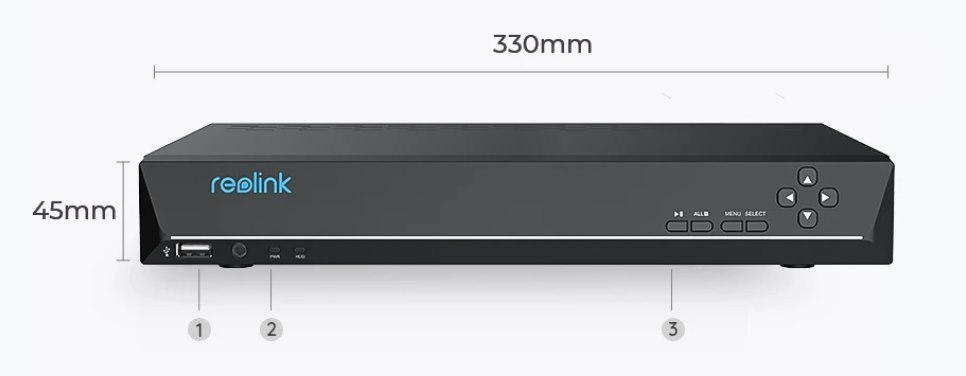

330 x 45 x 285mm
Weight
2.4kg
Warranty
Note:
The camera is only applicable for bundle sale.
Video & Audio
Image Sensor
1/2.49" CMOS Sensor
Video Resolution
Default: 4512X2512 (12 Megapixels) at 20 frames/sec
Lens
f=4.0mm; F=1.6, with IR-cut filter
Video Format
H.265
Field of View
• Horizontal: 93°
• Vertical: 49°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
30 meters (100ft) (LED: 2pcs/28mil/850nm)
Color Night Vision
Spotlight: 1pcs/4.3W/6500K/700 Lumens
Audio
Two-way audio
Power
POE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Storage
microSD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)
Code Rate
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/person detection/vehicle detection/pet detection
Record Mode
Motion-triggered recording (default); scheduled recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work with
Google Assistant
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.
Limited Warranty
2-year limited warranty with Reolink
