Overview
Deploy high-performance networking and power distribution with this ruggedized, fanless 10 GbE UniFi Cloud Gateway designed for demanding enterprise environments. Delivering up to 350W of total system power, it supports high-density PoE deployments while providing advanced routing, centralized management, and full UniFi application integration.
Performance
Equipped with high-speed 10 GbE connectivity and enterprise-grade routing capabilities, this cloud gateway ensures reliable network performance for bandwidth-intensive environments. Its fanless design enables silent operation while maintaining durability in harsh or noise-sensitive installations. Integrated microSD storage supports UniFi applications, enabling local data storage and system functionality without requiring external storage devices.
Power & Integration
With a total PoE power budget of 350W, the system supports large-scale deployments of access points, cameras, and access control devices from a single centralized platform. Integrated SIM slots enable future Remote SIM integration with UniFi 5G Max Outdoor devices, providing additional connectivity options through upcoming software support.
Features
The ruggedized enclosure ensures reliable performance in demanding environments, while centralized UniFi platform support enables comprehensive network, security, and access management. The compact, fanless architecture simplifies deployment while minimizing maintenance requirements.
Applications
Enterprise and campus network deployments
High-density PoE infrastructure installations
Surveillance and access control system hubs
Industrial and rugged environment networking

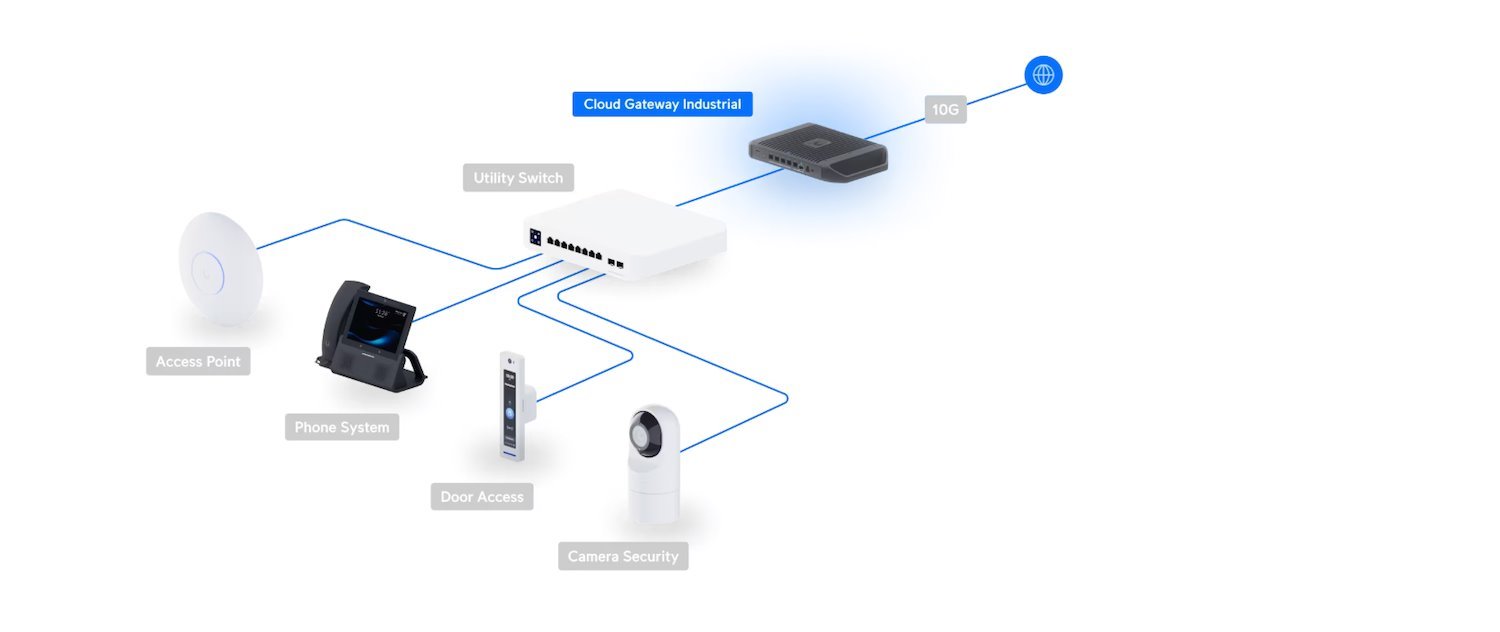

Centralized UniFi platform deployments requiring integrated routing and power
Mechanical

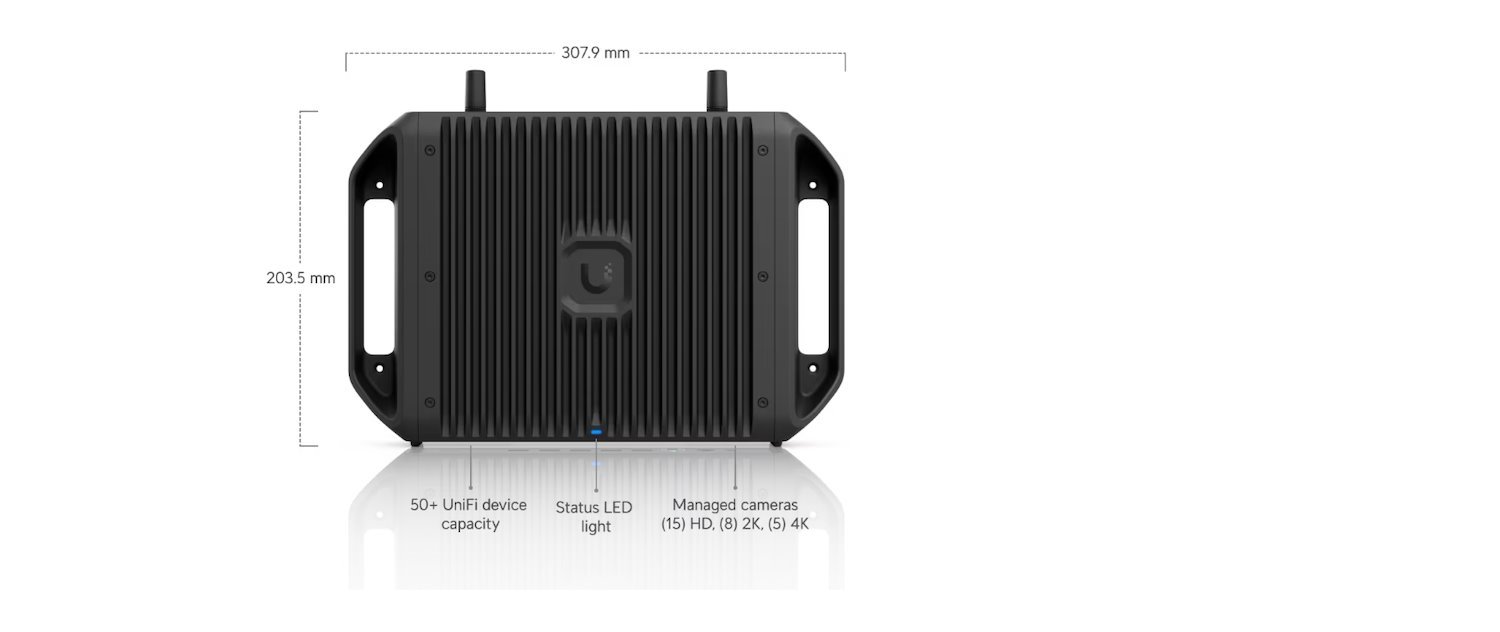

• Dimensions
• Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7")

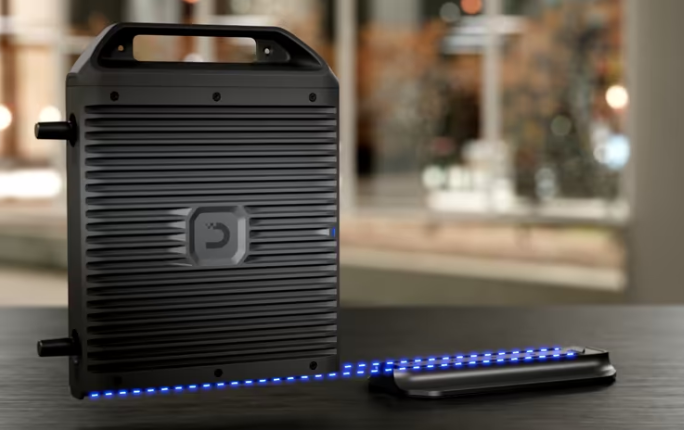

• Table Stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")
• Weight
• Device: 2.4 kg (5.3 lb)
• Table Stand: 321 g (11.3 oz)

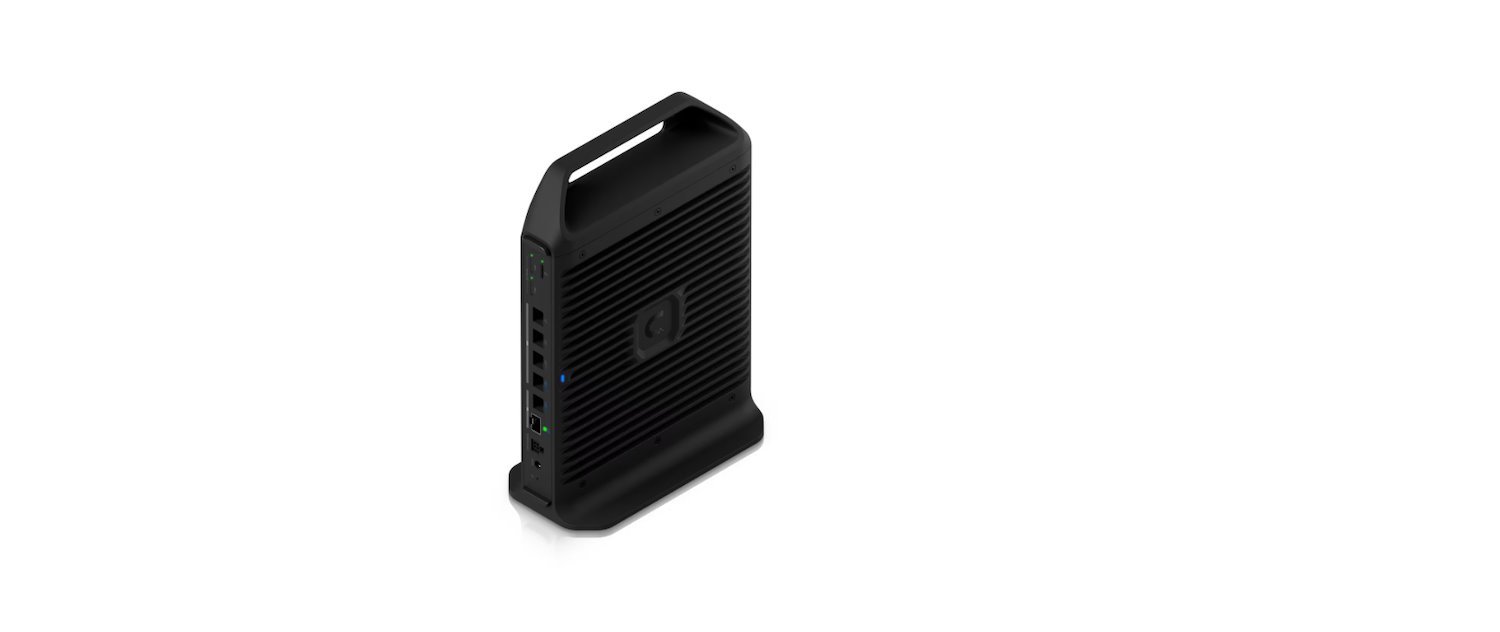

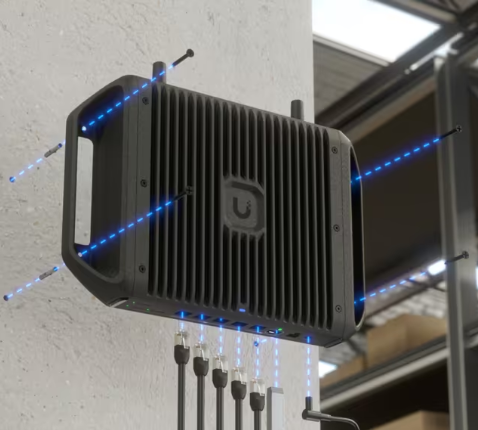

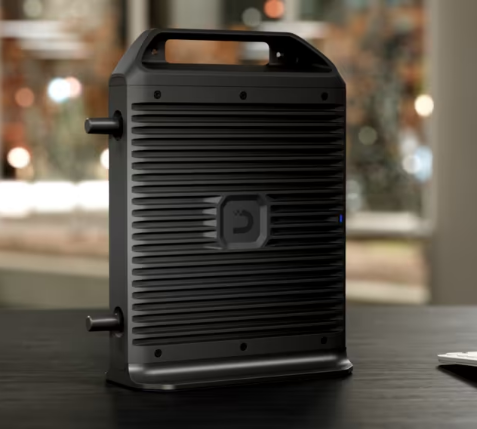

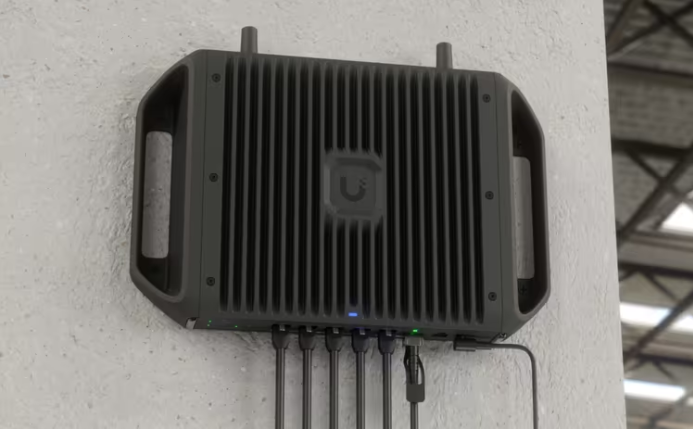

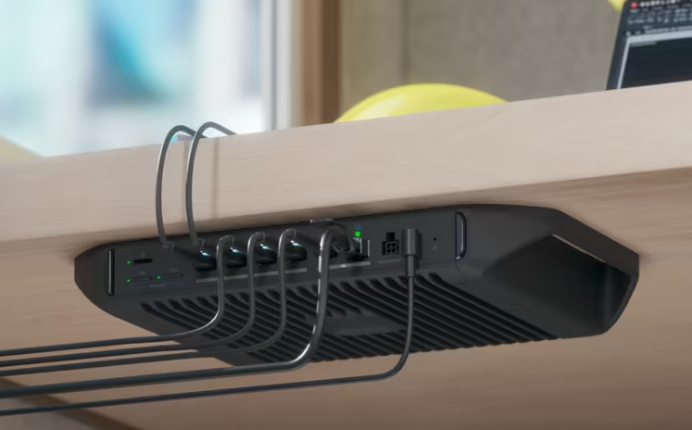

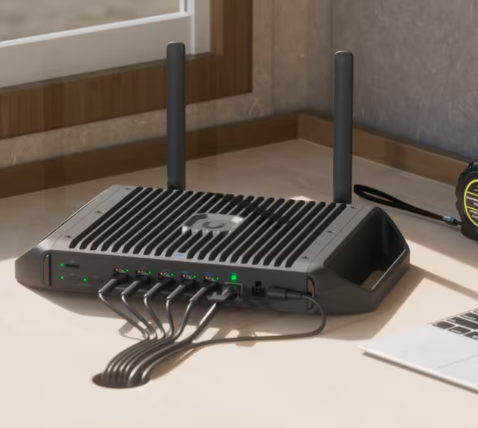

• Form Factor: Wall-mounted; compact desktop (table stand included); rack mount (accessory sold separately)
• Enclosure Material: Polycarbonate; aluminum alloy
• Table Stand Material: Polycarbonate; galvanized steel; silicone rubber
UniFi Application Support
• UniFi Application Suite
• Network
• Protect
• Access
• Talk
• Connect
• Managed UniFi Devices: 50+
• Managed Cameras
• (15) HD
• (8) 2K
• (5) 4K
• Simultaneous Connected Users: 500+
• Pre-installed NVR Storage: 128 GB microSD
• Expansion Slot: MicroSD card

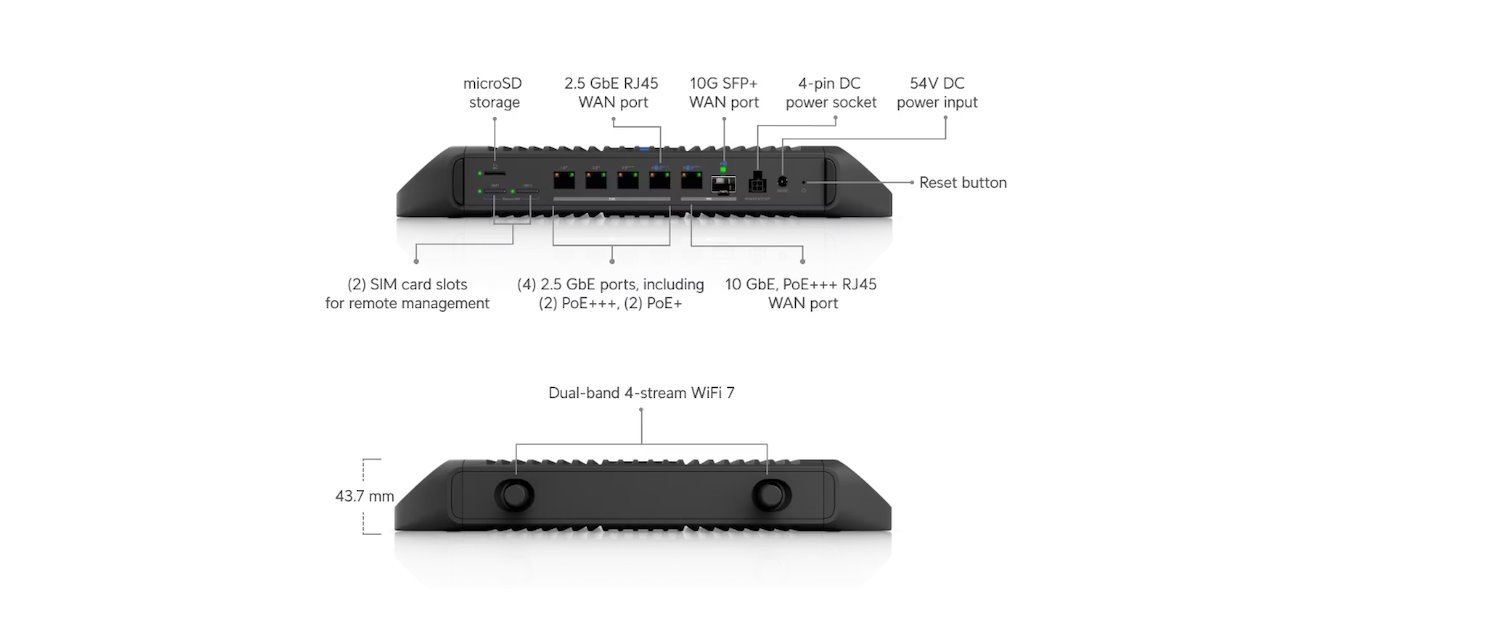

Network & Interface
• Max WAN Port Count: 5
• Default WAN Ports
• (1) 10G SFP+
• (1) 10 GbE RJ45
• (1) 2.5 GbE RJ45

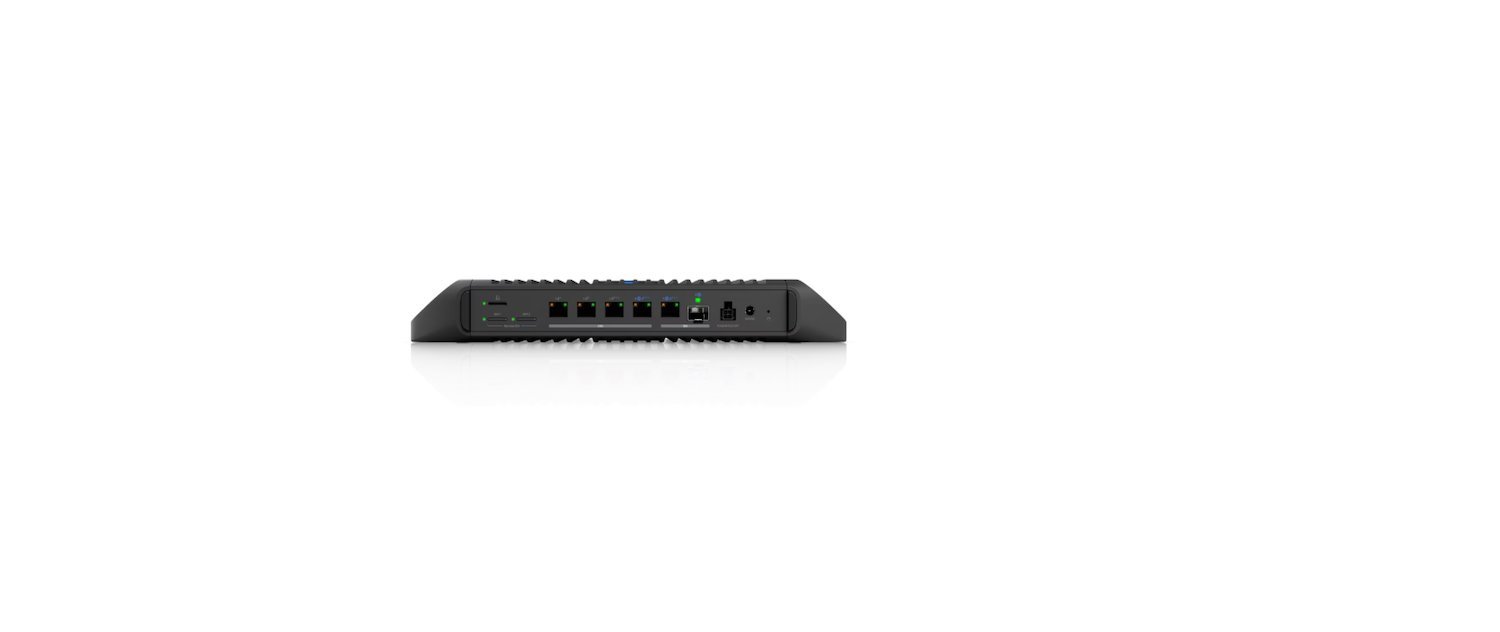

• Port Layout
• (4) 2.5 GbE RJ45 ports
• (2) PoE+++
• (2) PoE+
• Speeds: 2.5G/1G/100M
• (1) 10 GbE RJ45 port
• PoE+++
• Speeds: 10G/5G/2.5G/1G/100M
• (1) 10G SFP+ port (10G/1G)
• Networking Features
• Multi-WAN load balancing
• Dynamic routing (OSPF)
• Integrated RADIUS server
• RADIUS over TLS (RadSec)
• Advanced QoS
• Multicast DNS (mDNS)
• Advanced NAT (SNAT, DNAT, masquerade, NAT pooling, 1-to-1 NAT)
• Internet failover support (UniFi LTE Backup)
• Internet quality and outage reporting
• VLAN and subnet traffic segmentation
• MAC Address Table Size: 2,000
Integrated WiFi
• WiFi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
• Throughput
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps
• MIMO
• 5 GHz: 2 x 2 MU-MIMO
• 2.4 GHz: 2 x 2 MU-MIMO
• Antenna Gain
• 5 GHz: Stub antenna 5 dBi; terminal antenna 6 dBi
• 2.4 GHz: Stub antenna 3 dBi; terminal antenna 6 dBi
• Max TX Power
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Supported Data Rates
• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
• 802.11n: 6.5 Mbps to 300 Mbps
• 802.11g: 6 to 54 Mbps
• 802.11b: 1 to 11 Mbps
• 802.11a: 6 to 54 Mbps
Security
• Stateful Firewall
• Application-Aware Layer 7 Firewall
• Deep Packet Inspection (DPI) and traffic identification
• Zone-based firewall filtering (regions, domains, apps)
• Content filtering
• Intrusion detection and prevention (IDS/IPS)
• Ad blocking
• IDS/IPS Signatures: 55,000+ with CyberSecure
VPN & SD-WAN
• License-Free SD-WAN
• Site-to-Site VPN
• Site Magic
• IPsec
• OpenVPN
• VPN Server
• Identity Endpoint one-click VPN
• Teleport zero-configuration VPN
• WireGuard
• OpenVPN
• L2TP
• VPN Client
• OpenVPN
• WireGuard
Hardware
• Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
• System Memory: 3 GB
• PoE Budget
• DC Input: 270W
• ATX Power: 75W
• Max PoE Output per Port
• PoE+: 30W
• PoE+++: 90W
• PoE Voltage Range: 50–57V
• Max Power Consumption: 28W (excluding PoE output)
• Power Method
• (1) DC input (350W PSU included)
• (1) ATX power input (48V)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 85 BTU/hr (excluding PoE output)
• Management: Ethernet; Bluetooth
• LEDs
• Ethernet
• SFP+
• System
• MicroSD
• SIM
• Buttons
• (1) Factory reset
• (2) Handle release buttons
• ESD Protection: Air ±8 kV; Contact ±4 kV
Environmental
• Operating Temperature: -30 to 50° C (-22 to 122° F)
• Operating Humidity: 5 to 95% noncondensing
Compliance
• NDAA Compliant: ✓
• Certifications: CE; FCC; IC
Software
• Application Requirements
• UniFi Network iOS: Version 10.32.0 and later
• UniFi Network Android: Version 10.35.0 and later
