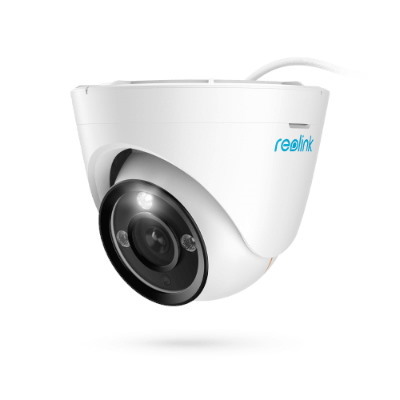

Unveil the Hidden Details in 12MP
With F1.6 large aperture lens and 12MP ultra high resolution, RLC-1224A allows you to experience never-before-seen details springing to life. Enjoy the feast for eyes with sharp clarity.
Precise Detection, Premium Protection
The camera intelligently distinguishes people, vehicles and pets from other objects. Offering reliable protection all the time by sending you alerts of true threats.
Night Vision with Ultra Clarity & Color
RLC-1224A is equipped with a powerful spotlight that keeps on at nighat, making night scenes as vivid as day. You can see more details in full color without worrying about poor lights.
12MP Ultra HD
Person/Vehicle Detection
Two-Way Audio
Power over Ethernet
Video & Audio
Image Sensor
1/2.49" CMOS Sensor
Video Resolution
Default: 4512X2512 (12 Megapixels) at 20 frames/sec
Lens
f=4.0mm; F=1.6, with IR-cut filter
Video Format
H.265
Field of View
• Horizontal: 93°
• Vertical: 49°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
30 meters (100ft) (LED: 2pcs/28mil/850nm)
Color Night Vision
Spotlight: 1pcs/4.3W/6500K/700 Lumens
Audio
Two-way audio
Power
POE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45

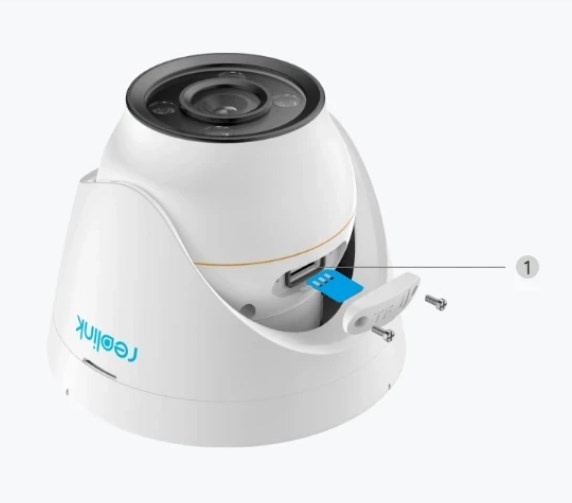

Storage
microSD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)
Code Rate
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/person detection/vehicle detection/pet detection
Record Mode
Motion-triggered recording (default); scheduled recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work with
Google Assistant
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP67

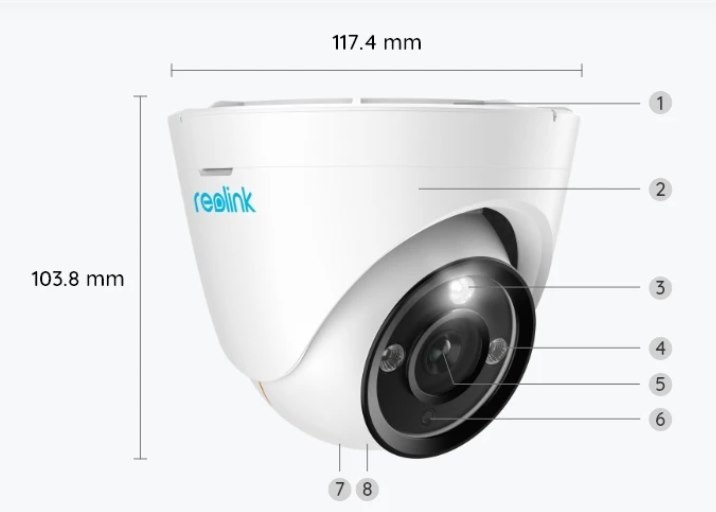

Size & Weight
Dimension
Φ117.4*103.8mm
Weight
515g
Warranty
Limited Warranty
2-year limited warranty with Reolink
