2U rack-mount NAS with (8) 2.5/3.5" HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.

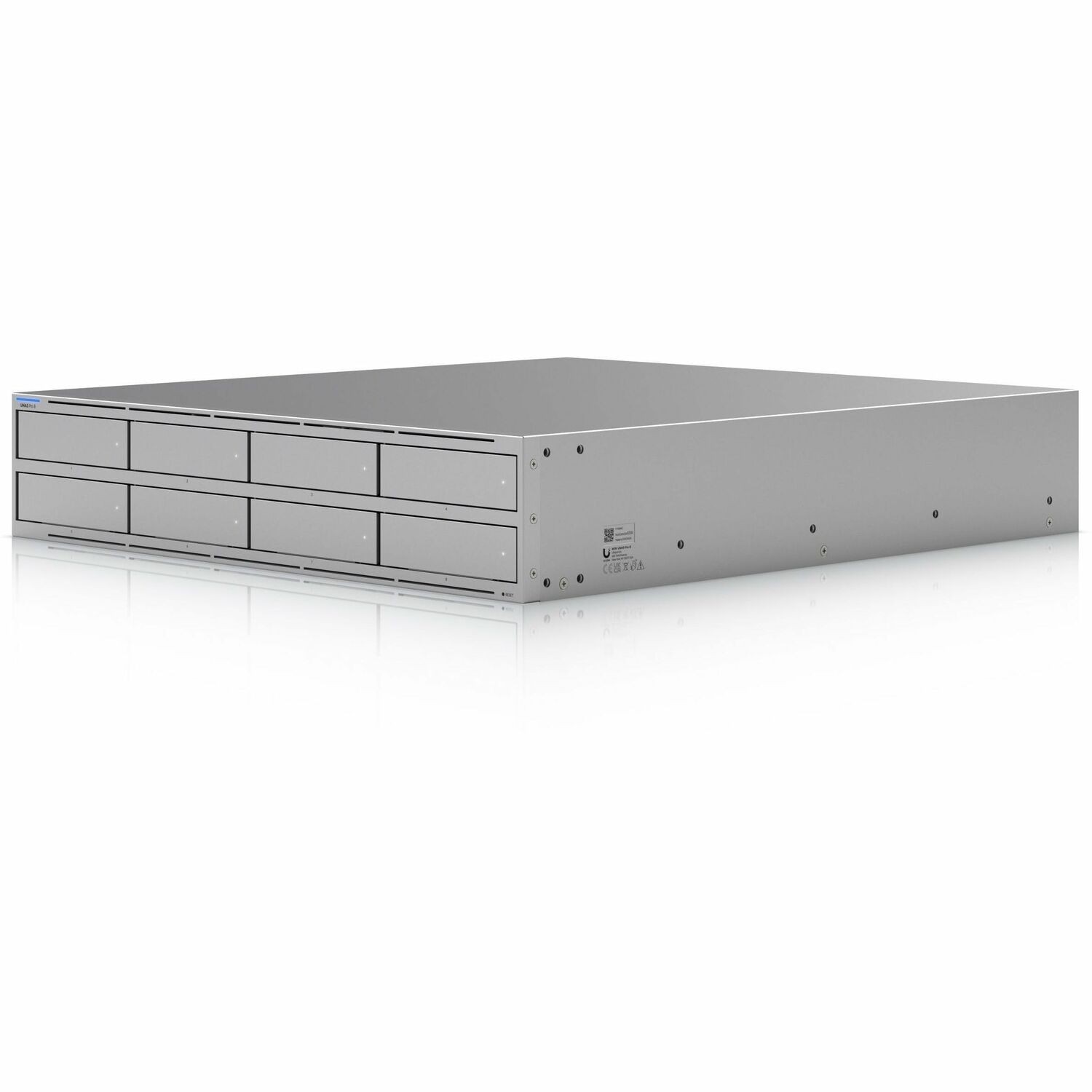

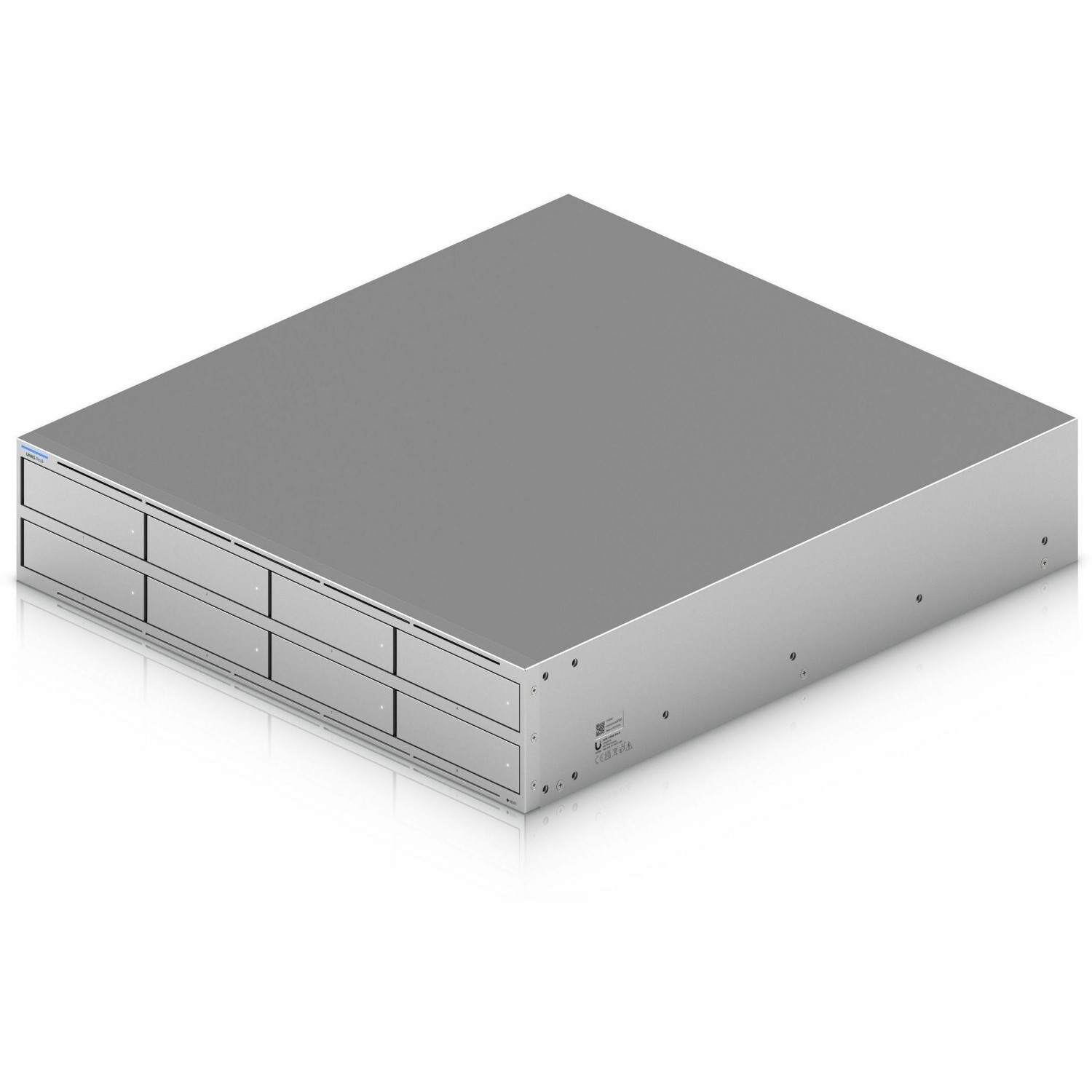

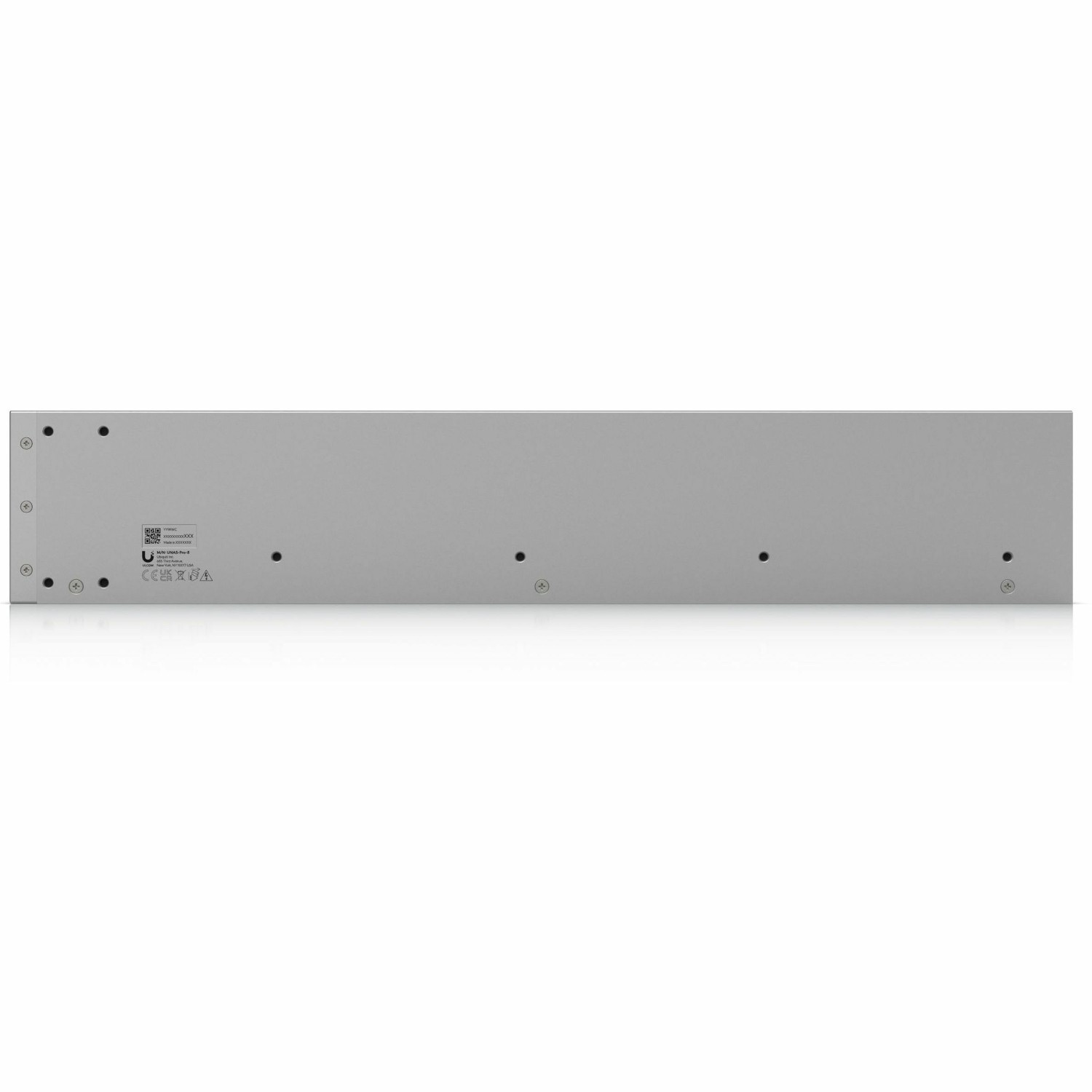

UniFi Drive Enterprise Rackmount (2U)
High-performance, redundant-power network storage appliance engineered for enterprise-scale UniFi Drive environments.

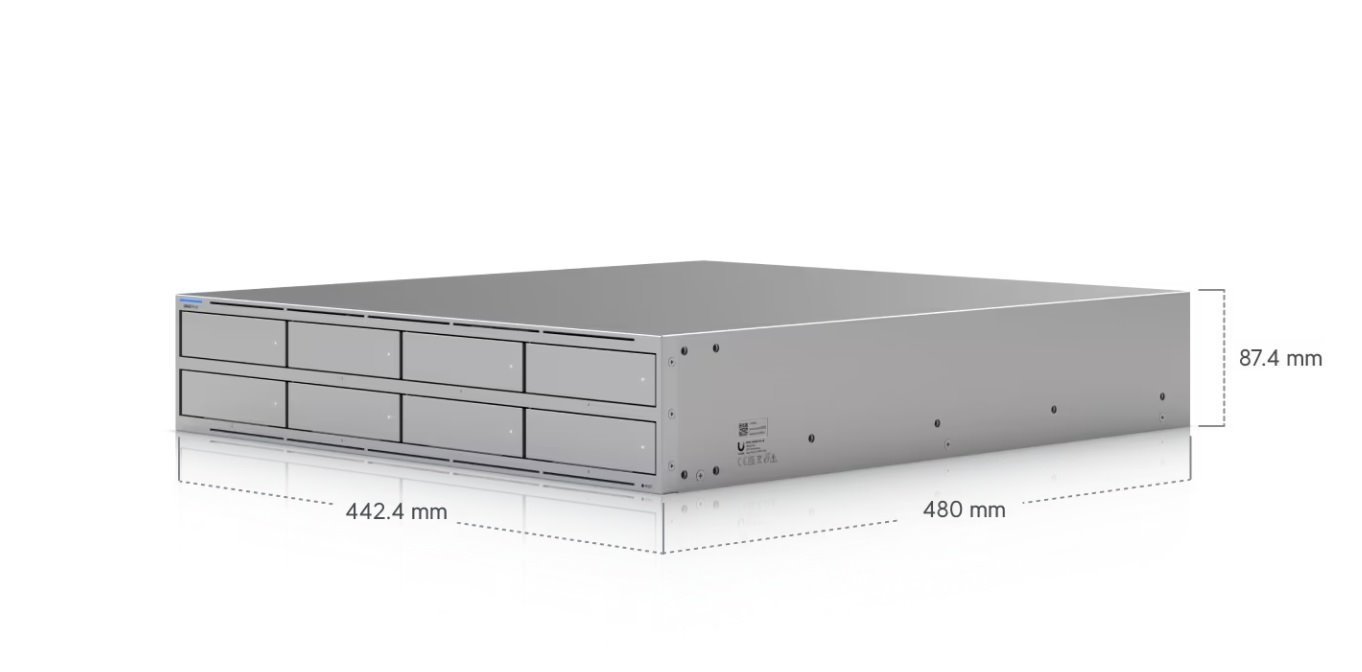

Dimensions: 442.4 × 480 × 87.4 mm (17.4 × 18.9 × 3.4 in)
Weight: 11.5 kg (25.35 lb)

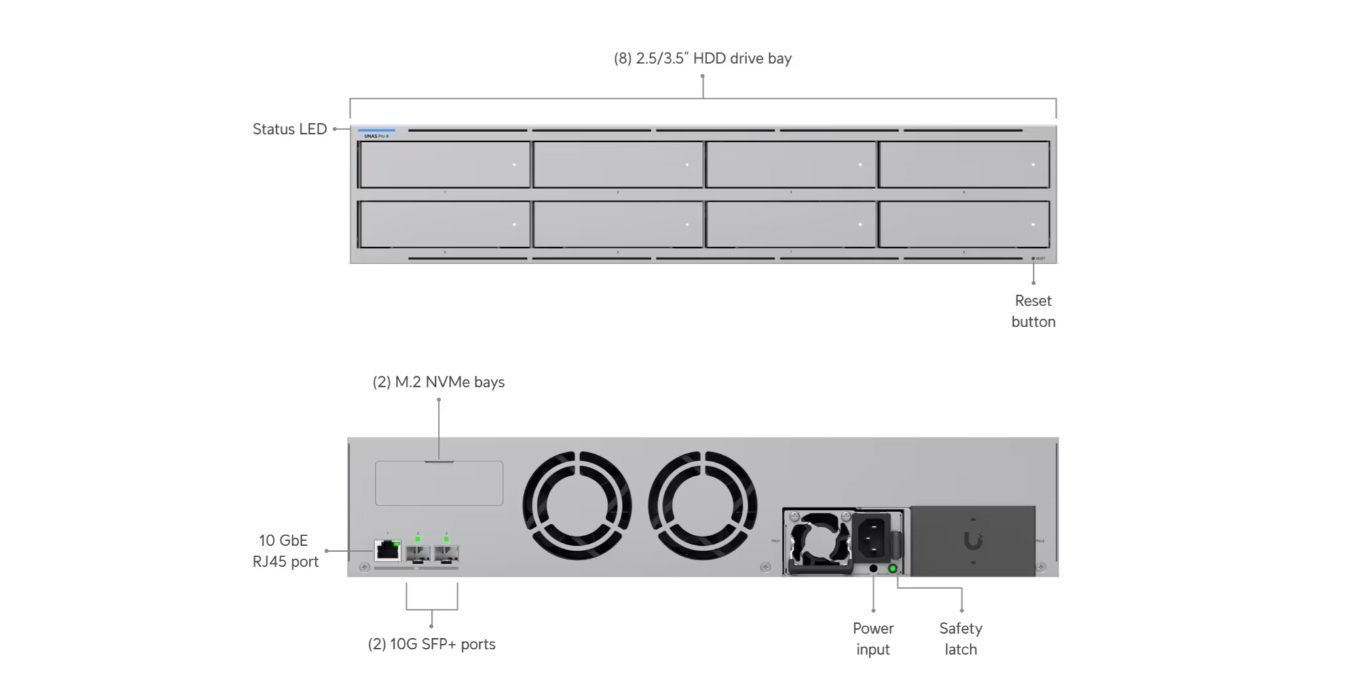

Storage Capacity: (8) 3.5" drive bays and (2) M.2 NVMe SSD bays for hybrid or all-flash configurations (up to 225 W total drive power budget)
Networking:
(2) 10G SFP+ ports (10 G only)
(1) 10 GbE RJ45 port (10G/5G/2.5G/1G/100M)
Processor: Quad-Core ARM® Cortex®-A57 @ 2.0 GHz
Memory: 16 GB

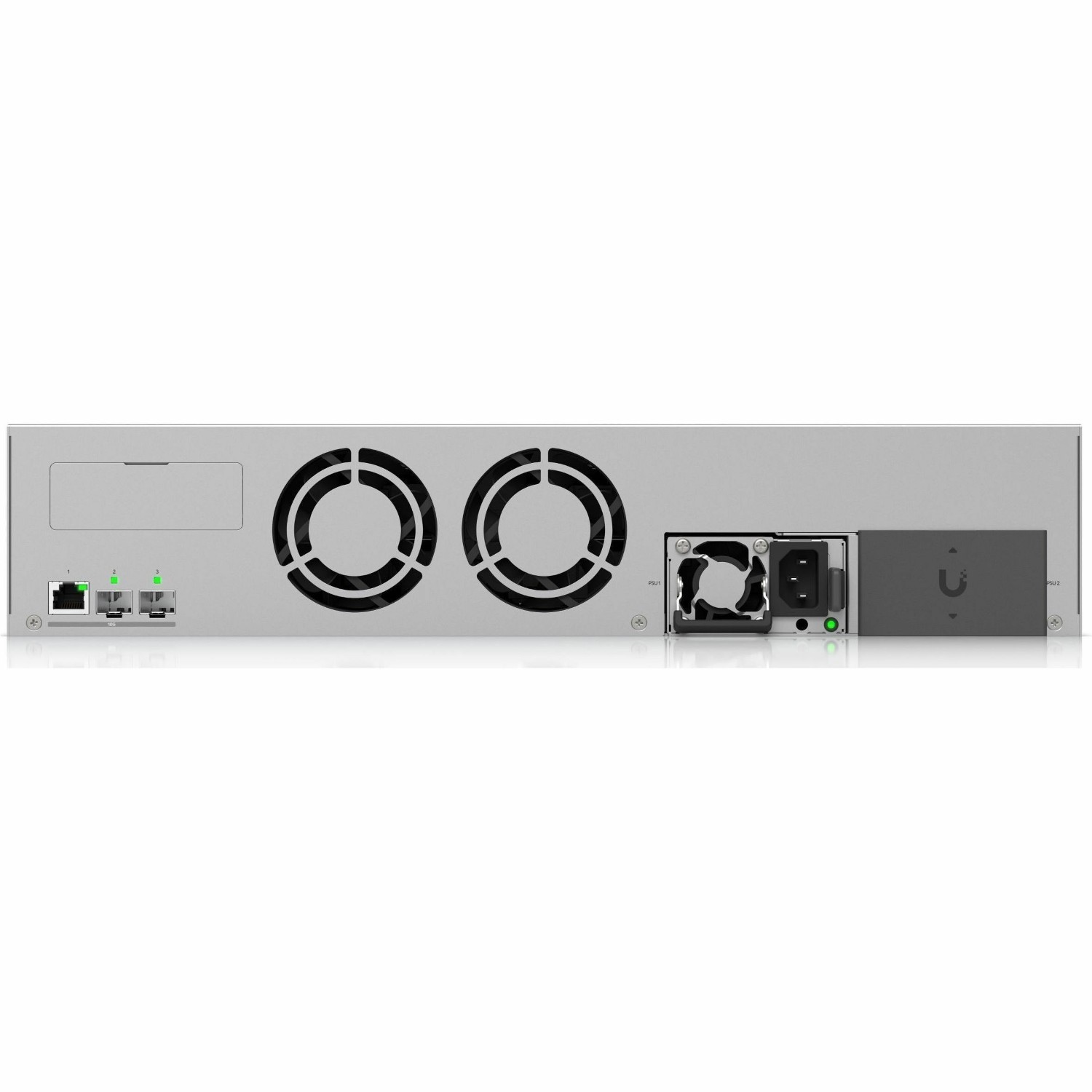

Power: Dual hot-swappable 550 W AC/DC power modules with full power redundancy
Max. Power Consumption: 250 W
Management Interfaces: Ethernet and Bluetooth 4.1

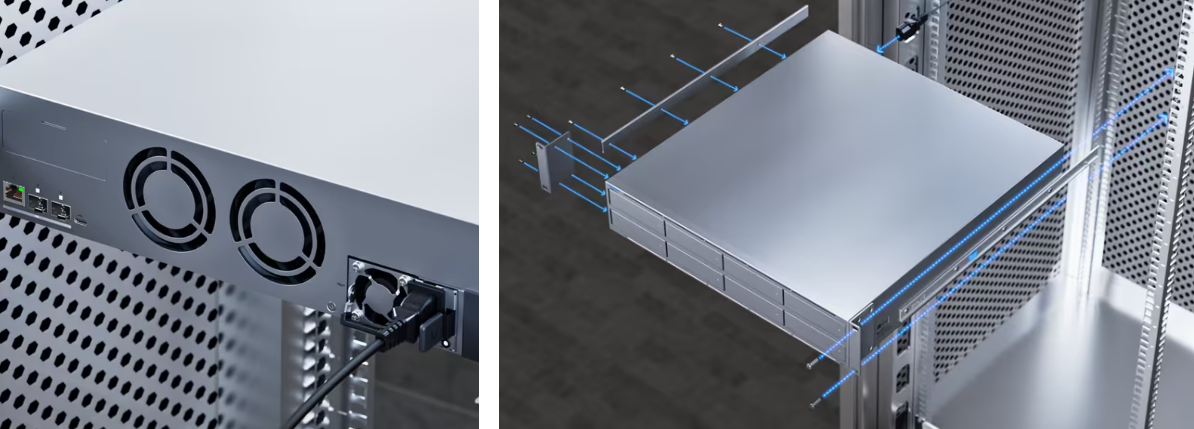

Construction: Heavy-duty SGCC steel enclosure and mounting hardware; 2U rackmount form factor
Operating Conditions: –5 to 40 °C (23 to 104 °F); 5–95 % RH non-condensing
LED Indicators: Ethernet, SFP+, HDD, and system status
Compliance: NDAA compliant; FCC, CE, IC certified
Form Factor: 2U rackmount storage chassis
