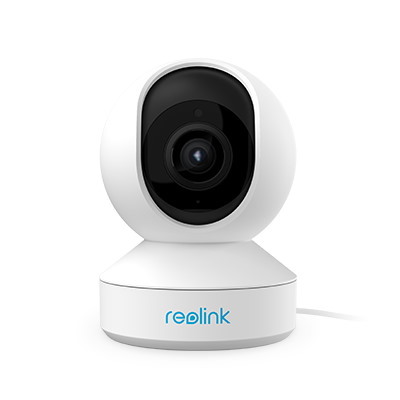

More Powerful, Still Small
Meet new generation of Reolink E1 series. Advanced features - 5MP Super HD & optical zoom are added into this compact camera. Plus two-way audio, remote live view and more smart capacities help you connect with what you care. Be closer to families and be away from worries.
5MP Super HD
Person/Pet Detection & Auto Tracking
2.4/5 GHz Dual-Band WiFi
Two-Way Audio
Hardware Features
Image Sensor
1/2.7" CMOS Sensor
Display Resolution
2560x1920 (5 Megapixels)
Lens
f=2.8-8mm Autofocus, F=1.6, with IR Cut
Optical Zoom
3X
Angle of View
• Horizontal: 48° - 98°
• Vertical: 37° - 75°
Pan/Tilt Angle
• Horizontal: 355°
• Vertical: 50°
Auto Tracking
Available
Minimum Illumination
0 Lux (with IR Illuminator)
IR Distance
12m (40ft) (LED: 10pcs/14mil/850nm)

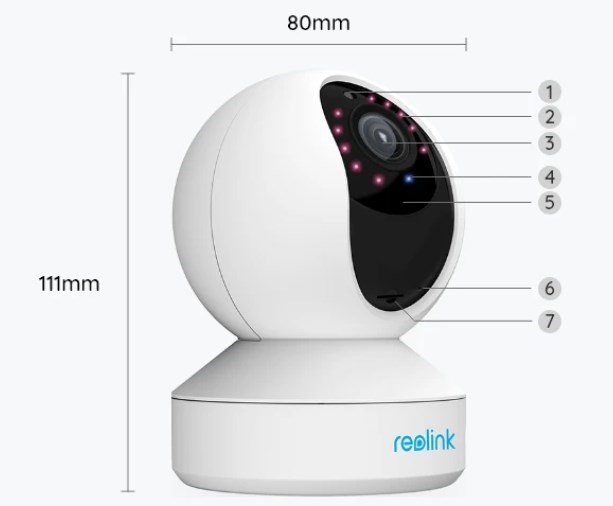

Dimension
Φ80x111mm
Weight
250g
Power Input
DC 5.0V/2A
Interface
• Power
• Micro SD Card Slot (Max. 256GB)
• Built-in Microphone and Speaker
• Reset Button
Software Features
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Image Compression
H.264
Maximal Frame Rate
20fps
Code Rate
1024Kbps ~ 4096Kbps (Default: 4096Kbps)
Audio
Two-Way Audio
Maximal User Access
20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Browser Supported
Edge, Chrome, Firefox, Safari
Smart Alarm
Motion Detection/Person Detection/Pet Detection
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Record Mode
Motion Recording; Scheduled Recording; 24/7 Recording
Alarm
Siren (customizable)
Works with
Google Assistant; Reolink Cloud (available in some countries)
Wireless Features
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4/5 GHz
Wireless Security
WPA-PSK/WPA2-PSK
Other Parameters
Temperature
• Operating Temperature: -10°C~+55°C
• Storage Temperature: -40°C~70°C
Humidity
• Operating Humidity: 20% ~ 85%
• Storage Humidity: 10% ~ 90%
Waterproof
No
Warranty
Limited Warranty
2-year limited warranty with Reolink
