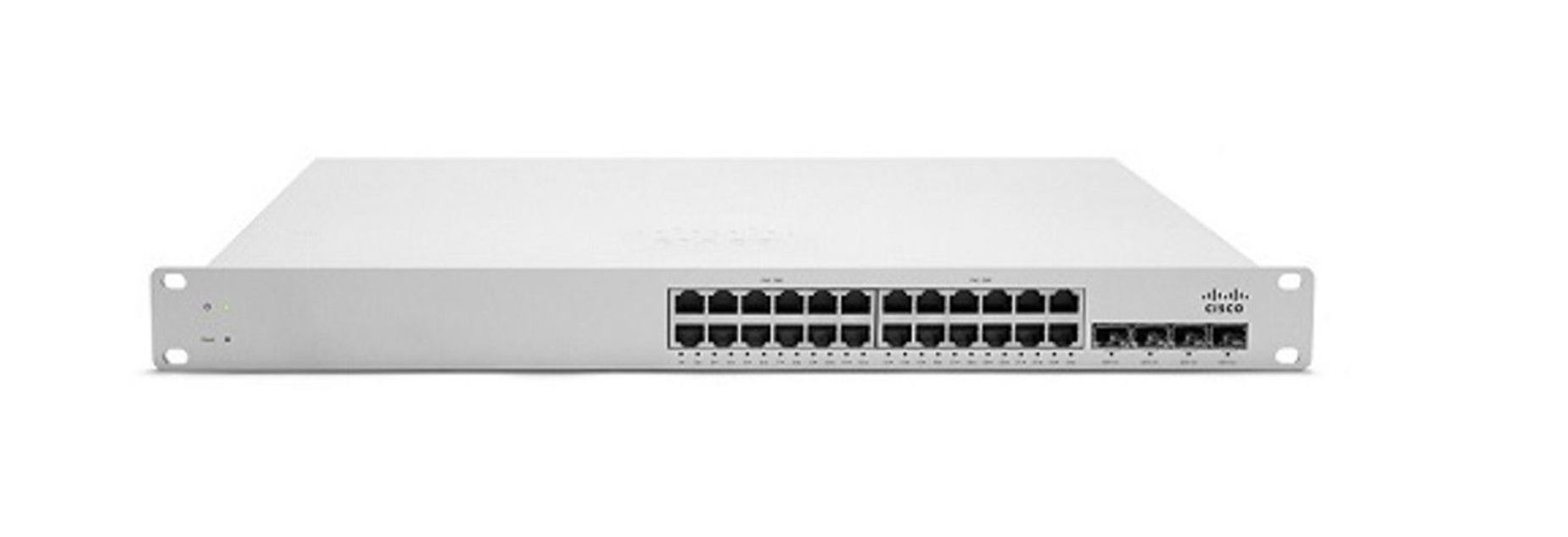

Key Features:

• Ports:

  • 24 × 10/100/1000BASE-T Ethernet ports with Power over Ethernet (PoE)

  • 4 × Gigabit SFP uplink ports for fiber connectivity

• PoE Budget:

  • 370W total PoE budget

  • Supports 802.3af (PoE) and 802.3at (PoE+)

• Switching Capacity:

  • 128 Gbps switching capacity

  • 95.2 Mpps forwarding rate

• Management:

  • 100% cloud-managed via the Cisco Meraki Dashboard

  • Centralized configuration, monitoring, and troubleshooting

  • Zero-touch provisioning and remote firmware upgrades

• Layer 2 Features:

  • VLAN support

  • Link aggregation (LACP)

  • Spanning Tree Protocol (RSTP/STP)

  • IGMP snooping

  • Port mirroring and MAC forwarding table

  • DHCP snooping and port security

• Security & Monitoring:

  • Per-port configuration and monitoring

  • Role-based access control and audit logging

  • Real-time network topology and traffic analysis

  • SNMP and Syslog support

Licensing:

• Requires a valid Cisco Meraki Enterprise License for operation and support (sold separately)

Power Supply:

• Integrated internal power supply

Environmental:

• Operating Temperature: 0°C to 40°C

• Humidity: 5% to 95% non-condensing

Dimensions & Weight:

• Dimensions: 1.74" H × 17.32" W × 10.56" D

• Weight: Approx. 9.3 lbs (4.2 kg)

Warranty & Support:

• Limited lifetime hardware warranty

• 24/7 enterprise-grade support with active license
