Buy RLC-823S1 | 4K 360° Auto-Tracking PoE Camera with 5X Optical Zoom

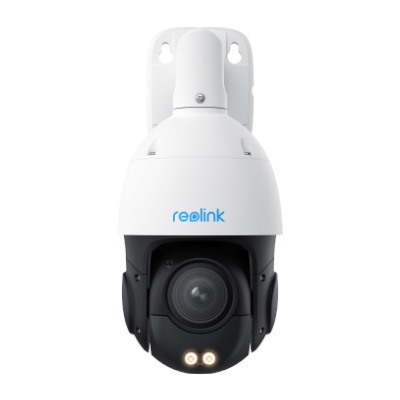

RLC-823S1 | 4K 360° Auto-Tracking PoE Camera with 5X Optical Zoom

Part: 1001216

$278.00

Availability

In Stock

360° Coverage with Auto Tracking

4K UHD with 5X Optical Zoom

Color Night Vision

Person/Vehicle/Animal Detection

Video & Audio

Image Sensor

1/2.8" CMOS sensor

Resolution

3840x2160 (8 megapixels)@25fps

Lens

f=2.7-13.5mm/Max. F1.6

Video Compression

H.265/H.264

Zoom

5X Optical Zoom

Field of View

Horizontal: 100°-31°
Vertical: 55°-17°
Diagonal: 123°-39°

Infrared Night Vision

Up tp 60 meters(196ft); LED: 7pcs/Max. 5.5W/850nm
(Auto-switching with IR-cut filter)

Color Night Vision

With spotlights: 2pcs/4w/4000K (Adjustable)

Frame Rate

Main stream: 2fps - 25fps (default: 25fps)
Sub stream: 4fps - 15fps (default: 10fps)

Code Rate

Main stream: 2048Kbps - 8192Kbps (default: 6144Kbps)
Sub stream: 64Kbps - 512Kbps (default: 256Kbps)

Audio

Two-way audio

Power Requirements

PoE

IEEE 802.3at, 48V, active

Power Requirements

DC 12V⎓2A, <24W

Interface

Power Port

DC power port

Ethernet Port

One 10M/100Mbps; RJ45

SD Card Slot

Supports Max. 256GB microSD card

Reset Button

YES

Audio In/Out

Built-in microphone and speaker

Pan & Tilt

PT Angle (Max.)

Pan: 360°, Tilt: 90°

Pan Speed

1.4°-90°/s (configurable)

Tilt Speed

1.4°-56°/s (configurable)

Preset Points

Suppots 1 guard position & up to 64 preset positions

Patrol

Supports 1 patrol; up to 16 presets per patrol

Power-off Memory Function

YES

Auto Tracking

YES

Software

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

User Access

Max. 20 users (1 admin & 19 user);
Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Feature(s)

Smart Alarm

Motion detection; person detection; vehicle detection; animal detection

Recording Modes

Motion-triggered recording (default); scheduled recording, 24/7 recording

Time Lapse

YES

Smart Home Compatibility

Google Assistant

Working Environment

Operating Temperature

-10°C~+50°C (14°F~126°F)

Operating Humidity

10% ~ 90%

Weatherproof

IP66

Mechanical

Dimensions

373*177*140mm (ceiling mount)

Weight

2.34kg

Warranty

Limited Warranty

2-year limited warranty with Reolink
