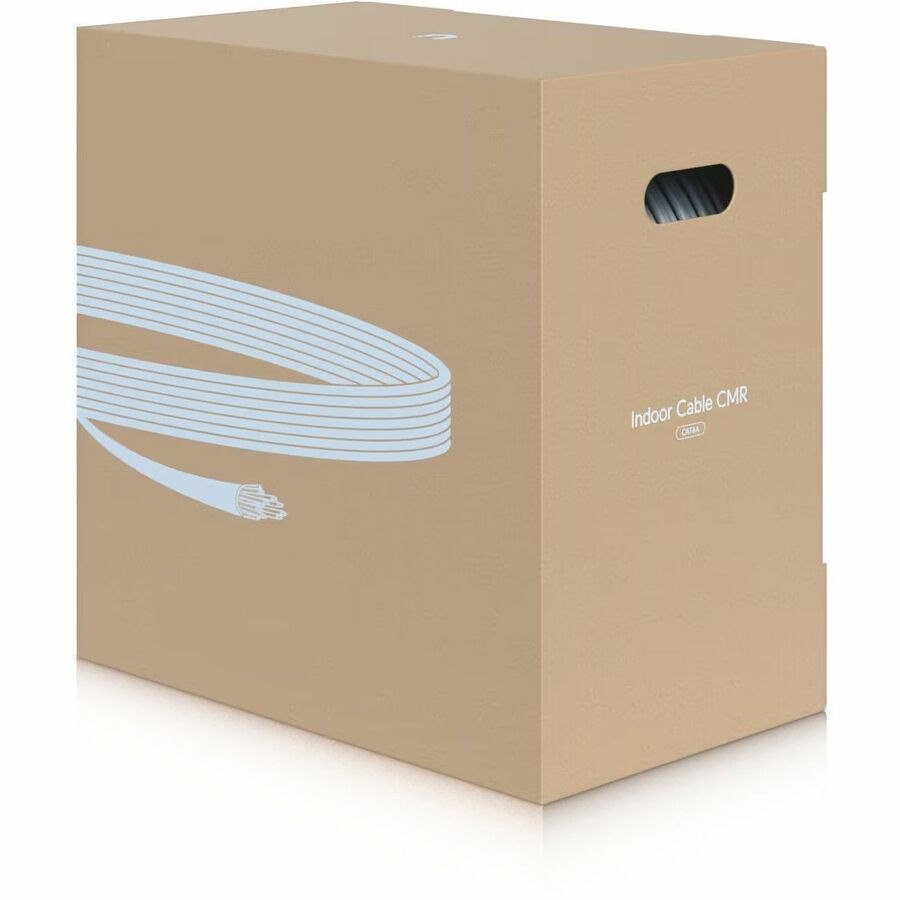

UI UniFi Indoor Cable Cat6A CMR

  • Part: 1002248
$306.90

Availability

In Stock

Deliver reliable high-speed connectivity for demanding network installations with this Category 6A Ethernet cable. Designed for indoor deployments, this multipurpose UTP communications cable supports high-bandwidth performance while maintaining signal integrity across extended runs. The riser-rated fire-resistant jacket ensures compliance for vertical building pathways, making it ideal for structured cabling environments.

Engineered with an integrated anti-crosstalk divider, this cable minimizes interference between pairs to maintain stable data transmission in high-density installations. Supplied in a 305-meter box, it provides ample length for large infrastructure projects while simplifying installation logistics.

Key Features

  • Category 6A UTP communications multipurpose cable

  • Riser (CMR)-rated fire-resistant jacket for vertical indoor installations

  • Integrated anti-crosstalk divider for improved signal integrity

  • 305 m (1,000 ft) cable length for large-scale deployments

Ideal Applications

  • Commercial and enterprise network infrastructure

  • Structured cabling riser pathways

  • High-speed indoor data installations

  • Telecommunications and IT closets

General

  • Length: 305 m (1,000 ft)

  • Type: Category 6A

  • Flame Rating: CMR

  • Operating Environment: Indoor

  • Box Dimensions: 494 × 302 × 481 mm (19.4 × 11.9 × 18.9")

  • Box Weight: 19.3 kg (42.5 lb)


Cable Construction

  • Jacket Color: White

  • Jacket Diameter: 7.05 ± 0.2 mm

  • Jacket Material: Flame Retardant Polyvinyl Chloride (FRPVC)

  • Shielding Type: UTP

  • Conductor Type: Solid Bare Copper

  • Conductor Wire Gauge: 23 AWG

  • Minimum Bend Radius: 28.2 mm (1.11")

  • Twisting: 4 twisted pairs with color coding

    • Pair 1: White / Blue

    • Pair 2: White-Orange / Orange

    • Pair 3: White / Green

    • Pair 4: White-Brown / Brown

  • Anti-Crosstalk Divider: Yes

  • Ripcord: Yes


Standards & Compliance

  • Electrical Transmission Standards:

    • ANSI/TIA-568.2-D

    • ISO/IEC 11801-1 (Edition 2.2)

    • IEC 61156-5 (Edition 2.1)

  • Flame Test: UL 1666 (CMR)

  • Material & Construction Compliance:

    • UL 444

    • CSA 22.2 No.214

    • EU Directive 2011/65/EU (RoHS2)

    • EU Directive 2006/95/EC (LVD)


Environmental

  • Installation Temperature: 0 to 60°C (32 to 140°F)

  • Ambient Storage Temperature: -20 to 75°C (-4 to 167°F)

  • Ambient Operating Temperature: -20 to 75°C (-4 to 167°F)
