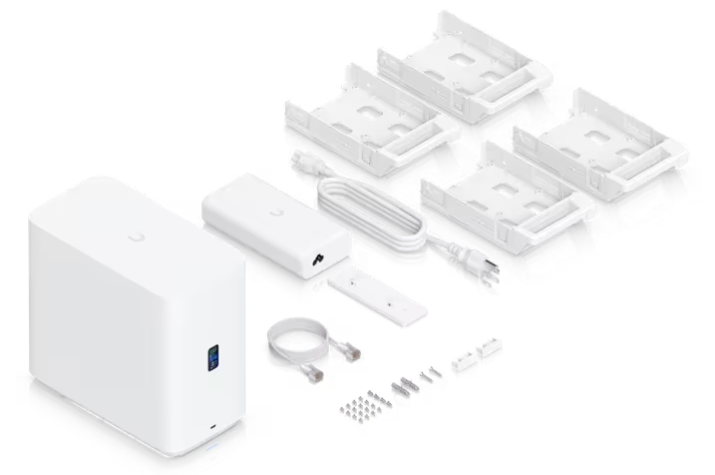

UniFi Network Attached Storage with (4) 2.5"/3.5" HDD bays, (2) M.2 NVMe SSD cache slots, 2.5 GbE networking, USB-C connectivity, and an included PoE+++ adapter, all in a compact footprint.
Dimensions
246 × 129 × 224.5 mm (9.7 × 5.1 × 8.8 in)
Storage Capacity
4 × 2.5"/3.5" drive bays
2 × M.2 NVMe bays
Networking Interface
1 × 2.5 GbE RJ45 (2.5G/1G/100M/10M)
Expansion Port
1 × 5 Gbps USB-C
Form Factor
Desktop
Hardware
Hard Drive Capacity
4 × 2.5"/3.5" HDD support
2 × M.2 NVMe SSD support
USB Drive
Yes
Maximum Power Budget for Drives
80W
Maximum Power Consumption
90W
Power Method
PoE+++
Power Supply
90W PoE+++ adapter included
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
RF Interface: Bluetooth 4.1
Display
1.47" color LCM
Weight
2.6 kg (5.7 lb)
Enclosure Material
Polycarbonate
LED Indicators
System
Environmental
Operating Temperature
-5 to 40°C (23 to 104°F)
Operating Humidity
10–90% non-condensing
Compliance
NDAA compliant
FCC, CE, IC
Software Requirements
UniFi Drive
Version 3.4.5 or later
Mobile Apps
iOS version 10.32.1 or later
Android version 10.35.1 or later
Supported File Protocols
NFS
SMB
Supported Features on unifi.ui.com
RAID Types
RAID 5, RAID 6, RAID 10
RAID Group: Single
Personal Drive & Shared Drive
SSD Cache
Maximum NVMe SSD Capacity: 2 TiB
File Encryption
Backup to Remote UNAS
Backup to CIFS/SMB Server
Backup to Cloud Services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
Snapshots
Share Links
Time Machine Backup
Client App Support
User Groups
