Overview
Deliver next-generation wireless performance with this wall-mounted WiFi 7 access point engineered for high-density enterprise deployments. Designed with 6 GHz readiness and multi-gigabit uplink flexibility, it provides ultra-low latency connectivity and high throughput across modern network environments while maintaining a clean, professional wall-mounted footprint.
Performance
Built to support the latest WiFi 7 standard, this access point enables expanded spectrum utilization and enhanced channel efficiency for demanding applications. Multi-speed Ethernet support — including 1 GbE, 2.5 GbE, and 10 GbE — ensures optimal backhaul capacity to prevent bottlenecks and maintain peak wireless performance as client density increases.
Features
The wall-mount design enables strategic placement in offices, hospitality environments, multi-dwelling units, and enterprise corridors. Compatibility with advanced UniFi network management tools allows centralized configuration, monitoring, and optimization. The compact form factor integrates seamlessly into modern installations without sacrificing performance capability.
Applications
Enterprise office environments requiring high-capacity wireless
Hospitality and multi-dwelling deployments
Education and healthcare facilities
High-density commercial environments
Next-generation infrastructure upgrades supporting WiFi 7 devices
Overview

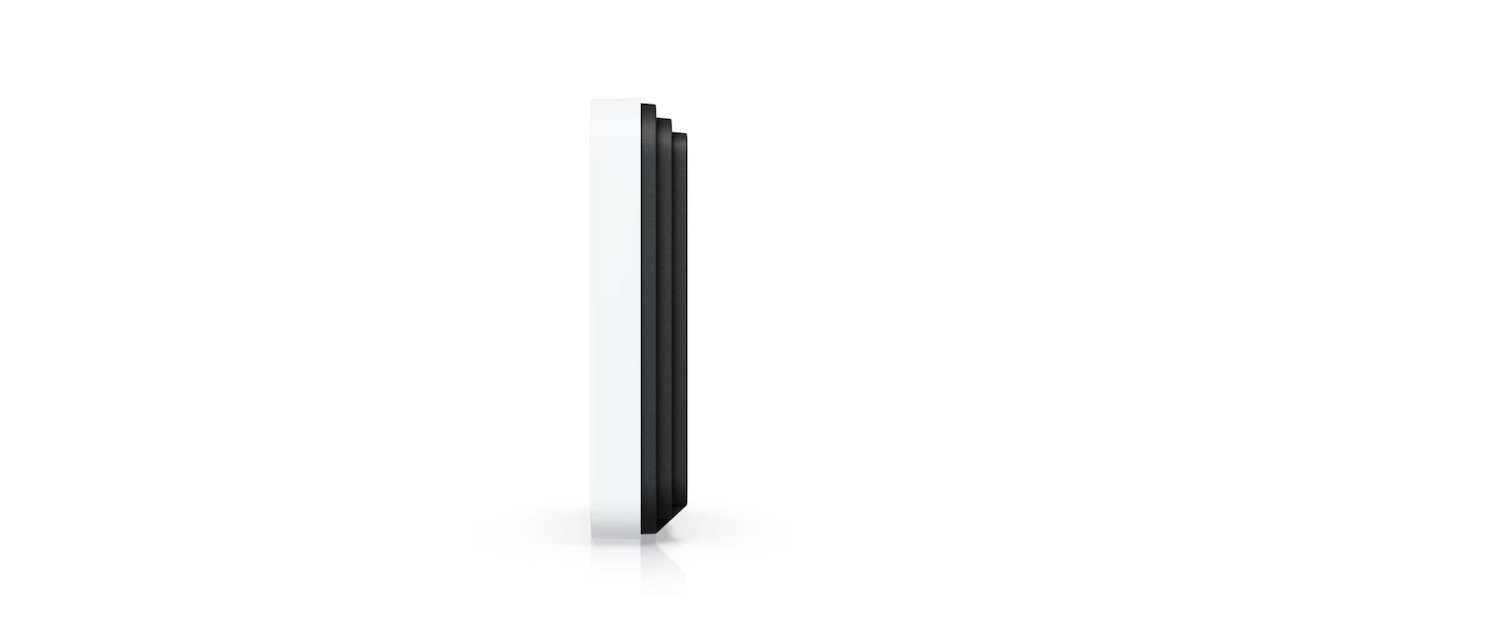

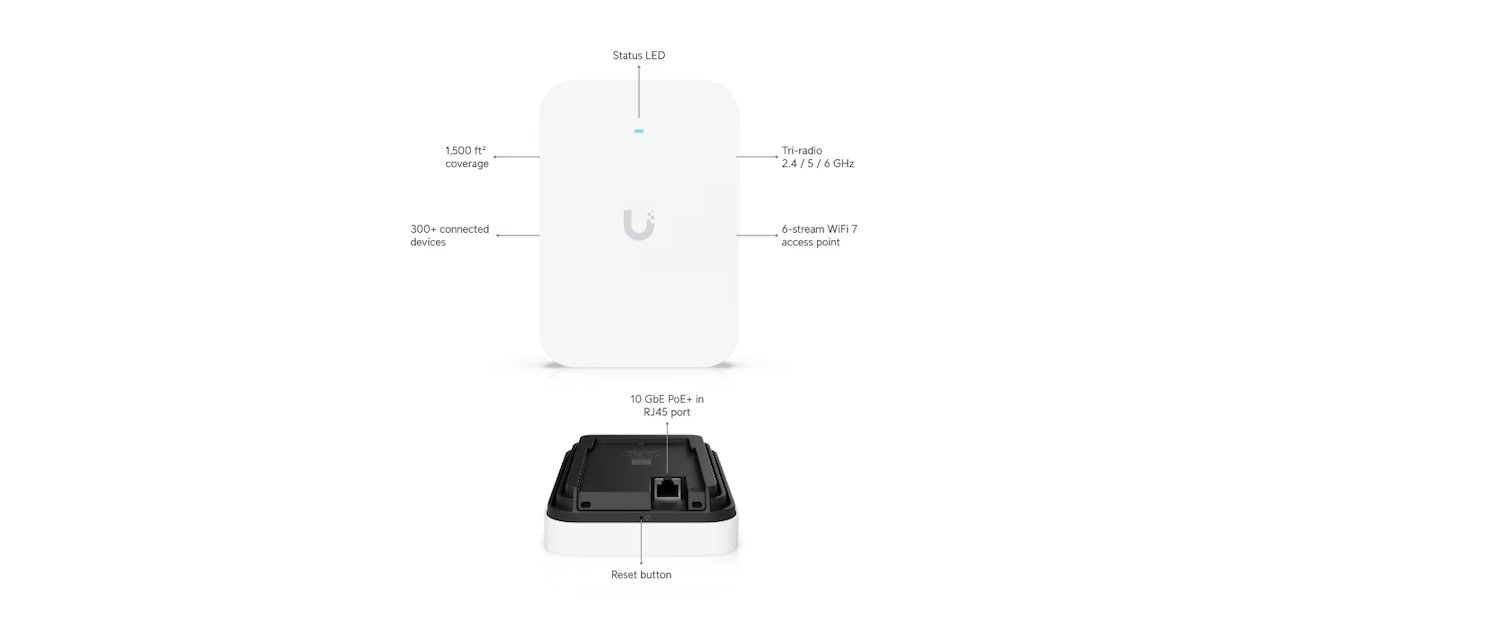

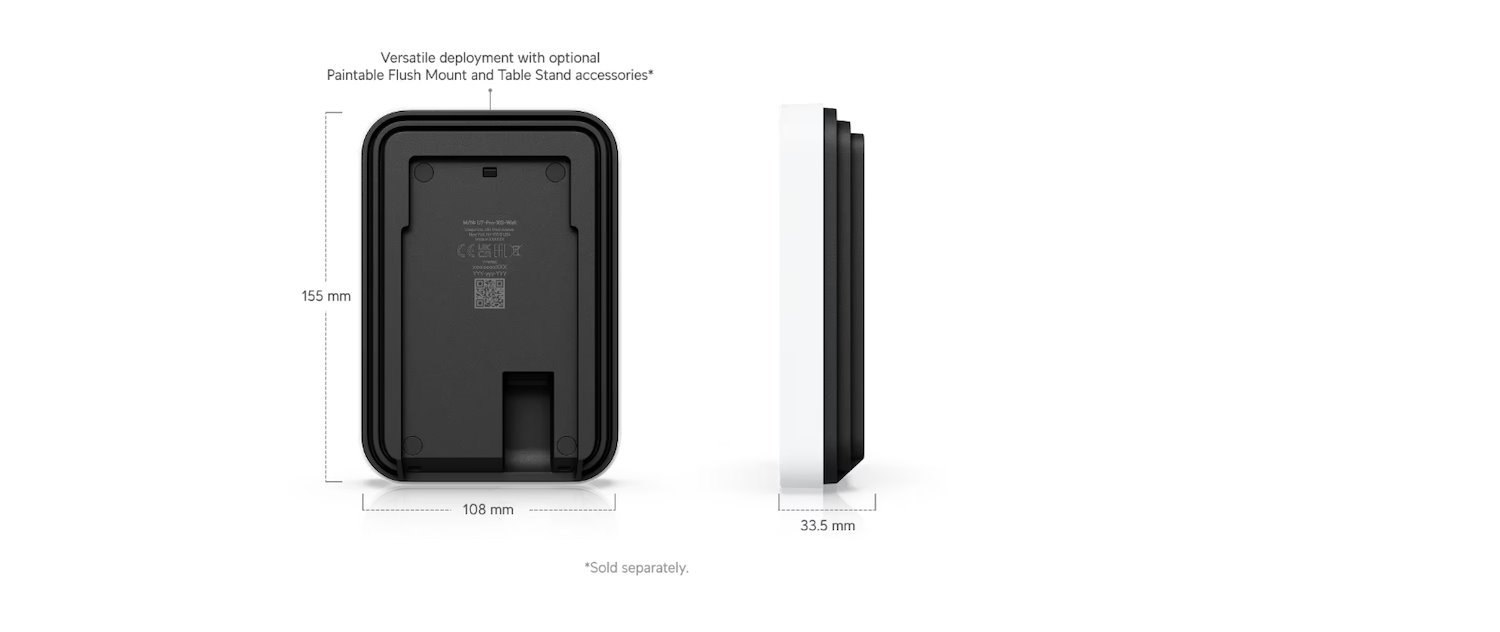

• Dimensions: 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max Client Count: 300+

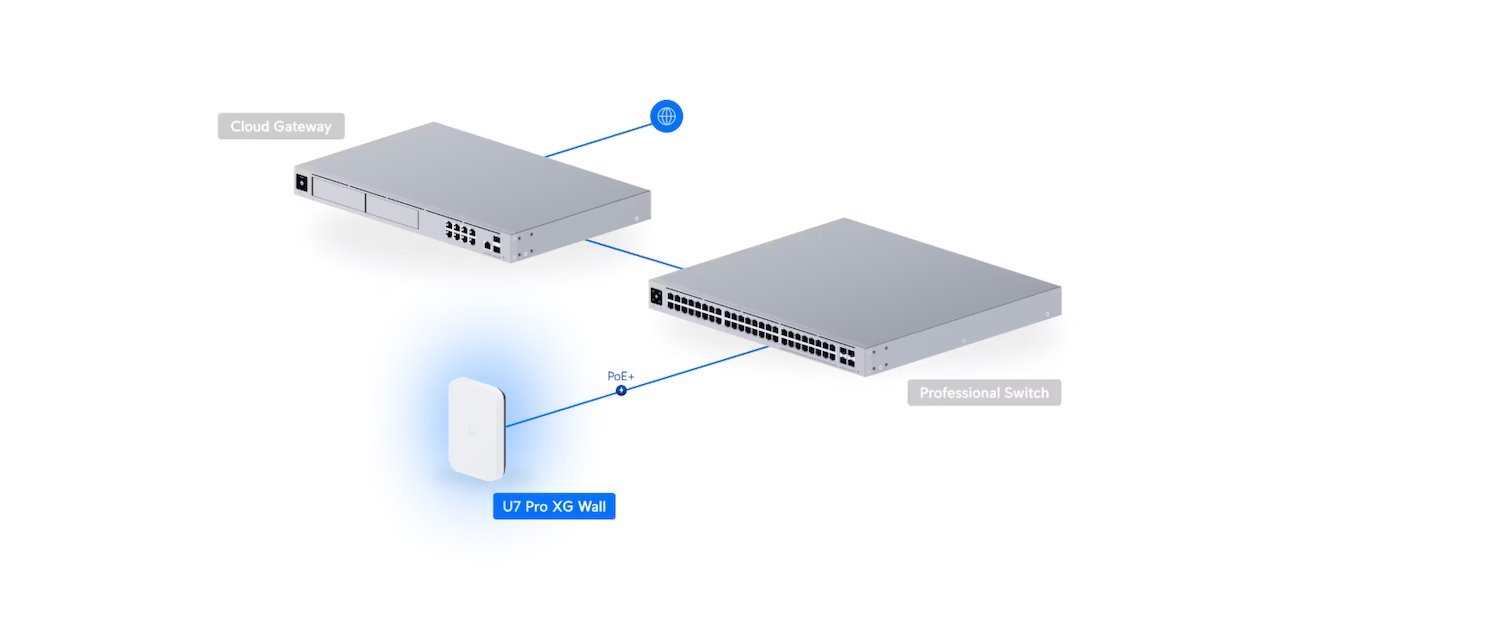

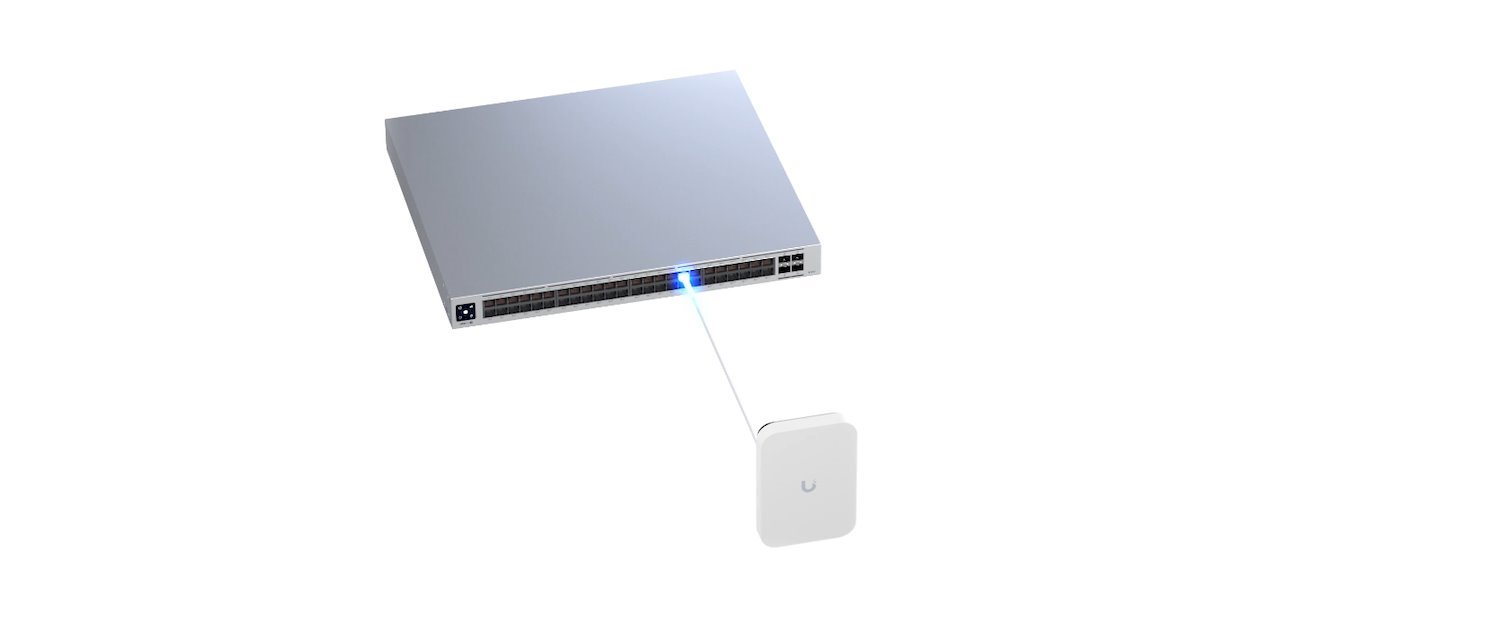

• Uplink: 10 GbE

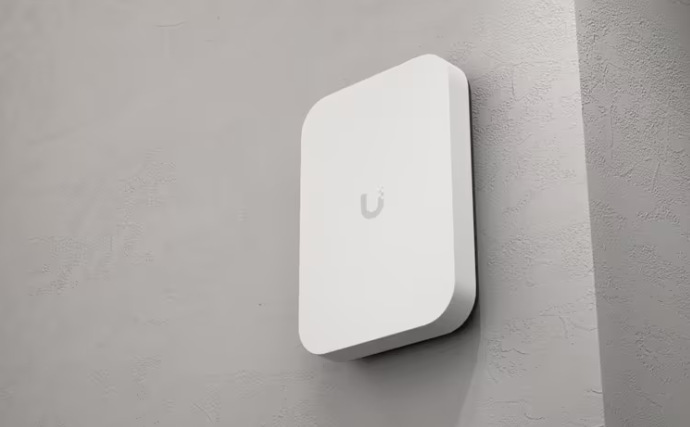

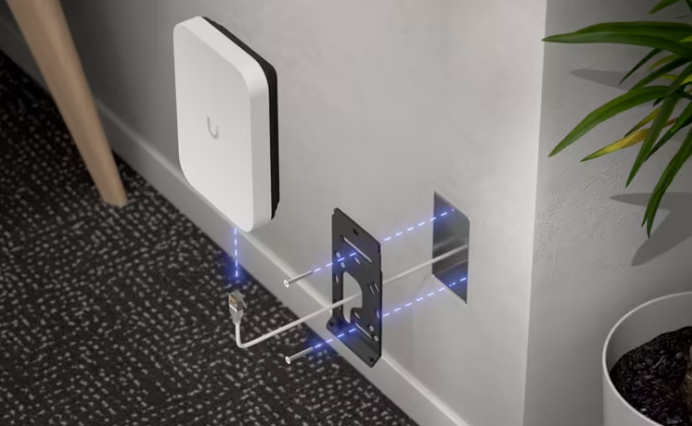

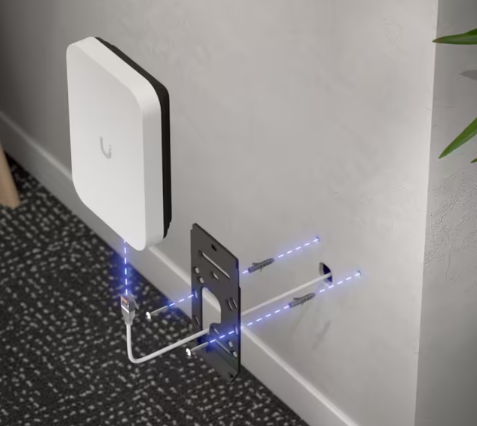

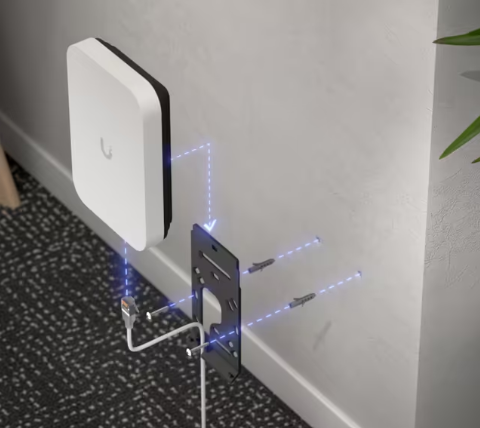

• Mounting: Wall
• Power Method: PoE+
Performance
• MIMO
• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Max Data Rate
• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain
• 6 GHz: 6 dBi
• 5 GHz: 6 dBi
• 2.4 GHz: 4 dBi
• Max TX Power
• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Max BSSIDs: 8 per radio
• Supported Data Rates
• 802.11be (WiFi 7)
• 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
• 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
Features
• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Advanced Radio Management
• Passpoint (Hotspot 2.0)
• Captive Hotspot Portal
• Custom Branding Landing Page
• Voucher Authentication
• Payment-Based Authentication
• External Portal Server Support
• Password Authentication
• Guest Network Isolation
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Schedules
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN
Hardware
• Max Power Consumption: 22W
• Supported Voltage Range: 42.5–57V DC

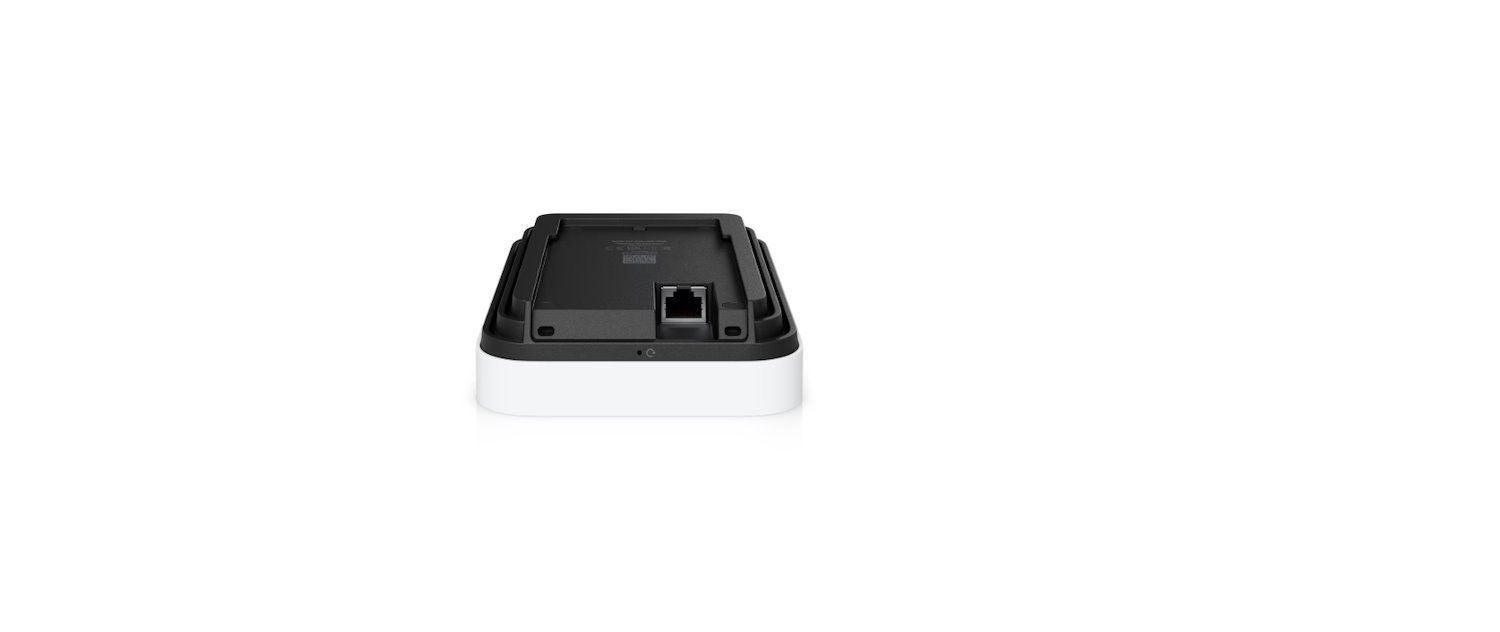

• Networking Interface: (1) 10 GbE RJ45 port
• Weight: 505 g (1.1 lb)
• Management: Ethernet
• Enclosure Material: Polycarbonate; aluminum alloy

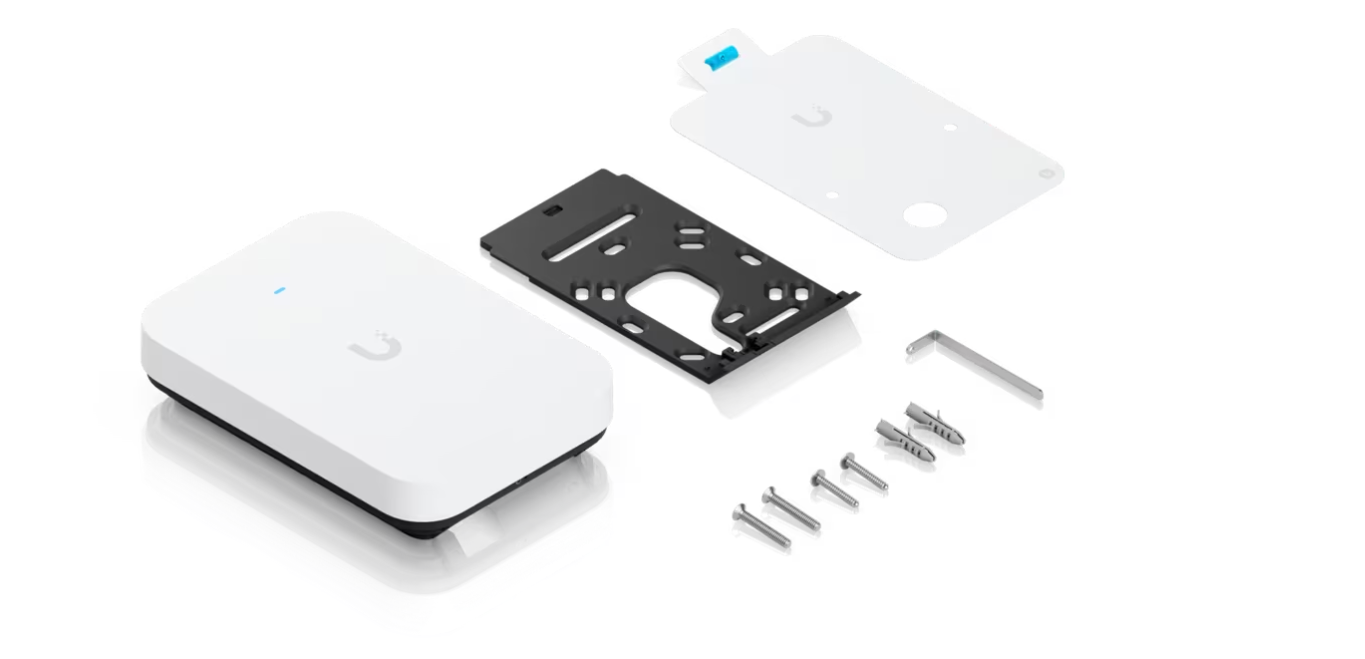

• Mount Material: Aluminum alloy
• LEDs: System — W/B
• Channel Bandwidth: HT 20/40; VHT 20/40/80/160; HE 20/40/80/160; EHT 20/40/80/160/240/320 (MHz)
• NDAA Compliant: ✓
• Certifications: CE; FCC; IC
Environmental
• Operating Temperature: -30 to 40° C (-22 to 104° F)
• Operating Humidity: 5 to 95% noncondensing
Software
• Application Requirements: UniFi Network Version 10.0 and later
• Mobile App
• iOS version 10.29.3 and later
• Android version 10.31.1 and later
