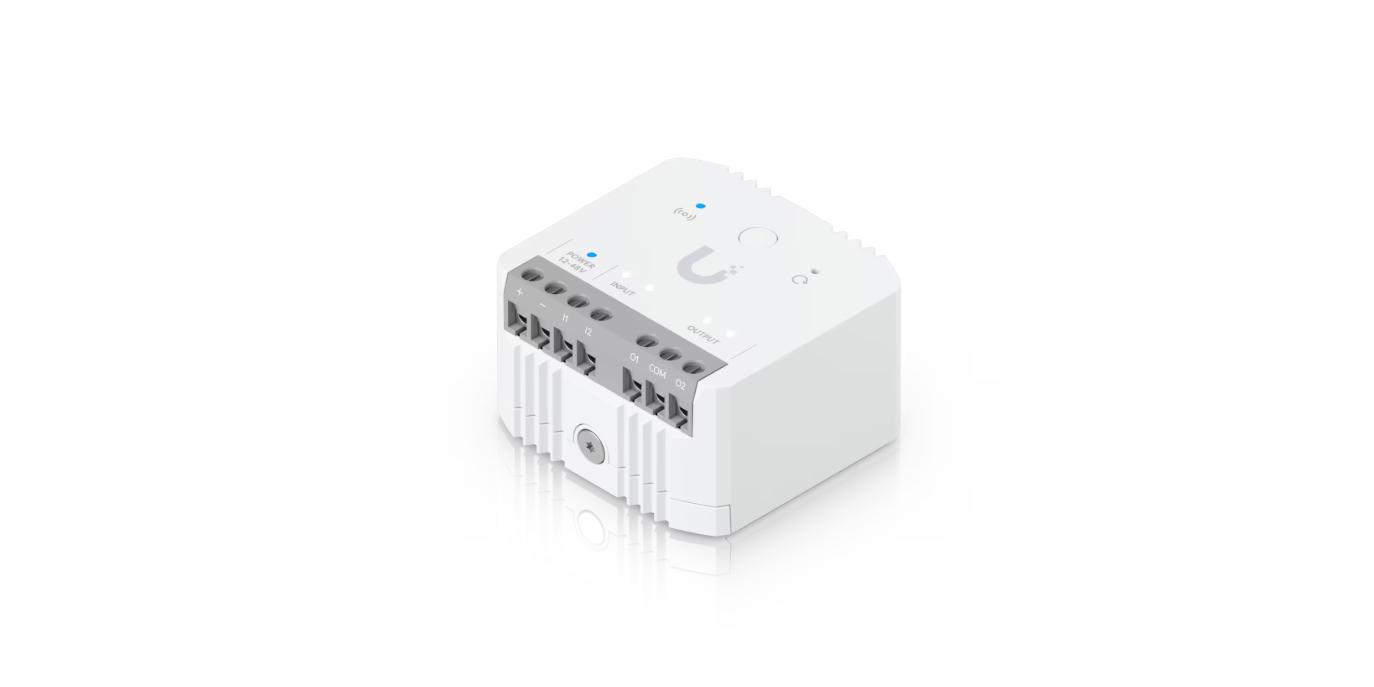

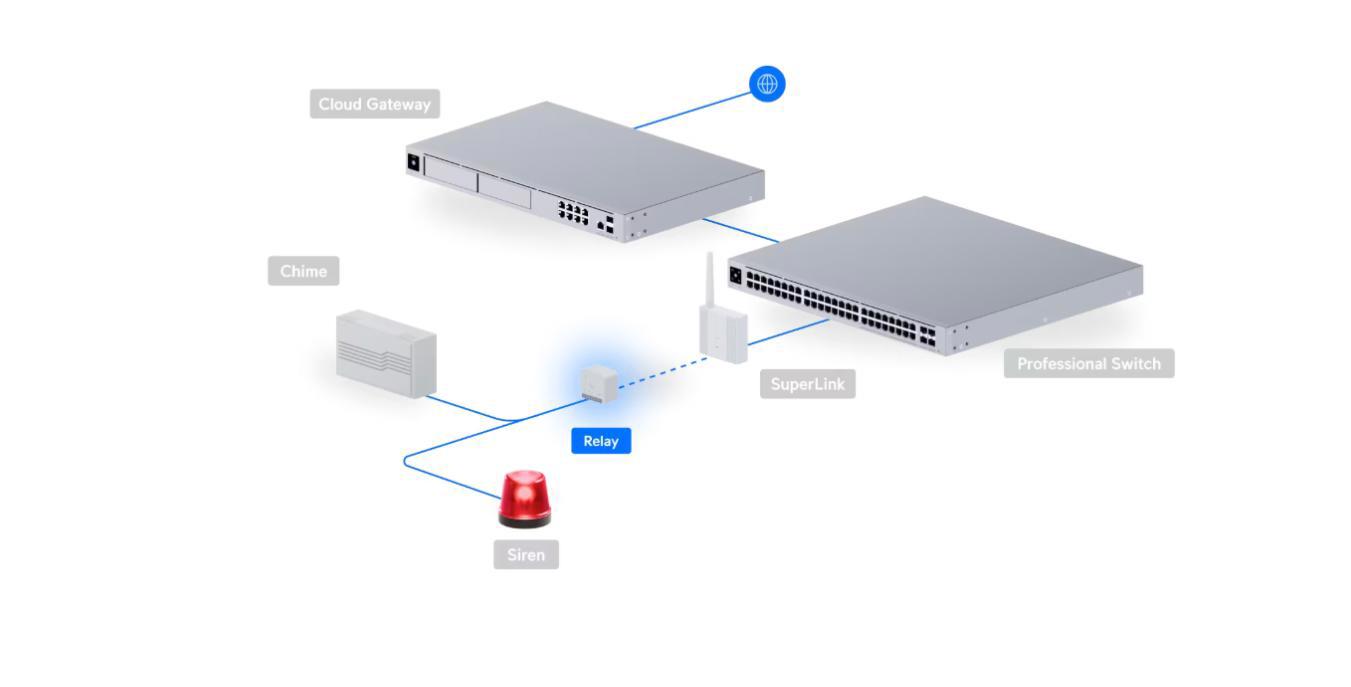

Compact SuperLink relay featuring integrated I/O interfaces for easy connection with third-party sensors and signaling devices.
Compact SuperLink relay with built-in I/O for seamless integration with external sensors and signaling equipment.
Compact SuperLink relay engineered with versatile I/O interfaces to simplify integration with third-party sensing and signaling systems.

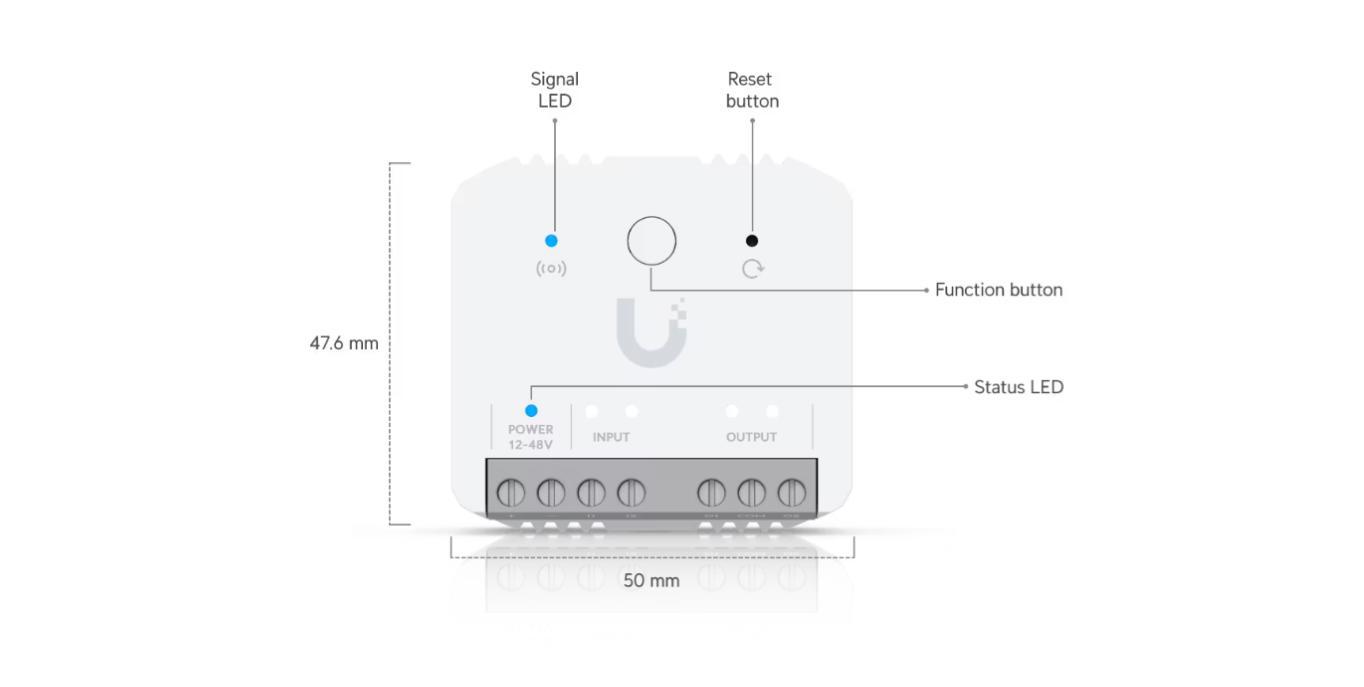

Dimensions
50 × 47.6 × 28 mm (2.0 × 1.9 × 1.1 in)

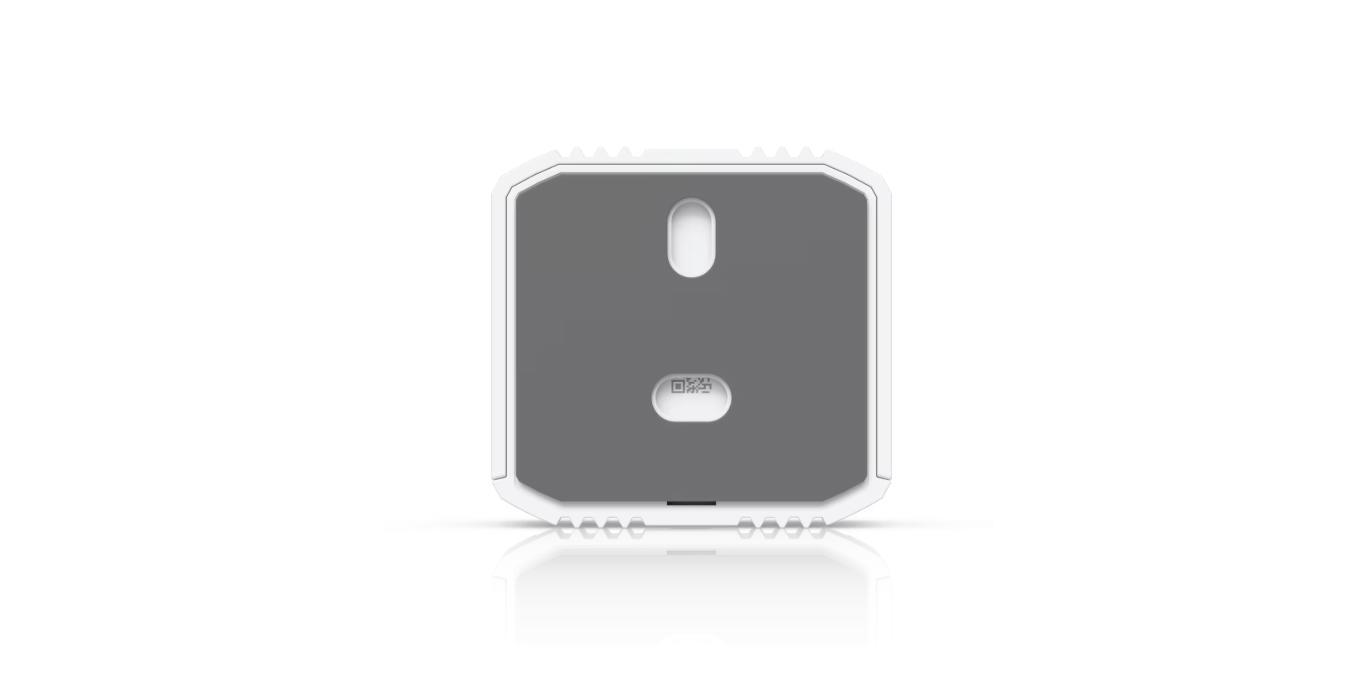

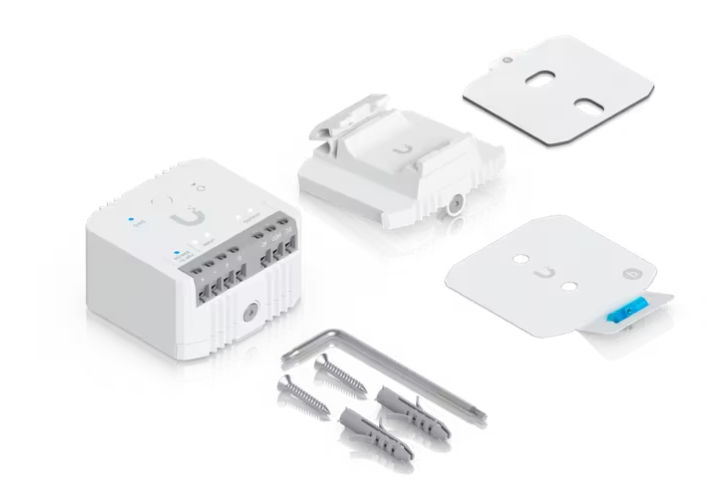

Mounting Options

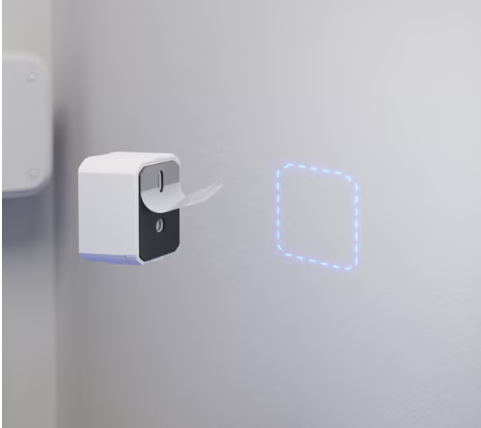

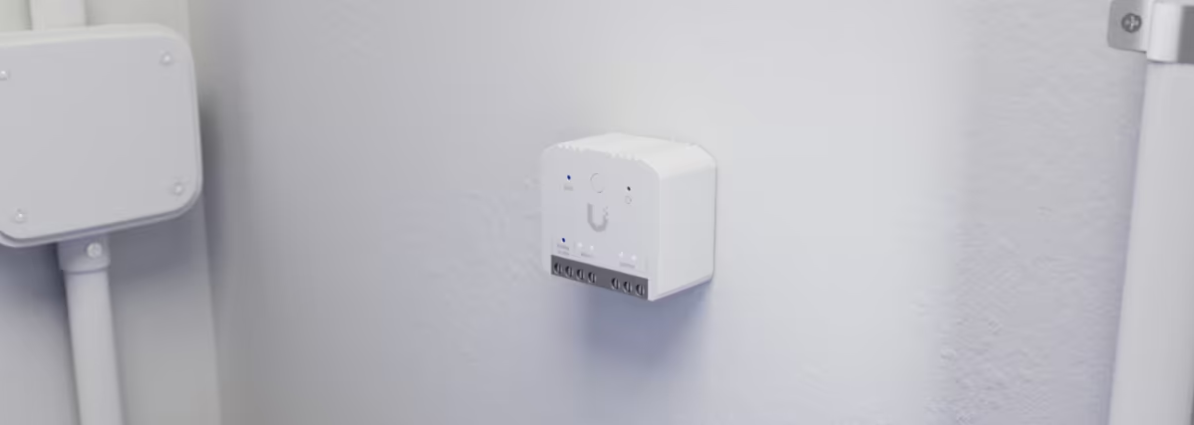

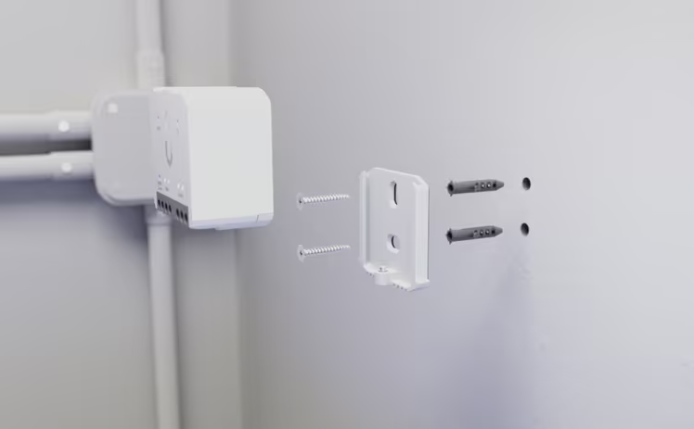

Adhesive, wall mount, or DIN rail
Platform Compatibility
UniFi Protect (UniFi Application Suite)
Connectivity
SuperLink (proprietary wireless)
Operating Frequency
US: 915.6–927.6 MHz
EU: 865.1–869.5 MHz
Antenna Gain
SuperLink: 1 dBi
Maximum Transmit Power
SuperLink: 14 dBm
Maximum Range
SuperLink: Up to 2 km (1.2 miles)
Hardware
Power Input
12V DC, 24V DC, or 48V DC
Weight
100 g (3.5 oz)
Enclosure Material
Polycarbonate
Mounting Material
Polycarbonate
Controls
(1) Factory reset button
(1) Test button

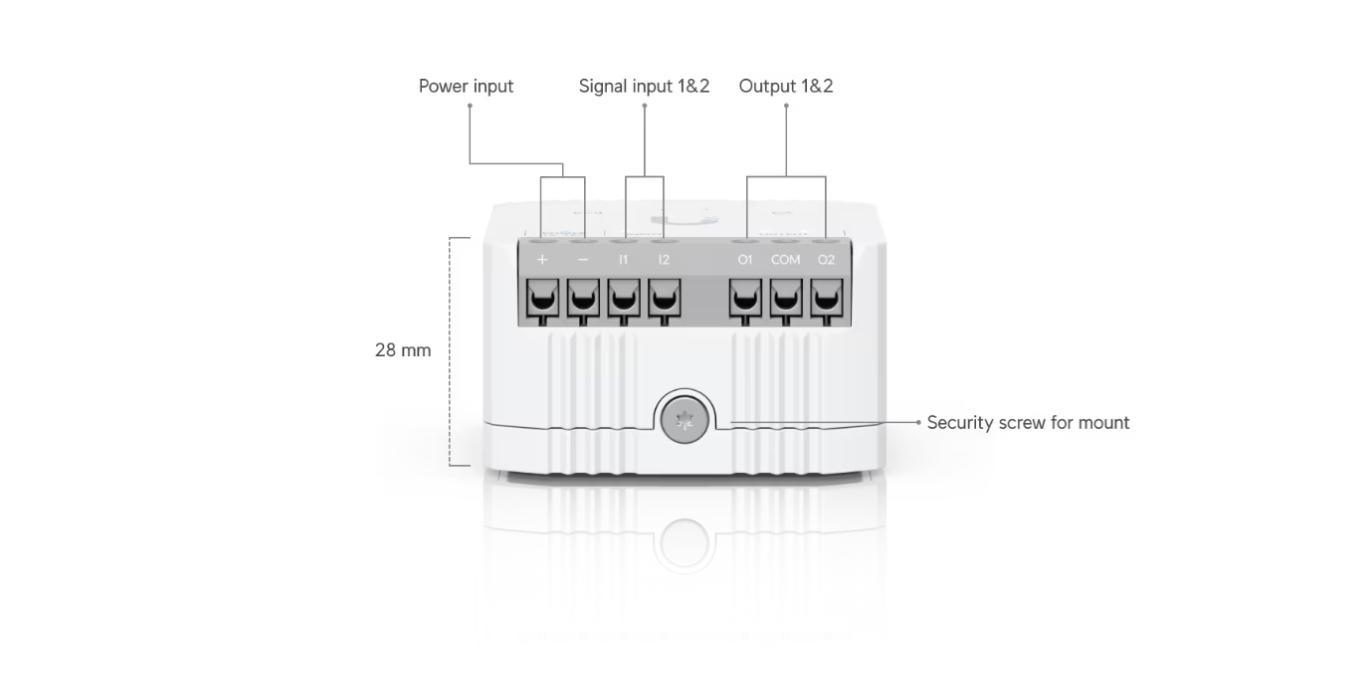

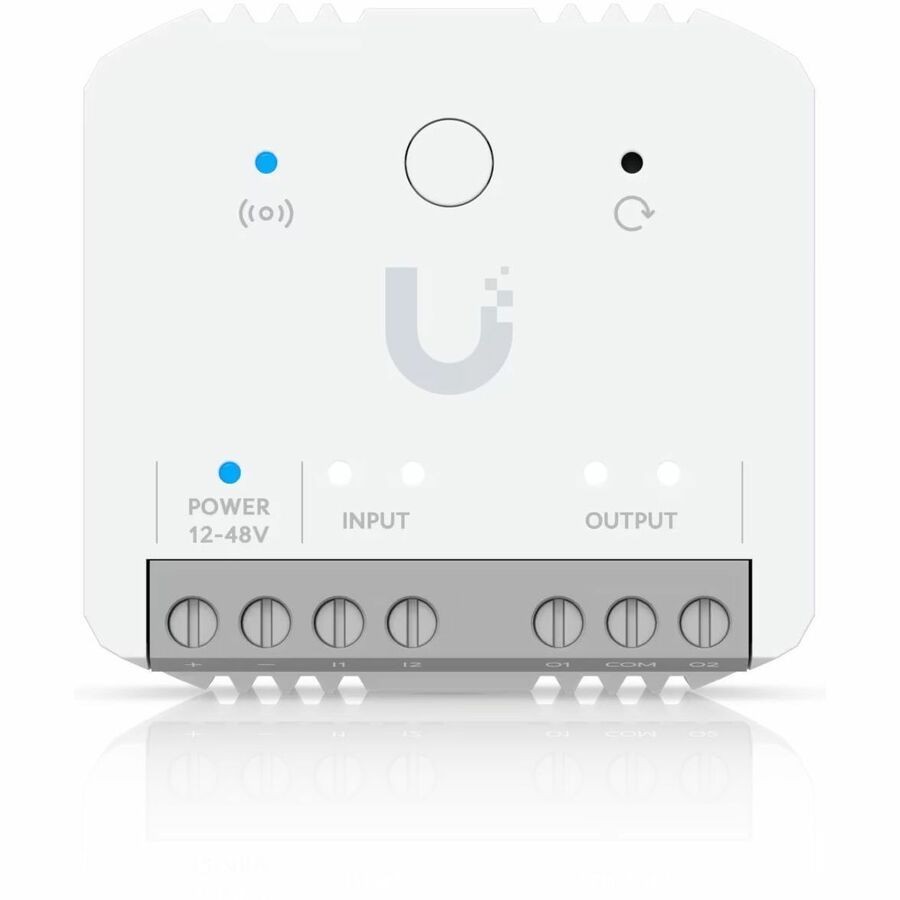

Terminal Connections
Outputs (O1 / COM / O2)
Dry contact only
Voltage: 12–48V DC, 12–240V AC
Current: 10A per port
Maximum total load: UL 12A, IEC 16A
Inputs (I1 / I2)
Dry contact only
States: Open or short to ground (GND)
Protection: Integrated 5V TVS
Power Terminals (VDD / GND)
Input range: 12–48V DC (max. 48V)
Protection: Over-temperature protection at 85°C (185°F)
LED Indicators
(1) Status / LoRa: RGBW
(2) Input signal and relay output: White
Environmental
Operating Temperature
0 to 40°C (32 to 104°F)
Operating Humidity
10–90% non-condensing
Compliance
CE, FCC, IC
NDAA compliant
Software Requirements
Web Application
UniFi Protect
Mobile Applications
UniFi Protect for iOS and Android
