Dimensions: 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7")
Ports:
• 12 × 1GbE RJ45
• 4 × 2.5GbE RJ45
• 2 × 10G SFP+ uplinks

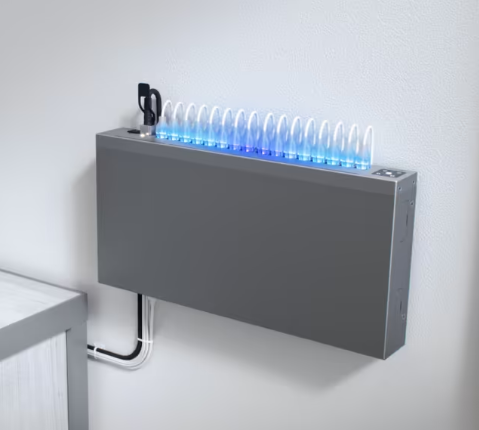

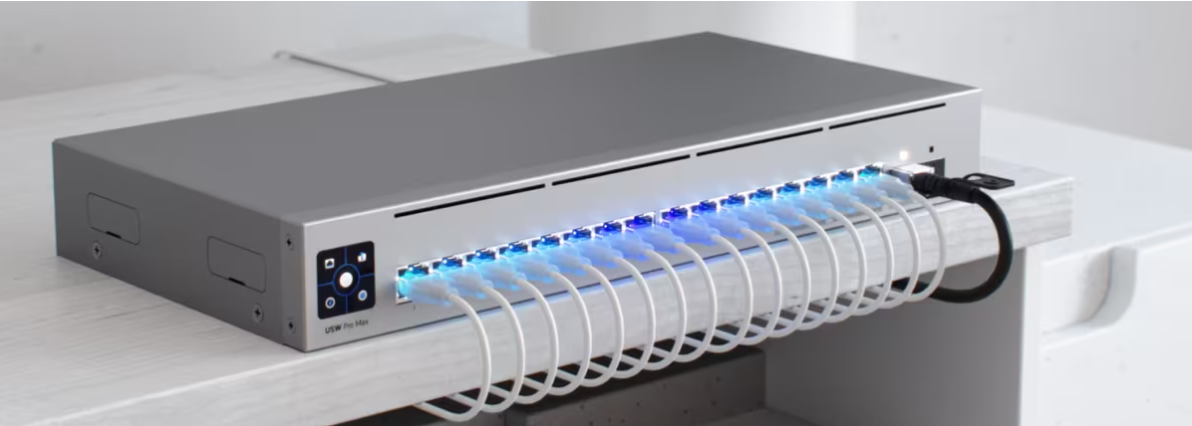

Form Factor: Rack-mount (1U), desktop, or wall-mount
Etherlighting™: Supported

Performance:
• 84 Gbps switching capacity
• 42 Gbps non-blocking throughput
• 62 Mpps forwarding rate
• 1,000 VLANs; 16K MAC table
• L3 tables: 6,000 ARP entries; 512 IPv4 routes
• 1.5 MB packet buffer

Layer 3 Features: DHCP server/relay, static routing, inter-VLAN routing
Layer 2 Features: LACP, STP/RSTP, QoS (DSCP), advanced IGMP, DHCP snooping/guarding, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection
Pro AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron

Hardware & Power:
• Max power consumption: 25W
• Power input: USB-C 5V DC (AC/DC adapter included)
• 1.3" touchscreen LCM display
• SGCC steel enclosure and mount
• Heat dissipation: 85.3 BTU/hr
• Weight: 1.95 kg (4.3 lb)
• Supported rack depth: 400–1200 mm (15.7–47.2")

Environmental: –5 to 40°C operating; 10–90% non-condensing humidity
Compliance: NDAA compliant; CE, FCC, IC, Anatel certified
