10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+* and (1) GbE WAN port
(1) 10G SFP+* and (1) GbE LAN port
UniFi Power Backup ready
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Dimensions
442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2")
WAN & Port Configuration
Max WAN ports: 3
Default WAN ports:
(1) 10G SFP+
(1) GbE RJ45
Additional ports:
2 × 10G SFP+ (10G/1G)
Performance
IDS/IPS throughput: 3.5 Gbps

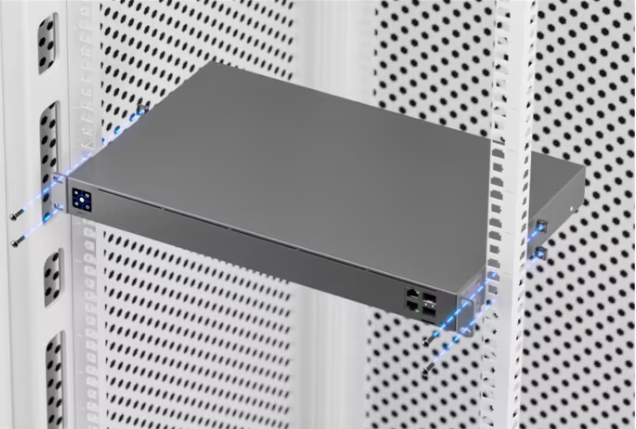

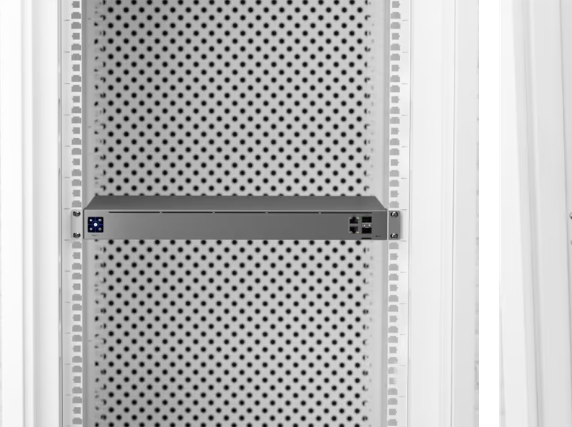

Form factor: 1U rack mount
Redundancy: DC power backup
Security Features
Stateful firewall
Application-aware Layer 7 firewall
DPI & traffic identification
Advanced zone-based filtering (regions, domains, apps)
Content filtering
Intrusion prevention / detection (IPS/IDS)
Ad blocking
IDS/IPS signatures: 55,000+ (with CyberSecure)
VPN & SD-WAN
License-free SD-WAN
Site-to-Site VPN:
Site Magic, IPsec, OpenVPN
VPN Server:
Teleport (zero-config), WireGuard, OpenVPN, L2TP
VPN Client:
WireGuard, OpenVPN
Networking Capabilities
Multi-WAN load balancing
Dynamic routing: OSPF
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT, DNAT, Masquerade, NAT pooling, 1:1 NAT)
Integrated RADIUS server
RADIUS over TLS (RadSec)
UniFi LTE internet failover support
Internet quality & outage reporting
Hardware
Max power consumption: 30 W
Power method:
US:
AC input: 125V AC, 2.7A max, 60 Hz
RPS DC input: 11.5V DC, 2.87A
Worldwide:
AC input: 200–240V AC, 1.7A max, 50/60 Hz
RPS DC input: 11.5V DC, 2.87A
Power supply: Internal 50 W AC/DC
Supported voltage range: 100–240V AC
Processor: Quad-core ARM Cortex-A53 @ 1.5 GHz
Memory: 2 GB
Weight: 3.4 kg (7.5 lb)
Enclosure:
Front panel: Aluminum CNC
Top/base: SGCC steel
LCM display: 1.3" touchscreen
Management: Ethernet
LED indicators: Ethernet, SFP+, RPS, AC outlet
Button: Factory reset
ESD/EMP protection: Air ±15 kV, Contact ±8 kV
Environmental
Operating temperature: –10 to 40 °C (14 to 104 °F)
Operating humidity: 5–95% non-condensing
Compliance
NDAA compliant
Certifications: CE, FCC, IC, Anatel: 19089-22-08356
Software Requirements
UniFi Network application version 8.3.32 or later
