Compact Enterprise Gateway Router – 10G Multi-WAN, NDAA Compliant
High-performance desktop security gateway with advanced firewall, VPN, and SD-WAN capabilities. Ideal for branch offices and high-speed networks requiring secure, multi-WAN connectivity.

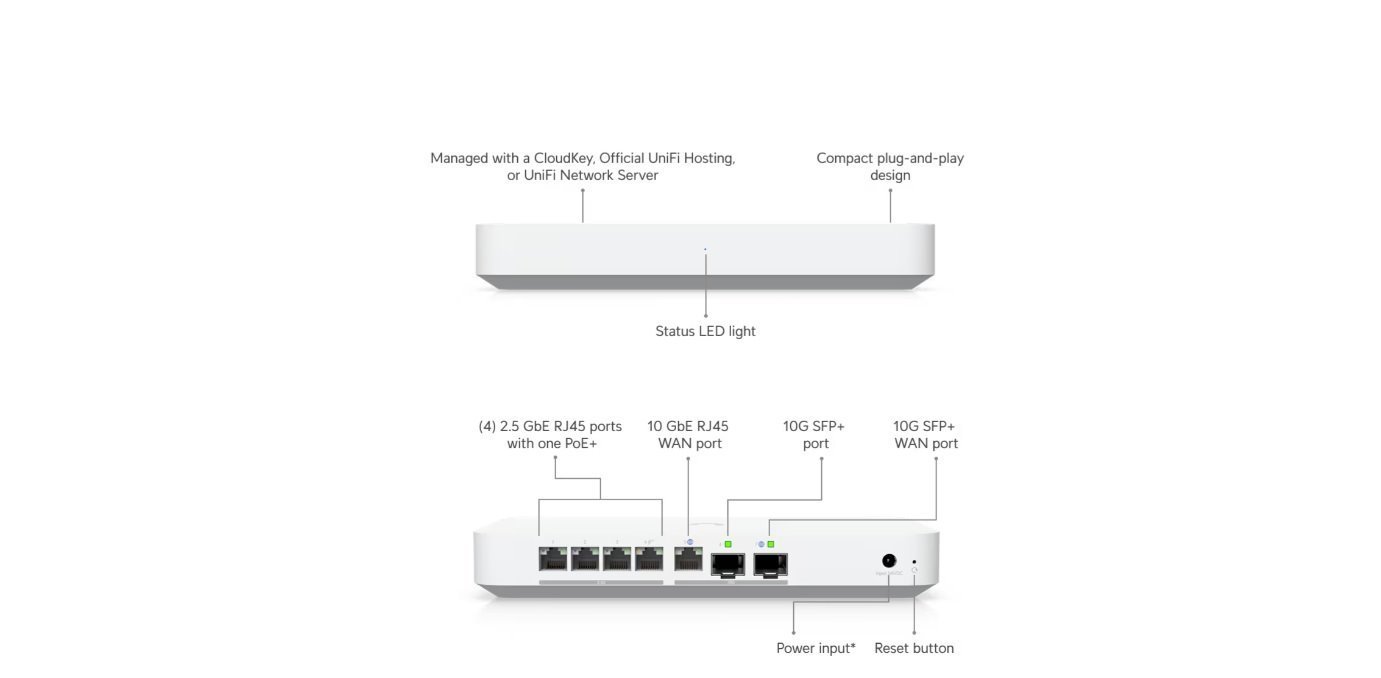

• Networking Interfaces:
  • (1) 10G SFP+ WAN
  • (1) 10 GbE RJ45 WAN
  • (4) 2.5 GbE RJ45 LAN (2.5G/1G/100M/10M)
  • (1) 10 GbE RJ45 LAN
  • (2) 10G SFP+ LAN (10G/1G)

• WAN Capacity: Up to 6 configurable WAN ports

• Performance: 5 Gbps IDS/IPS throughput

• Security: Stateful & Layer 7 firewall, deep packet inspection, intrusion prevention (IPS/IDS), ad and content filtering, zone-based filtering, and 55K+ IDS/IPS signatures (with CyberSecure)

• VPN & SD-WAN:
  • License-free SD-WAN and load balancing
  • VPN protocols: WireGuard, OpenVPN, IPsec, L2TP, Teleport, Site Magic
  • Zero-configuration Teleport VPN for remote access

• Routing & Network Features:
  • OSPF dynamic routing, advanced QoS, NAT (SNAT/DNAT/1:1)
  • Integrated RADIUS server and RadSec support
  • IPv6, mDNS, and LTE backup failover compatibility
  • Internet quality and outage reporting

• Hardware & Power:
  • Quad-core ARM Cortex-A73 @ 2.2 GHz, 2 GB system memory
  • 30W PoE budget (1 × PoE+ port, 50–57V)
  • Max power consumption: 25W (excluding PoE output)
  • Power supply: 54V DC/1.1A adapter (included)

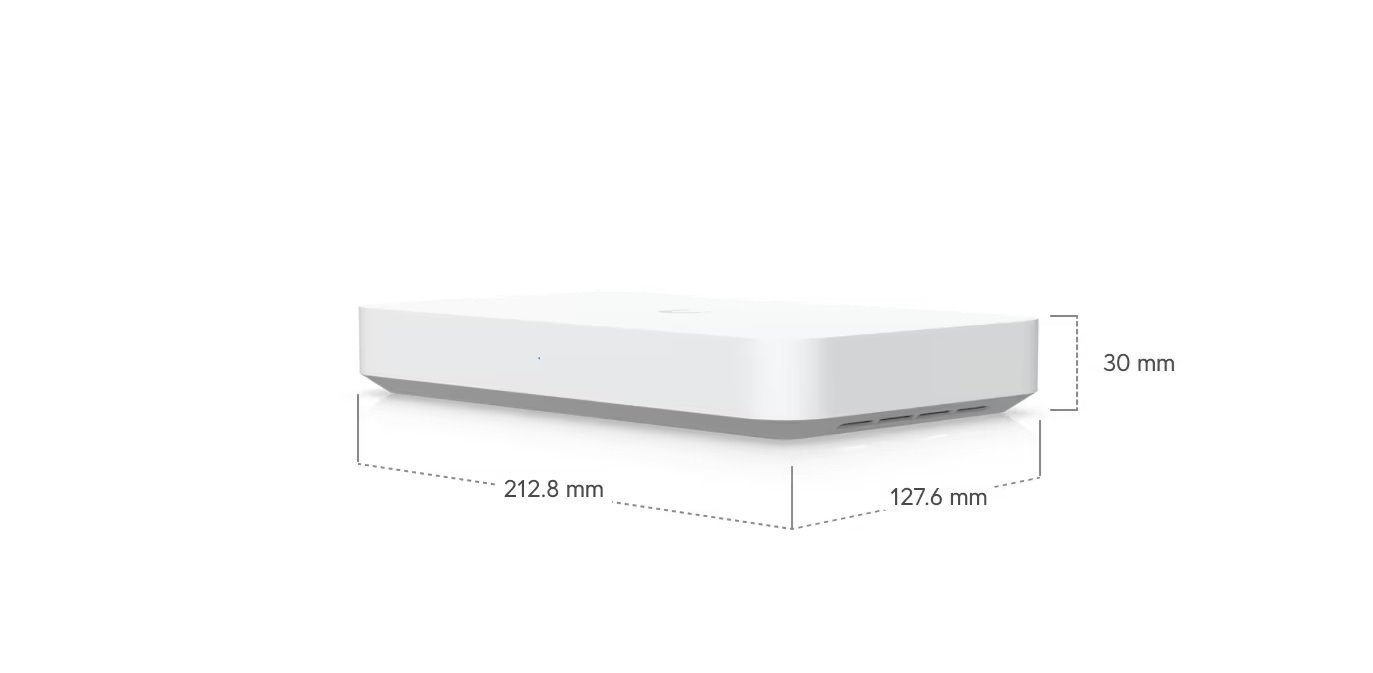

  • Dimensions: 212.8 × 127.6 × 30 mm (8.4 × 5 × 1.2")
  • Weight: 605 g (1.3 lb)
  • Enclosure: Polycarbonate; compact desktop form factor
  • 1 × factory-reset button; LED indicators for Ethernet, SFP+, and system status

• Environment: Operating temp 0–40 °C (32–104 °F); humidity 5–95% non-condensing

• Protection: ESD ±8 kV (air), ±4 kV (contact)

• Compliance & Certifications: NDAA Compliant; CE, FCC, IC, Anatel (04395-25-08356)
