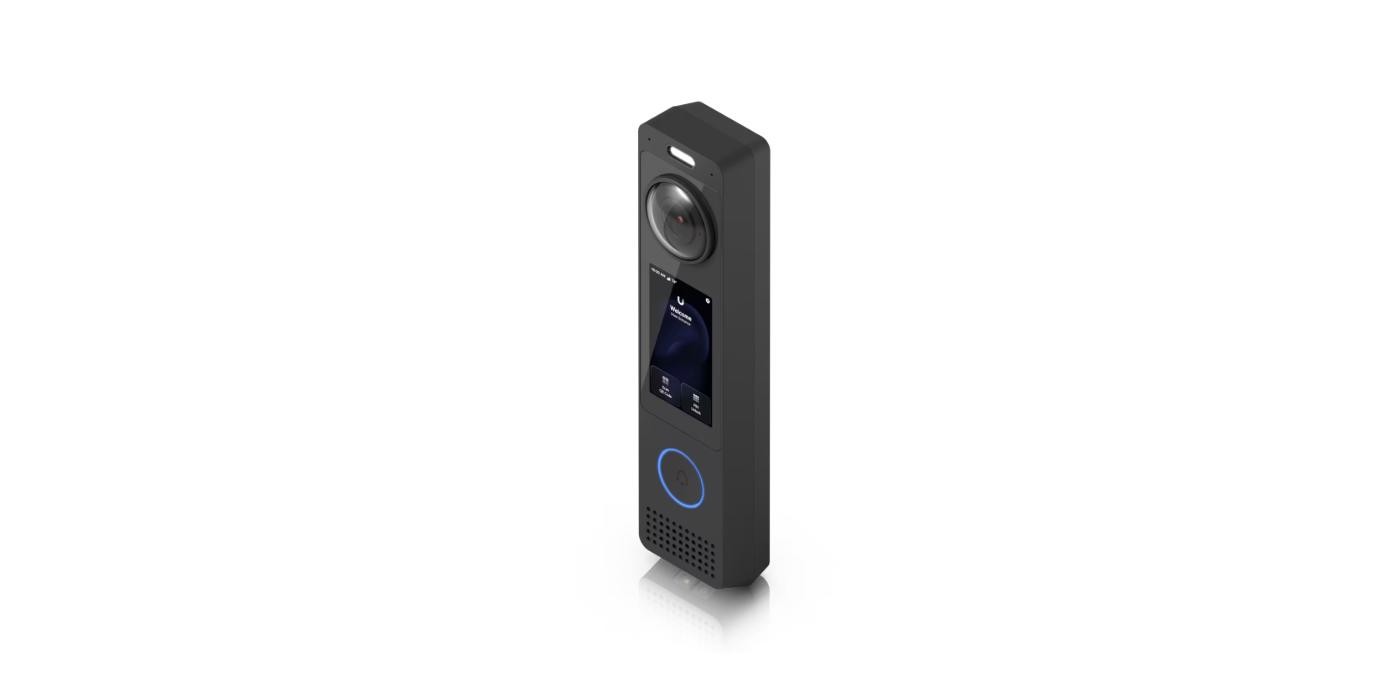

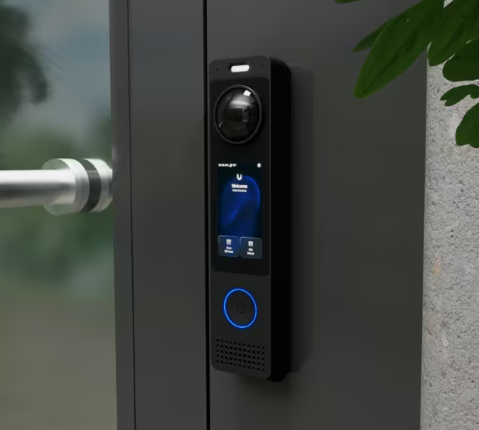

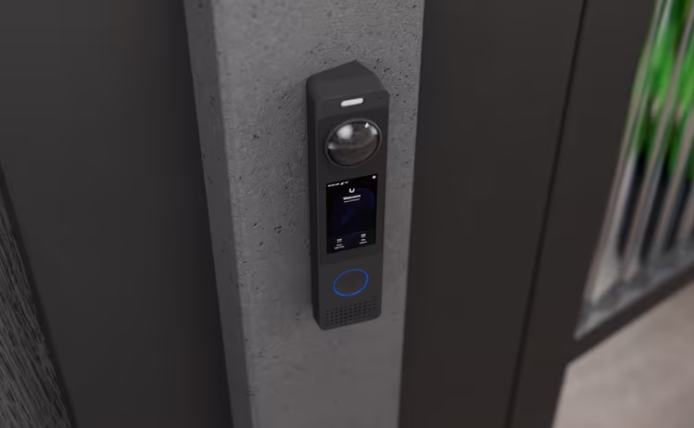

An intelligent door entry system with native UniFi Protect and UniFi Access integration, featuring a 12MP camera, two-way audio, and a 3" touch display.

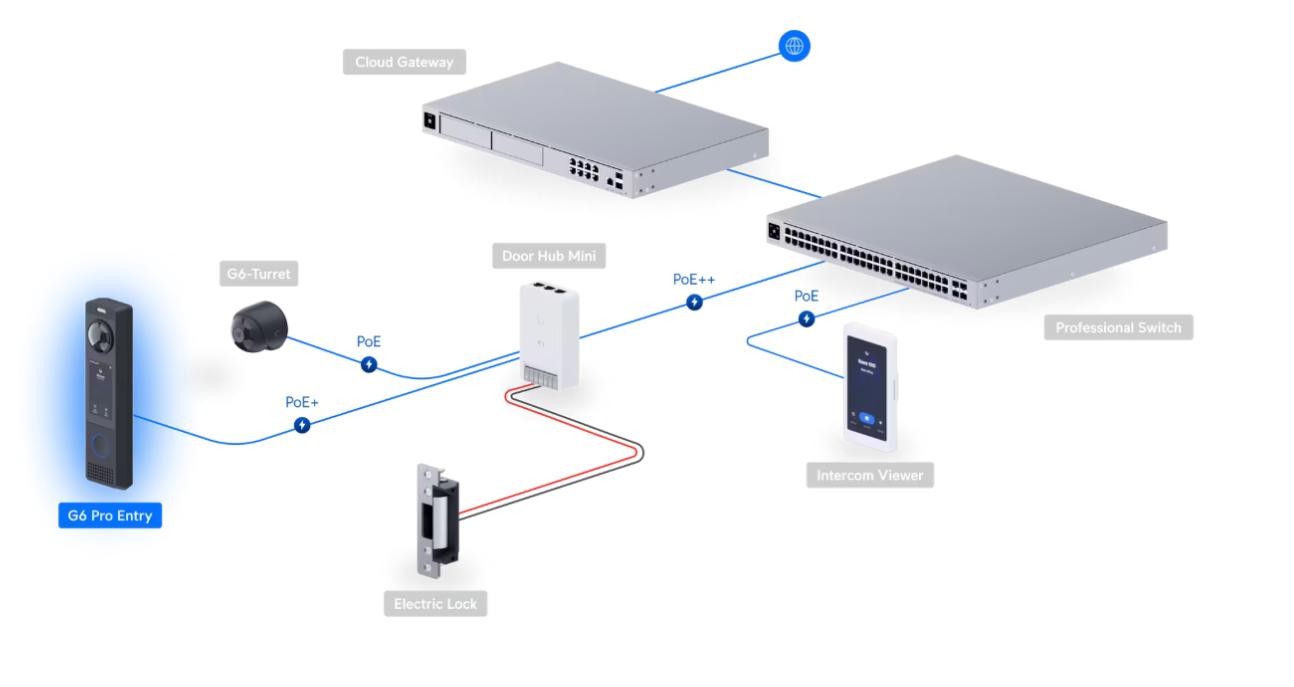

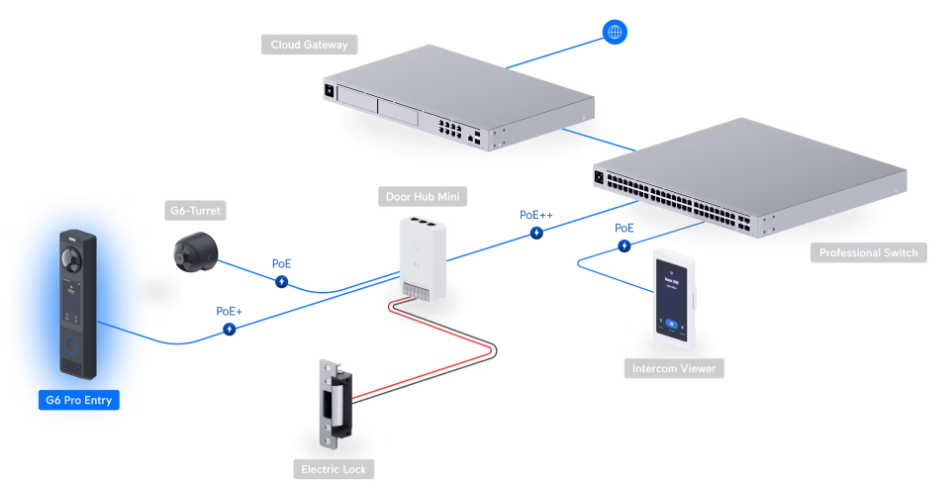

Note: This product is optimized for enterprise environments and includes 10 free 1-year Touch Passes. To enable door access features such as NFC, Face ID, and Interface Designer configuration, an Access Hub is required, and both UniFi Protect and UniFi Access applications must be installed.

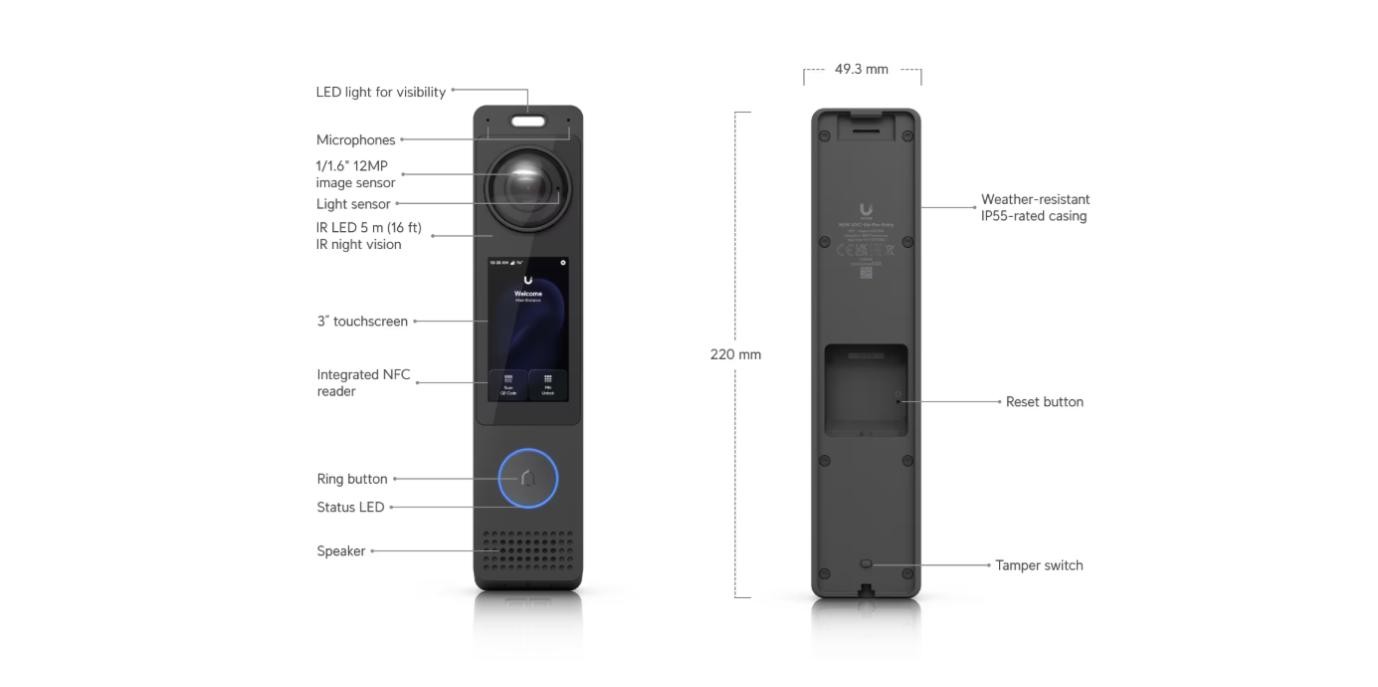

Dimensions
220 × 49.3 × 29.6 mm (8.7 × 1.9 × 1.2 in)
Integrated Camera
Yes
IR Night Vision
5 m (16 ft)
Resolution
Main camera: 12MP
Package camera: 8MP
Application Suite
UniFi Protect
UniFi Access
Access Features
Face recognition
NFC card and keyfob access
PIN access
Apple Wallet / Google Wallet
Mobile unlock
Two-way intercom and doorbell access
Weatherproofing
IP55
Smart Detections
People, vehicles, animals
Tamper Resistance
IK07
LCM: IK04
Audio
Two-way audio
Mechanical
Weight
360 g (12.7 oz)
Enclosure Material
Aluminum
Mount Material
Wall mount: Stainless steel
Gangbox mount plate: SGCC steel
Gangbox mount cover: Polycarbonate
Wedge mount: Aluminum

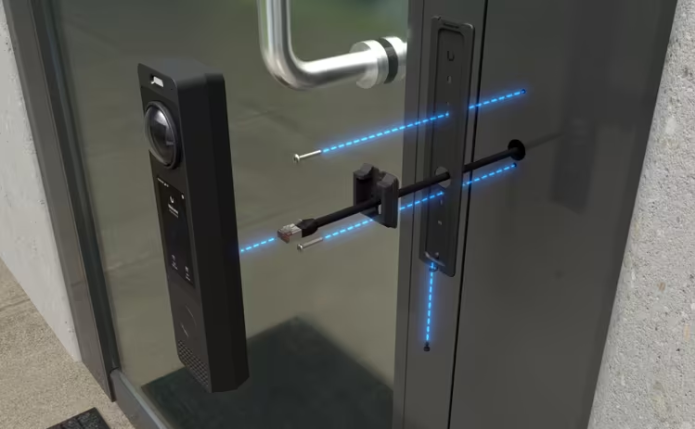

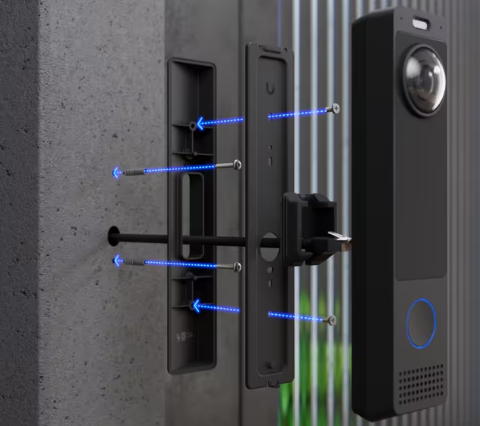

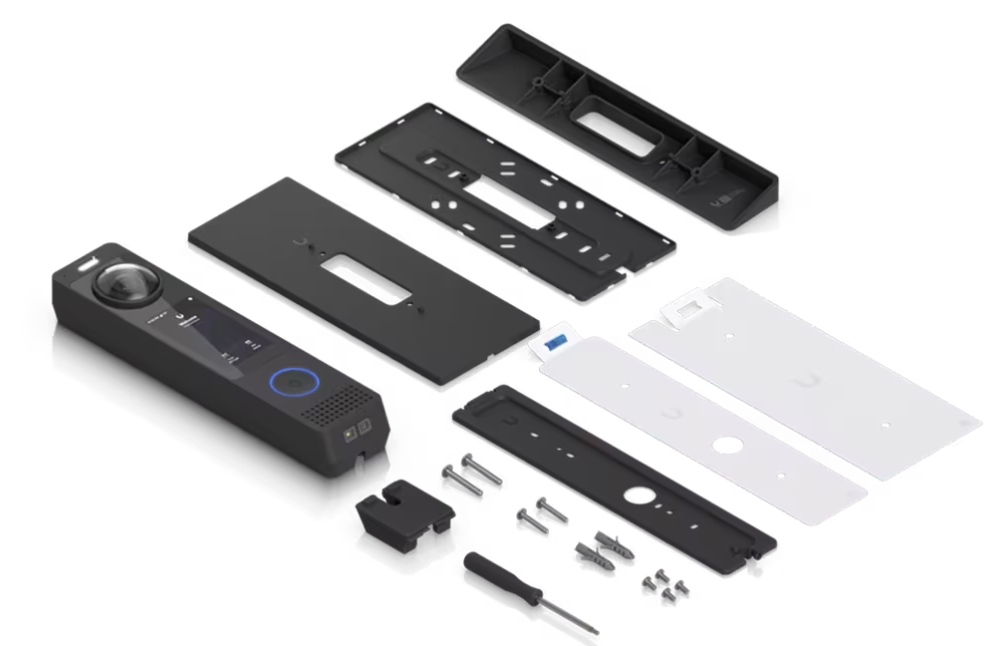

Mounting
Wall mount, gangbox mount plate, 20° wedge mount (included)
Junction box optional
Hardware
Networking Interface
GbE RJ45 port
Connectivity
BLE 4.1
NFC
Power Method
PoE+
Maximum Power Consumption
18W
Supported Voltage Range
42–57V DC
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate
Main camera: 12MP at 20 FPS or 8MP at 30 FPS
Package camera: 3 FPS
Optics
Main Camera Resolution
12MP, 3024 × 4096 (3:4) or 8MP, 2160 × 3840 (9:16)

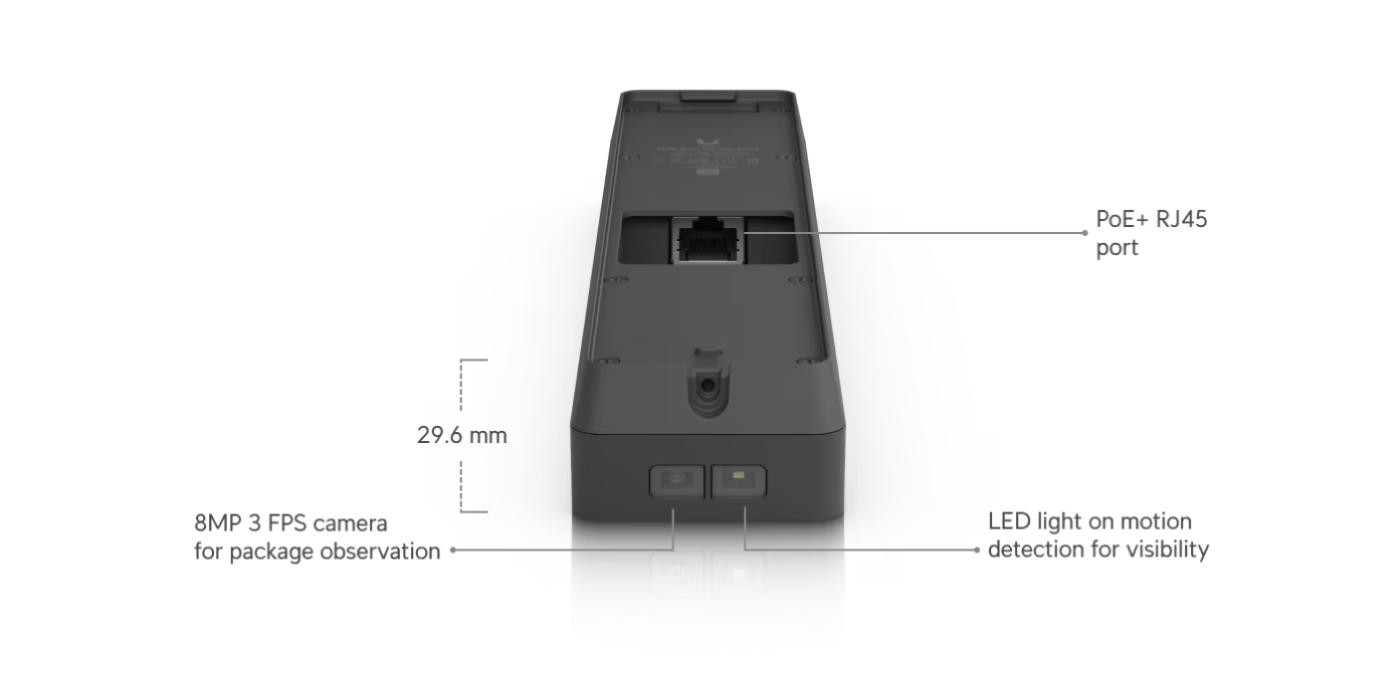

Package Camera Resolution
8MP, 3264 × 2448 (4:3)
Field of View
Main camera: 100° H / 136.3° V / 176.4° D at 12MP; 70.9° H / 127.5° V / 147.4° D at 8MP
Package camera: 66° H / 51.7° V / 78° D
Sensor
Main camera: 12MP CMOS
Package camera: 8MP CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Display
Size
3 in diagonal (75 mm)
Screen Technology
Capacitive multi-touch
Luminance
Up to 1000 nits (typical)
Screen Orientation
Portrait
Resolution
480 × 854 px
LED Indicators
R/G/B/W/Amber
Controls
1 ring button
1 factory reset button
1 tamper switch
Processor
Quad-core Arm Cortex-A53–based chip
Environmental
Operating Temperature
Device: -30 to 50°C (-22 to 122°F)
Display: -25 to 50°C (-13 to 122°F)
Operating Humidity
5–90% non-condensing
Compliance
CE, FCC, IC
