Dimensions
324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1 in)

Integrated Camera
Yes

Access Methods
NFC card and keyfob access
PIN access
Apple Wallet / Google Wallet
Mobile unlock
Face unlock
Two-way intercom and doorbell access

Compliance
NDAA compliant
UL 294 Level I for destructive attack, line security, endurance, and standby power
IP65 weatherproofing
CAN/ULC-60839-11-1 Grade I
CE, FCC, IC, UL 294 certified

Mechanical

Weight
Device: 965 g (2.1 lb)
Bracket: 445 g (1.0 lb)

Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate, and glass

Mount Material
Powder-coated stainless steel

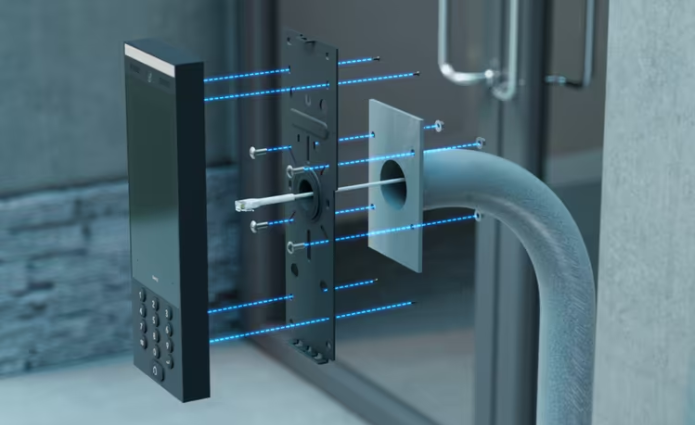

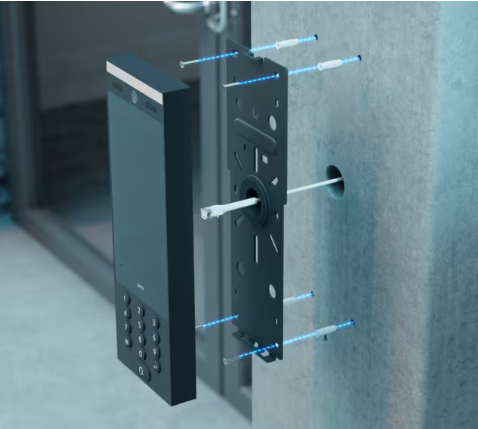

Mounting

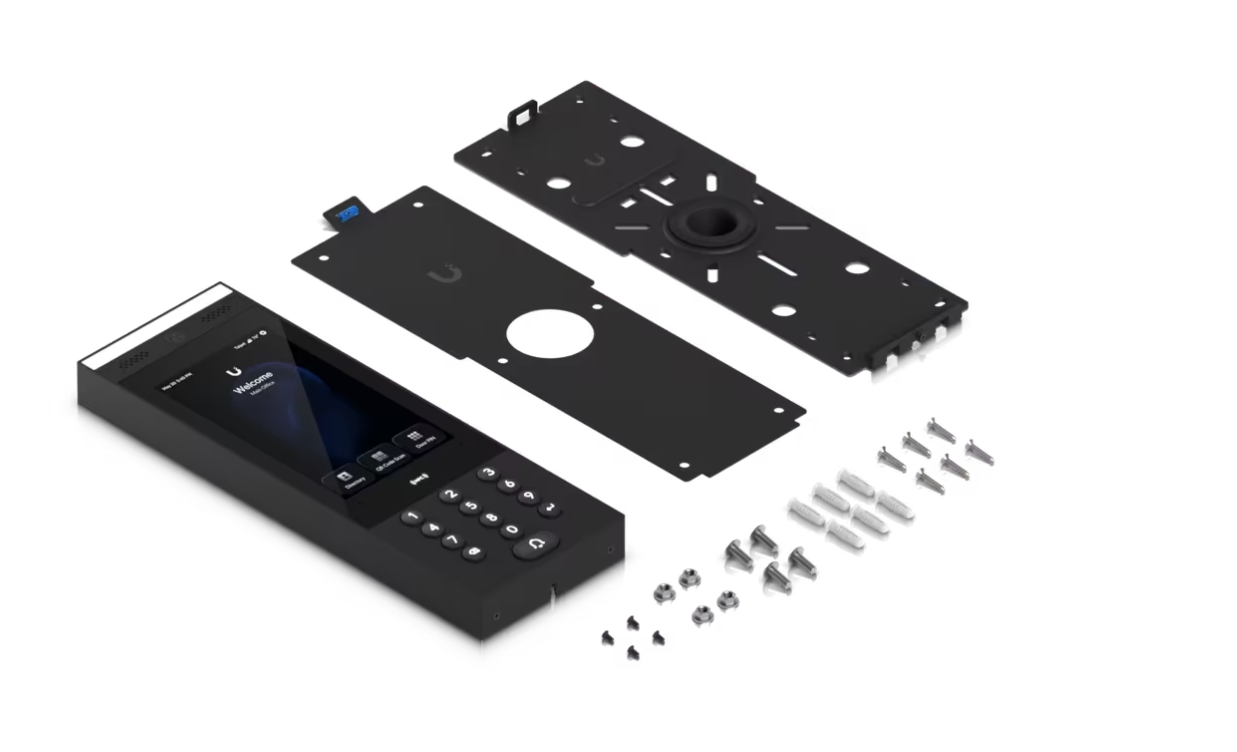

Wall mount, adapter to gooseneck pedestal included
Optional surface angle, flush mount, and sunshield kit

Hardware

Indoor/Outdoor Use
Yes

Networking Interface
1 × GbE RJ45 port

Connectivity
BLE 4.2
NFC

Power Method
PoE

Power Limitations
UL 294 Class 2 PSU
UL 60950-1 / 62368-1 LPS/PS2 PSU

Maximum Power Consumption
13W

Supported Voltage Range
48V DC

Video

Max. Frame Rate
30 FPS

Resolution
2 MP, 1200 × 1600 (3:4)

Optics
8 MP, 2448 × 3264
Field of view: 79.4° H, 97.5° V, 118.2° D

Sensors
Proximity sensor
ALS sensor

Display

Size
7 in diagonal (177 mm)

Screen Technology
Capacitive multi-touch

Luminance
Up to 1000 nits (typical)

Screen Orientation
Portrait

Resolution
1024 × 600 px

Audio

Microphone
Yes

Speaker
Yes

NFC

Frequency
13.56 MHz

Read Range
Less than 30 mm (1.18 in)

Supported Standards
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFire
Sony FeliCa (ID only)
NFC Forum tags T1T, T2T, T3T, T4T, and T5T
ECP 2.0

LED Indicators
Amber

Controls
1 factory reset button

Environmental

Operating Temperature
Device: -30 to 60°C (-22 to 140°F)
Display: -25 to 60°C (-13 to 140°F)

Operating Humidity
5–90% non-condensing

Software

Management Application
UniFi Access
