Includes full UniFi application suite for device management

3.5+ Gbps routing with IDS/IPS

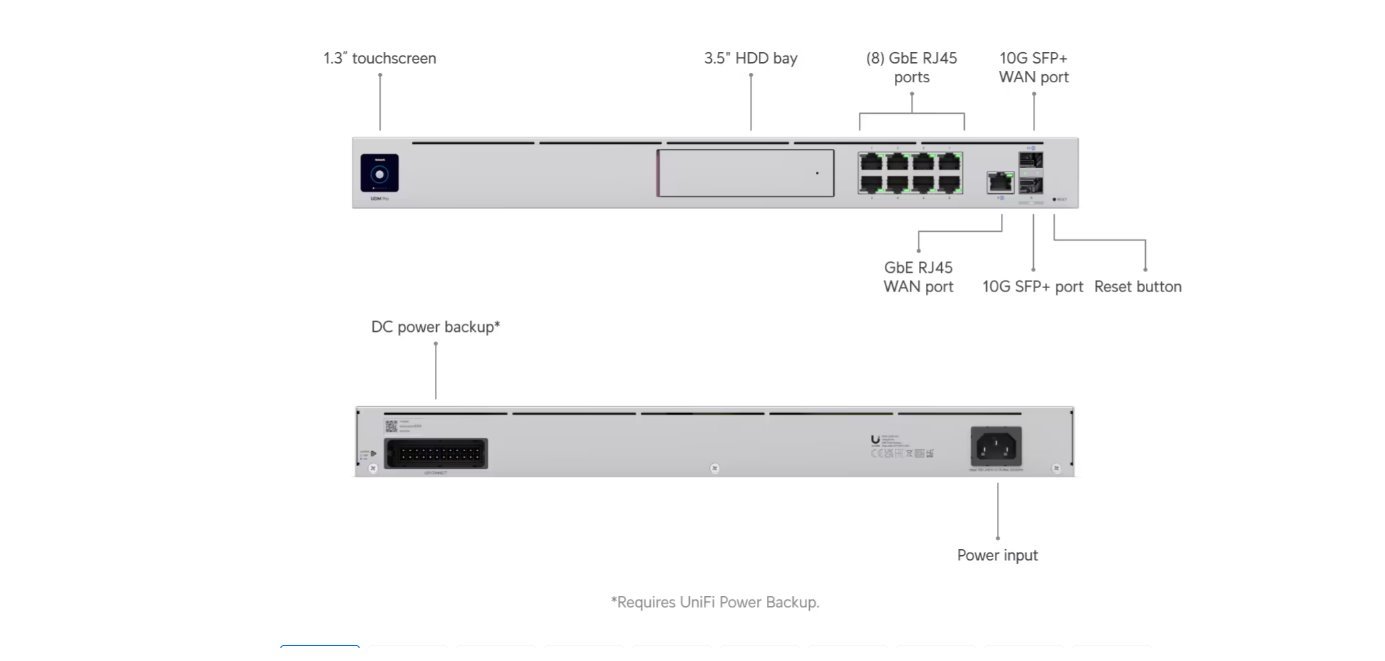

(1) 10G SFP+*, 8 GbE RJ45 LAN ports including 8 LAN Ports

(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

(1) 3.5" NVR HDD bay

Built-in 128 GB SSD for NVR detection recordings

UniFi Power Backup ready

1.3" touchscreen

Hardware

Processor    Quad-core ARM® Cortex®-A57 at 1.7 GHz

System memory    4 GB DDR4

On-board storage    16 GB eMMC

Integrated 128 GB SSD

Management interface    Ethernet

Bluetooth

Networking interface    LAN:

(8) GbE RJ45 ports

(1) 10G SFP+ port

WAN:

(1) 2.5 GbE RJ45 port

(1) 10G SFP+ port

IDS/IPS throughput    3.5 Gbps*

*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

Power method    (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz

(1) USP-RPS DC input, 52V DC, 3.94A

Power supply    AC/DC, internal, 240W

Supported voltage range    100—240V AC

Max. power consumption    50W (Excluding PoE output)

ESD/EMP protection    Air: ± 15kV, contact: ± 8kV

LCM display    (1) 1.3" touchscreen

Button    Factory reset

Ambient operating temperature    -10 to 40° C (14 to 104° F)

Ambient operating humidity    5 to 95% noncondensing

Certifications    CE, FCC, IC
