Overview

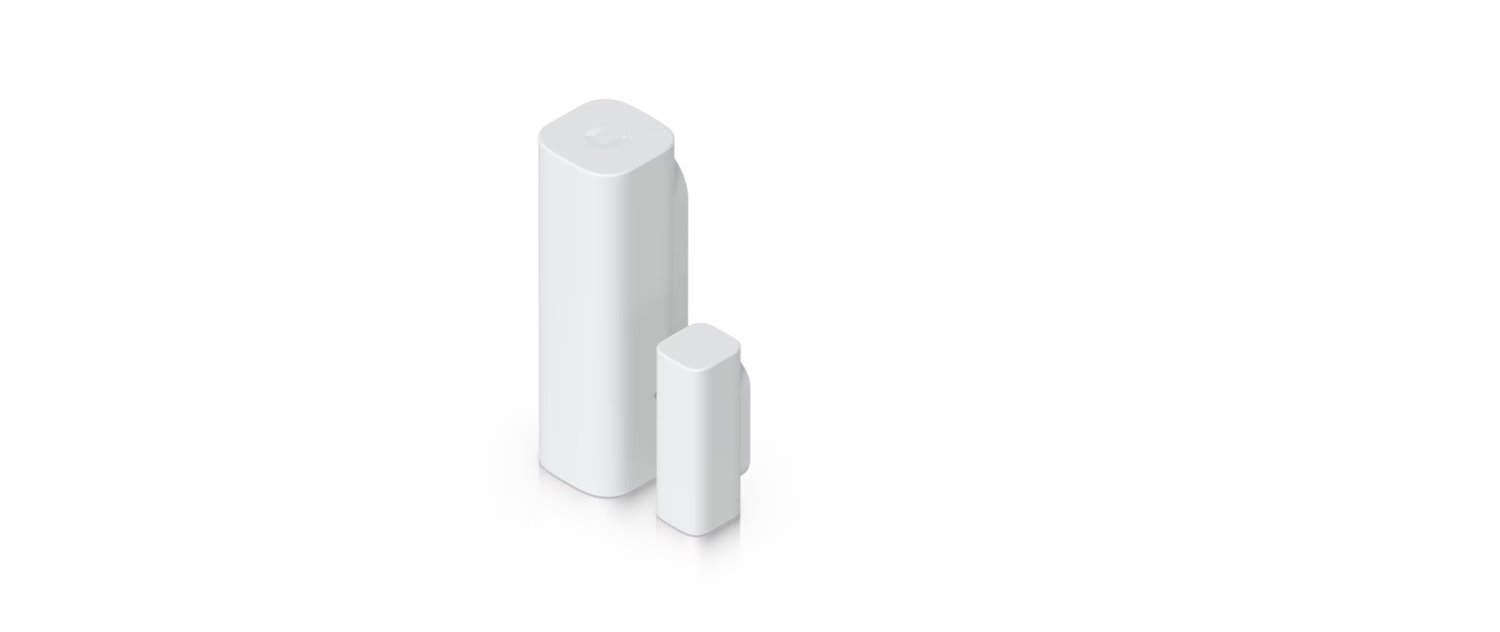

Monitor entry points reliably with this SuperLink wireless sensor designed to detect door and window open or closed status. Engineered for long-term operation, it delivers dependable perimeter awareness while maintaining a compact, unobtrusive form factor suitable for residential and commercial environments.
Wireless Performance

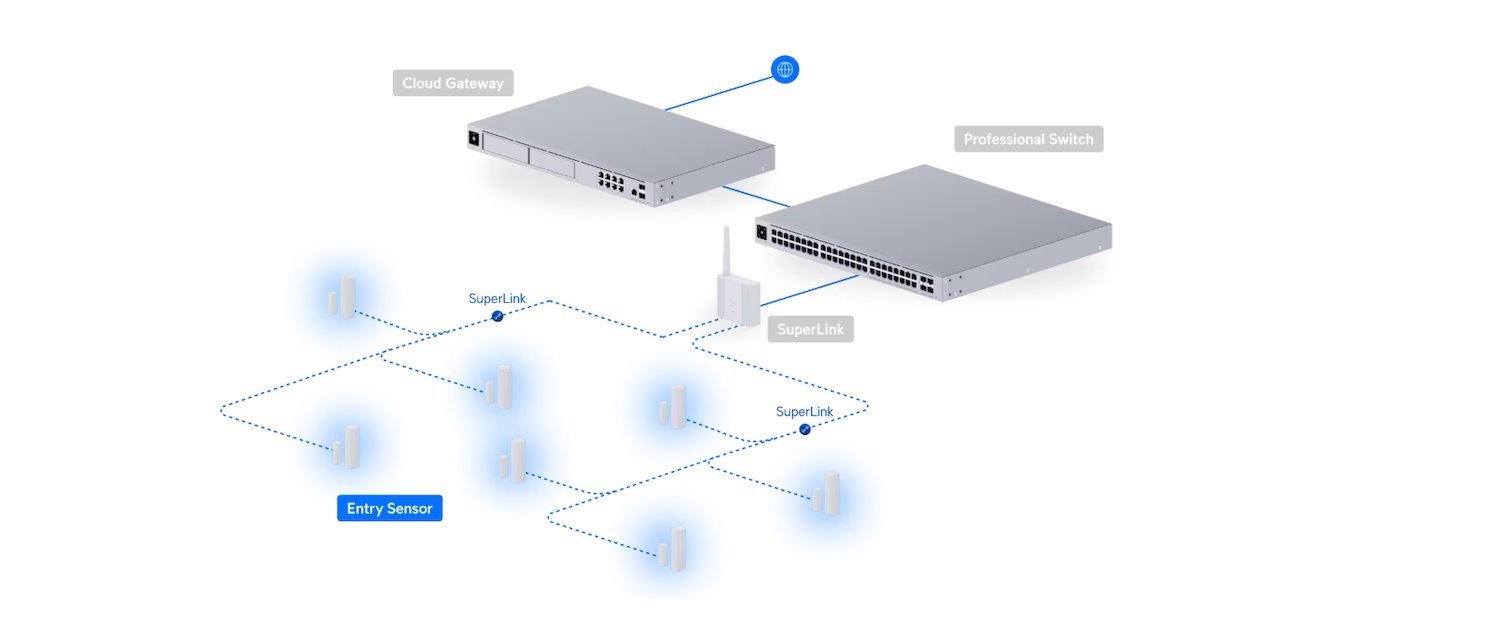

Utilizing SuperLink wireless communication technology, the sensor ensures stable connectivity with compatible security systems while minimizing power consumption. Its efficient design enables extended deployment without frequent maintenance or battery replacement.
Features

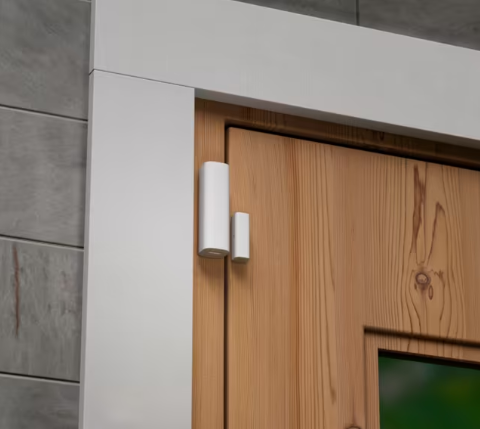

With an industry-leading battery life of up to six years, this sensor reduces service intervals and operational overhead. The compact design allows discreet installation on doors, windows, cabinets, and other monitored access points, enhancing security coverage without affecting aesthetics.
Applications

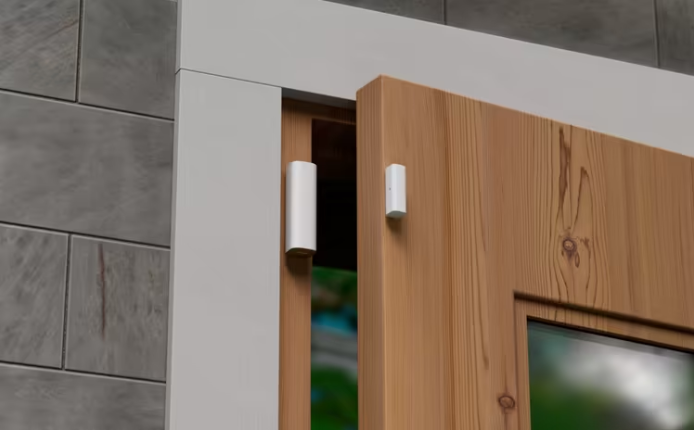

Door and window intrusion monitoring
Residential alarm system integration
Commercial perimeter protection
Office and retail access monitoring
Warehouse and storage facility security
Mechanical

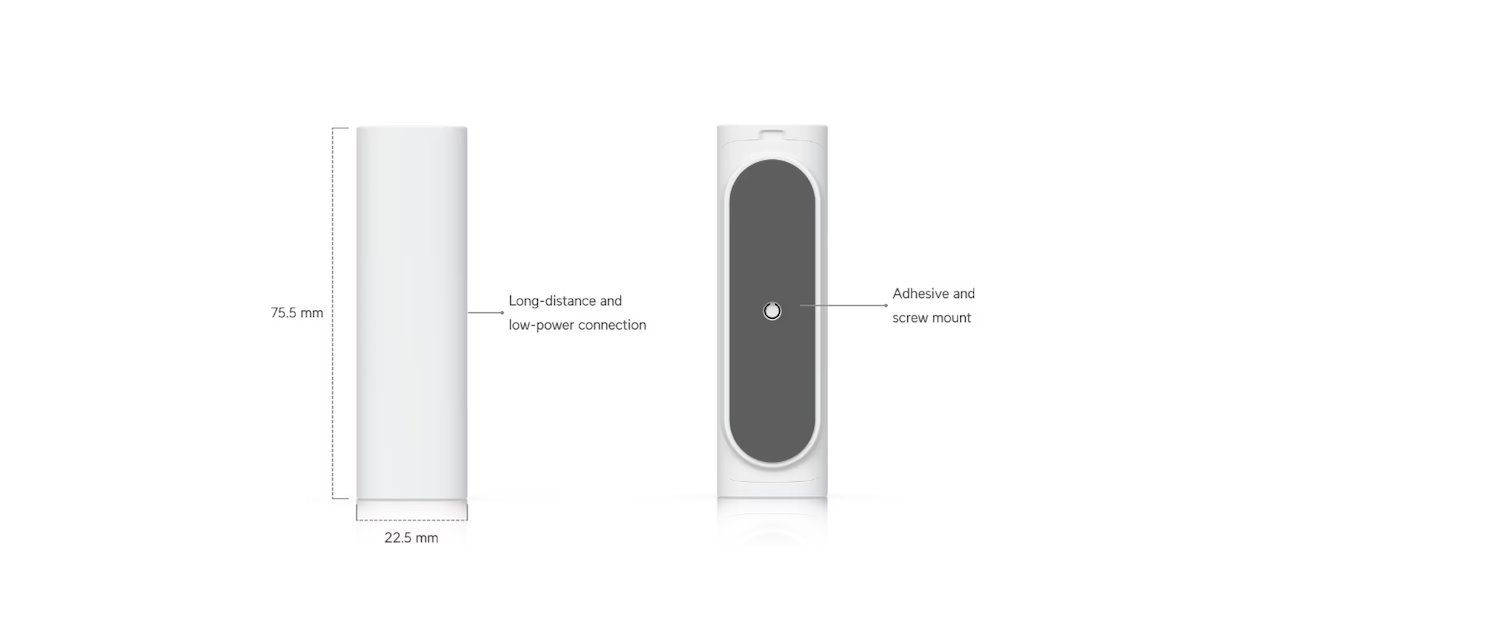

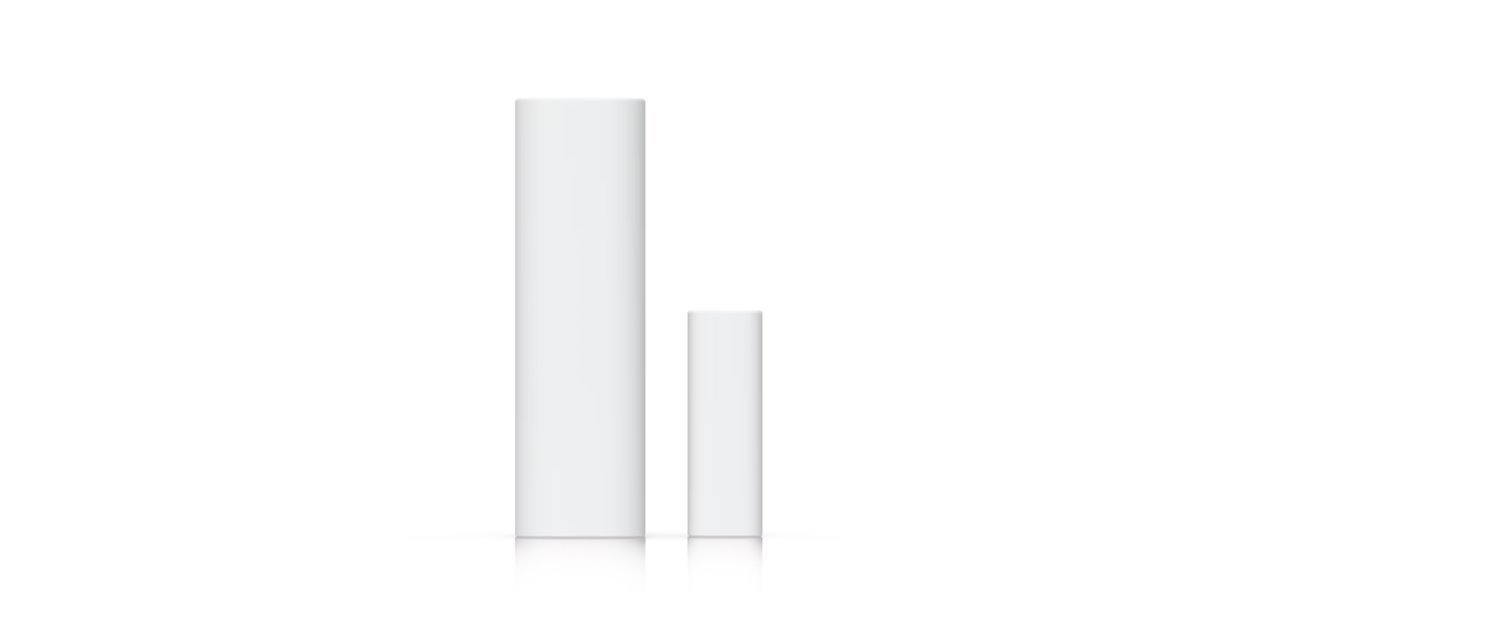

• Dimensions
• Device: 75.5 x 23.5 x 22.5 mm (3 x 0.93 x 0.89")

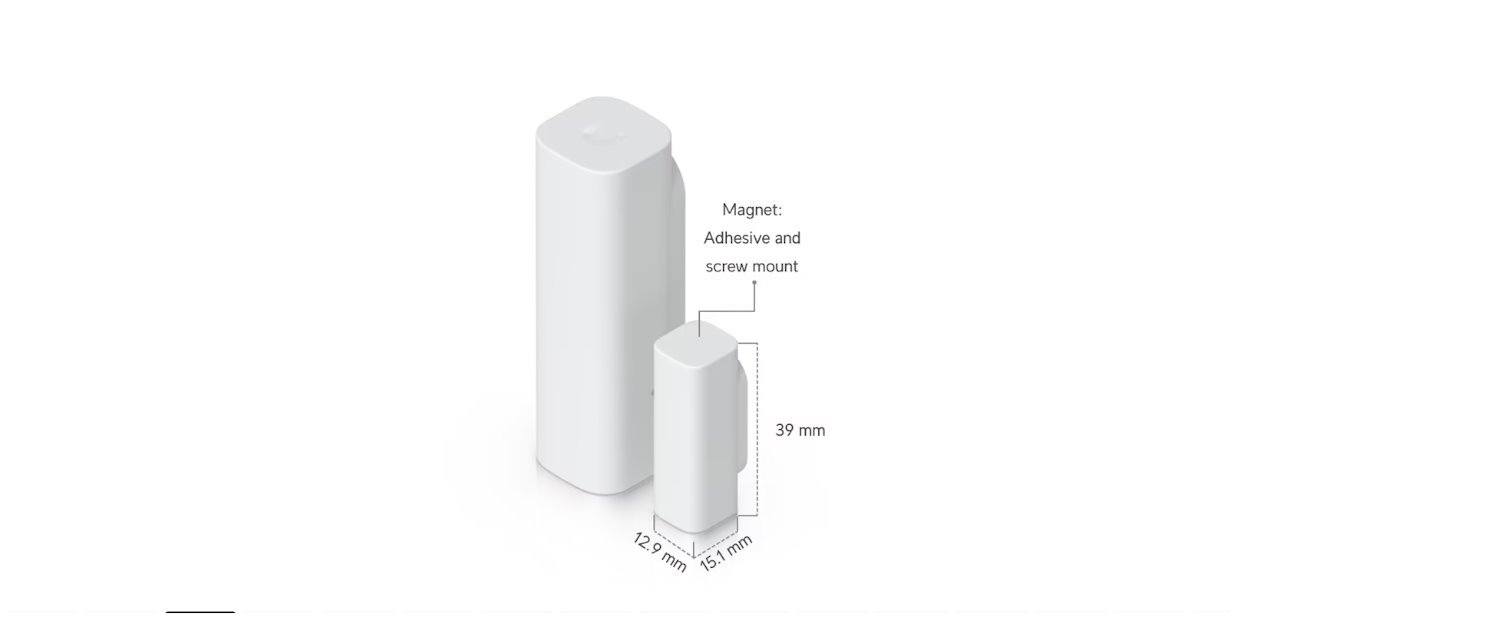

• Magnet: 39 x 15.1 x 12.9 mm (1.5 x 0.6 x 0.5")

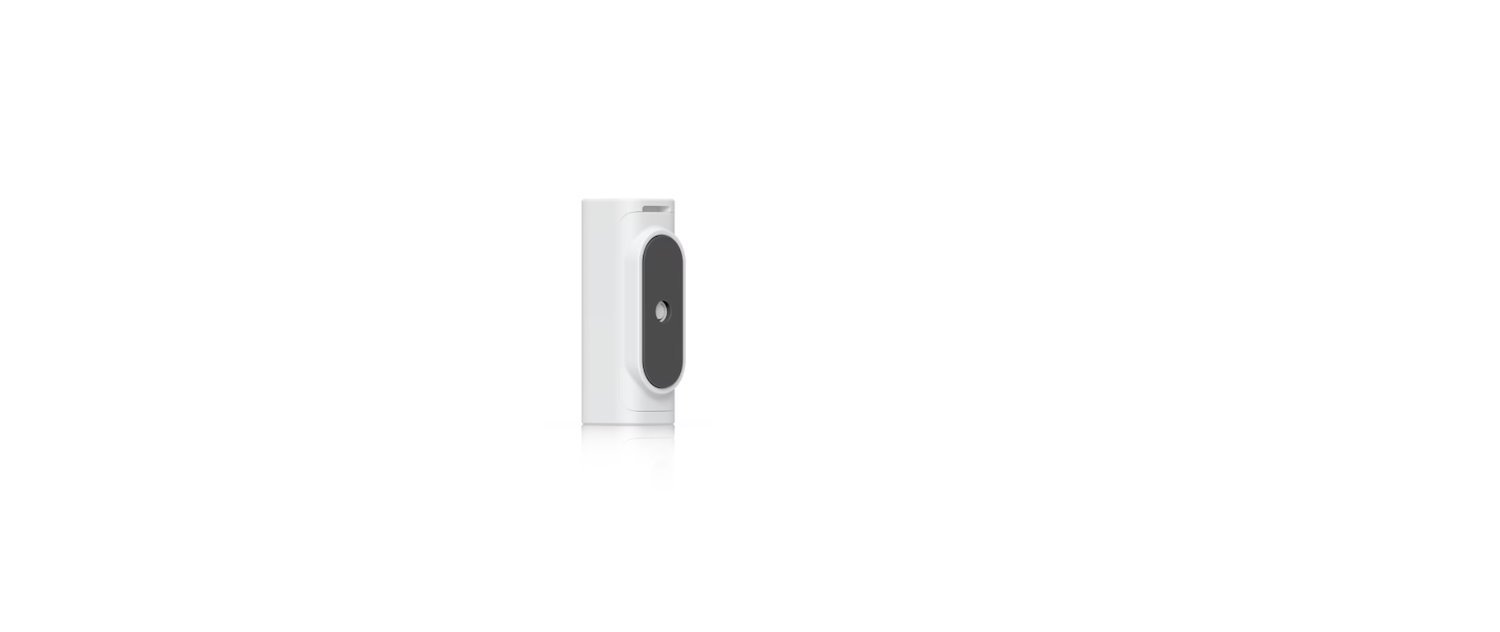

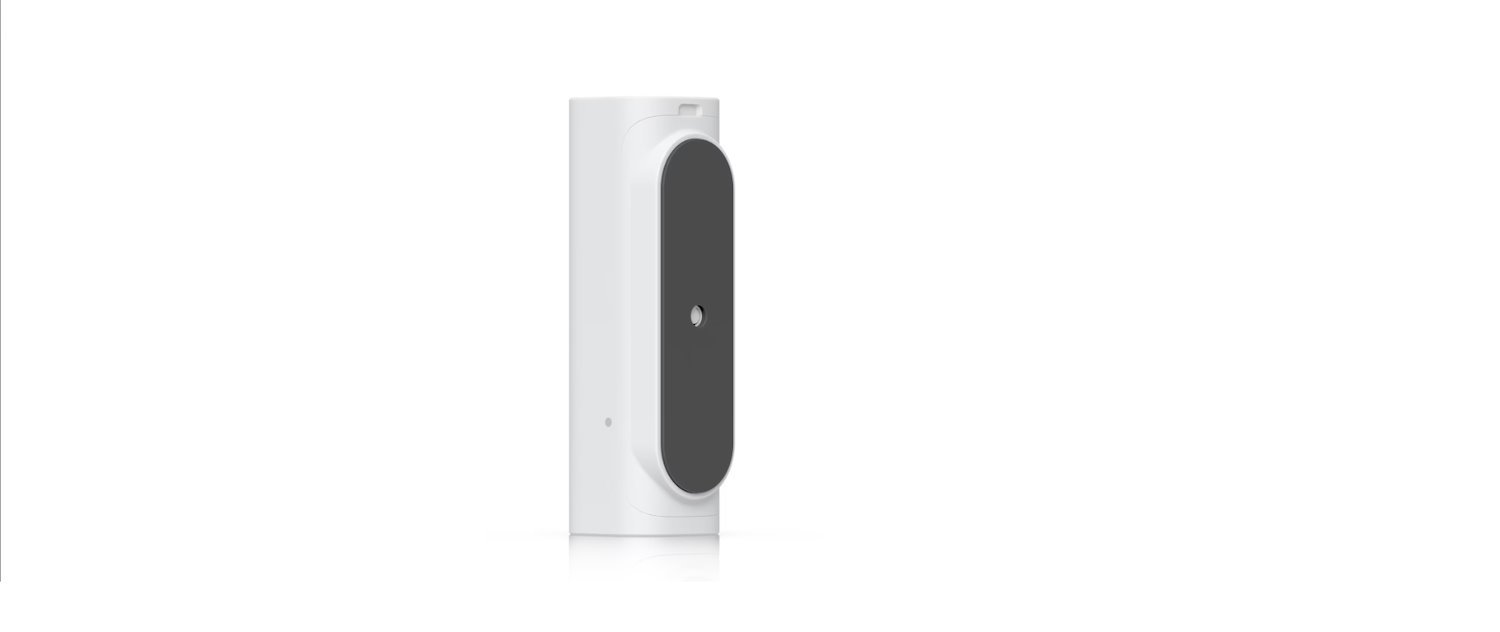

• Mounting: Adhesive and screw mount
• Weight
• Device: 41 g (1.4 oz)
• Magnet: 22 g (0.8 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
Performance
• Connectivity: SuperLink (proprietary)
• Operating Frequency
• US: 915.6–927.6 MHz
• EU: 865.1–869.5 MHz
• Antenna Gain: 0 dBi
• Max TX Power: 14 dBm
• Max Range: 2 km (1.2 mi)
• Sensor Features
• Reed Switch: Yes
Hardware
• Max Power Consumption: 27.7 mW
• Supported Voltage Range: 3V

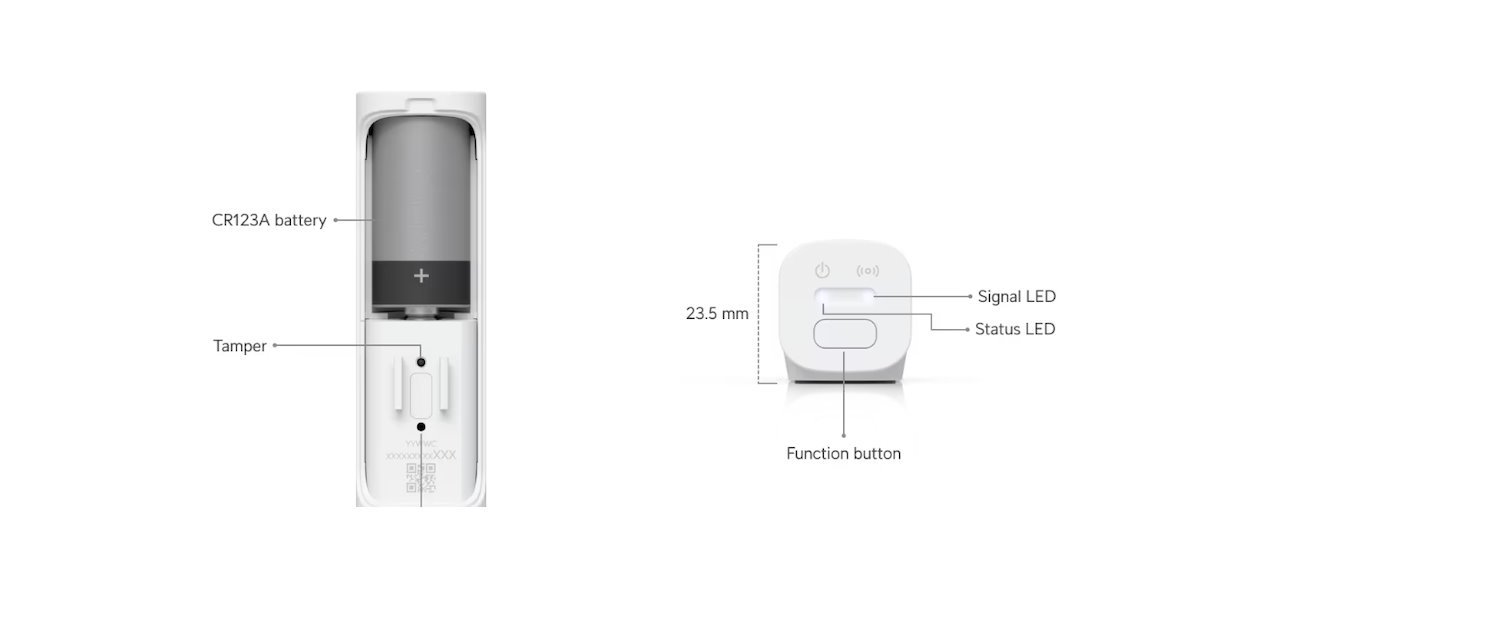

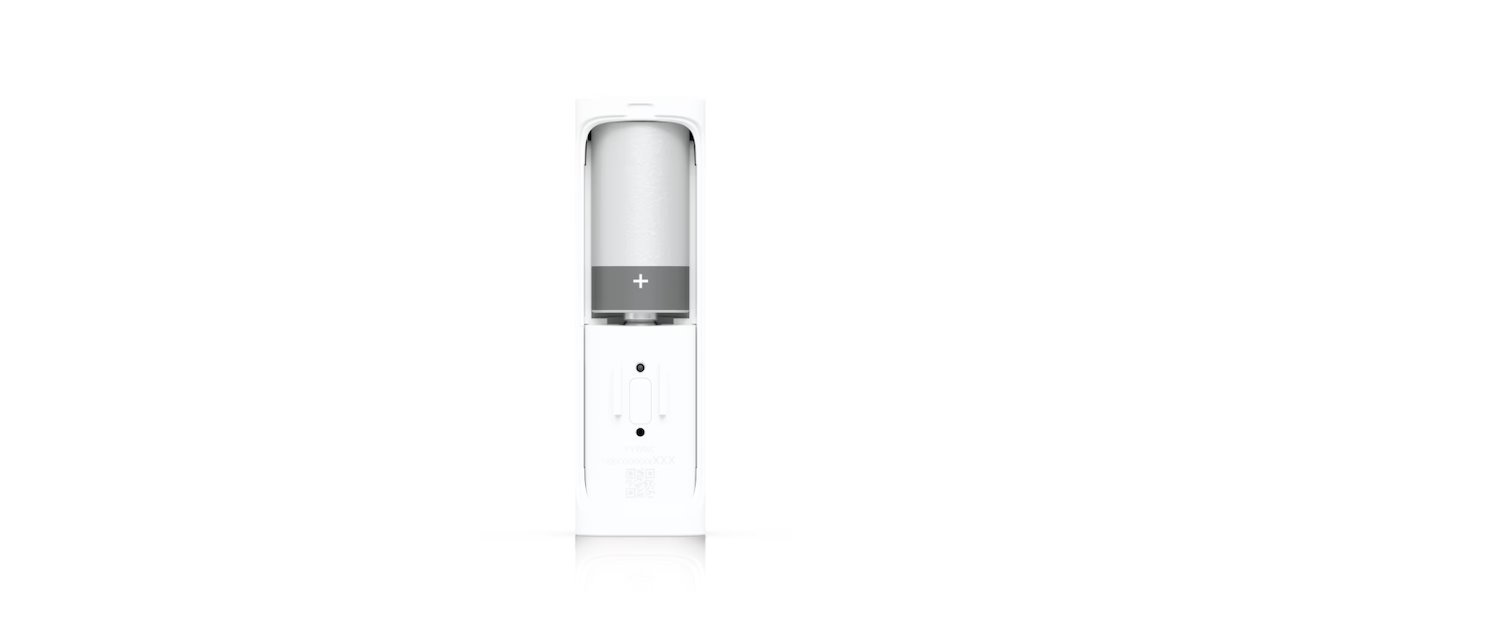

• Power Method: Lithium battery CR123A
• Battery Life: Up to 6 years

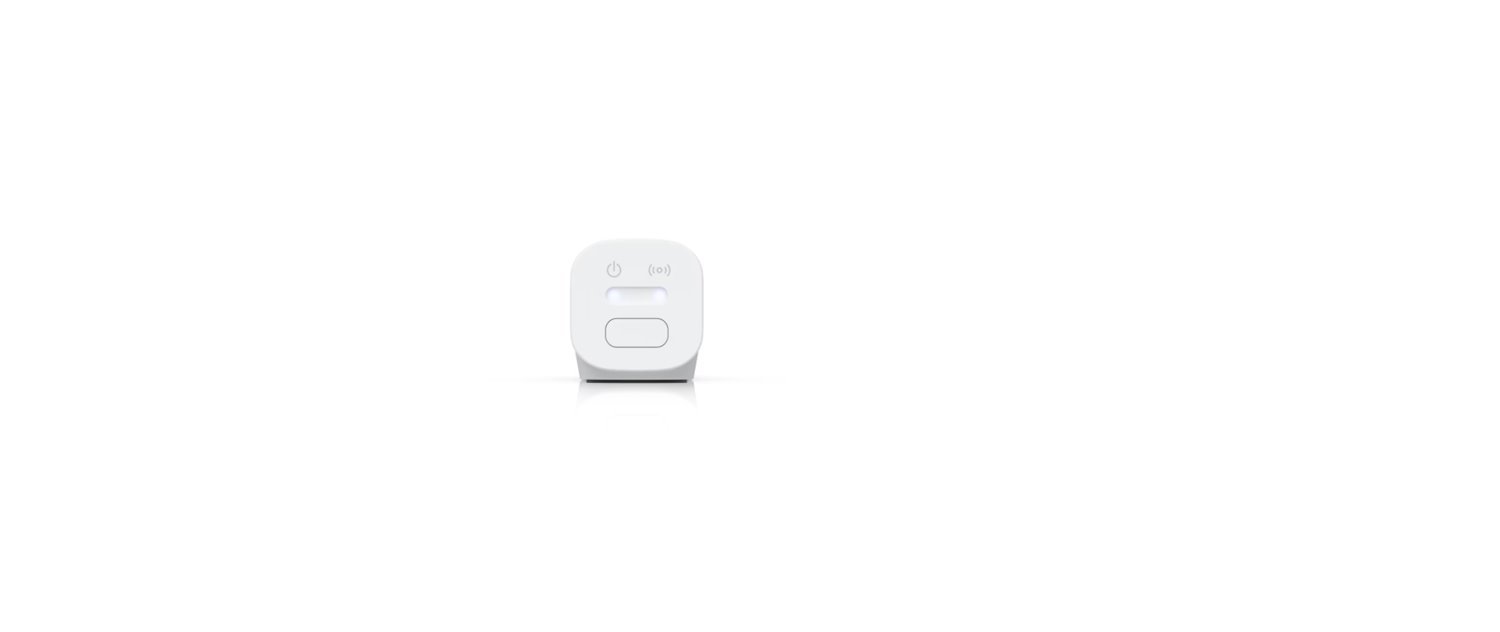

• Buttons
• (1) Factory reset
• (1) Function button
• (1) Tamper switch
• LEDs
• (1) Status: R/B/W
• (1) Signal: B/R
Environmental
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Operating Humidity: 10 to 90% noncondensing
Compliance
• Certifications: FCC; IC; CE
• NDAA Compliant: ✓
Software
• Application Requirements
• Web Application: UniFi Protect
• Mobile App: UniFi Protect iOS and Android
