In the Box

• (1) Elevator Hub

• (1) G2 Reader

• (2) 2-wire PoE extenders

• (10) Access Cards

Elevator Hub

• Dimensions: 129.3 × 244.7 × 33.6 mm (5.1 × 9.6 × 1.3")

• Max Users: 6,000

• Power: PoE++ (50V DC, 1.2A input)

• PoE Outputs: 4 × PoE+ (50V DC, 30W per port, max 45W aggregated)

• Power Consumption: 7W (without PoE output)

• Digital Inputs:

  • Emergency

  • Car position (5-bit)

  • Car status: Up/Down/Stop/Full

  • Door status: Open/Close

• Outputs: 18 relays (30V DC / 2A)

• Networking: 4 × 1GbE + 1 × management port

• Weight: 537 g (1.2 lb)

• Material: Polycarbonate

• Temp/Humidity: -10 to 40°C / 5–95% noncondensing

• Certifications: CE, FCC, IC, UL 62368-1, CSA C22.2

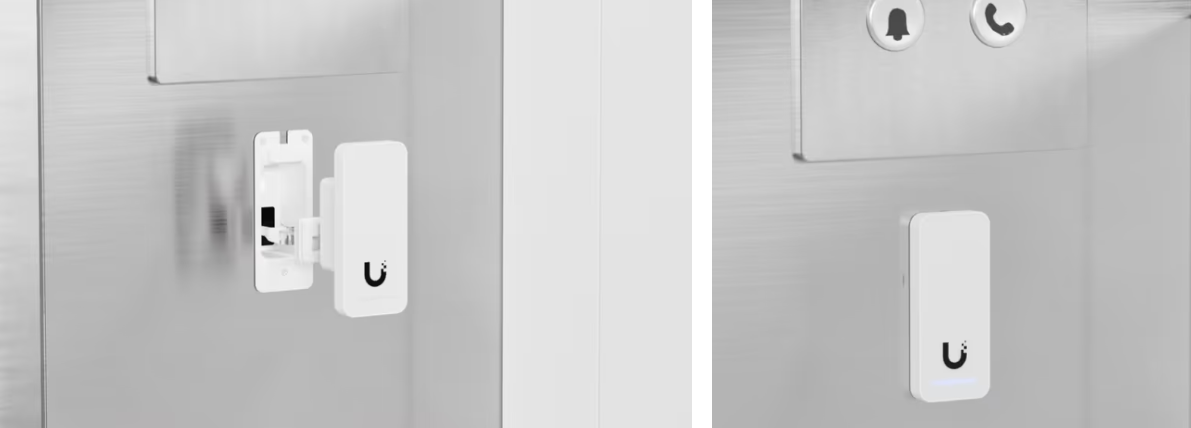

G2 Reader

• Dimensions: 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4")

• Access Methods: NFC cards/keyfobs, Mobile unlock, Handwave RTE

• Weatherproofing: IP55 (indoor & outdoor)

• Power: PoE (48V DC, 5W max)

• Networking: 1 × 10/100 MbE

• Connectivity: BLE 4.1, NFC (13.56 MHz, MIFARE DESFire, FeliCa ID only)

• Indicators: RGBW LED

• Speaker: 0.7W

• Mounting: In-wall/gang box (included)

• Temp/Humidity: -30 to 45°C / 5–90% noncondensing

Access Card

• Dimensions: 85.6 × 53.98 × 0.84 mm (3.37 × 2.13 × 0.03")

• Weight: 5 g

• Format: ISO 7810 ID-1

• NFC: 13.56 MHz, ISO/IEC 14443 Type A, MIFARE DESFire

• Security: UniFi Access proprietary protocol

• NDAA Compliant: ✓

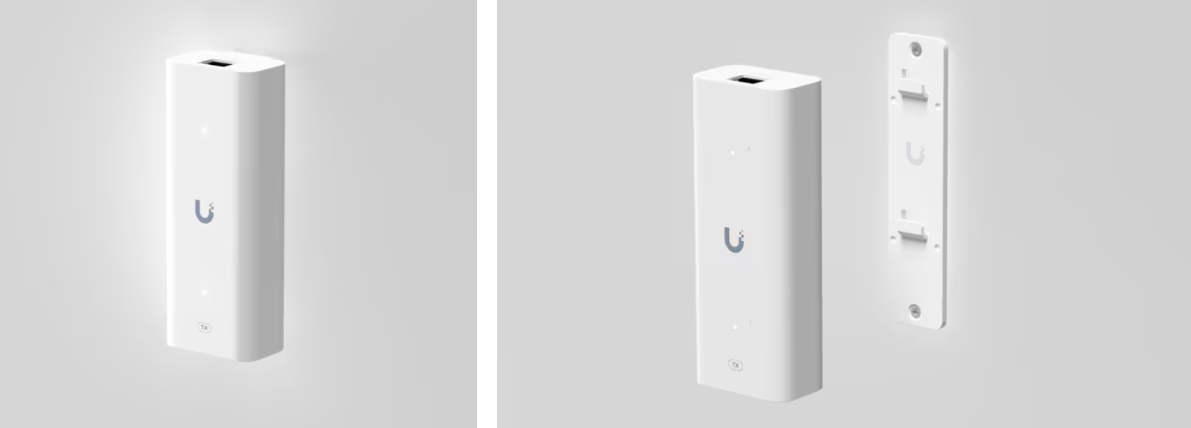

2-Wire PoE Extenders

• Dimensions: 40 × 105 × 25 mm (1.6 × 4.1 × 1")

• Weight: PoE in: 77 g / PoE out: 79 g

• Networking: 1 × 10/100 MbE, 1 × Homeplug AV

• PoE: Input: PoE++ (50V DC, 1.2A max), Output: PoE+ (48V DC, 0.72A)

• Power Consumption: 3W (without PoE output)

• ESD/EMP Protection: Air ±8kV, contact ±4kV

• Temp/Humidity: -10 to 40°C / 5–95% noncondensing

Summary

This kit is designed for secure elevator access:

• Elevator Hub handles relays, inputs, and PoE distribution.

• G2 Reader provides NFC and mobile access with weatherproof design.

• Access Cards allow user authentication.

• PoE Extenders allow long-distance connections over two wires for existing wiring.

It supports 6,000 users, PoE++ power, and is NDAA compliant for high-security installations.
