UniFi Enterprise Gateway Pro (Wall-Mounted)

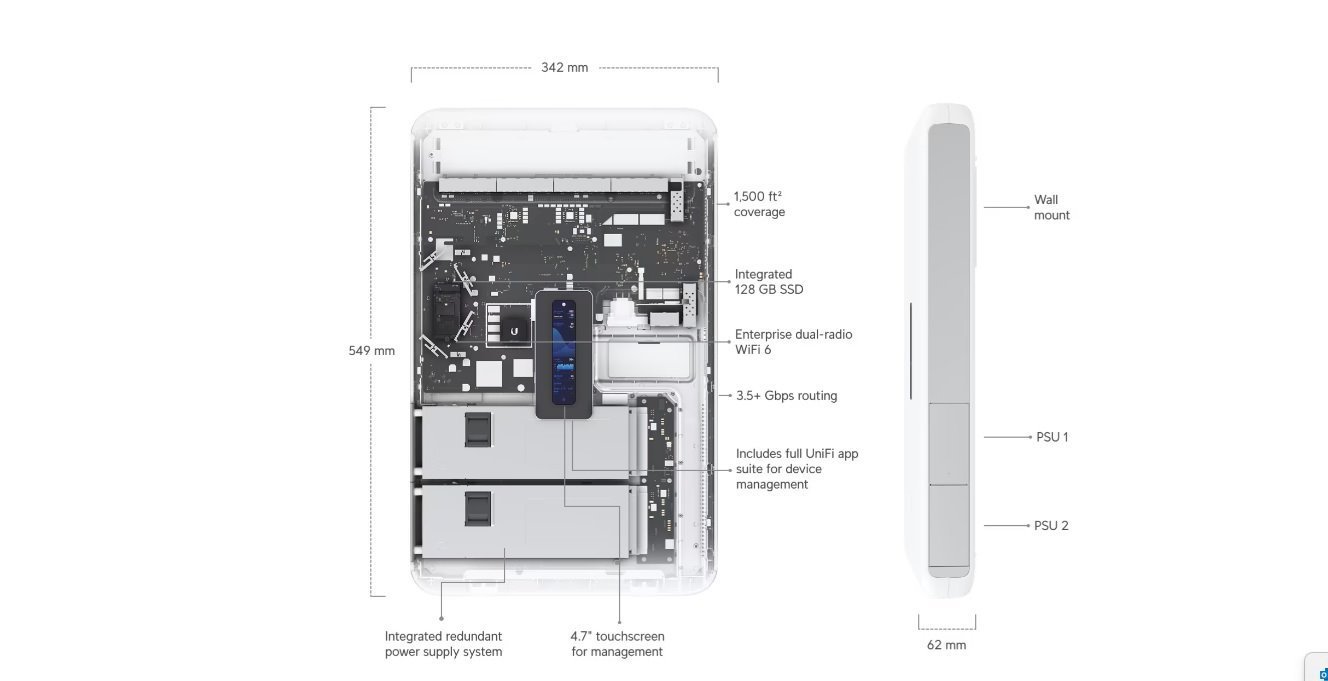

Dimensions: 549 × 342 × 62 mm (21.6 × 13.5 × 2.4")
Coverage Area: 140 m² (1,500 ft²)
Managed Devices: 100+ UniFi Devices
Managed Cameras: 23 Total (12 HD / 7 2K / 4 4K)
Concurrent Users: 300+
Redundancy: Dual Hot-Swappable PSUs

Performance & Connectivity

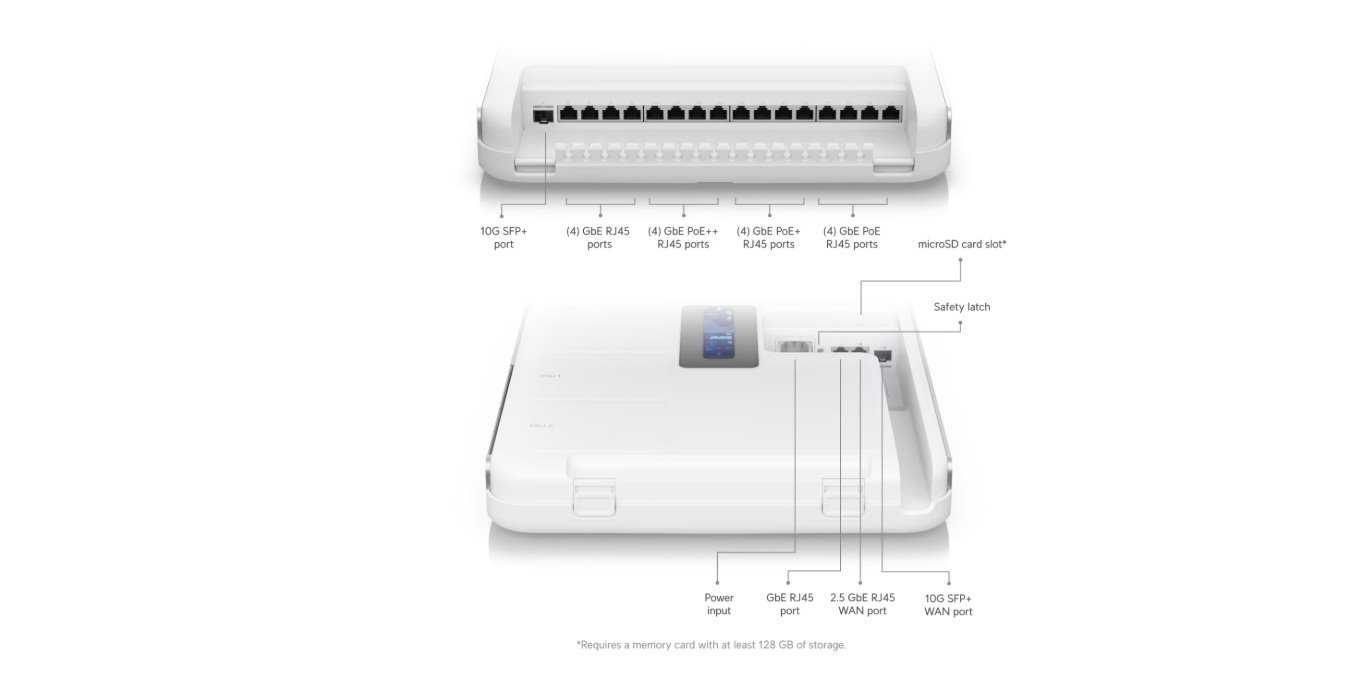

• WAN Ports: 8 total (1× 2.5 GbE RJ45, 1× 10G SFP+ default)

• LAN Ports: 17× 1 GbE RJ45 (4 PoE++, 4 PoE+, 4 PoE) | 1× 2.5 GbE | 2× 10G SFP+

• IDS/IPS Throughput: 3.5 Gbps

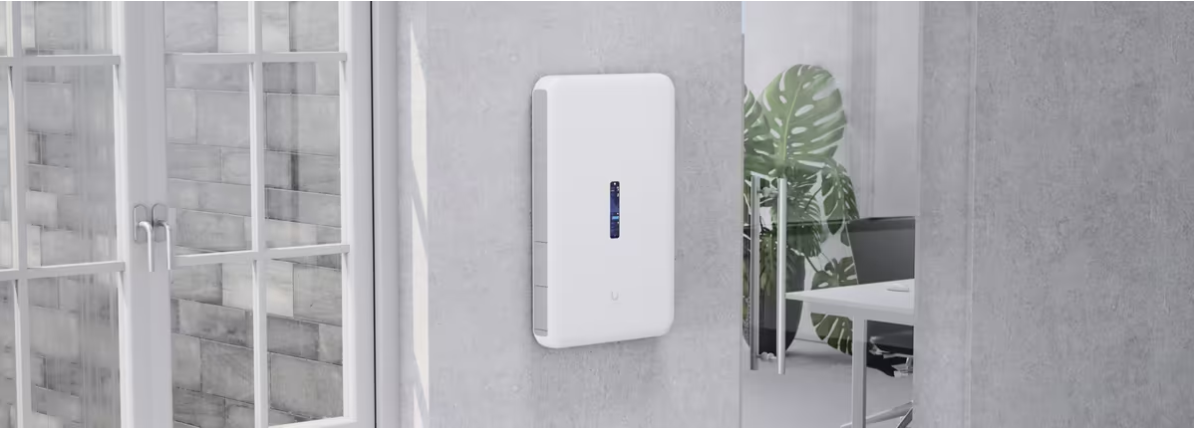

• Form Factor: Wall-Mounted, Enterprise-Grade

• Multi-WAN Load Balancing | Dynamic Routing (OSPF, BGP) | Advanced QoS | IPv6 Support

• MAC Table: 8,000 entries

Integrated WiFi

• Standard: 802.11a/b/g/n/ac/ax (WiFi 6)

• Throughput: 5 GHz – 2.4 Gbps | 2.4 GHz – 300 Mbps

• MIMO: 5 GHz 4×4 MU-MIMO | 2.4 GHz 2×2 MU-MIMO

• Antenna Gain: 5 GHz 6 dBi | 2.4 GHz 5.9 dBi

• Wireless Security: WPA/WPA2/WPA3 Enterprise & PPSK

• Max BSSIDs: 8 per radio

Security & Firewall

• Stateful and Layer-7 Application-Aware Firewall

• Intrusion Detection & Prevention (IDS/IPS) – 55,000+ Signatures with CyberSecure

• DPI & Traffic Identification | Zone-Based Filtering (Regions, Domains, Apps)

• Content Filtering | Ad Blocking | VLAN/Subnet Segmentation

VPN & SD-WAN

• License-Free SD-WAN

• Site-to-Site VPN (Site Magic, IPsec, WireGuard, OpenVPN, L2TP)

• One-Click Remote VPN (Identity Endpoint, Teleport)

• VPN Client Support (OpenVPN / WireGuard)

Hardware & Power

• Processor: Quad-core ARM® Cortex®-A57 @ 1.7 GHz | Memory: 4 GB

• Storage: 16 GB eMMC | 128 GB SSD | 512 GB microSD (pre-installed)

• PoE Budget: 420 W (15.4 W PoE | 30 W PoE+ | 60 W PoE++)

• Power Supply: (2) Hot-Swappable 550 W PSUs (1 pre-installed)

• Max Power Draw: 532 W (incl. PoE output)

• Voltage Range: 100–240 V AC | 7 A Max | 50/60 Hz

• Weight: 8.6 kg (19 lb)

• Enclosure: Polycarbonate / Galvanized Steel / Aluminum Alloy | Stainless Steel Mount

• Display: 4.7" Touchscreen LCM

Management & Software

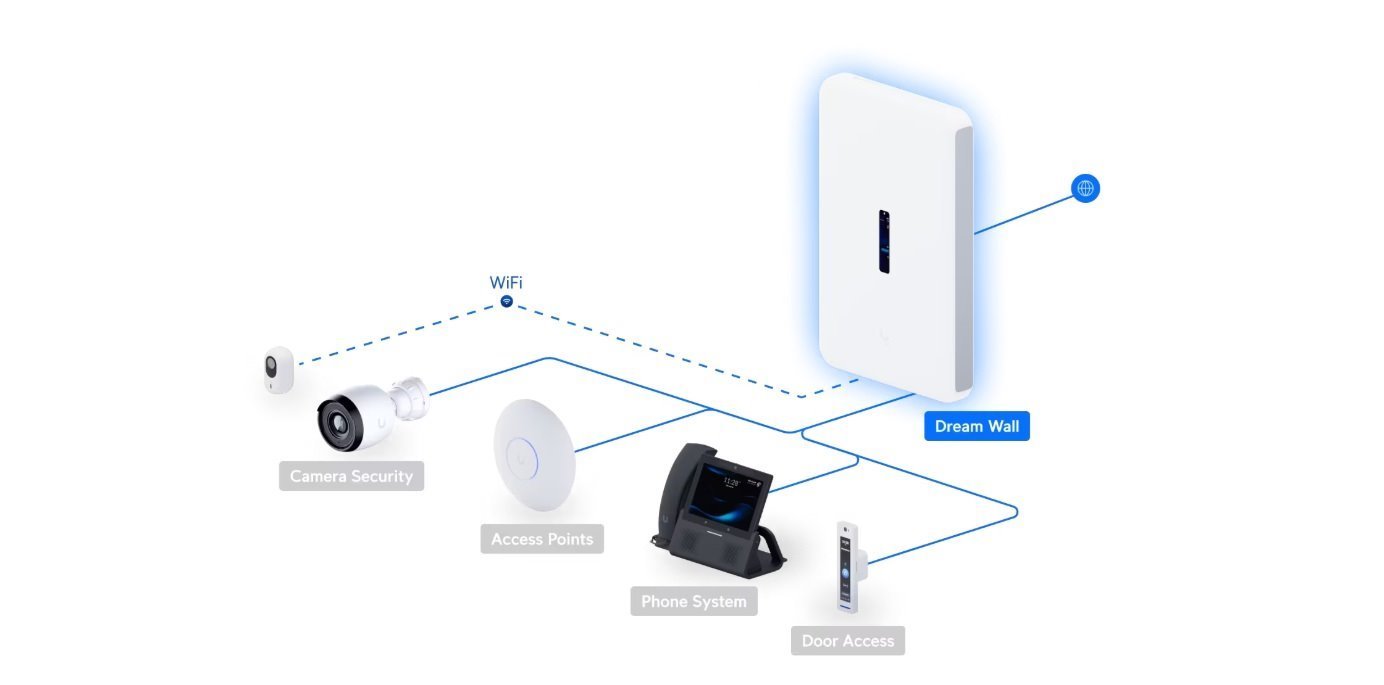

• Managed via UniFi Application Suite: Network | Protect | Access | Talk | Connect

• VLAN 802.1Q | Guest Isolation | Policy-Based Routing | Advanced Filtering

• Interfaces: Ethernet & Bluetooth

• Indicators: Ethernet / SFP+ LEDs | Factory Reset Button

• Operating Temp: –10 to 40 °C (14 to 104 °F) | Humidity: 5–95% non-condensing

• Certifications: CE, FCC, IC, Anatel (18314-23-08356) | NDAA Compliant
