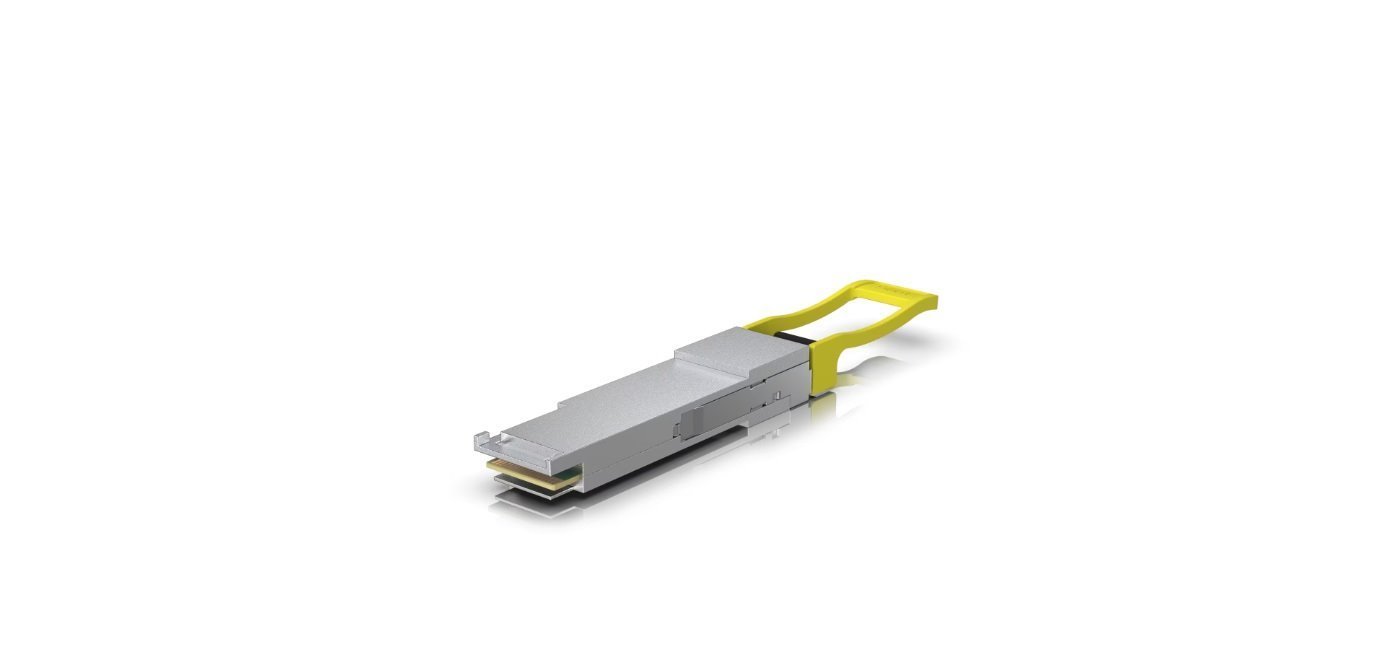

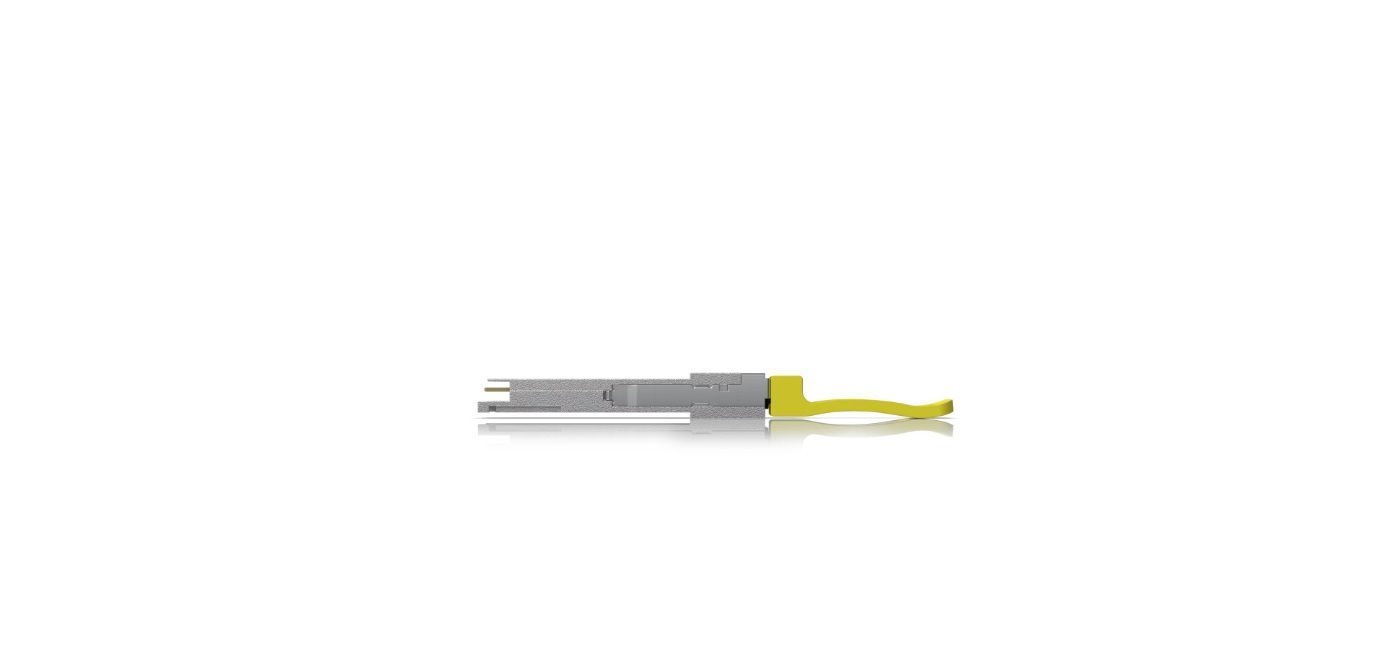

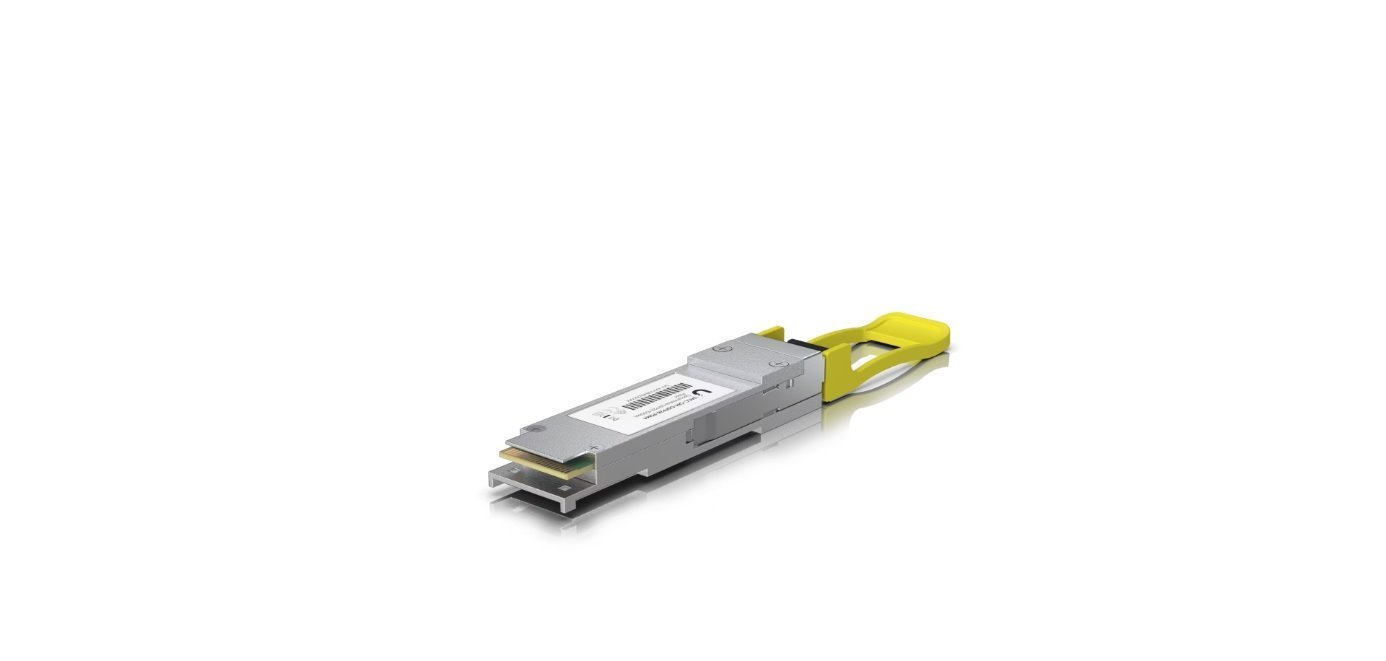

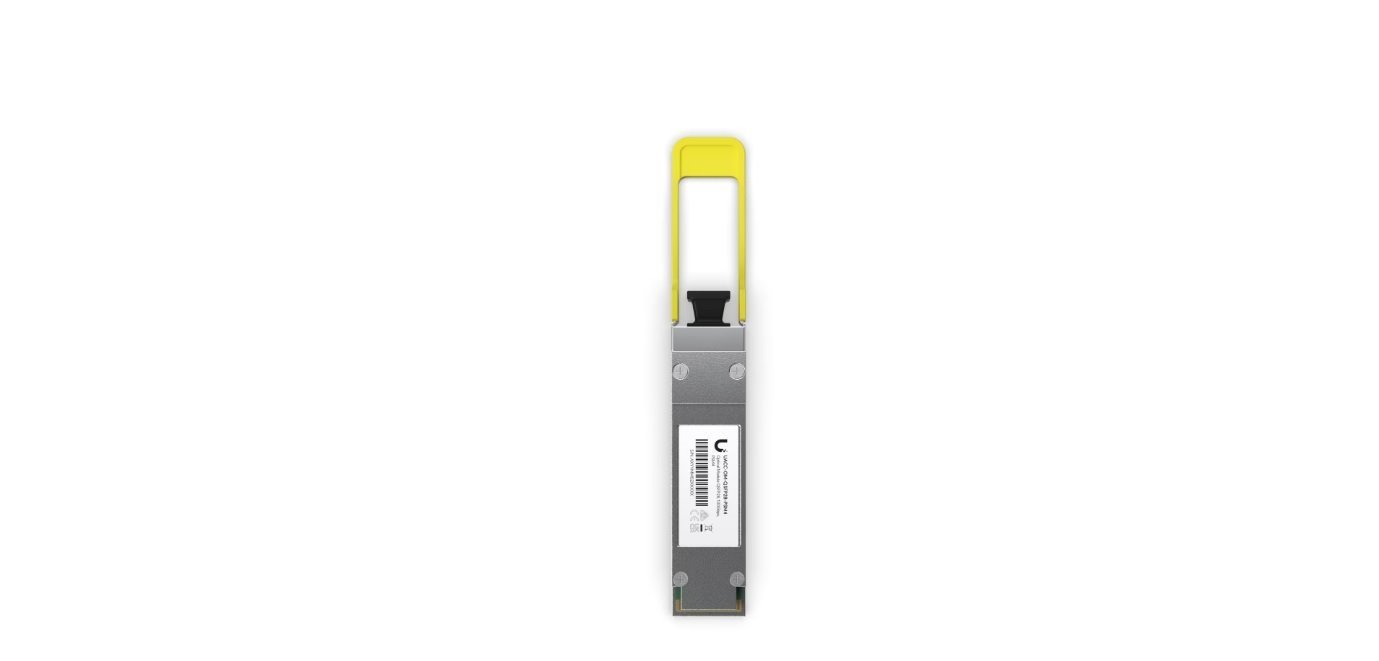

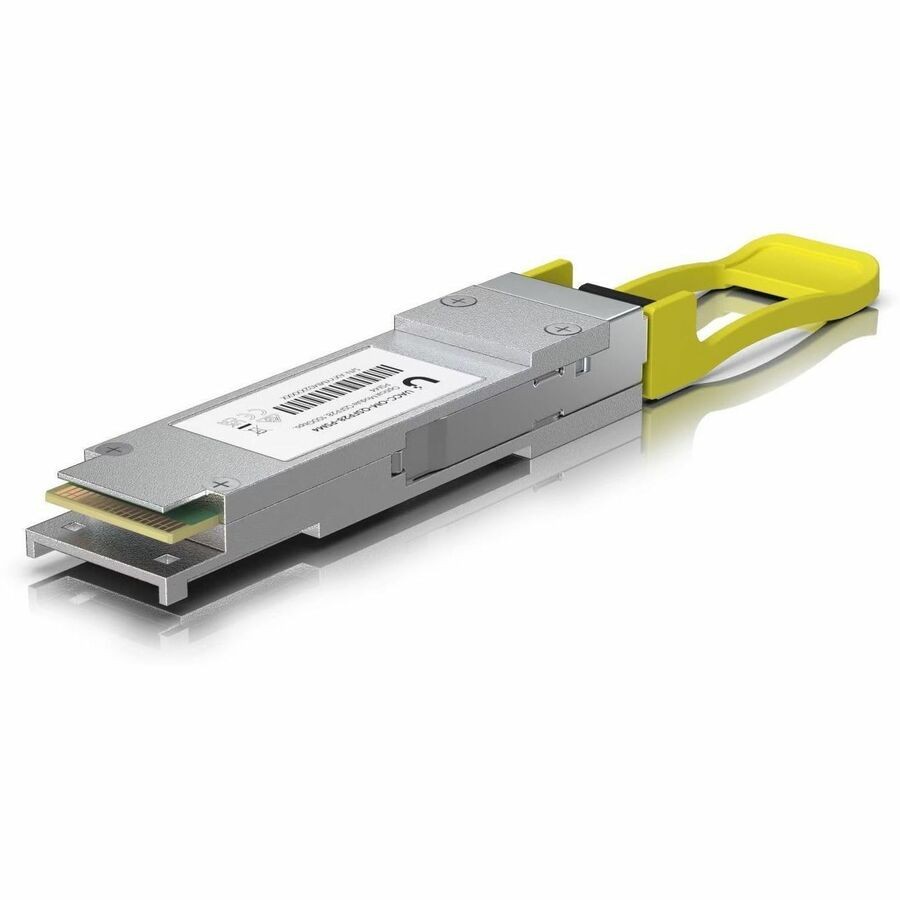

QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.
Max data rate: 100 Gbps
Compatible with QSFP28 and QSFP+ interfaces
MPO-12 Type B APC connector
Supports single-mode fiber connections up to 2 km*
*Requires OS2 single-mode fiber. Transmission distance is limited to 500 m with OS1 single-mode fiber. Fiber cable is not included.
Form Factor & Connectivity
Form Factor: QSFP
Connector: MPO-12 Type B UPC
Supported Media: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm
Supported Data Rate: 100 Gbps
Supported Cable Distance: 2 km (1.2 mi)
Power & Environmental
Max. Power Consumption: 3.5 W
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
Packaging
Pack Options: Single Unit
Safety Notice
CLASS 1 LASER PRODUCT — IEC/EN 60825-1:2014
⚠ Do not look into the ends of the fiber optic cable or QSFP module while converters are powered.
