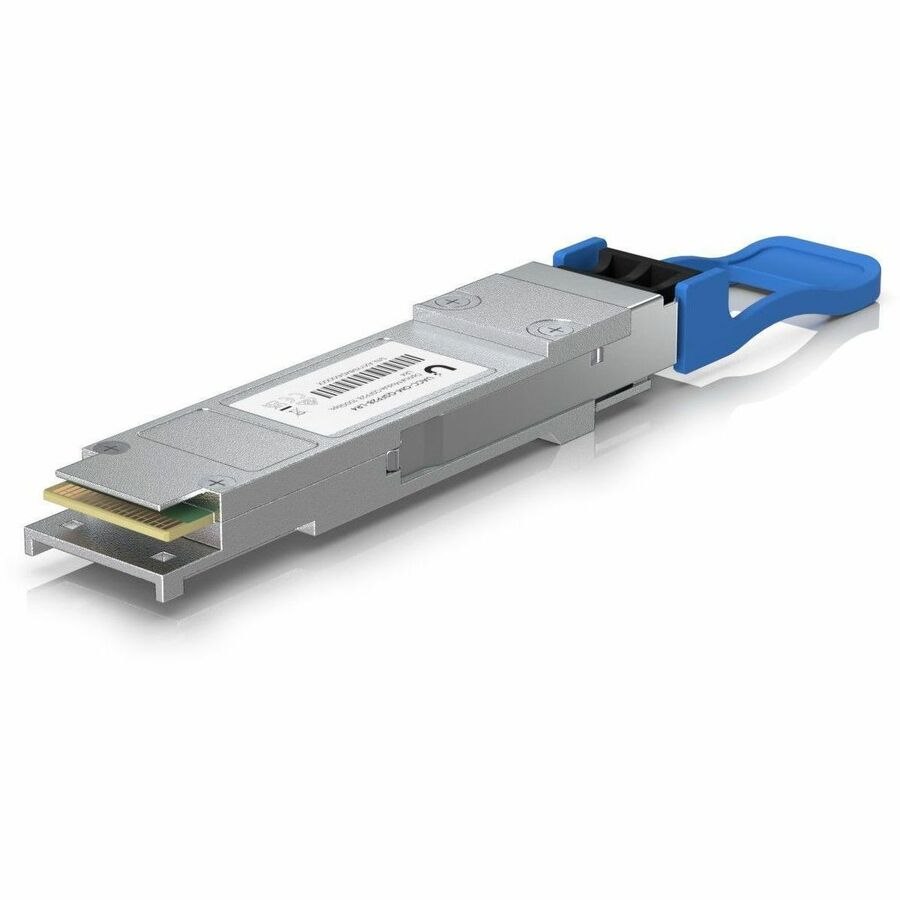

QSFP28 transceiver that supports 100G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 100 Gbps
Compatible with QSFP28 and QSFP+ interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
Form Factor & Connectivity
Form Factor: QSFP
Connector: Duplex LC UPC
Supported Media: Single-Mode Fiber (SMF)
TX Wavelengths: 1295 / 1300 / 1304 / 1309 nm (4-channel)
RX Wavelengths: 1295 / 1300 / 1304 / 1309 nm
Supported Data Rate: 100 Gbps
Supported Cable Distance: 10 km (6.2 mi)
Power & Environmental
Max. Power Consumption: 4 W
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
Packaging
Pack Options: Single Unit
Safety Notice
CLASS 1 LASER PRODUCT — IEC/EN 60825-1:2014
⚠ Do not look into the ends of the fiber optic cable or QSFP module while converters are powered.
