SCK ELITE Series 8 Channel 1U 4K PoE NVR

  • Part: 1002163
$367.52

Availability

In Stock

Designed for professional security installations, this Elite Series 8-Channel Network Video Recorder delivers powerful 4K surveillance performance in a compact 1U form factor. Built on an industrial-grade embedded processor with a stable Linux operating system, this NVR integrates advanced video compression with built-in Power over Ethernet (PoE) to simplify installation, reduce infrastructure costs, and streamline deployments for commercial and institutional environments.

Advanced Intelligence & Connectivity

Integrated AI analytics enhance system intelligence across all connected cameras. SMD Plus is supported on all eight channels, enabling accurate human and vehicle classification, while perimeter protection is available on up to four channels for intrusion and tripwire detection. Facial detection with attribute analysis operates across all eight channels, improving investigative efficiency and event review. Multiple recording modes—including manual, alarm-triggered, SMD-based, and smart recording—offer flexible operation tailored to site requirements.

Dual video outputs via HDMI (up to 4K) and VGA support simultaneous multi-display monitoring. Secure remote access is enabled through P2P connectivity, with dedicated mobile applications available for both iOS and Android devices.

Each integrated PoE port delivers up to 25.5W, ensuring full compatibility with PoE+ PTZ cameras and standard IP cameras without requiring additional power equipment.

Professional Installation Features

The recorder provides comprehensive alarm handling, including motion detection, privacy masking, video loss alerts, and intelligent event triggers such as intrusion and tripwire detection. Audio support includes RCA input and output for two-way audio integration. Enterprise-grade networking support includes ONVIF Profiles T, S, and G, along with SNMP, RTSP, SMTP, and FTP for seamless system integration.

Operating on universal AC power (100V–240V, 47–63Hz) with idle power consumption under 10W (excluding HDDs), the system delivers reliable performance with low operating costs.

Ideal Applications

  • Small to medium retail environments requiring intelligent video analytics

  • Office buildings and corporate facilities with up to eight camera locations

  • Educational institutions seeking cost-effective PoE camera deployment

  • Warehouses and light industrial facilities requiring perimeter monitoring

System

  • Channels: 8

  • Processor: Industrial-grade embedded processor

  • Operating System: Embedded Linux

  • Operating Interface: Web interface and local GUI

  • Form Factor: 1U

Video

  • Maximum Resolution: 8MP (4K)

  • Supported Resolutions:

    • 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1

  • Maximum Decoding Capability:

    • 8 × 1080p @ 30fps

  • Video Outputs:

    • 1 × HDMI (supports up to 4K resolution)

    • 1 × VGA

    • Simultaneous HDMI and VGA output supported

Compression

  • Video Codec:

    • Smart H.264+

    • Smart H.265+

Network

  • Bandwidth:

    • Access: 160 Mbps

    • Storage: 160 Mbps

    • Forwarding: 64 Mbps

  • Supported Protocols:

    • SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search, P2P, Auto Register

  • Interoperability:

    • ONVIF (Profiles T, S, G), CGI, SDK

  • Network Ports:

    • 1 × Ethernet port

PoE

  • PoE Ports: 8 built-in PoE ports

  • Maximum PoE Output per Port: 25.5W

  • Total PoE Power Budget: 117W

AI Features

  • Perimeter Protection: 4 channels

  • Face Detection: 8 channels

  • SMD Plus (Human & Vehicle Detection): 8 channels

Recording & Playback

  • Recording Modes:

    • Manual recording

    • Alarm recording

    • SMD recording

    • Smart recording

  • Playback:

    • Up to 8 channels simultaneously

  • Playback Functions:

    • Play, pause, stop, slow, fast, frame-by-frame

    • Full screen viewing

    • Backup (video clip or file)

    • Partial zoom

    • Audio on/off

Storage

  • HDD Bays:

    • 2 × SATA III ports

  • Maximum HDD Capacity:

    • Up to 10TB per drive

  • Backup Methods:

    • Local HDD

    • Network

    • USB storage device

Alarm

  • General Alarms:

    • Motion detection

    • Privacy masking

    • Video loss

    • Scene change

    • PIR alarm

    • IPC external alarm

  • Anomaly Alarms:

    • Camera disconnection

    • Storage error

    • Disk full

    • IP conflict

    • MAC conflict

    • Login locked

    • Cybersecurity exception

  • Intelligent Alarms:

    • Face detection

    • Perimeter protection (intrusion, tripwire)

    • IVS

    • People counting

    • Heat map

    • SMD alarms

  • Alarm Linkage:

    • Recording, snapshot, audio alert, buzzer, log, preset, email

  • Alarm Inputs: 4

  • Alarm Outputs: 2

Audio

  • Audio Input: 1 × RCA

  • Audio Output: 1 × RCA

Interfaces

  • USB Ports:

    • 2 × USB 2.0 (1 front, 1 rear)

  • HDMI: 1

  • VGA: 1

Power

  • Input Voltage: 100–240V AC, 47–63 Hz, 3.5A

  • Power Consumption:

    • < 10W (HDD not included, idle)

  • PoE Output Power:

    • Total 117W

    • Max 25.5W per port

Physical

  • Weight: 2.51 kg (5.53 lb)

Mobile Access

  • Supported Platforms: Android, iOS

  • Remote Features:

    • P2P remote viewing

    • Remote configuration

Recently Viewed

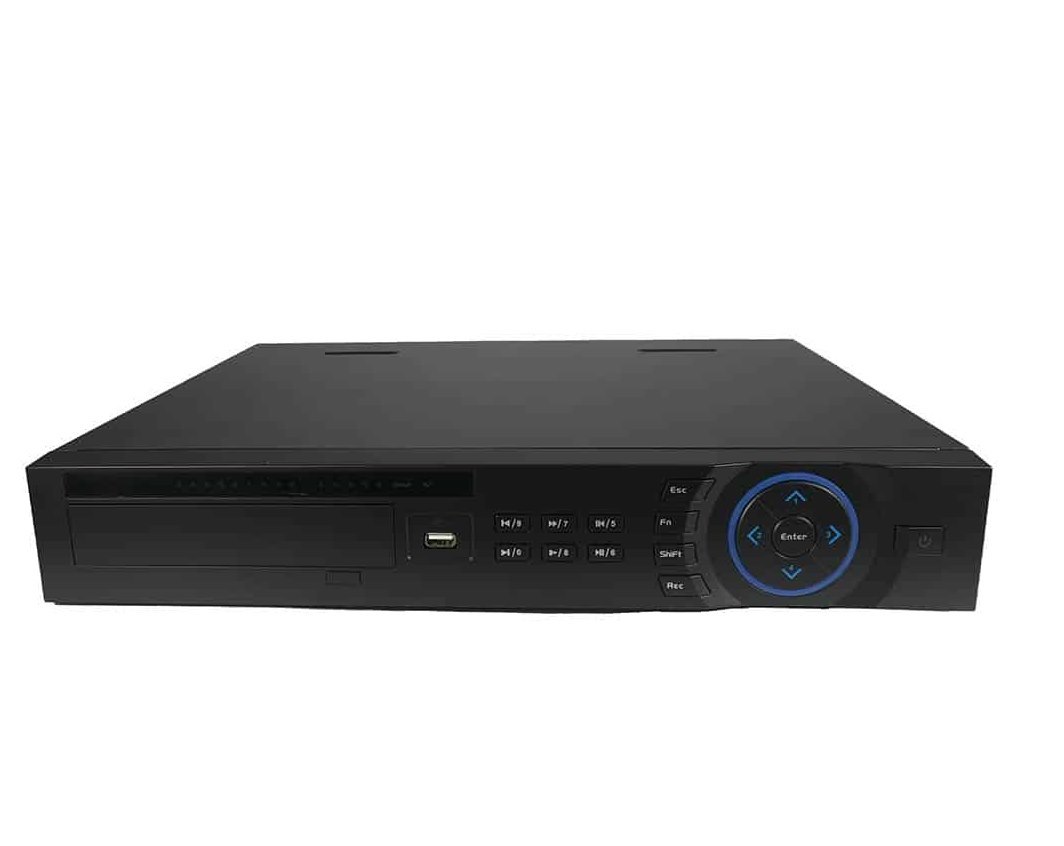

SCK Elite 32 Channel 1.5U Enhanced AI 4K NVR W/ 16 POE
