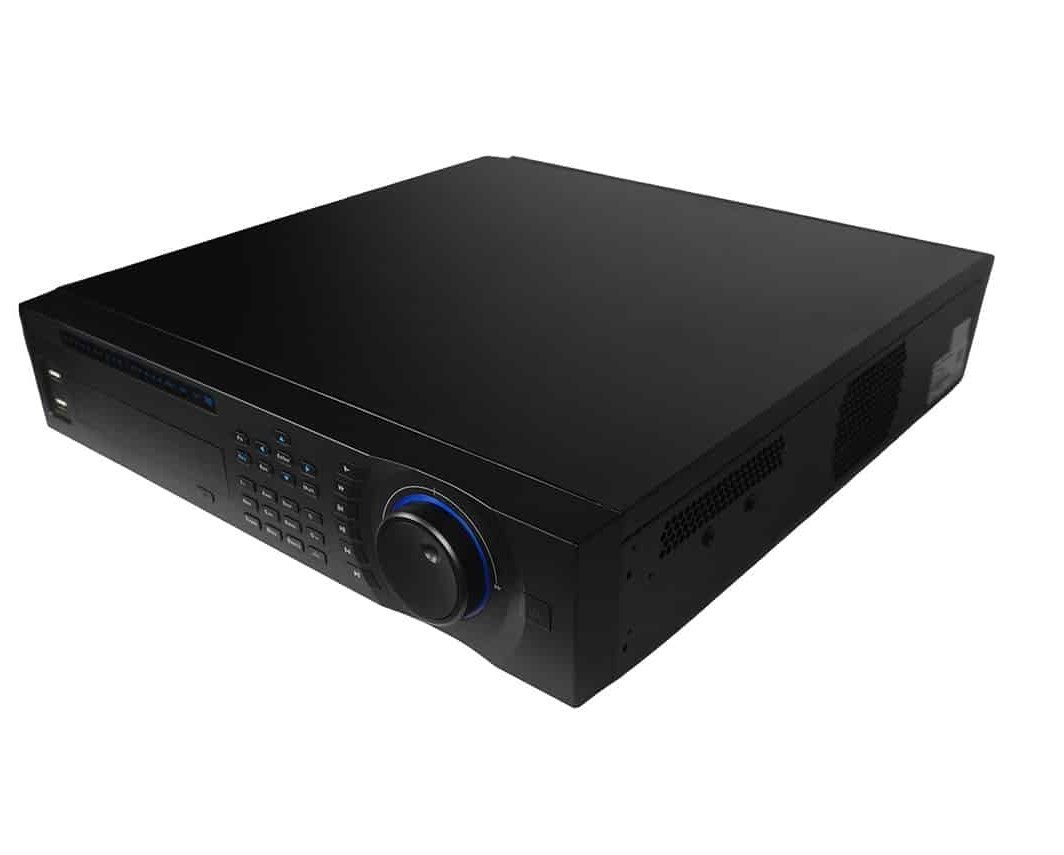

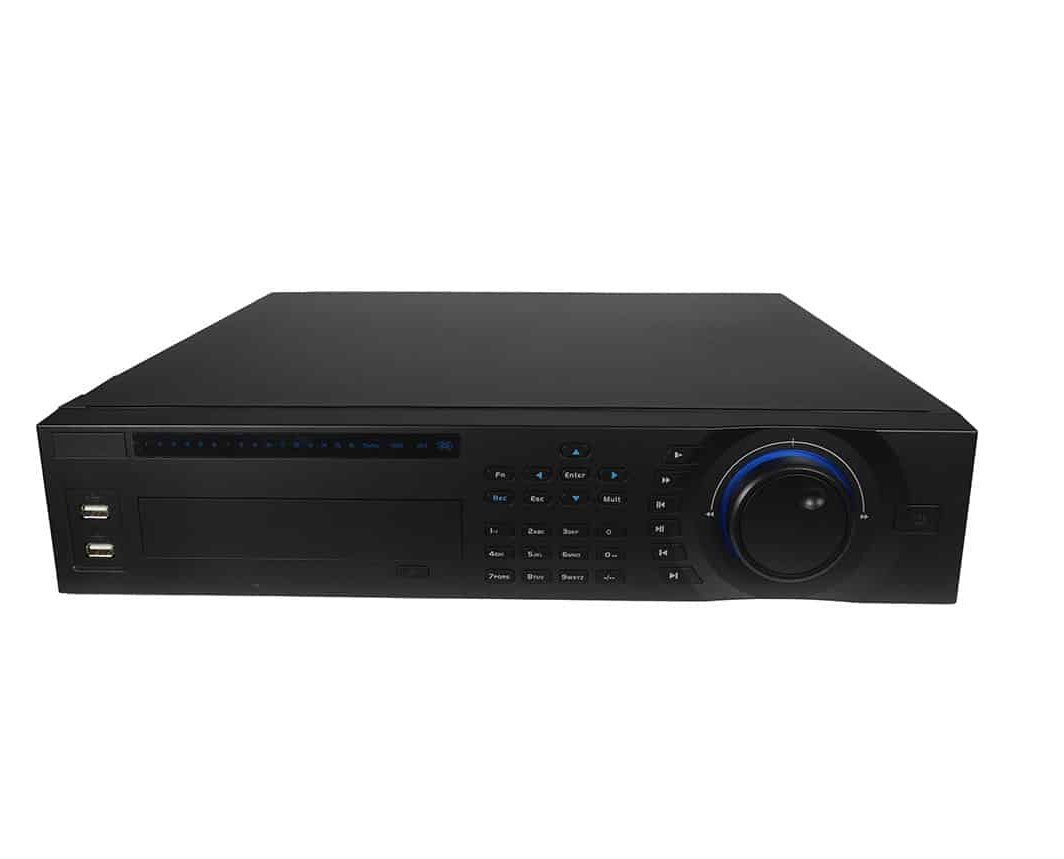

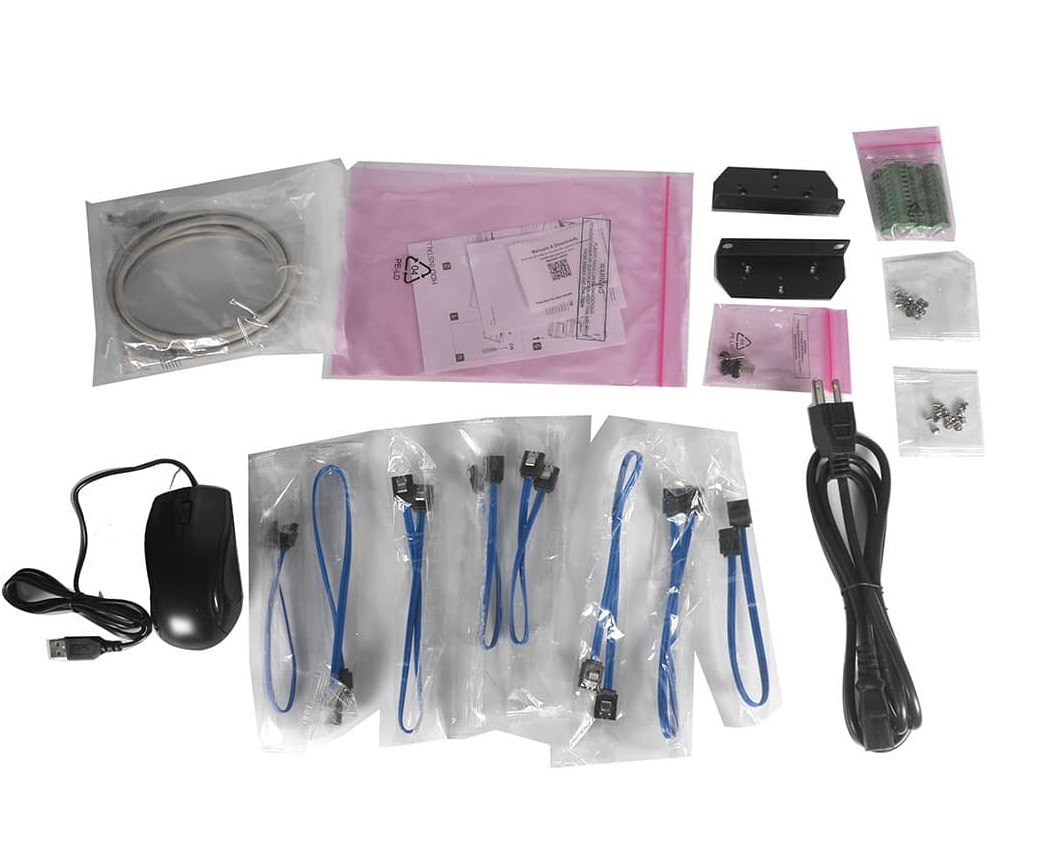

Designed for demanding commercial surveillance environments, this Elite Series penta-brid recorder delivers enterprise-grade video management with advanced onboard artificial intelligence. Supporting multiple HD analog formats alongside IP camera integration, this rackmount solution provides the processing power, flexibility, and scalability required for sophisticated security installations that rely on intelligent analytics and high-capacity storage.
Advanced AI processing is built directly into the recorder, eliminating the need for external analytics servers. The system supports perimeter protection on up to 8 channels, with up to 10 intelligent video system (IVS) rules per channel, enabling precise intrusion detection and event classification. SMD Plus technology across all 16 analog channels adds secondary AI filtering for human and vehicle detection, significantly reducing false alerts caused by environmental factors such as foliage movement, rain, or lighting changes.
Integrated facial recognition operates on up to 2 channels, processing as many as 12 face images per second. The recorder supports 10 independent face databases with a combined capacity of 20,000 face images, while capturing detailed attributes including gender, age group, eyewear, expressions, face masks, and facial hair. Each face profile can also store extended metadata such as name, date of birth, address, certificate information, and regional identifiers, supporting identity-aware security workflows.

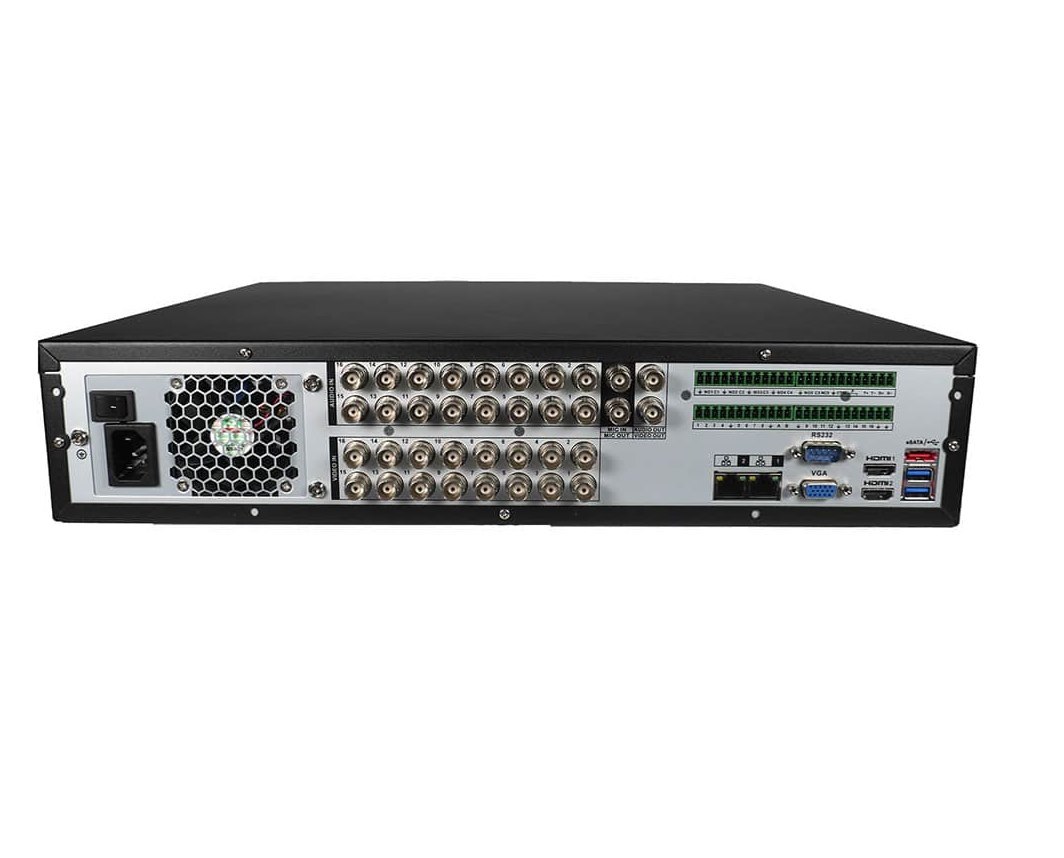

Powered by an industrial-grade processor and running a stable embedded Linux operating system, the recorder offers extensive system connectivity and integration options. Dual Gigabit Ethernet ports support multi-address networking, fault tolerance, and load balancing. Additional interfaces include four USB ports (two front USB 2.0 and two rear USB 3.0) for backup and peripherals, along with RS-485 and RS-232 ports for PTZ control and PC communication. The system also supports 16 alarm inputs and 6 alarm outputs with comprehensive linkage options, enabling coordinated responses across security subsystems. IoT and POS integration further extend the recorder’s capabilities, making it well suited for retail, enterprise, and complex commercial deployments.
System Overview
Channels: 16 analog channels, expandable to 32 IP channels
Processor: Industrial-grade processor
Operating System: Embedded Linux
Operating Interface: Web interface and local GUI
Form Factor: 2U rack-mountable chassis
Video Input & Camera Support
Analog Camera Inputs:
16 × BNC ports with automatic format detection
Supports HDCVI, AHD, TVI, and CVBS
Analog Resolution Support:
HDCVI: 4K, 6MP, 5MP, 4MP, 1080p @25/30 fps, 720p @50/60 fps, 720p @25/30 fps
TVI: 4K, 5MP, 4MP, 3MP, 1080p @25/30 fps, 720p @25/30 fps
AHD: 4K, 5MP, 4MP, 3MP, 1080p @25/30 fps, 720p @25/30 fps
IP Camera Input:
Up to 32 IP channels (16 default + 16 converted analog)
Maximum IP Camera Resolution: 12MP per channel
Network Bandwidth:
Incoming: 128 Mbps
Recording: 128 Mbps
Outgoing: 128 Mbps
Video Output & Display
HDMI Outputs: 2 ports
VGA Output: 1 port
TV Output: 1 port
HDMI1 Resolution:
3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI2 / VGA Resolution:
1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen Display:
Standard mode: 1 / 4 / 8 / 9 / 16
IP extension mode: 1 / 4 / 8 / 9 / 16 / 25 / 36
Compression & Streaming
Video Compression: AI Coding, H.265+, H.265, H.264+, H.264
Audio Compression: G.711a, G.711u, PCM
Dual-Stream: Supported
Video Bit Rate: 32 kbps – 6144 kbps
Audio Bit Rate: 64 kbps
Audio Sampling: 8 kHz, 16-bit
AI Coding Support: 16 channels
Encoding Performance
Main Stream Encoding:
4K @ 1–7 fps
6MP @ 1–10 fps
5MP @ 1–12 fps
4K-N / 4MP / 3MP @ 1–15 fps
4M-N / 1080p / 720p / 960H / D1 / CIF @ 1–25/30 fps
Sub Stream Encoding:
960H @ 1–15 fps
D1 / CIF @ 1–25/30 fps
AI & Intelligent Analytics
SMD Plus:
16 channels with secondary AI filtering for human and vehicle detection
Perimeter Protection:
Advanced Mode: 2 channels, up to 10 IVS rules per channel
General Mode: 8 channels, up to 10 IVS rules per channel
Face Detection:
2 channels, processing up to 12 face images per second
Face Attributes:
Gender, age group, glasses, expressions, face mask, beard
Face Recognition:
2 channels
Face Database Capacity:
Up to 10 databases with 20,000 total face images
Audio
Audio Inputs:
16-channel BNC (external)
16-channel BNC (coaxial audio)
Audio Output: 1-channel BNC
Two-Way Talk: 1-channel BNC
Microphone In: BNC connector
Microphone Out: BNC connector
Recording & Playback
Record Modes:
General, motion detection, intelligent, alarm, POS
Playback Modes:
Instant playback, general playback, event playback, tag playback, smart playback (face & motion detection)
Playback Layouts: 1 / 4 / 9 / 16
Backup Methods: USB device and network
Storage
HDD Interface: 8 × SATA ports
Maximum HDD Capacity: Up to 16 TB per drive
eSATA: 1 port
Disk Group Management: Supported
Alarm & Event Handling
Alarm Inputs: 16 channels
Alarm Outputs: 6 channels
General Alarms:
Motion detection, video loss, tampering, local alarm
Anomaly Alarms:
No disk, storage error, disk full, camera offline, IP conflict, MAC conflict
Intelligent Alarms:
Face detection, face recognition, perimeter protection
Alarm Linkage:
Recording, panoramic snapshot, IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Network & Connectivity
Network Ports:
2 × Gigabit Ethernet (10/100/1000 Mbps, RJ-45)
Network Modes:
Multi-address mode, fault tolerance, load balancing
Network Protocols:
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Access: iOS and Android
Browser Support: Chrome, IE9 or later, Firefox
ONVIF Compliance: Version 21.12
Third-Party Camera Support:
ONVIF, Axis, Sony, Panasonic, Pelco, Canon, Samsung, Arecont
Ports & Interfaces
USB Ports:
4 total (2 front USB 2.0, 2 rear USB 3.0)
RS-232: 1 port (PC communication & keyboard)
RS-485: 1 port (PTZ control)
Power & Physical
Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: < 20 W
Product Dimensions:
439.9 × 463.0 × 94.9 mm (17.32" × 18.23" × 3.73")
Packaging Dimensions:
570.0 × 570.0 × 226.0 mm (22.44" × 22.44" × 8.90")
Net Weight: 6.8 kg (14.99 lb)
Gross Weight: 9.3 kg (20.50 lb)
Installation: Rack-mounted or desktop
Environmental
Operating Temperature: –10°C to +55°C (14°F to +131°F)
Operating Humidity: 10%–90% RH
Certifications
CE:
CE-LVD: EN 60950-1 / IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
