System

• Channels: 8 channels

• Processor: Industrial-grade embedded processor

• Operating System: Embedded Linux

• Operating Interface: Web UI and local GUI

• Form Factor: 1U

Artificial Intelligence Features

• AI by NVR – Face Detection:

  • 1 channel, up to 12 face images per second

• AI by NVR – Perimeter Protection:

  • 2 channels with up to 10 IVS rules per channel

• AI by NVR – SMD Plus:

  • 4 channels with human and vehicle filtering

• AI by Camera – Face Detection:

  • 8 channels

• AI by Camera – Perimeter Protection:

  • 8 channels

• AI by Camera – SMD Plus:

  • 8 channels

• AI by Camera – Additional Analytics:

  • People counting

  • Stereo analysis

  • Heat map

• Face Database Capacity:

  • Up to 10 databases, 20,000 images total

• Face Attributes Analyzed:

  • Gender, age group, glasses, expressions, face mask, beard

Video

• Supported Resolutions:

  • 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF

• Decoding Capability (AI Disabled):

  • 2 × 16MP @ 30fps

  • 2 × 12MP @ 30fps

  • 4 × 8MP @ 30fps

  • 6 × 5MP @ 30fps

  • 8 × 4MP @ 30fps

• Decoding Capability (AI Enabled):

  • 1 × 16MP @ 30fps

  • 2 × 12MP @ 30fps

  • 3 × 8MP @ 30fps

  • 4 × 5MP @ 30fps

  • 6 × 4MP @ 30fps

  • 8 × 1080p @ 30fps

• Maximum Decoding:

  • 16 × 1080p @ 30fps (adaptive decoding supported)

Compression

• Decoding Formats:

  • Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Network

• Bandwidth (AI Disabled):

  • 256 Mbps incoming / recording / outgoing

• Bandwidth (AI Enabled):

  • 180 Mbps incoming / recording / outgoing

• Network Port:

  • 1 × Gigabit Ethernet (RJ-45)

• Third-Party Camera Support:

  • Yes

• Security Baseline:

  • Version 2.3

Video Output

• HDMI Output:

  • 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

• VGA Output:

  • 1920 × 1080, 1280 × 1024, 1280 × 720

Audio

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

Storage

• HDD Interface:

  • 2 × SATA ports

• Maximum Capacity:

  • Up to 16TB per drive

• Disk Group Management:

  • Supported

Recording & Playback

• Recording Modes:

  • General, motion detection, intelligent, alarm

• Playback:

  • Up to 8 channels simultaneously

• Playback Modes:

  • Instant, general, event, tag, smart playback

• Backup Methods:

  • USB device and network

Alarm

• General Alarms:

  • Motion detection, privacy masking, video loss, scene change, PIR alarm, IPC external alarm

• Anomaly Alarms:

  • Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login lock, cybersecurity exception

• Intelligent Alarms:

  • Face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map

• Alarm Linkage:

  • Recording, snapshot, IPC external output, audio, buzzer, log, preset, email

• Alarm Inputs: 4

• Alarm Outputs: 2

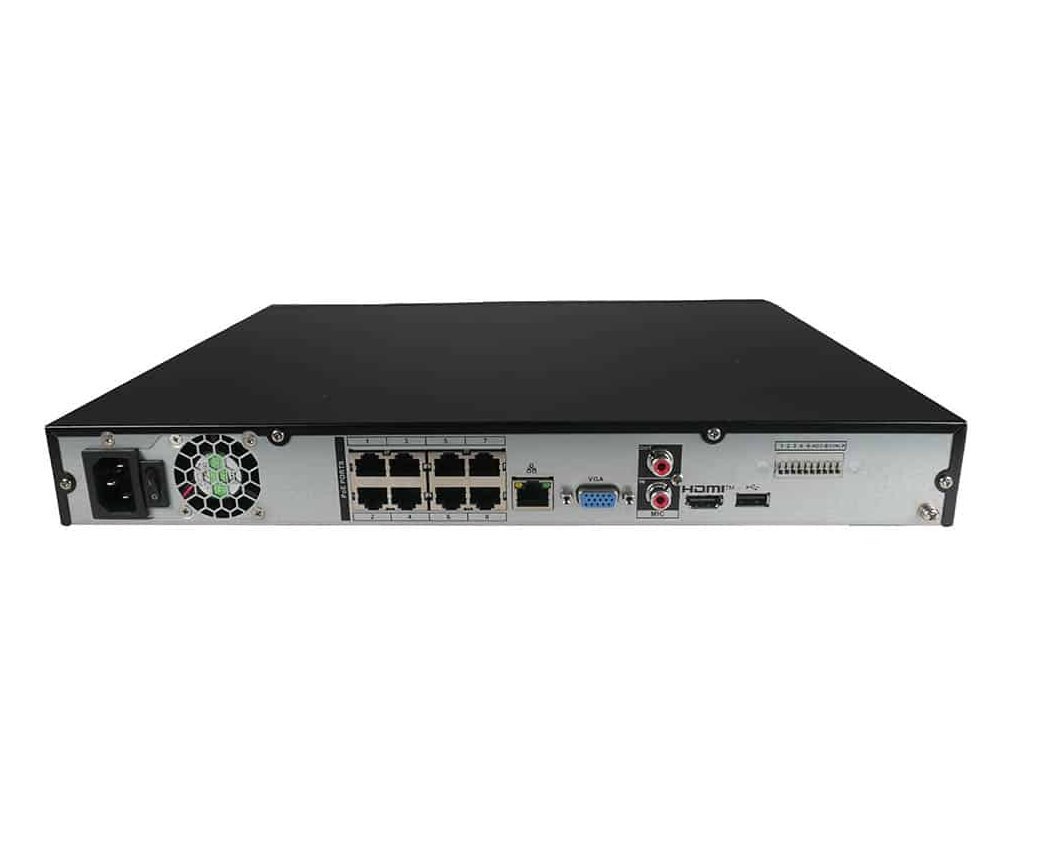

Ports

• USB:

  • 2 × USB 2.0 (1 front, 1 rear)

• PoE Ports:

  • 8 × 10/100 Mbps (IEEE 802.3af/at)

Power

• Power Supply:

  • 100–240 VAC, 47–63 Hz

• NVR Power Consumption:

  • < 10W (without HDD)

• Total PoE Power Budget:

  • 130W

• Maximum PoE Output per Port:

  • 25.5W

Physical

• Net Weight: 2.51 kg (5.53 lb)

• Gross Weight: 3.66 kg (8.07 lb)
