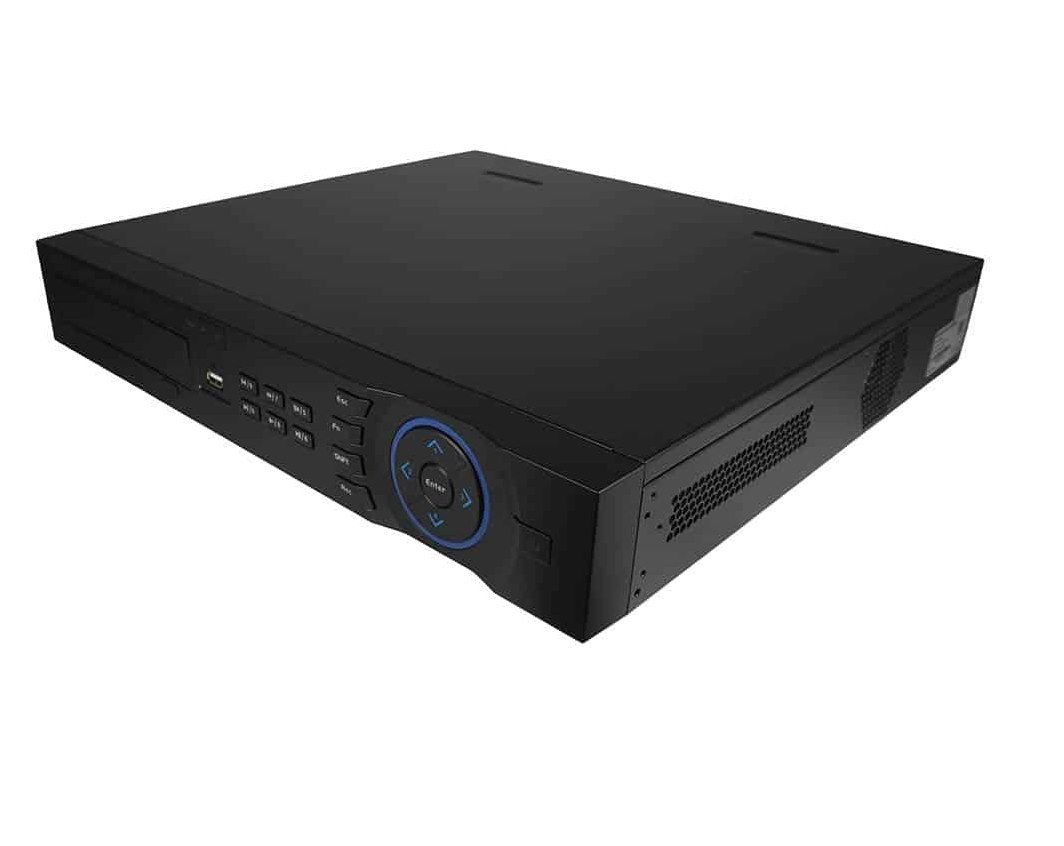

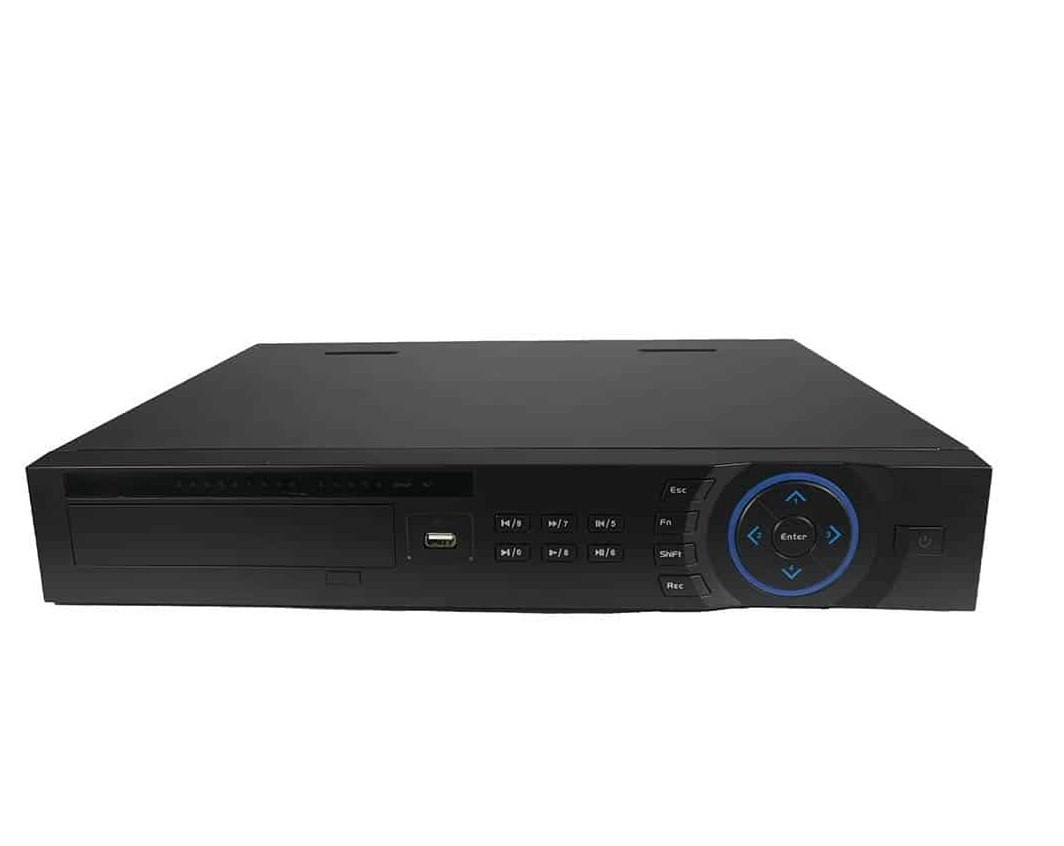

SCK Elite 32 Channel 1.5U Enhanced AI 4K NVR W/ 16 POE

  • Part: 1002168
$1,063.37

Availability

In Stock

The Elite Series 32-Channel 1.5U Enhanced AI 4K NVR delivers enterprise-grade video management with integrated artificial intelligence in a compact, rack-mountable platform. Designed for professional security integrators, this NVR combines 32-channel recording with 16 built-in PoE ports, enabling streamlined deployments for medium to large-scale surveillance environments without the need for external switching.

Advanced AI capabilities are built directly into the recorder, including face detection and recognition, perimeter protection, and SMD Plus human and vehicle filtering to significantly reduce false alarms. When paired with AI-enabled cameras, the system expands analytics to include AcuPick search, people counting, heat mapping, ANPR, video metadata analysis, and stereo analytics, delivering actionable intelligence beyond traditional video monitoring.

Engineered on an industrial-grade Linux platform, this NVR supports Smart H.265+ compression, multi-screen HDMI output up to 36-view layouts, flexible alarm I/O, and ONVIF 22.06 compatibility for seamless third-party camera integration. It is an ideal solution for organizations requiring scalable performance, advanced AI analytics, and centralized surveillance management.

Ideal for:

  • Corporate campuses and enterprise facilities

  • Retail environments with people counting and heat maps

  • Transportation and parking applications using ANPR

  • Multi-building and high-security installations

System

  • Channels: 32

  • Form Factor: 1.5U

  • Processor: Industrial-grade processor

  • Operating System: Embedded Linux

  • User Interface: Web interface, Local GUI

AI Features

AI by Recorder

  • Face Detection & Recognition: 2 channels

  • Perimeter Protection: 4 channels (10 IVS rules per channel)

  • SMD Plus: 8 channels (human & vehicle secondary filtering)

AI by Camera

  • Face detection & recognition

  • Video metadata (humans, motor vehicles, non-motor vehicles)

  • Perimeter protection

  • SMD Plus

  • Stereo analysis

  • Crowd distribution

  • People counting

  • ANPR

  • Vehicle density detection

  • Heat mapping

Advanced AI Capabilities

  • AcuPick: Up to 16 channels (1 combined event per channel per second)

  • Face Attributes: Gender, age group, glasses, expressions, face mask, beard

  • Face Recognition Performance (Recorder):

    • 16-channel FD (camera) + FR (recorder): 16 face images/sec (image stream)

    • 2-channel FD + FR (recorder): 12 face images/sec (video stream)

  • Face Recognition Performance (Camera): 16 channels

  • License Plate Database: Up to 20,000 entries (blocklist & allowlist)

Video

  • Access Channels: 32

  • Supported Resolutions:

    • 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP

    • 1080p, 720p, D1, CIF, QCIF

Decoding Capability (AI Disabled)

  • 2 × 32MP @ 20 fps

  • 2 × 24MP @ 20 fps

  • 4 × 16MP @ 30 fps

  • 5 × 12MP @ 30 fps

  • 8 × 8MP @ 30 fps

  • 12 × 5MP @ 30 fps

  • 16 × 4MP @ 30 fps

  • 32 × 1080p @ 30 fps

Decoding Capability (AI Enabled)

  • 1 × 32MP @ 20 fps

  • 1 × 24MP @ 20 fps

  • 2 × 16MP @ 30 fps

  • 4 × 12MP @ 30 fps

  • 4 × 8MP @ 30 fps

  • 8 × 5MP @ 30 fps

  • 12 × 4MP @ 30 fps

  • 24 × 1080p @ 30 fps

Video Output

  • HDMI: 2 ports

  • VGA: 2 ports

  • HDMI Resolution:

    • 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

  • VGA Resolution:

    • 1920 × 1080, 1280 × 1024, 1280 × 720

  • Multi-Screen Display:

    • Main Screen: 1 / 4 / 8 / 9 / 16 / 25 / 36

    • Sub Screen: 1 / 4 / 8 / 9 / 16

Compression

  • Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Network

  • Bandwidth (AI Disabled):

    • 384 Mbps incoming / recording / outgoing

  • Bandwidth (AI Enabled):

    • 200 Mbps incoming / recording / outgoing

  • Network Port:

    • 1 × Gigabit Ethernet (RJ-45)

  • Network Protocols:

    • P2P, Auto Registration, iSCSI

  • Interoperability:

    • ONVIF 22.06 (Profiles T, S, G), CGI, SDK

  • Third-Party Camera Support:

    • ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

  • Mobile Access: iOS, Android

  • Browser Support: Chrome, IE, Safari, Edge, Firefox

Storage

  • HDD Interface: 4 × SATA ports

  • Maximum HDD Capacity: Up to 16TB per drive

  • Disk Group: Supported

  • eSATA: 1 port

Recording & Playback

  • Recording Modes: General, Motion Detection, Intelligent, Alarm, POS

  • Playback: Up to 16 channels

  • Playback Modes:

    • Instant playback

    • General playback

    • Event playback

    • Tag playback

    • Smart playback (face & motion detection)

  • Backup Methods: USB device, Network

Alarm

  • Alarm Inputs: 16

  • Alarm Outputs: 6 (1 × 12V 1A output)

Alarm Types

  • General: Motion detection, privacy masking, local alarm

  • Anomaly: Camera offline, storage error, disk full, IP/MAC conflict, login lock, fan abnormality, cybersecurity exception

  • Intelligent: Face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, ANPR, vehicle density, heat map

Alarm Linkage

  • Recording

  • Snapshot (panoramic)

  • Local alarm output

  • IPC external alarm output

  • Access controller

  • Audio alert

  • Buzzer

  • Log, preset, email

Audio

  • Audio Input: 1 × RCA

  • Audio Output: 2 × RCA

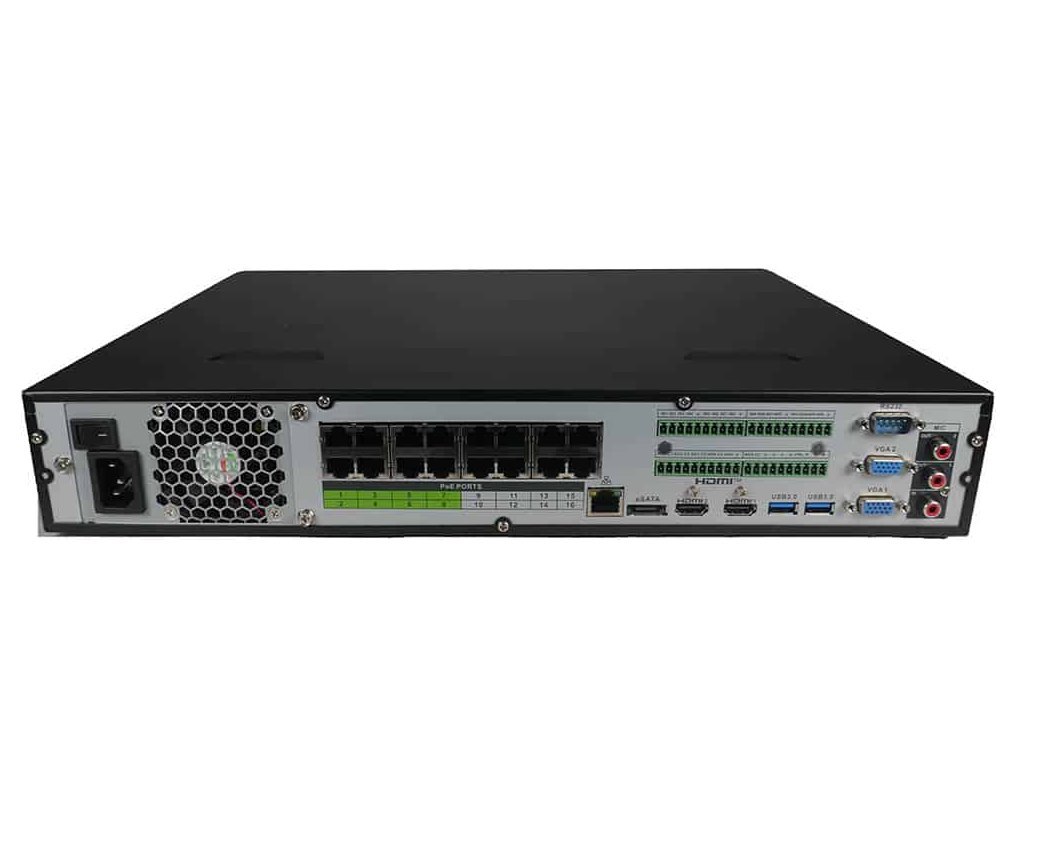

Ports & Interfaces

  • PoE Ports:

    • 16 × IEEE 802.3af/at (10/100 Mbps)

    • Ports 1–8 support ePoE

  • USB:

    • 3 ports (1 front USB 2.0, 2 rear USB 3.0)

  • RS-232: 1

  • RS-485: 1 (half-duplex)

  • HDMI: 2

  • VGA: 2

Power

  • Power Supply: 100–240 VAC, 50–60 Hz

  • NVR Power Consumption: ≤ 13W (without HDD)

  • Total PoE Power Budget: 150W

  • Maximum PoE Output per Port: 25.5W

Physical

  • Product Dimensions (W × D × H):

    • 440.0 × 415.1 × 70.0 mm (17.32" × 16.34" × 2.76")

  • Net Weight: 4.82 kg (10.63 lb)

  • Gross Weight: 7.09 kg (15.63 lb)

Environmental

  • Operating Temperature: –10°C to +55°C (14°F to +131°F)

Security & Reliability

  • Security Baseline: 2.3

  • N+M Cluster Support: Yes
