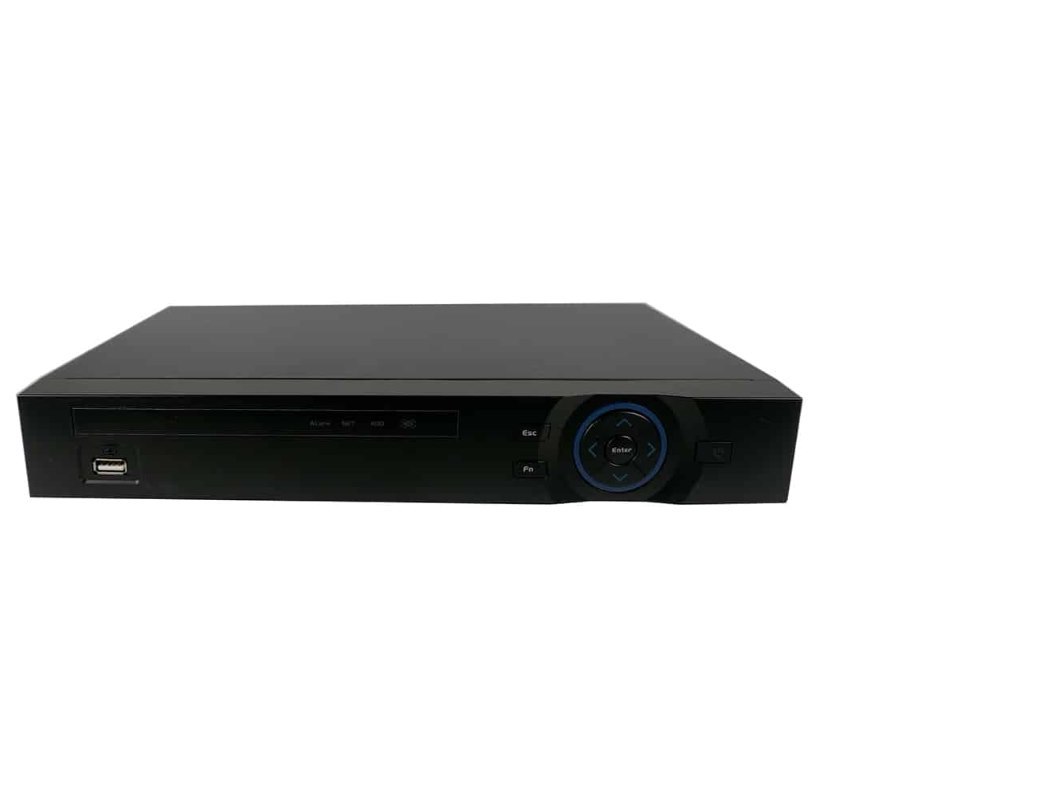

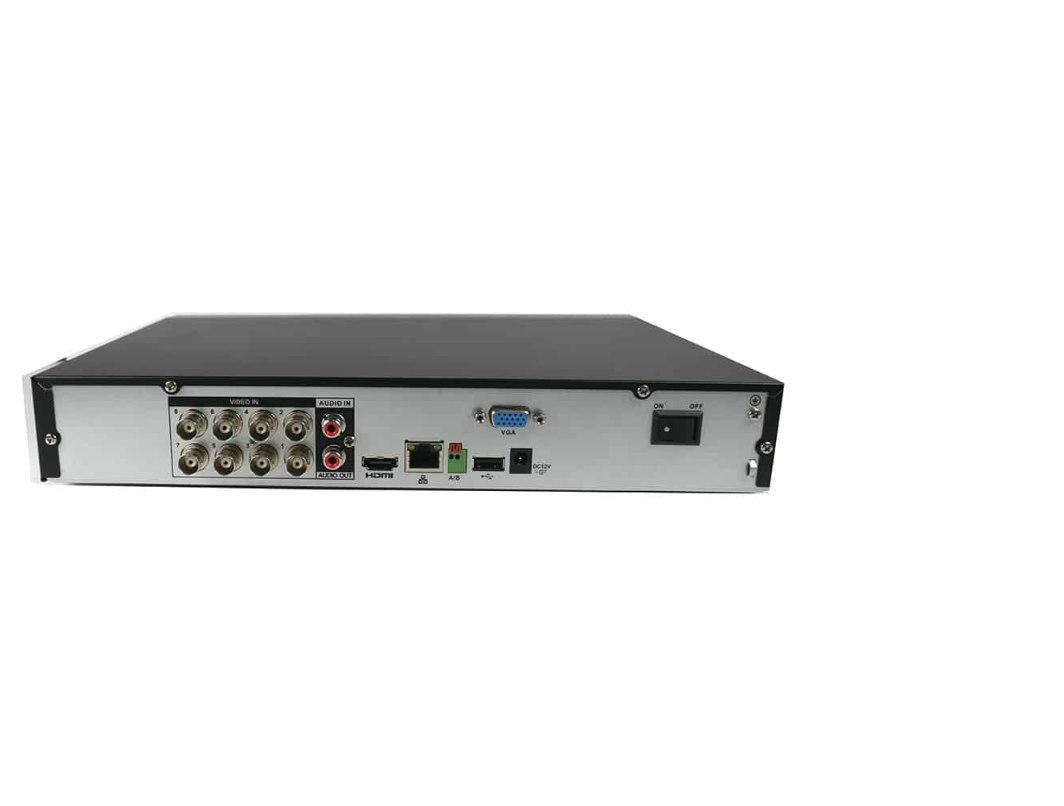

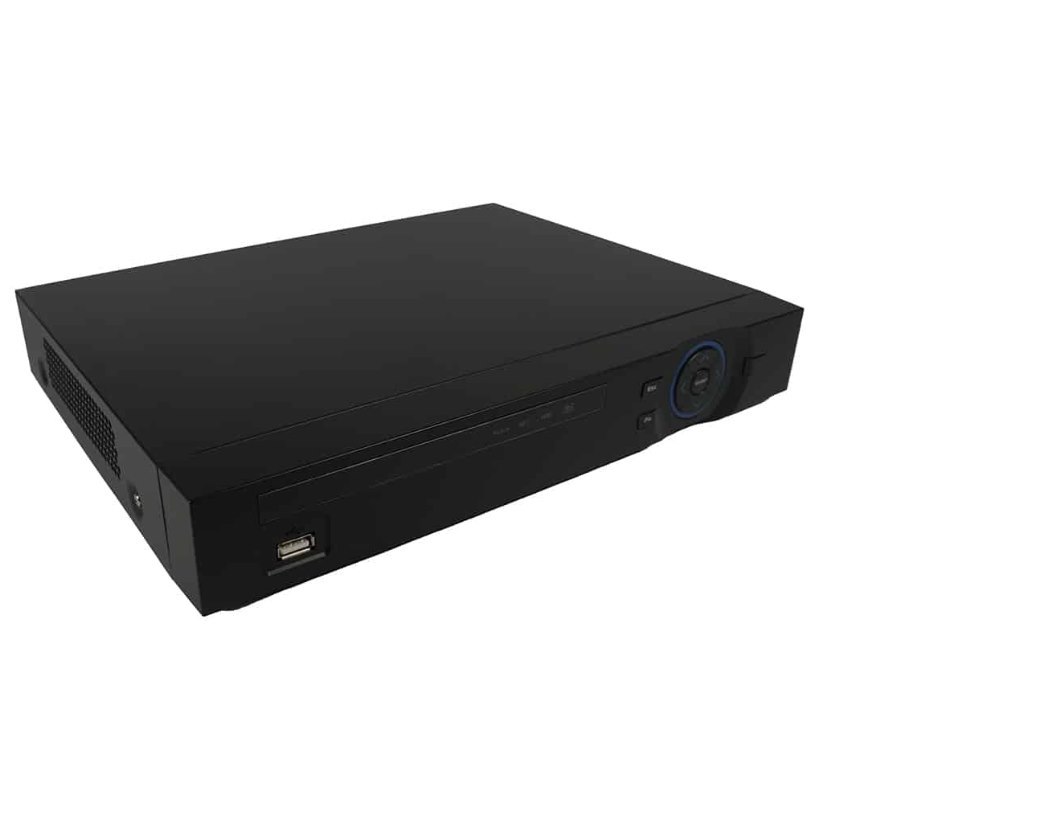

The SecurityCameraKing 8-Channel Mini 1U DVR is engineered for professional security installations that require advanced AI-powered video analytics in a compact footprint. Supporting multiple high-definition camera formats and intelligent processing, this recorder provides installers with a flexible, space-efficient platform for modern surveillance systems featuring smart detection and facial recognition capabilities.
Recorder Specifications
Recorder Type: Digital Video Recorder (DVR)
Channels: 8 analog channels plus 4 additional IP channels (12 total)
Recording Resolution: Supports 5M-N, 4M-N, 1080p, 1080N, 720p, 960H, D1, and CIF
Maximum Resolution: 5 Megapixel
Compression: AI Coding, H.265+, H.265, H.264+, and H.264 dual-stream
IP Camera Support: Supports IP cameras up to 6 MP per channel with 64 Mbps incoming bandwidth
Storage Capacity: Single SATA port supporting hard drives up to 10 TB
Technology: HD-4-in-1 (HDCVI / AHD / TVI / CVBS) and Network IP
Compatibility: SecurityCameraKing Elite Series
Product Line: Elite Series Line
Physical Specifications
Form Factor: 325.0 × 256.6 × 55.0 mm (12.80" × 10.10" × 2.17")
Weight: 5 lbs
Dimensions: 16 × 13 × 6 in

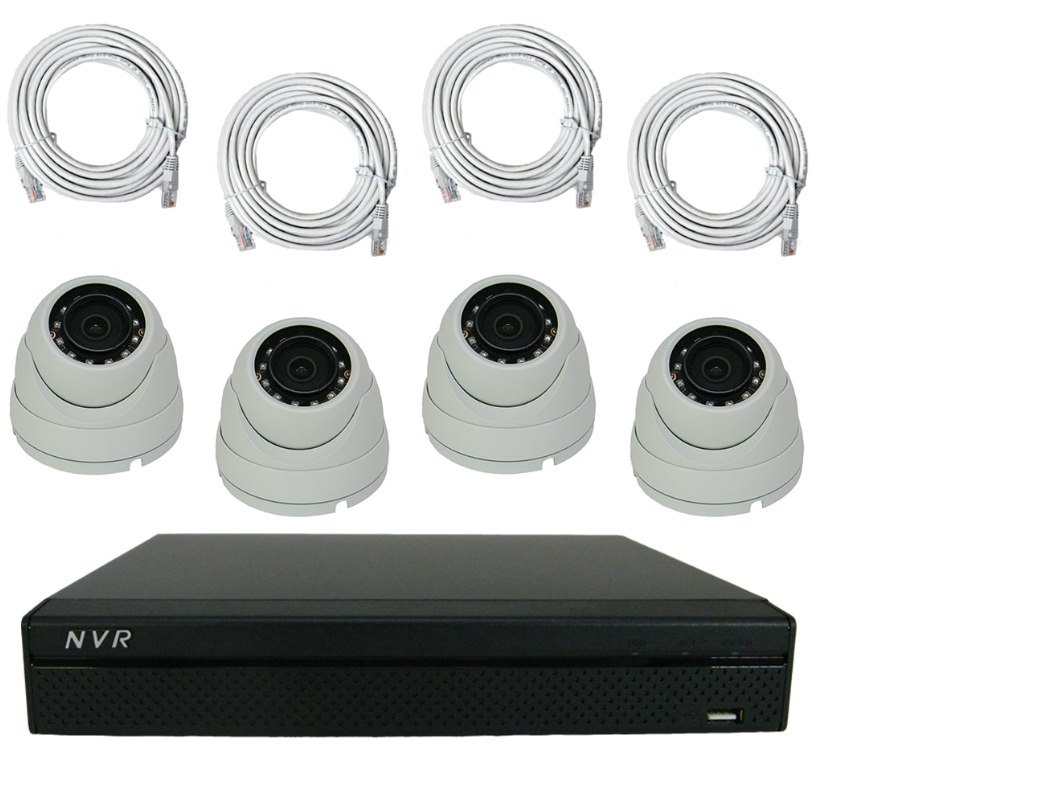

![SCK 4 Channel [NVR] with Four 2MP Dome Cameras](https://cdn.kaseyaquotemanager.com/twojdata/productimages/1002144_ba62c328-1e4c-432c-9b78-ea5602ee9e90.jpg?width=120&height=120&fit=pad)
