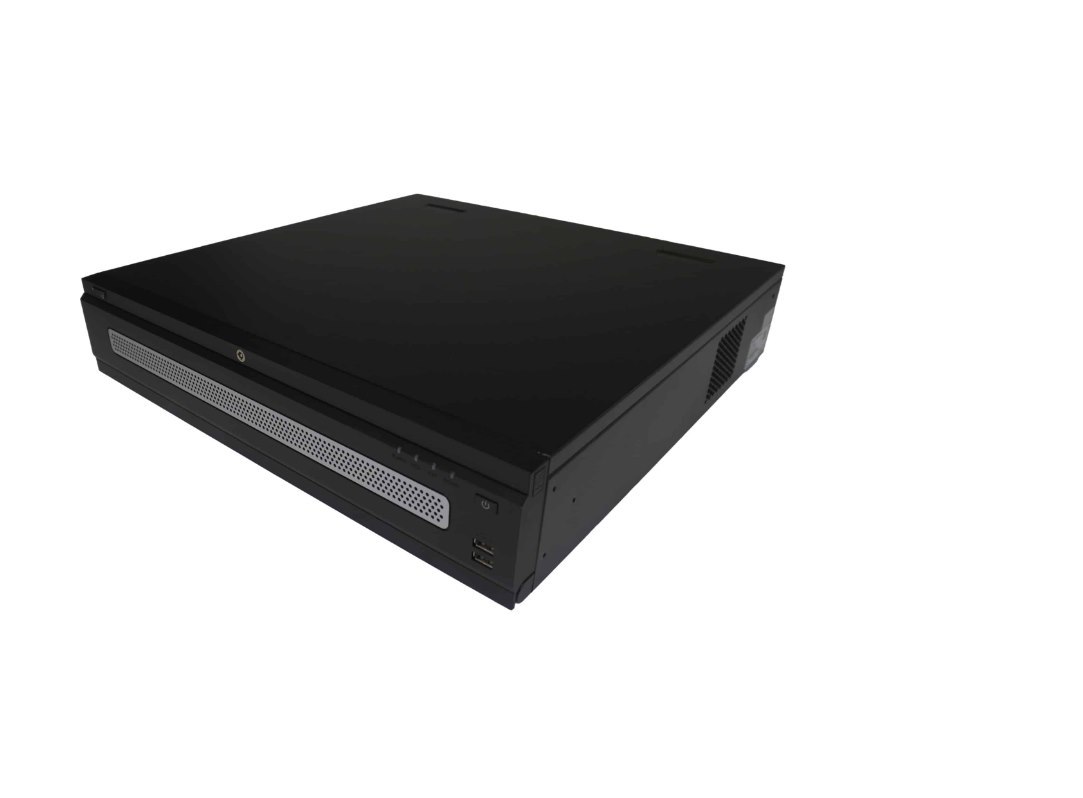

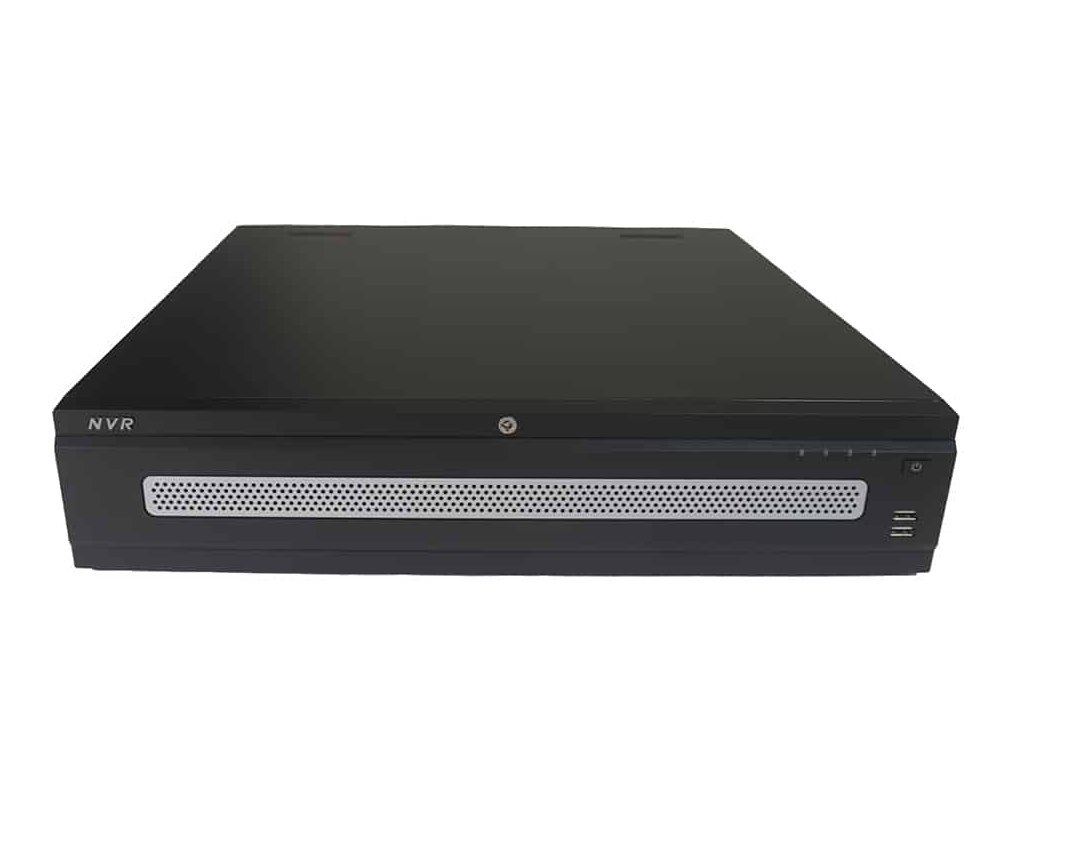

Designed for large-scale commercial and enterprise deployments, this Elite Series network video recorder delivers powerful 64-channel IP recording with advanced AI analytics and a hot-swappable storage architecture in a compact 2U chassis. Built for professional integrators, it provides the performance, scalability, and reliability required for complex, mission-critical surveillance environments.
Enterprise-grade AI processing includes onboard face detection and recognition, perimeter protection with up to 10 IVS rules per channel, intelligent metadata analysis, and high-capacity SMD Plus filtering to dramatically reduce false alarms. When paired with AI-enabled cameras, the system expands analytics across all channels to support facial recognition, ANPR, people counting, and advanced vehicle and behavior analysis.
✓
N+M clustering and RAID support enable scalable, redundant recording for high-availability installations
With support for resolutions up to 32MP, flexible decoding configurations, extensive alarm and I/O integration, and low power consumption under 18W (without drives), this NVR delivers enterprise-level capability in a space-efficient 2U design—ideal for campuses, transportation hubs, retail complexes, healthcare facilities, and other high-demand security environments.
System
Channels: 64
Form Factor: 2U rack-mount
HDD Bays: 8
Hot-Swappable Storage: Yes (drawer-style chassis)
RAID Support: RAID 0 / 1 / 5 / 6 / 10
Disk Group Management: Yes
Cluster Support: N+M clustering
Video
Supported Resolutions:
32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1
Decoding Capability:
2 × 32MP @ 30fps
2 × 24MP @ 30fps
4 × 16MP @ 30fps
8 × 8MP @ 30fps
16 × 4MP @ 30fps
32 × 1080p @ 30fps
72 × 720p @ 30fps
160 × D1 @ 30fps
Self-Adaptive Decoding: 32 × 1080p
Network
Incoming Bandwidth: 1024 Mbps
Recording Bandwidth: 1024 Mbps
Outgoing Bandwidth: 800 Mbps
Network Ports:
2 × RJ-45 (10/100/1000/2500 Mbps)
Network Port Modes:
Load balancing
Fault tolerance
Port binding
AI Features
AI by Recorder:
Face Detection & Recognition: 4 channels
Video Metadata Analysis: 8 channels
Perimeter Protection: 24 channels (10 IVS rules per channel)
SMD Plus: 32 channels
AI by Camera:
Face detection & recognition
Perimeter protection
SMD Plus
Video metadata
ANPR
People counting
Face Attributes:
Gender
Age group
Glasses
Expressions
Face mask
Beard
Perimeter Protection (Camera-Based): Up to 64 channels
Recording & Playback
Record Modes: Manual, alarm, motion detection, scheduled
Multi-Channel Playback: Up to 16 channels
Playback Functions:
Play / Pause / Stop
Fast forward / rewind
Frame-by-frame playback
Full screen
Partial zoom
Audio on/off
Backup Methods:
Portable HDD
eSATA disk
Burner
USB device
Network
Video Output
VGA Outputs:
2 ports (up to 1080p simultaneous output)
HDMI Outputs:
4 ports
Alarm
General Alarms:
Motion detection
Video tampering
Video loss
Scene change
PIR alarm
IPC external alarm
Anomaly Alarms:
Camera offline
Storage error
Disk full
IP conflict
MAC conflict
Login lock
Fan abnormality
Intelligent Alarms:
Face detection & recognition
Perimeter protection (intrusion / tripwire)
SMD Plus
ANPR
People counting
Stereo analysis
Crowd distribution
Heat map
Alarm Inputs: 16 channels
Alarm Outputs: 8 channels
Alarm Linkage:
Recording
Snapshot
IPC external alarm output
Buzzer
Log
Preset
Email

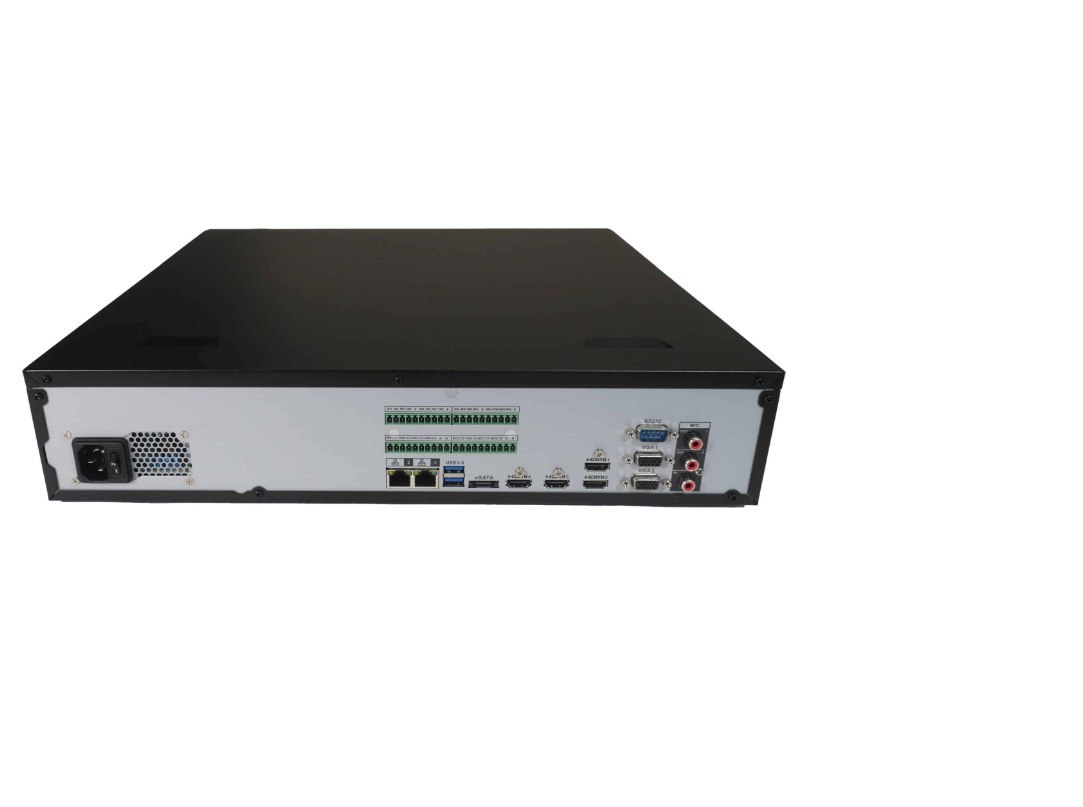

Ports & Interfaces
Audio Input: 1 × RCA
Audio Output: 2 × RCA
HDD Interface: 8 × SATA (up to 16TB per drive)
eSATA: 1 port
RS-232: 1 port
RS-485: 1 × A/B
USB:
2 × front USB 2.0
2 × rear USB 3.0
Power
Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: < 18W (without HDDs)
Physical
Dimensions:
444.0 × 452.0 × 95.0 mm
(17.48 × 17.80 × 3.74 in)
Net Weight: 6.4 kg (14.11 lb) without HDD
Gross Weight: 10.35 kg (22.82 lb) without HDD
