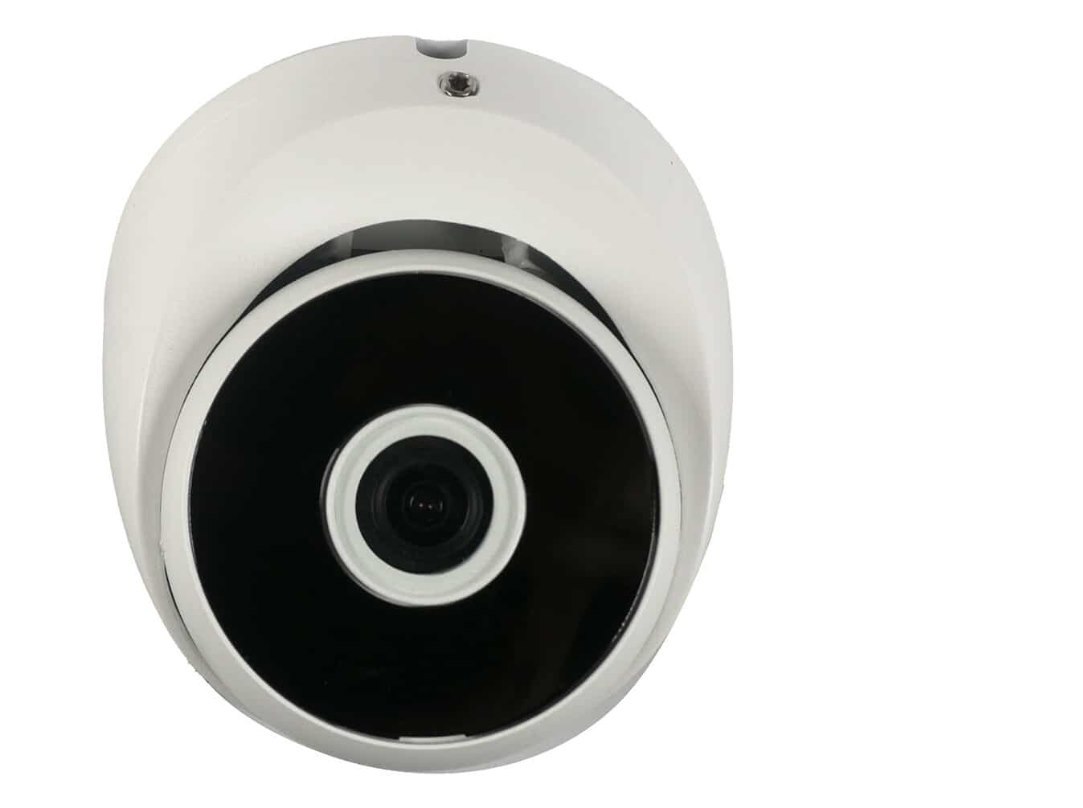

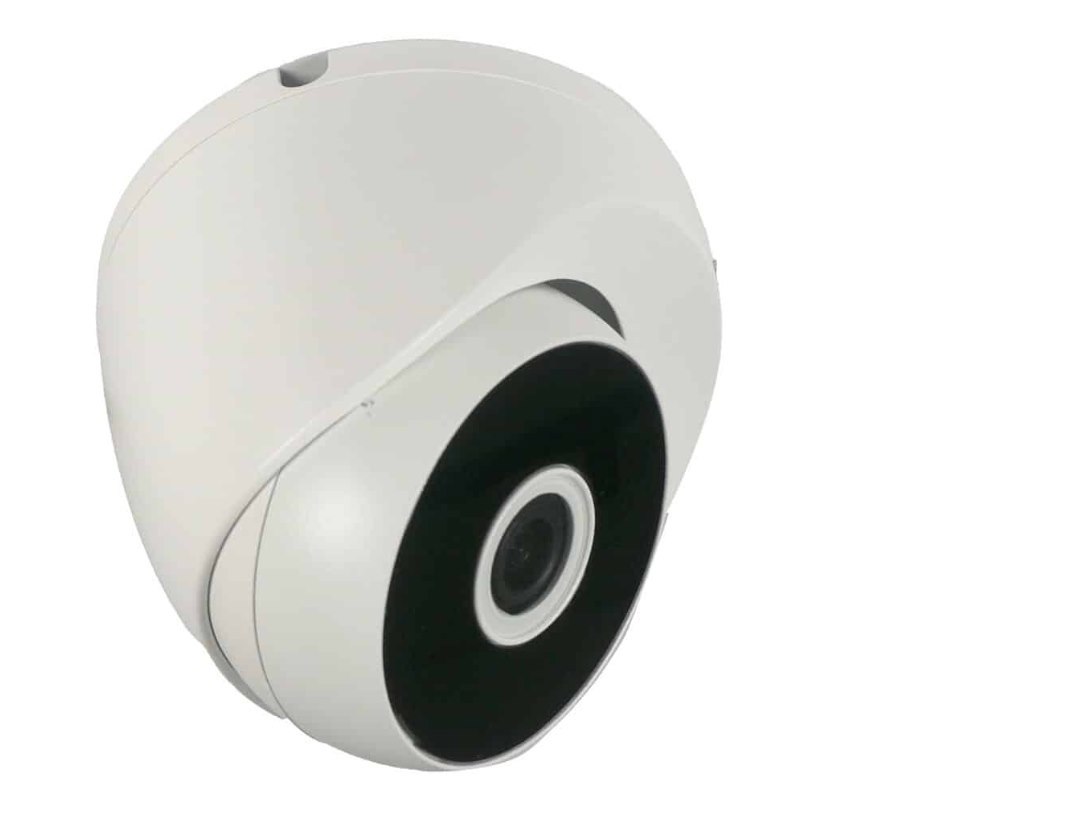

The SecurityCameraKing Elite Series Turret Camera delivers reliable 1080p HD surveillance with exceptional format flexibility for professional security installations. This 2-megapixel eyeball-style camera supports quad-format output—CVI, TVI, AHD, and CVBS—allowing seamless integration with existing systems through a single BNC connection. Housed in durable metal with an IP67 weatherproof rating, it is engineered for dependable performance in both indoor and outdoor environments.
Advanced Imaging Performance
Equipped with a high-quality 2MP CMOS sensor and progressive scan technology, the camera captures smooth, full-resolution 1080p video at 25/30 fps. Excellent low-light sensitivity delivers clear color images down to 0.02 lux, while automatic infrared activation ensures visibility in complete darkness. Dual IR illuminators provide consistent nighttime coverage, and Digital Wide Dynamic Range (DWDR) balances scenes with challenging lighting. Integrated 2D noise reduction minimizes grain and bandwidth usage, while a signal-to-noise ratio exceeding 65 dB ensures crisp, professional video quality.
✓
Rugged metal construction with IP67 protection supports continuous operation in extreme temperatures from –40°F to +140°F and up to 95% humidity
Installation Advantages
The compact turret design measures just 3.7 inches in diameter and weighs only 0.6 lb, making it ideal for space-constrained installations. Three-axis adjustment allows 360° pan, up to 78° tilt, and full rotational alignment for precise positioning. Flexible mounting options include wall, ceiling, and vertical pole installations. The camera operates on standard 12V DC power with wide voltage tolerance and consumes less than 2.8W with infrared active. A close minimum focus distance of 0.5 meters and wide-angle coverage allow effective monitoring of both near and expansive areas.
Ideal Applications
Retail locations requiring wide-area HD coverage
Office buildings transitioning from analog to HD-over-coax
Warehouses and loading docks needing durable outdoor cameras
Educational facilities with mixed recording infrastructure
Multi-site deployments requiring consistent, flexible camera platforms
Camera & Image
Image Sensor: 2 MP CMOS
Maximum Resolution: 1920 (H) × 1080 (V)
Scanning System: Progressive
Electronic Shutter:
PAL: 1/25 s – 1/100,000 s
NTSC: 1/30 s – 1/100,000 s
Minimum Illumination:
Color: 0.02 lux @ F2.0 (30 IRE)
B/W: 0.002 lux @ F2.0 (30 IRE)
0 lux (IR on)
Signal-to-Noise Ratio: >65 dB
Day/Night Mode: Auto (ICR) / Color / B/W
Backlight Compensation: BLC, DWDR
Wide Dynamic Range: DWDR
White Balance: Auto
Gain Control: Auto
Noise Reduction: 2D NR
Lens
Lens Type: Fixed focal
Lens Mount: M12
Focal Length: 2.8 mm
Maximum Aperture: F2.0
Field of View:
Horizontal: 100°
Vertical: 54°
Diagonal: 117°
Iris Control: Fixed
Minimum Focus Distance: 0.5 m (1.64 ft)
Night Vision
Illumination Mode: Smart IR
IR Distance: Up to 20 m (65.6 ft)
IR Control: Automatic
IR LEDs: 2 (Infrared)
Video
Frame Rate:
CVI/AHD/TVI:
PAL: 1080p @ 25 fps
NTSC: 1080p @ 30 fps
CVBS:
PAL/NTSC: 960H
Video Resolution:
1080p (1920 × 1080)
960H (960 × 576 / 960 × 480)

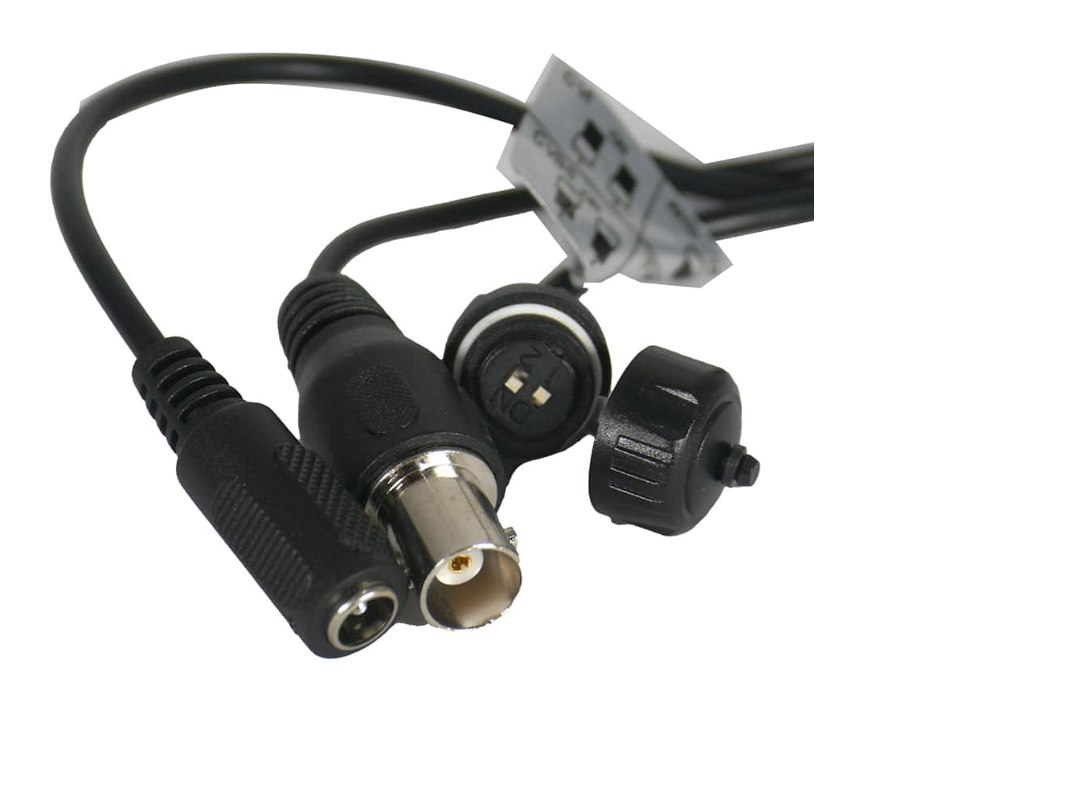

Video Output: CVI / TVI / AHD / CVBS via single BNC
Power
Power Supply: 12 VDC ±30%
Power Consumption: Max 2.8 W (IR on)
Physical
Housing Material: Metal
Dimensions: Φ94.0 mm × 78.0 mm (Φ3.70" × 3.07")
Net Weight: 0.27 kg (0.60 lb)
Gross Weight: 0.35 kg (0.77 lb)
Mounting Options: Wall, ceiling, vertical pole
Adjustment Range:
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Environmental
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: <95% RH (non-condensing)
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity: <95% RH (non-condensing)
Ingress Protection: IP67
Anti-Corrosion Rating: Basic Protection
Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032, EN 55035
FCC: 47 CFR Part 15, Subpart B
DORI Performance
Detect: 44.7 m (146.7 ft)
Observe: 17.9 m (58.7 ft)
Recognize: 8.9 m (29.2 ft)
Identify: 4.5 m (14.8 ft)
