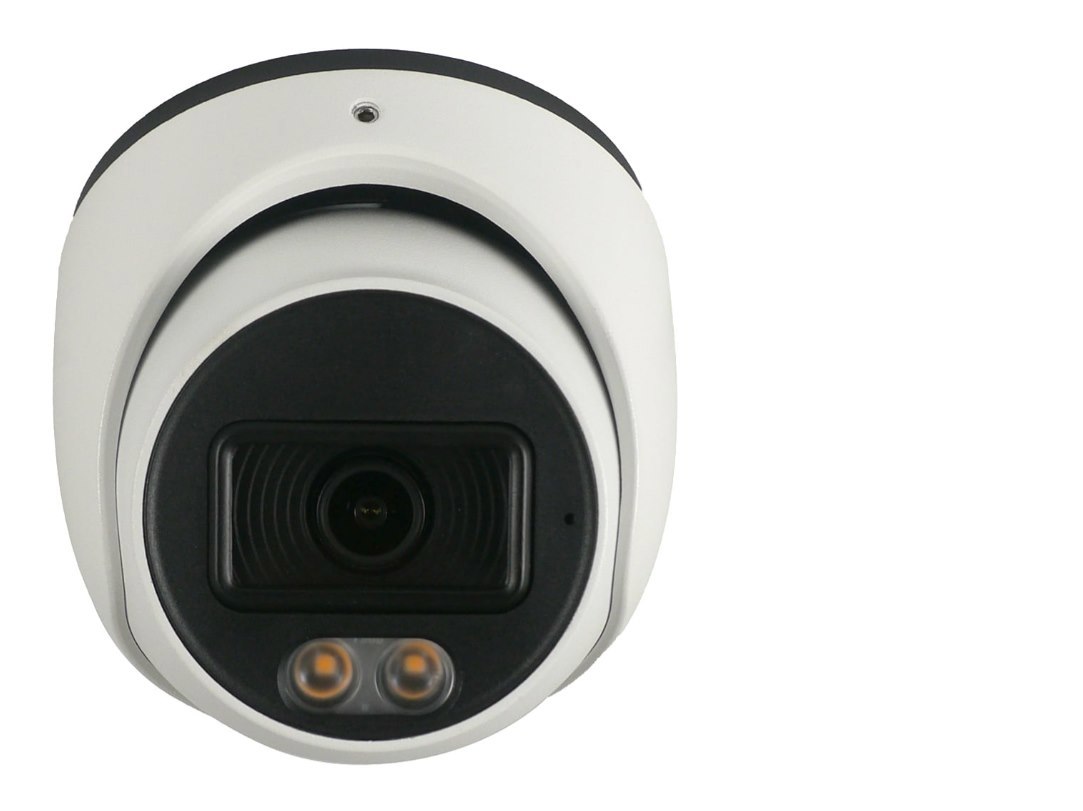

SCK 2MP HD Over Coax 24/7 Color with White LED 2.8mm Dome Security Camera

  • Part: 1002174
$33.00

Availability

In Stock

Deliver true 24/7 full-color surveillance with this professional-grade 2MP dome camera from SecurityCameraKing. Powered by integrated white LED illumination, this HD-over-coax solution captures vibrant, color-accurate video even in complete darkness—eliminating the guesswork of traditional infrared systems and providing security professionals with critical visual detail when it matters most.

Advanced Imaging Performance

This camera leverages intelligent image processing to maintain exceptional clarity in challenging lighting environments. Digital Wide Dynamic Range balances high-contrast scenes, while 2D and 3D Digital Noise Reduction minimize grain in low-light conditions. Automatic Gain Control and Backlight Compensation work together to preserve subject detail in uneven lighting. Flexible exposure options—including global and center-weighted modes—combined with adjustable contrast, sharpness, and saturation allow fine-tuned image control through the on-screen display, accessible via convenient COC control.

✓
Quad-format output (AHD / TVI / CVI / CVBS) ensures seamless integration with existing analog and HD-over-coax infrastructures

Built for Professional Installation

Designed for demanding commercial environments, this dome camera operates reliably in temperatures from -22°F to 122°F with humidity tolerance up to 90% RH. Its IP67-rated housing provides complete protection against dust and water intrusion. Installation flexibility is enhanced with 360° pan, 0°–75° tilt, and 360° rotation, enabling precise camera alignment. The compact form factor measures 3.72" × 3.26" and weighs just 0.86 lb, making it ideal for discreet deployments. Efficient power consumption draws under 1W with LEDs off and less than 3W at full illumination, operating on standard 12V DC power.

Ideal Applications

  • Retail locations requiring accurate color identification at night

  • Parking garages and vehicle access areas needing reliable color capture

  • Commercial properties upgrading legacy analog systems

  • Multi-format installations demanding maximum compatibility and flexibility

Camera & Image

  • Image Sensor: 1/2.8" CMOS

  • Resolution: 2MP

  • Image Size: 1920 × 1080

  • Video Output: AHD / TVI / CVI / CVBS (quad-format)

  • Image System: PAL / NTSC

  • Frame Rate:

    • 30fps (60Hz)

    • 25fps (50Hz)

  • Minimum Illumination: 0 lux (LED ON)

  • Electronic Shutter: Auto

  • Signal-to-Noise Ratio: ≥52dB (AGC OFF)

Lens

  • Focal Length: 3.6mm (2.8mm optional)

  • Lens Mount: M12

Night Vision

  • LED Illumination Distance: 20–30m

  • Smart LED: Manual or Auto mode

  • ICR (IR Cut Filter): No

Image & Camera Functions

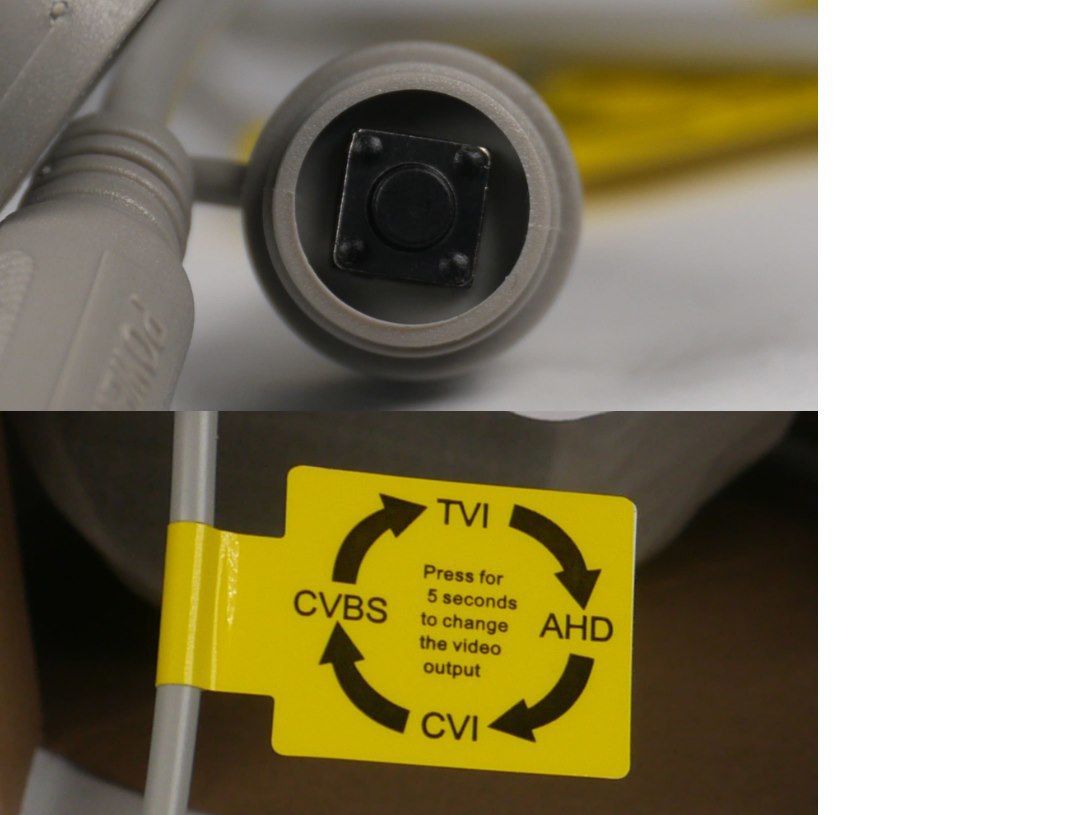

  • Menu Control: OSD via COC control

  • Digital WDR: Yes

  • Noise Reduction: 2D / 3D DNR

  • Automatic Gain Control (AGC): Yes

  • Exposure Modes:

    • Global Exposure

    • Central Exposure

  • Auto White Balance: Yes

  • Backlight Compensation (BLC): Yes

  • Front Light Compensation: Yes

  • Image Adjustments:

    • Contrast

    • Saturation / Color Gain

    • Sharpness

  • Image Settings: Supported

  • Defect Correction: Auto

  • OSD Languages: Chinese, English

Mechanical Adjustment

  • Pan: 0°–360°

  • Tilt: 0°–75°

  • Rotation: 0°–360°

Power

  • Power Supply: DC 12V (±15%)

  • Power Consumption:

    • LED OFF: <1W

    • LED ON: <3W

Physical

  • Dimensions: Ø94.6 × 82.8 mm

  • Weight: Approx. 0.39 kg (0.86 lb)

Environmental

  • Ingress Protection: IP67

  • Operating Temperature: –30°C to 50°C (–22°F to 122°F)

  • Operating Humidity: 10%–90% RH
