System

• Channels: 16

• Processor: Industrial-grade processor

• Operating System: Embedded Linux

• Operating Interface: Web interface; local GUI

• Form Factor: 1.5U

AI Features

• AI by NVR:

  • Face detection & recognition: 1 channel (up to 12 face images/sec)

  • Perimeter protection: 2 channels, up to 10 IVS rules per channel

  • SMD Plus: 4 channels (human & vehicle filtering)

• AI by Camera:

  • Face detection & recognition

  • Perimeter protection

  • SMD Plus

  • ANPR (license plate recognition)

  • People counting

  • Stereo analysis

  • Heat map

• Face Attributes Analyzed:

  • Gender, age group, glasses, expressions, face mask, beard

• Face Database Capacity:

  • Up to 10 databases

  • 20,000 face images total (2.5 GB capacity)

• Face Recognition Performance:

  • NVR-based:

    • 1-channel FD + FR @ 12 images/sec

  • Camera-based:

    • Up to 8 channels FD/FR @ 12 images/sec

• License Plate Database:

  • Up to 20,000 plates

  • Blocklist and allowlist supported

Video

• Supported Resolutions:

  • 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP

  • 1080p, 960p, 720p, D1, CIF

• Decoding Capability (AI Disabled):

  • 2 × 16MP @ 30 fps

  • 2 × 12MP @ 30 fps

  • 4 × 8MP @ 30 fps

  • 6 × 5MP @ 30 fps

  • 8 × 4MP @ 30 fps

  • 16 × 1080p @ 30 fps

• Decoding Capability (AI Enabled):

  • 1 × 16MP @ 30 fps

  • 2 × 12MP @ 30 fps

  • 3 × 8MP @ 30 fps

  • 4 × 5MP @ 30 fps

  • 6 × 4MP @ 30 fps

  • 12 × 1080p @ 30 fps

• Video Outputs:

  • 1 × HDMI

  • 1 × VGA

• HDMI Resolutions:

  • 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

• VGA Resolutions:

  • 1920 × 1080, 1280 × 1024, 1280 × 720

• Multi-Screen Display:

  • Screen 1: 1 / 4 / 8 / 9 / 16

  • Screen 2: 1 / 4 / 8 / 9 / 16

Compression

• Video Compression:

  • Smart H.265+, H.265

  • Smart H.264+, H.264

  • MJPEG

• Audio Compression:

  • G.711a, G.711u, PCM, G.726

Network

• Bandwidth (AI Disabled):

  • 256 Mbps incoming / recording / outgoing

• Bandwidth (AI Enabled):

  • 180 Mbps incoming / recording / outgoing

• Network Ports:

  • 2 × Gigabit Ethernet (RJ-45)

• Supported Protocols:

  • HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP

  • DHCP, DNS, IP Filter, PPPoE, DDNS, FTP

  • Alarm Server, IP Search, P2P, Auto Register

• Third-Party Camera Support:

  • Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon, ONVIF

• Interoperability:

  • ONVIF 22.06 (Profiles T / S / G), CGI, SDK

• Mobile Access: iOS, Android

• Browser Support: Chrome, IE9 or later, Firefox

• Security Standard: Security Baseline 2.3

Recording & Playback

• Record Modes:

  • General, motion detection, intelligent, alarm

• Playback:

  • Up to 16-channel simultaneous playback

• Playback Modes:

  • Instant, general, event, tag, smart playback

• Backup Methods:

  • USB device

  • Network backup

• Disk Group Management: Supported

Storage

• HDD Interface:

  • 4 × SATA ports

• Maximum Capacity:

  • Up to 16TB per drive

Alarm

• General Alarms:

  • Motion detection, privacy masking, video loss

  • Scene change, PIR alarm, IPC external alarm

• Anomaly Alarms:

  • Camera disconnection, storage error, disk full

  • IP conflict, MAC conflict, login lock, cybersecurity exception

• Intelligent Alarms:

  • Face detection & recognition

  • Perimeter protection

  • SMD Plus

  • People counting, stereo analysis, heat map

• Alarm Linkage:

  • Recording, snapshot, IPC alarm output

  • Audio alert, buzzer, log, preset, email

• Alarm Inputs: 16

• Alarm Outputs: 4

Audio

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

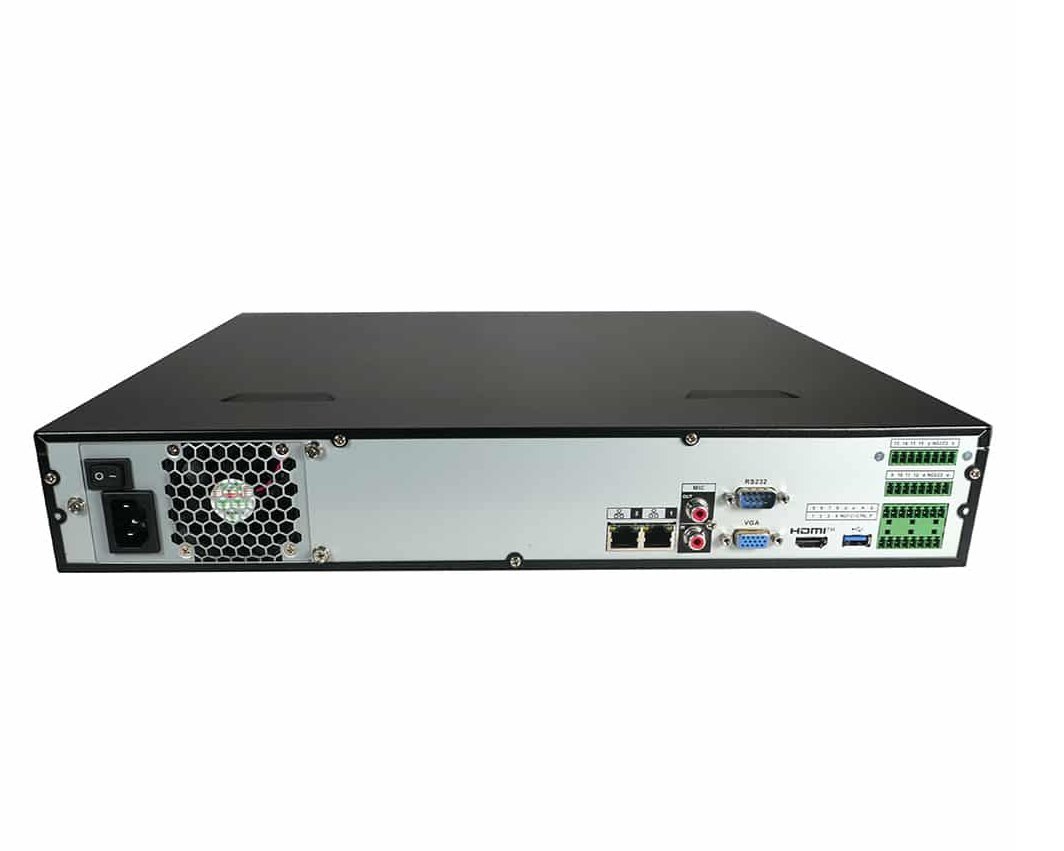

Ports

• USB: 2 (1 front USB 2.0, 1 rear USB 3.0)

• RS-232: 1

• RS-485: 1

• HDMI: 1

• VGA: 1

Power

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: <10W (without HDD)

Physical

• Dimensions:

  • 440.0 × 415.6 × 76.0 mm

  • (17.32" × 16.36" × 2.99")

• Net Weight: 4.25 kg (10.63 lb)

• Gross Weight: 6.35 kg (14.00 lb)
