Smart Detection, Secured Home
By analyzing the shapes of people, vehicles, and pets, RLK8-811B4 can precisely detect these objects. It brings you peace of mind by providing accurate real-time alerts and reducing false alarms.
Double Warning for the Unwelcome
Once an intruder is detected, the camera's spotlights and siren will be triggered or manually activated to warn off the would-be criminal. Stop the crime before it happens.
Two-Way Talk
Built-in mic & speaker allow you to listen and talk back to whoever the camera catches in real time: A "hello" to families and friends or a warning to suspicious strangers.
*Note: This function is only available in Reolink App/Client.
4K 8MP Ultra HD
Color Night Vision
Person/Vehicle Detection
8-Channel NVR
Hardware
Hardware
V2
Video/Audio
Input
IP Video Input
PoE IP camera x 8
Audio Input
Cameras with built-in mic

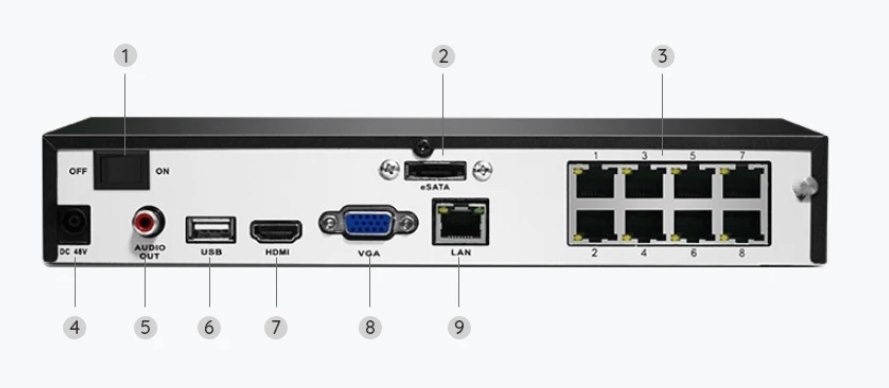

Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
Audio output
1-channel, RCA
Decoding
Video Format
H.264, H.265
Live View/Playback
Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Synchronous
Playback
Up to 4 channels
HDD
SATA
1 x SATA interface (1 x 2TB HDD included)
External HDD
1 eSATA interface for HDD
Capacity
Up to 12TB (max. 6TB capacity for each HDD)
External Interface
USB Interface
2 x USB 2.0
Network Interface
• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for
LAN/WAN
• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP
camera
PoE
Max. Power Per Port
25W
Supported
IEEE 802.3af/at
Network
Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS,
DDNS, NTP, FTP
Browsers Supported
Edge, Firefox, Chrome, Safari
OS Supported
PC: Windows, Mac OS; smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); up to 12
simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~53V
Power
<10W (without HDD & PoE)
Working
Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

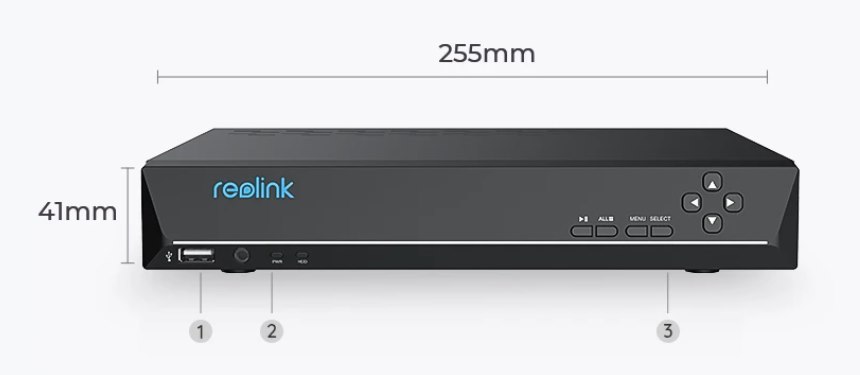

Dimensions
260 x 41 x 230mm
Weight
1.4kg
Warranty
Note:
The cameras of the standard kit cannot work without the NVR.

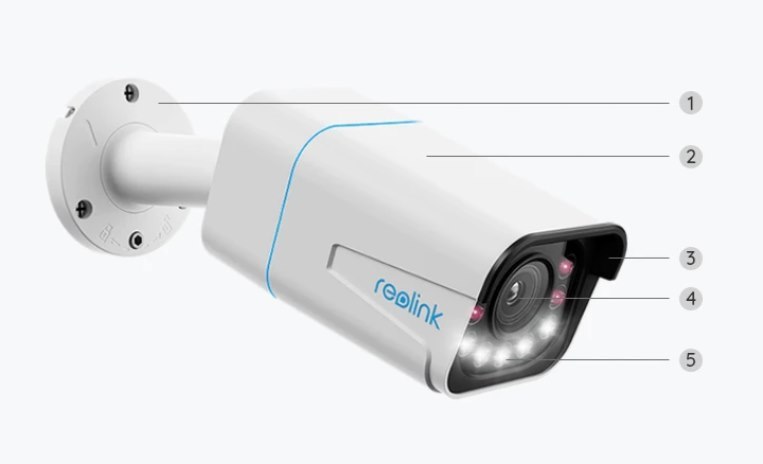

Video & Audio
Image Sensor
1/2.8" CMOS Sensor
Video Resolution
Default: 3840 x 2160 (8.0 megapixels) at 25 frames/sec
Lens
f=2.7-13.5mm F=1.6-3.3, with IR cut
Optical Zoom
5X
Video Format
H.265
Field of View
• Horizontal: 105°- 31°
• Vertical: 55°- 17°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
Up to 30 meters (IR LED: 4pcs/28mil/850nm)
Color Night Vision
Spotlight: 5pcs/4W/6500K/450 lumens
Audio
Two-way audio
Power
PoE
IEEE 802.3af, 48V active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Storage
Micro SD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 25fps (default: 25fps)
• Substream: 4fps - 15fps (default: 10fps)
Code Rate
• Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection; person detection; vehicle detection; pet
detection
Record Mode
Motion recording (default); scheduled recording; 24/7 recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 Users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2
mainstreams)
Work with
Google Assistant
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP67
Size & Weight
Dimension
80 x 72 x 238mm
Weight
838g
Warranty
Limited Warranty
2-Year limited warranty. For support, visit
https://support.reolink.com/hc/en-us/
Limited Warranty
2-year limited warranty with Reolink.
